Sayfa 3-55 - Isuzu EPC

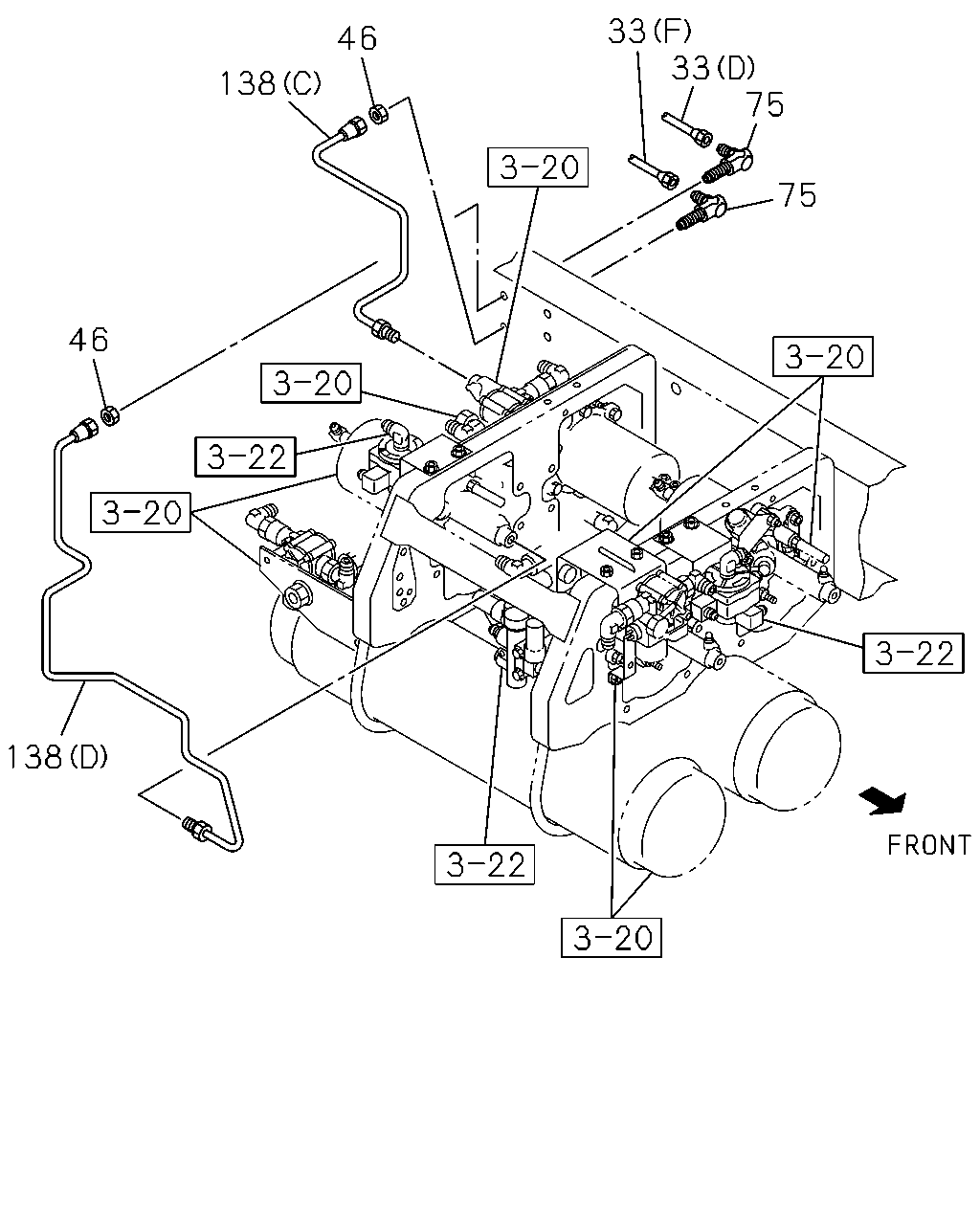

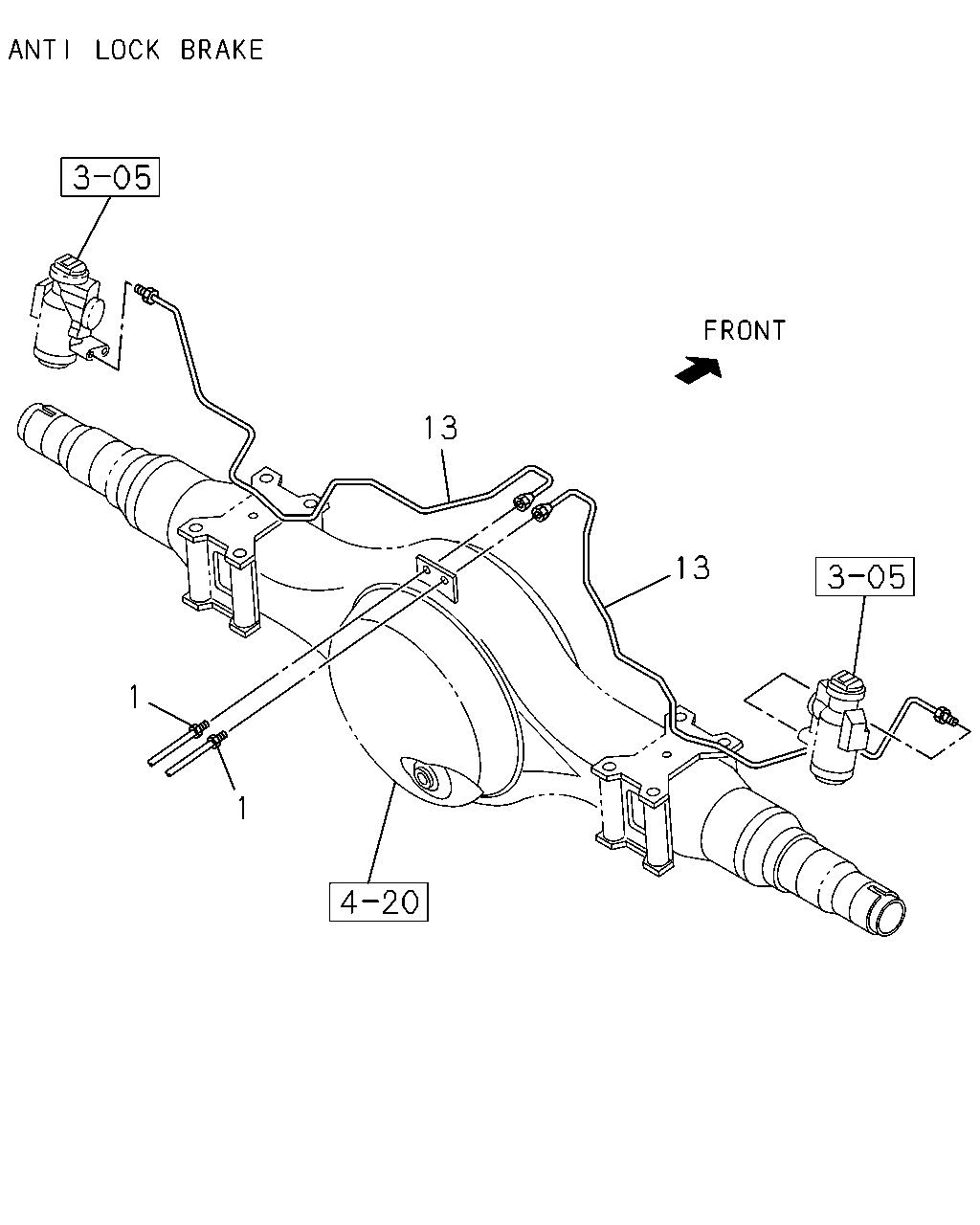

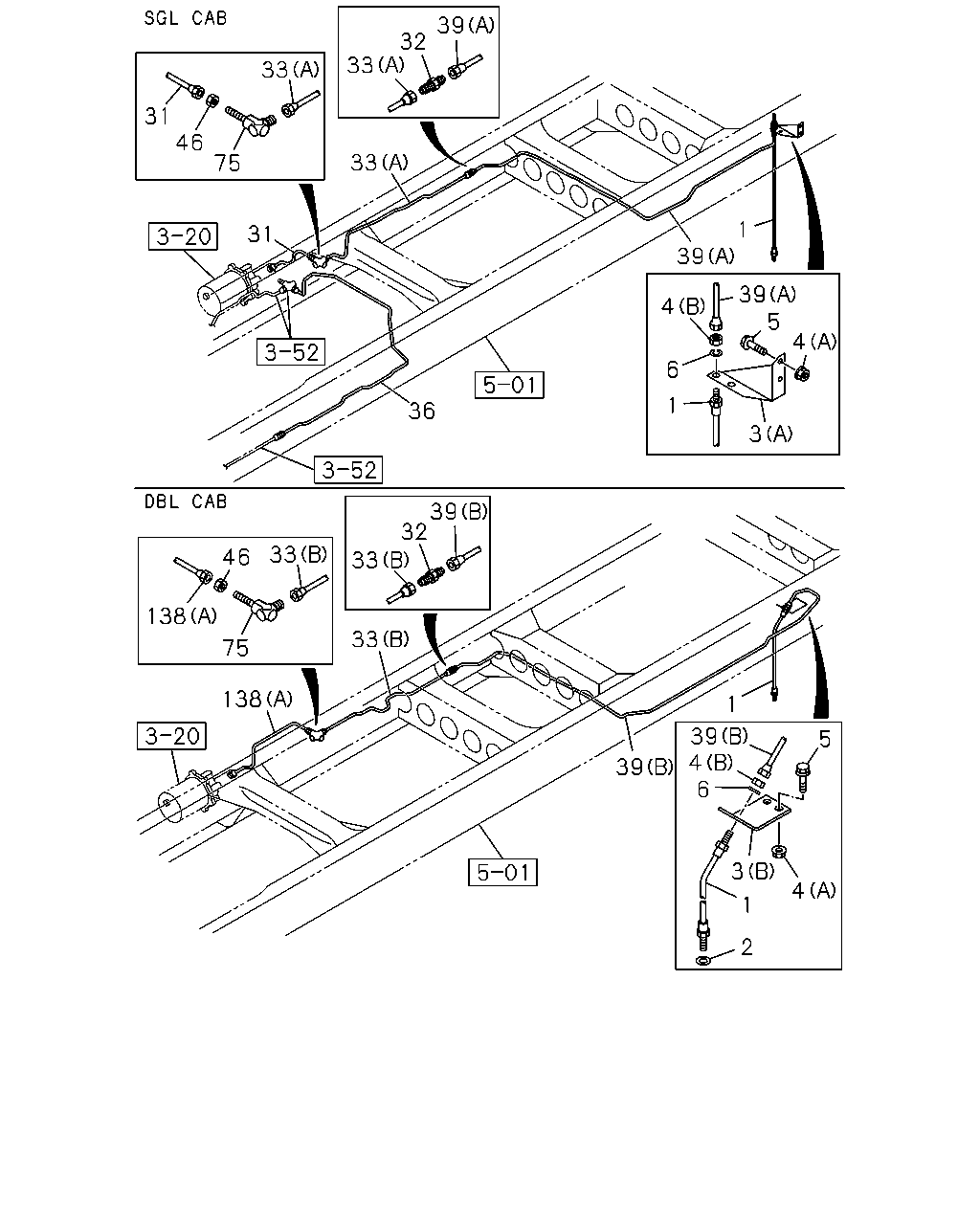

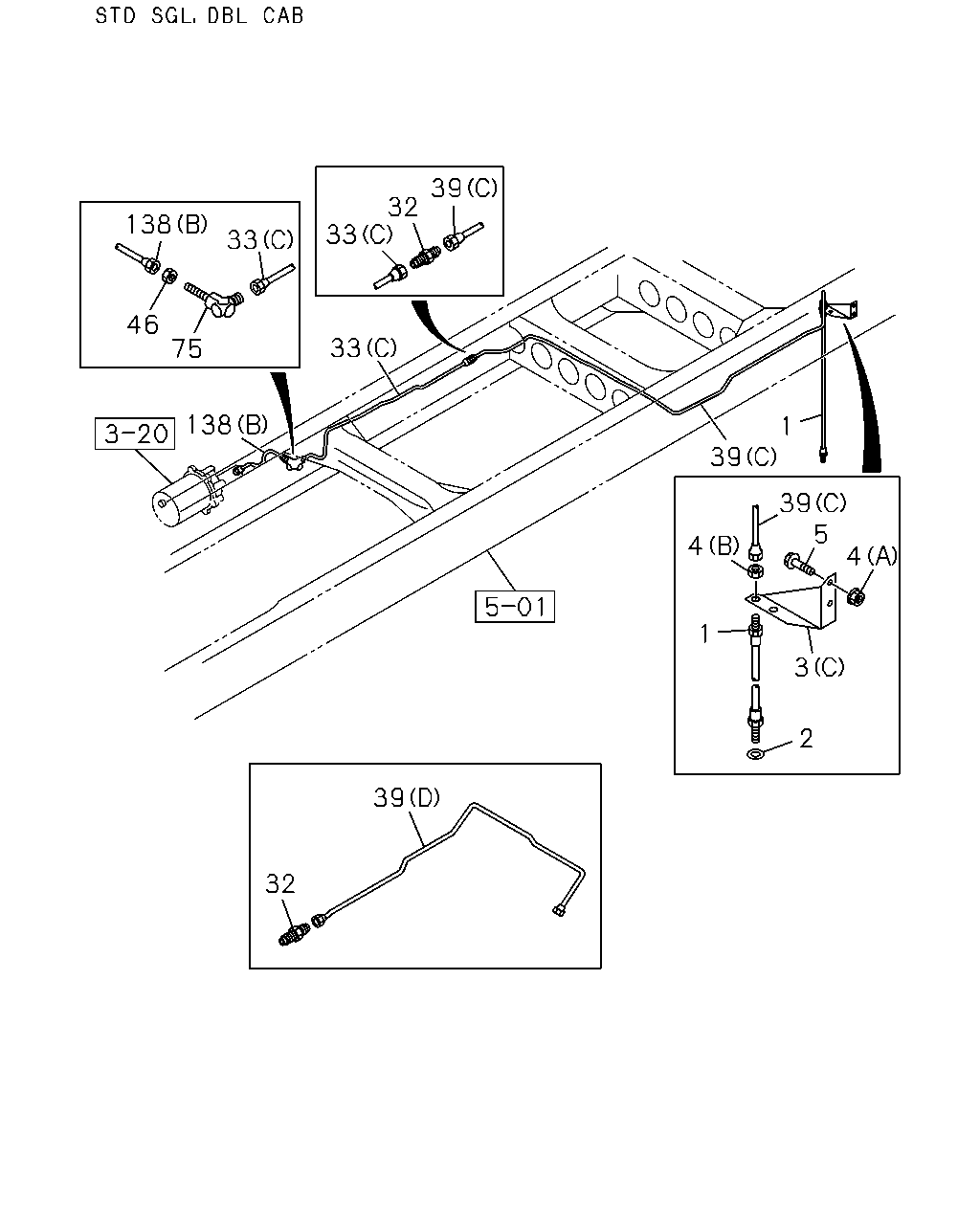

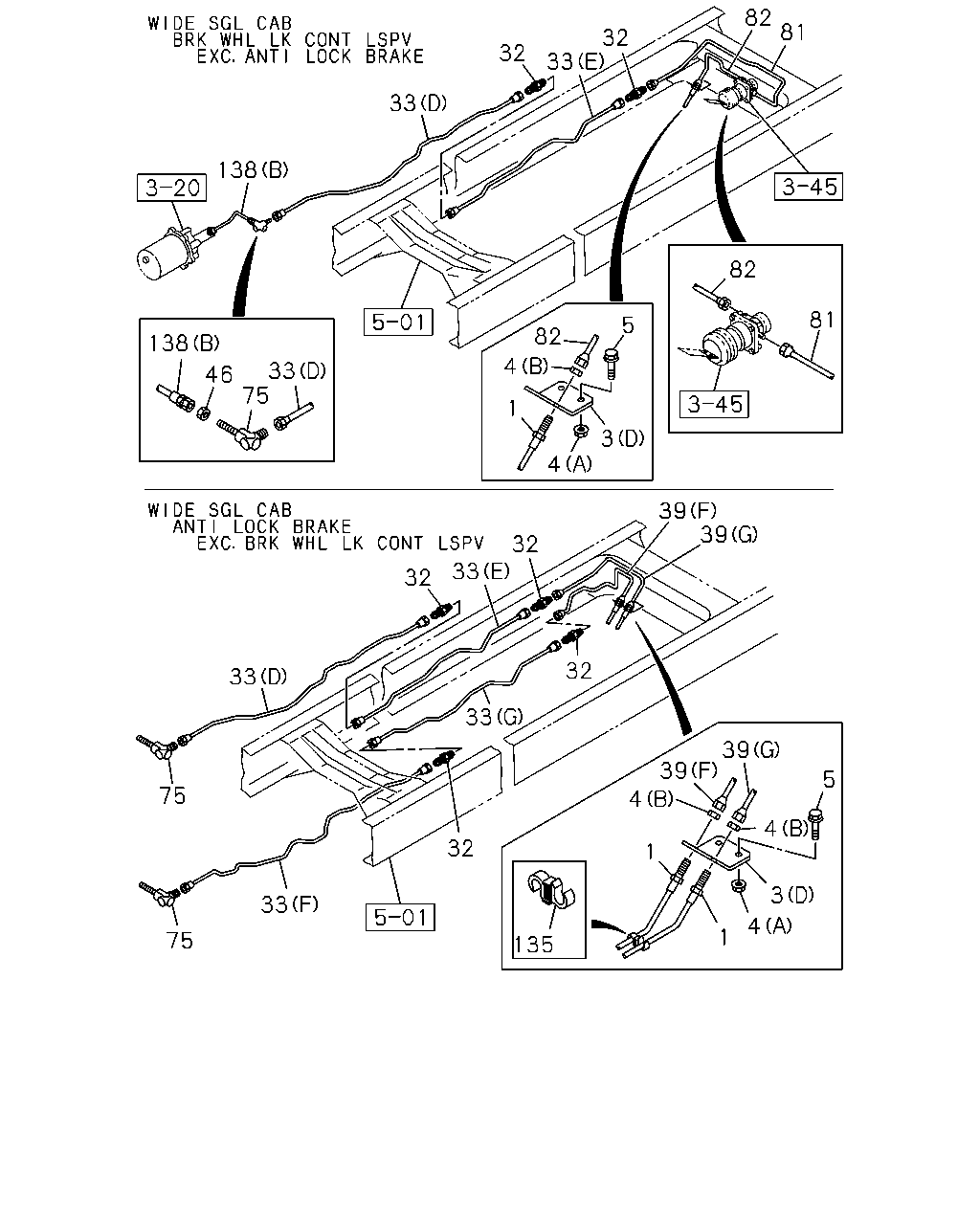

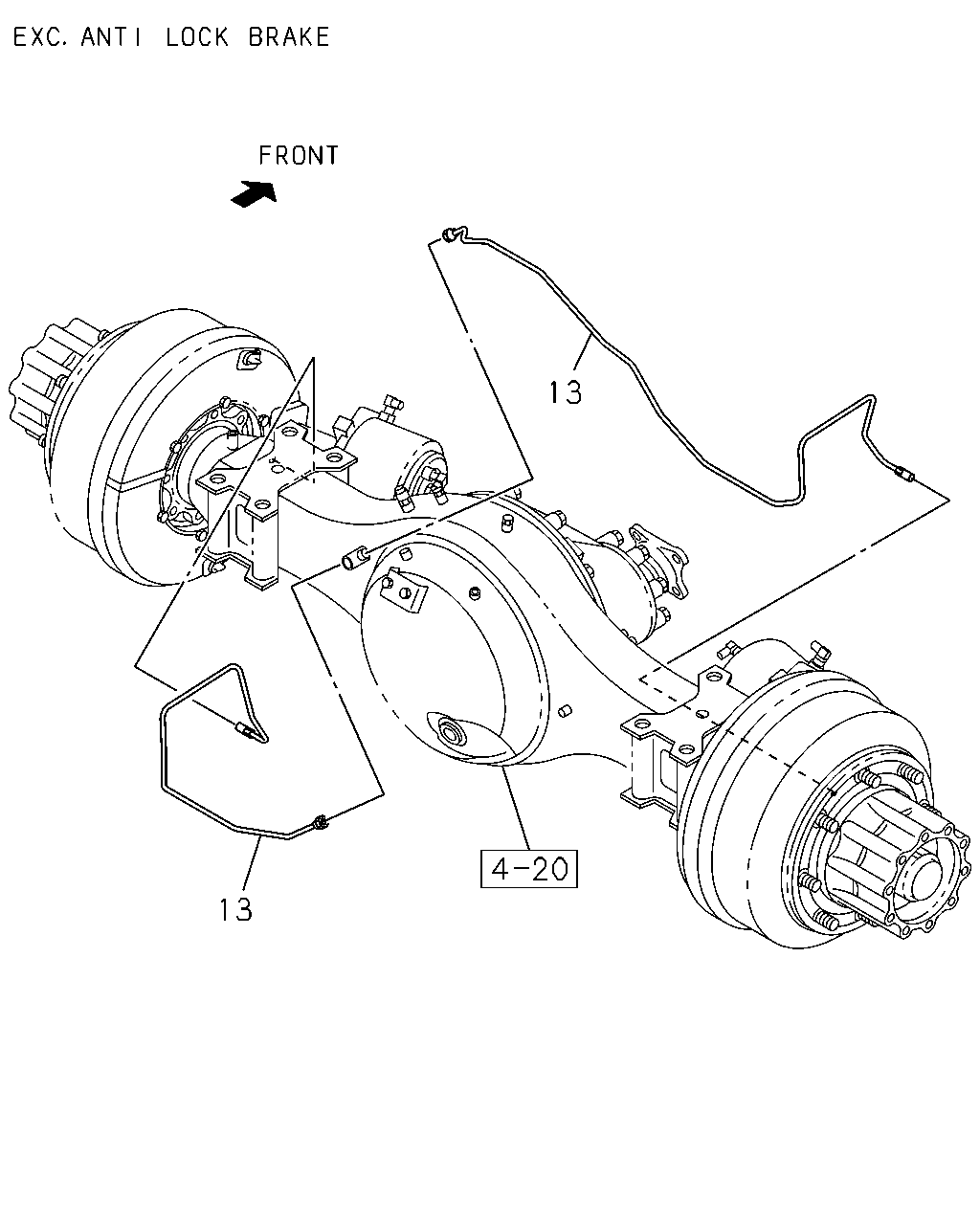

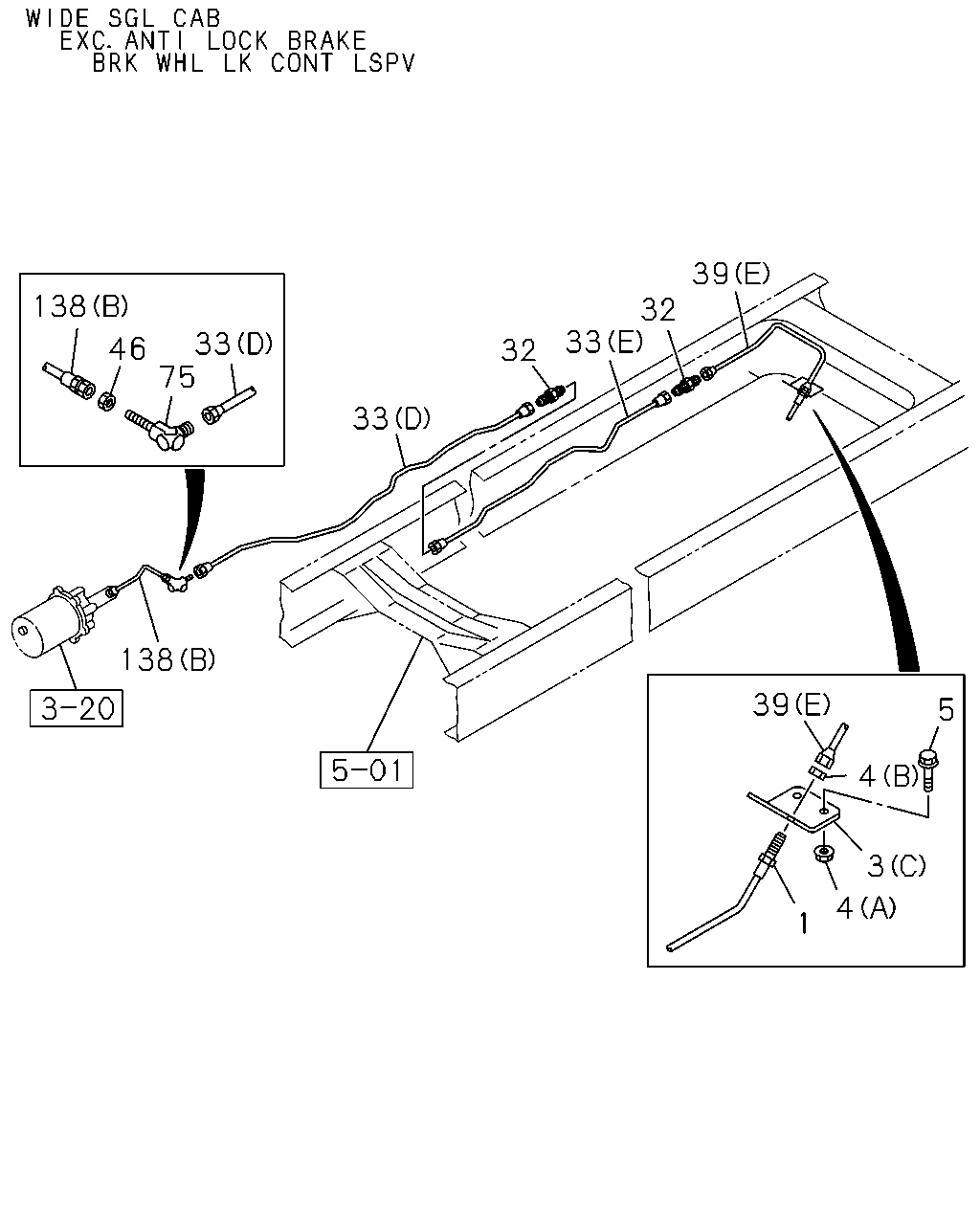

3-55 — BRAKE PIPING; OIL,REAR (#56601) — 304 parça

39 32 33 138 33 46 33 75 138 1 39 39 5 4 4 1 3 2 39 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE<JE5> L=730	0-05211-730-0	02	1	1004-	●
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE<JE5> L=730	0-05212-730-0	01	1	1004-	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0712-		●	●
2	GASKET; FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> ID=9 OD=17	9-09920-472-0	01	1	1004-	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0712-0802			●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0803-0811		●	●
3	BRACKET; FLEX HOSE,RR BRK (D)	8-98146-322-0	01	1	1004-	●
3	BRACKET; FLEX HOSE,RR BRK (B)	8-98099-644-0	01	1	0712-0802			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-701-2	01	1	0712-0802		●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	0803-1003		●	●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	04	1	1004-	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1004-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-1003		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●	●
32	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	04	1	1004-	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0712-0905		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	0906-1003		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1004-		●	●
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	02	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (G) L=852 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (E) L=873 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (E) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (D) L=1224 SERVICED BY L=1250	1-47428-733-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (F) L=1389 SERVICED BY L=1500	1-47428-735-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (B) L=860 SERVICED BY L=900	1-47428-729-0	01	1	0712-0802			●
33	PIPE; OIL,UNION TO UNION (C) L=1364	8-98111-596-0	01	1	0803-			●
33	PIPE; OIL,UNION TO UNION (A) L=1435 SERVICED BY L=1500	1-47428-735-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (C) L=1153	8-98111-594-0	01	1	0803-0808		●
33	PIPE; OIL,UNION TO UNION (C) L=1157	8-98121-273-0	01	1	0809-0811		●
33	PIPE; OIL,UNION TO UNION (C) L=1147	8-98138-233-0	01	1	0812-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (F) L=815 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (G) L=874 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (E) L=913 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (D) L=815 SERVICED BY L=900	1-47428-729-0	01	1	0905-0908		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2537 SERVICED BY L=2650	1-47428-743-0	01	1	0712-0802			●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2018 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0808		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	0809-1003		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1004-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2087	8-98054-503-0	01	1	0712-0802		●
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1004-	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802			●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1003		●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1004-		●	●
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1004-	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
75	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 ELBOW	8-97325-150-0	02	1	1004-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-1003		●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1004-		●	●
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 ELBOW	0-92125-206-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (C) L=251	8-98147-593-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (D) L=783	8-98147-594-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	0803-1003		●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	1004-		●
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE<JE5> (B) L=491	8-98108-549-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (A) L=517 SERVICED BY L=550	1-47428-724-0	01	1	0712-0802			●
138	PIPE; HYDRAULIC UNIT (B) L=622 SERVICED BY L=650	1-47428-726-0	01	1	0803-			●

39 32 33 33 31 46 33 75 1 31 39 39 5 4 4 6 1 36 3 39 32 33 46 33 138 33 75 138 1 39 4 6 5 39 3 4 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE<JE5> L=730	0-05211-730-0	02	1	1004-	●
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE<JE5> L=730	0-05212-730-0	01	1	1004-	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0712-		●	●
2	GASKET; FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> ID=9 OD=17	9-09920-472-0	01	1	1004-	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0712-0802			●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0803-0811		●	●
3	BRACKET; FLEX HOSE,RR BRK (D)	8-98146-322-0	01	1	1004-	●
3	BRACKET; FLEX HOSE,RR BRK (B)	8-98099-644-0	01	1	0712-0802			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-701-2	01	1	0712-0802		●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	0803-1003		●	●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	04	1	1004-	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1004-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-1003		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0712-0802		●	●
31	PIPE; OIL,AIR MASTER TO UNION L=253	8-98054-505-0	01	1	0712-0802		●
32	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	04	1	1004-	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0712-0905		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	0906-1003		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1004-		●	●
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	02	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (G) L=852 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (E) L=873 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (E) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (D) L=1224 SERVICED BY L=1250	1-47428-733-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (F) L=1389 SERVICED BY L=1500	1-47428-735-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (B) L=860 SERVICED BY L=900	1-47428-729-0	01	1	0712-0802			●
33	PIPE; OIL,UNION TO UNION (C) L=1364	8-98111-596-0	01	1	0803-			●
33	PIPE; OIL,UNION TO UNION (A) L=1435 SERVICED BY L=1500	1-47428-735-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (C) L=1153	8-98111-594-0	01	1	0803-0808		●
33	PIPE; OIL,UNION TO UNION (C) L=1157	8-98121-273-0	01	1	0809-0811		●
33	PIPE; OIL,UNION TO UNION (C) L=1147	8-98138-233-0	01	1	0812-		●
36	PIPE; OIL,UNION TO UNION L=1747	8-98054-499-0	01	1	0712-0802		●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (F) L=815 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (G) L=874 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (E) L=913 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (D) L=815 SERVICED BY L=900	1-47428-729-0	01	1	0905-0908		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2537 SERVICED BY L=2650	1-47428-743-0	01	1	0712-0802			●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2018 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0808		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	0809-1003		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1004-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2087	8-98054-503-0	01	1	0712-0802		●
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1004-	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802			●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1003		●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1004-		●	●
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1004-	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
75	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 ELBOW	8-97325-150-0	02	1	1004-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-1003		●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1004-		●	●
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 ELBOW	0-92125-206-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (C) L=251	8-98147-593-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (D) L=783	8-98147-594-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	0803-1003		●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	1004-		●
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE<JE5> (B) L=491	8-98108-549-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (A) L=517 SERVICED BY L=550	1-47428-724-0	01	1	0712-0802			●
138	PIPE; HYDRAULIC UNIT (B) L=622 SERVICED BY L=650	1-47428-726-0	01	1	0803-			●

39 138 32 33 46 33 75 32 33 138 39 5 4 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE<JE5> L=730	0-05211-730-0	02	1	1004-	●
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE<JE5> L=730	0-05212-730-0	01	1	1004-	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0712-		●	●
3	BRACKET; FLEX HOSE,RR BRK (D)	8-98146-322-0	01	1	1004-	●
3	BRACKET; FLEX HOSE,RR BRK (B)	8-98099-644-0	01	1	0712-0802			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-701-2	01	1	0712-0802		●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	0803-1003		●	●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	04	1	1004-	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1004-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-1003		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●	●
32	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	04	1	1004-	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0712-0905		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	0906-1003		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1004-		●	●
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	02	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (G) L=852 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (E) L=873 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (E) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (D) L=1224 SERVICED BY L=1250	1-47428-733-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (F) L=1389 SERVICED BY L=1500	1-47428-735-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (B) L=860 SERVICED BY L=900	1-47428-729-0	01	1	0712-0802			●
33	PIPE; OIL,UNION TO UNION (C) L=1364	8-98111-596-0	01	1	0803-			●
33	PIPE; OIL,UNION TO UNION (A) L=1435 SERVICED BY L=1500	1-47428-735-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (C) L=1153	8-98111-594-0	01	1	0803-0808		●
33	PIPE; OIL,UNION TO UNION (C) L=1157	8-98121-273-0	01	1	0809-0811		●
33	PIPE; OIL,UNION TO UNION (C) L=1147	8-98138-233-0	01	1	0812-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (F) L=815 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (G) L=874 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (E) L=913 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (D) L=815 SERVICED BY L=900	1-47428-729-0	01	1	0905-0908		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2537 SERVICED BY L=2650	1-47428-743-0	01	1	0712-0802			●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2018 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0808		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	0809-1003		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1004-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2087	8-98054-503-0	01	1	0712-0802		●
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1004-	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802			●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1003		●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1004-		●	●
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1004-	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
75	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 ELBOW	8-97325-150-0	02	1	1004-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-1003		●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1004-		●	●
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 ELBOW	0-92125-206-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (C) L=251	8-98147-593-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (D) L=783	8-98147-594-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	0803-1003		●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	1004-		●
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE<JE5> (B) L=491	8-98108-549-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (A) L=517 SERVICED BY L=550	1-47428-724-0	01	1	0712-0802			●
138	PIPE; HYDRAULIC UNIT (B) L=622 SERVICED BY L=650	1-47428-726-0	01	1	0803-			●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	42	HOSE; FLEX,DIFF LOCK DIFF LOCK<C3N>	8-98147-774-0	01	1	1004-	●

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-118-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-119-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE<JE5>	8-98043-994-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE<JE5>	8-98043-995-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1190	8-98012-467-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=600	8-98012-468-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	0712-0811		●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-681-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	0812-			●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	0712-0811		●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-682-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	0812-			●

33 33 75 46 138 75 46 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (G) L=852 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (E) L=873 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (E) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (D) L=1224 SERVICED BY L=1250	1-47428-733-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (F) L=1389 SERVICED BY L=1500	1-47428-735-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (B) L=860 SERVICED BY L=900	1-47428-729-0	01	1	0712-0802			●
33	PIPE; OIL,UNION TO UNION (C) L=1364	8-98111-596-0	01	1	0803-			●
33	PIPE; OIL,UNION TO UNION (A) L=1435 SERVICED BY L=1500	1-47428-735-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (C) L=1153	8-98111-594-0	01	1	0803-0808		●
33	PIPE; OIL,UNION TO UNION (C) L=1157	8-98121-273-0	01	1	0809-0811		●
33	PIPE; OIL,UNION TO UNION (C) L=1147	8-98138-233-0	01	1	0812-		●
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1004-	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802			●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1003		●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1004-		●	●
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1004-	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
75	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 ELBOW	8-97325-150-0	02	1	1004-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-1003		●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1004-		●	●
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 ELBOW	0-92125-206-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (C) L=251	8-98147-593-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (D) L=783	8-98147-594-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	0803-1003		●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	1004-		●
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE<JE5> (B) L=491	8-98108-549-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (A) L=517 SERVICED BY L=550	1-47428-724-0	01	1	0712-0802			●
138	PIPE; HYDRAULIC UNIT (B) L=622 SERVICED BY L=650	1-47428-726-0	01	1	0803-			●

82 81 32 33 32 33 138 82 81 5 82 138 4 46 33 75 1 3 4 39 39 32 33 32 32 33 33 39 39 5 75 4 4 32 1 3 33 4 1 75 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE<JE5> L=730	0-05211-730-0	02	1	1004-	●
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE<JE5> L=730	0-05212-730-0	01	1	1004-	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0712-		●	●
3	BRACKET; FLEX HOSE,RR BRK (D)	8-98146-322-0	01	1	1004-	●
3	BRACKET; FLEX HOSE,RR BRK (B)	8-98099-644-0	01	1	0712-0802			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-701-2	01	1	0712-0802		●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	0803-1003		●	●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	04	1	1004-	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-1003		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1004-		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1004-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-1003		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●	●
32	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	04	1	1004-	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0712-0905		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	0906-1003		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1004-		●	●
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 L=40	0-92113-006-0	02	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (G) L=852 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (E) L=873 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (E) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (D) L=1224 SERVICED BY L=1250	1-47428-733-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> (F) L=1389 SERVICED BY L=1500	1-47428-735-0	01	1	1004-	●
33	PIPE; OIL,UNION TO UNION (B) L=860 SERVICED BY L=900	1-47428-729-0	01	1	0712-0802			●
33	PIPE; OIL,UNION TO UNION (C) L=1364	8-98111-596-0	01	1	0803-			●
33	PIPE; OIL,UNION TO UNION (A) L=1435 SERVICED BY L=1500	1-47428-735-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (C) L=1153	8-98111-594-0	01	1	0803-0808		●
33	PIPE; OIL,UNION TO UNION (C) L=1157	8-98121-273-0	01	1	0809-0811		●
33	PIPE; OIL,UNION TO UNION (C) L=1147	8-98138-233-0	01	1	0812-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (F) L=815 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (G) L=874 SERVICED BY L=900	1-47428-729-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (E) L=913 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (D) L=815 SERVICED BY L=900	1-47428-729-0	01	1	0905-0908		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2537 SERVICED BY L=2650	1-47428-743-0	01	1	0712-0802			●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2018 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0808		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	0809-1003		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1004-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2087	8-98054-503-0	01	1	0712-0802		●
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1004-	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802			●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1003		●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1004-		●	●
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1004-	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
75	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 ELBOW	8-97325-150-0	02	1	1004-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-1003		●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1004-		●	●
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 ELBOW	0-92125-206-0	01	1	1004-	●
81	PIPE; OIL,UNION TO LSPV BRK WHL LK CONT LSPV<6PH> L=1286 SERVICED BY L=1370	1-47428-734-0	01	1	1004-	●
82	PIPE; OIL,LSPV TO FLEX HOSE BRK WHL LK CONT LSPV<6PH> L=197	8-98154-819-0	01	1	1004-	●
135	CLIP; FLEX HOSE ANTI LOCK BRAKE<JE5> ID=10 & 10	1-09709-277-1	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (C) L=251	8-98147-593-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (D) L=783	8-98147-594-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	0803-1003		●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	1004-		●
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE<JE5> (B) L=491	8-98108-549-0	01	1	1004-	●
138	PIPE; HYDRAULIC UNIT (A) L=517 SERVICED BY L=550	1-47428-724-0	01	1	0712-0802			●
138	PIPE; HYDRAULIC UNIT (B) L=622 SERVICED BY L=650	1-47428-726-0	01	1	0803-			●

13 13 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE<JE5> L=730	0-05211-730-0	02	1	1004-	●
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE<JE5> L=730	0-05212-730-0	01	1	1004-	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0712-		●	●
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-118-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-119-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE<JE5>	8-98043-994-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE<JE5>	8-98043-995-1	01	1	1004-	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1190	8-98012-467-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=600	8-98012-468-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	0712-0811		●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-681-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	0812-			●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	0712-0811		●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-682-0	01	1	0812-		●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	0812-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
