Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#56600) — 277 parça

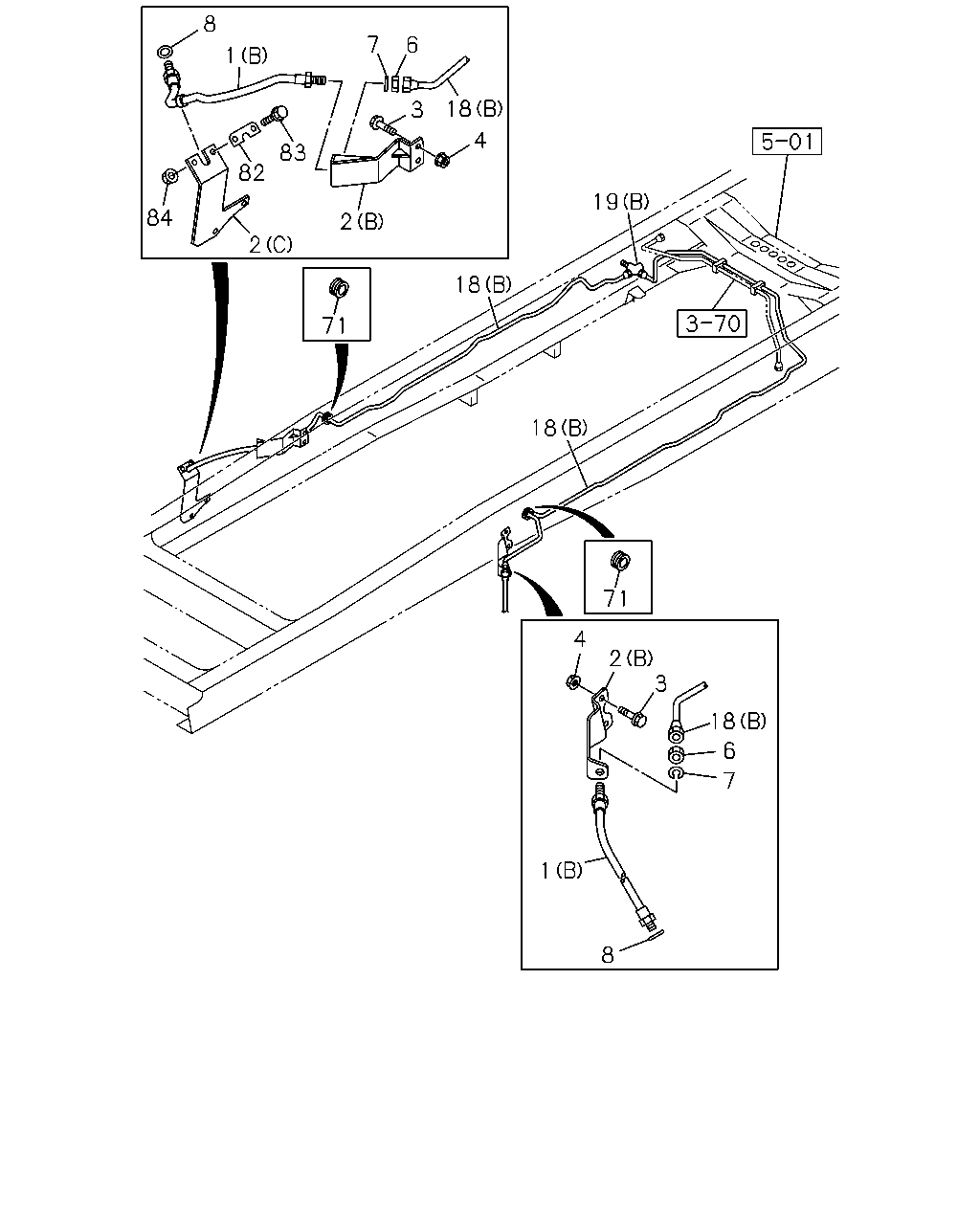

18 7 6 13 19 18 1 3 33 2 71 13 18 18 13 13 19 18 71 18 3 6 7 2 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,FRT BRK (B)	8-98140-781-0	02	1	1004-	●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	01	1	0803-0803		●	●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	02	1	0804-		●	●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	02	1	0712-0802			●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	01	1	0803-0803		●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-850-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0803-1003		●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1004-	●	●	●
2	BRACKET; FLEX HOSE,FRT BRK (C)	8-98093-260-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-742-0	01	1	0712-0802			●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	0803-1003		●	●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	1004-	●	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-743-0	01	1	0712-0802			●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-1003		●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1004-	●	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-1003		●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1004-	●	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0712-0802		●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-1003		●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1004-	●	●	●
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1780 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1751 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	0803-		●
13	PIPE; OIL,UNION TO UNION L=1749 SERVICED BY L=1820	1-47428-738-0	01	1	0803-0811		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	0812-		●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	0803-1003			●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1004-			●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1116	8-98111-276-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION L=631	8-98054-501-0	01	1	0712-0802			●
13	PIPE; OIL,UNION TO UNION L=1696 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0811			●
13	PIPE; OIL,UNION TO UNION EURO2 SPECIFICATION<NT2> L=1759 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE<JE5> (C) L=990 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE<JE5> (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●	●	●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (C) M12 ELBOW	8-97325-150-0	02	1	1004-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804		●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-1003			●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1004-			●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (B) M12 3WAY	0-92138-906-0	01	1	1004-	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-1003		●	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1004-	●	●	●
33	UNION; OIL PIPE M12 3WAY	0-92138-906-0	02	1	0712-0802			●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-1003		●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1004-	●	●	●

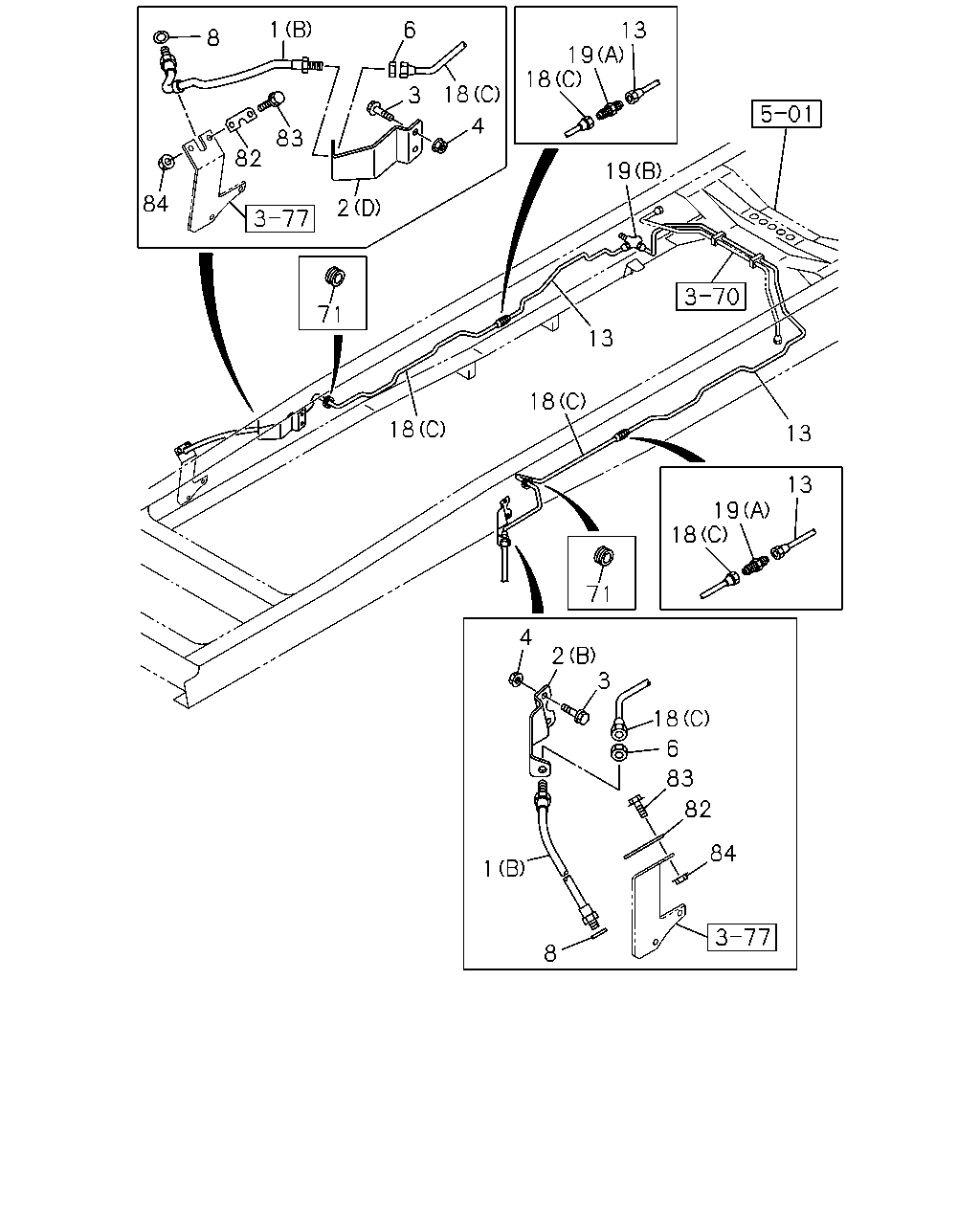

8 7 6 1 18 3 4 83 82 19 84 2 2 18 71 18 71 4 2 3 18 6 7 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,FRT BRK (B)	8-98140-781-0	02	1	1004-	●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	01	1	0803-0803		●	●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	02	1	0804-		●	●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	02	1	0712-0802			●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	01	1	0803-0803		●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-850-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0803-1003		●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1004-	●	●	●
2	BRACKET; FLEX HOSE,FRT BRK (C)	8-98093-260-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-742-0	01	1	0712-0802			●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	0803-1003		●	●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	1004-	●	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-743-0	01	1	0712-0802			●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-1003		●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1004-	●	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-1003		●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1004-	●	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-1003		●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1004-	●	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0712-0802		●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-1003		●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1004-	●	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE<JE5> (C) L=990 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE<JE5> (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●	●	●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (C) M12 ELBOW	8-97325-150-0	02	1	1004-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804		●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-1003			●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1004-			●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (B) M12 3WAY	0-92138-906-0	01	1	1004-	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-1003		●	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1004-	●	●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-1003		●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1004-	●	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0712-0802		●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0803-0803		●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	0804-1003		●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1004-	●	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0803-0803		●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	0804-1003		●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1004-	●	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0803-0803		●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0804-1003		●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1004-	●	●	●

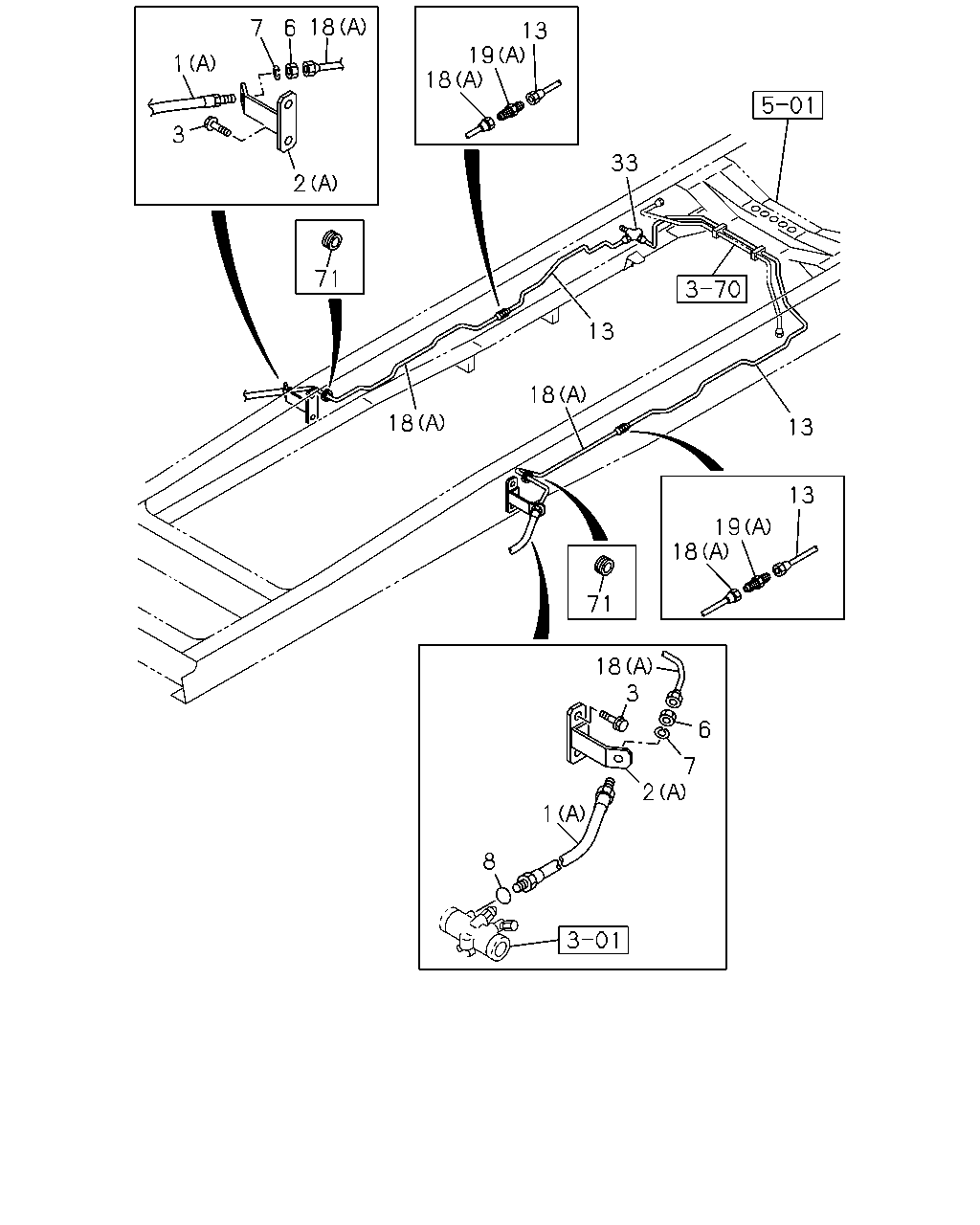

1 6 13 8 19 18 18 3 4 83 82 19 84 2 71 13 18 18 13 13 19 18 71 4 2 3 18 6 83 82 84 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,FRT BRK (B)	8-98140-781-0	02	1	1004-	●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	01	1	0803-0803		●	●
1	HOSE; FLEX,FRT BRK (B)	8-97623-929-0	02	1	0804-		●	●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	02	1	0712-0802			●
1	HOSE; FLEX,FRT BRK (A) L=650	0-05312-650-0	01	1	0803-0803		●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-850-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0803-1003		●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1004-	●	●	●
2	BRACKET; FLEX HOSE,FRT BRK (C)	8-98093-260-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-742-0	01	1	0712-0802			●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	0803-1003		●	●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	1004-	●	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-743-0	01	1	0712-0802			●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-1003		●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1004-	●	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-1003		●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1004-	●	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-1003		●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1004-	●	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-1003		●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1004-	●	●	●
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1780 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1751 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	0803-		●
13	PIPE; OIL,UNION TO UNION L=1749 SERVICED BY L=1820	1-47428-738-0	01	1	0803-0811		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	0812-		●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	0803-1003			●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1004-			●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1116	8-98111-276-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION L=631	8-98054-501-0	01	1	0712-0802			●
13	PIPE; OIL,UNION TO UNION L=1696 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0811			●
13	PIPE; OIL,UNION TO UNION EURO2 SPECIFICATION<NT2> L=1759 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE<JE5> (C) L=990 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE<JE5> (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●	●	●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (C) M12 ELBOW	8-97325-150-0	02	1	1004-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804		●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-1003			●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1004-			●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (B) M12 3WAY	0-92138-906-0	01	1	1004-	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-1003		●	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1004-	●	●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-1003		●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1004-	●	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0712-0802		●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0803-0803		●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	0804-1003		●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1004-	●	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0803-0803		●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	0804-1003		●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1004-	●	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0803-0803		●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0804-1003		●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1004-	●	●	●

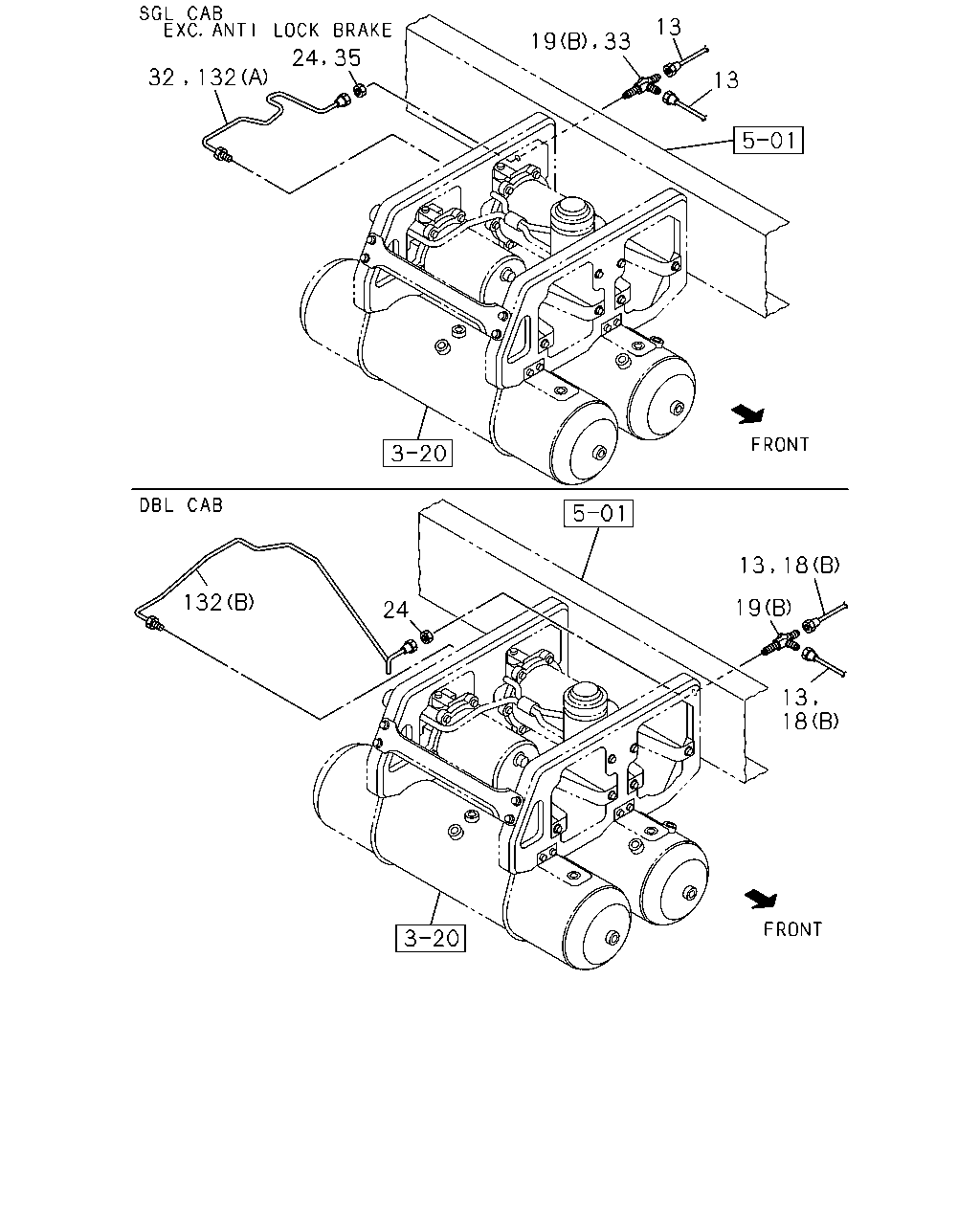

13 32 132 13 13 18 132 19 24 13 18 19 33 24 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1780 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1751 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	0803-		●
13	PIPE; OIL,UNION TO UNION L=1749 SERVICED BY L=1820	1-47428-738-0	01	1	0803-0811		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	0812-		●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	0803-1003			●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1004-			●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1116	8-98111-276-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION L=631	8-98054-501-0	01	1	0712-0802			●
13	PIPE; OIL,UNION TO UNION L=1696 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0811			●
13	PIPE; OIL,UNION TO UNION EURO2 SPECIFICATION<NT2> L=1759 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE<JE5> (C) L=990 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE<JE5> (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	1004-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-1003		●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1004-	●	●	●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (C) M12 ELBOW	8-97325-150-0	02	1	1004-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804		●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-1003			●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1004-			●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (B) M12 3WAY	0-92138-906-0	01	1	1004-	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-1003		●	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1004-	●	●	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1004-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-1003		●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1004-		●	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1004-	●
32	PIPE; OIL,AIR MASTER TO UNION L=588	8-98054-502-0	01	1	0712-0802			●
33	UNION; OIL PIPE M12 3WAY	0-92138-906-0	02	1	0712-0802			●
35	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802			●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (C) L=441	8-98147-589-0	01	1	1004-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (D) L=835	8-98147-590-0	01	1	1004-	●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	0803-1003			●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	1004-			●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE<JE5> (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	1004-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=970 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802		●
132	PIPE; OIL,BRK,HYD UNIT (B) L=902 SERVICED BY L=1000	1-47428-730-0	01	1	0803-		●

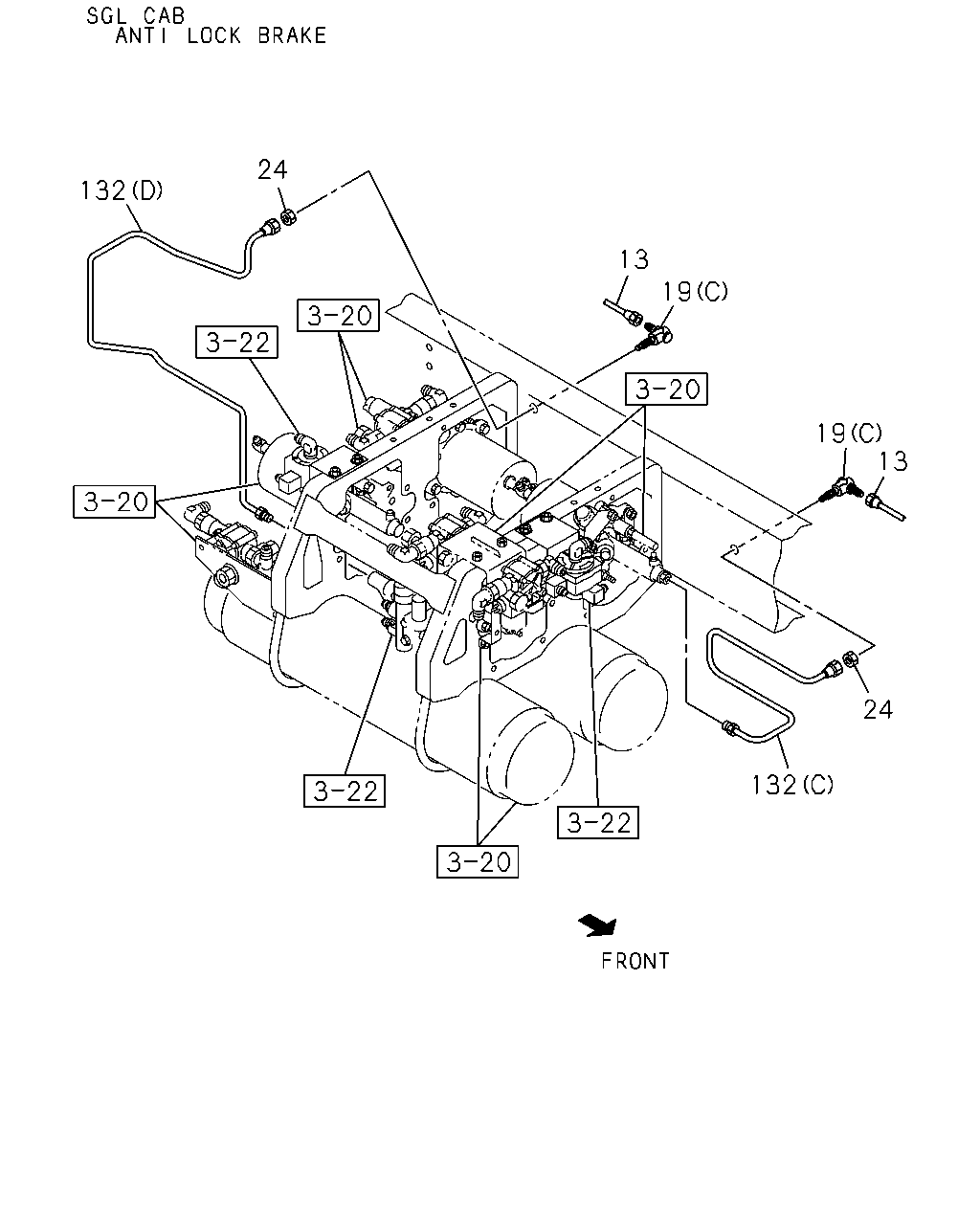

24 132 13 19 19 13 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1780 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1751 SERVICED BY L=1820	1-47428-738-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	0803-		●
13	PIPE; OIL,UNION TO UNION L=1749 SERVICED BY L=1820	1-47428-738-0	01	1	0803-0811		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	0812-		●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	0803-1003			●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1004-			●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1116	8-98111-276-0	01	1	1004-	●
13	PIPE; OIL,UNION TO UNION L=631	8-98054-501-0	01	1	0712-0802			●
13	PIPE; OIL,UNION TO UNION L=1696 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0811			●
13	PIPE; OIL,UNION TO UNION EURO2 SPECIFICATION<NT2> L=1759 SERVICED BY L=1820	1-47428-738-0	01	1	0812-			●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (C) M12 ELBOW	8-97325-150-0	02	1	1004-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804		●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-1003			●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1004-			●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (B) M12 3WAY	0-92138-906-0	01	1	1004-	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802			●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-1003		●	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1004-	●	●	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1004-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-1003		●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1004-		●	●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1004-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (C) L=441	8-98147-589-0	01	1	1004-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (D) L=835	8-98147-590-0	01	1	1004-	●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	0803-1003			●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	1004-			●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE<JE5> (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	1004-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=970 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802		●
132	PIPE; OIL,BRK,HYD UNIT (B) L=902 SERVICED BY L=1000	1-47428-730-0	01	1	0803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
