◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#5660) — 279 parça

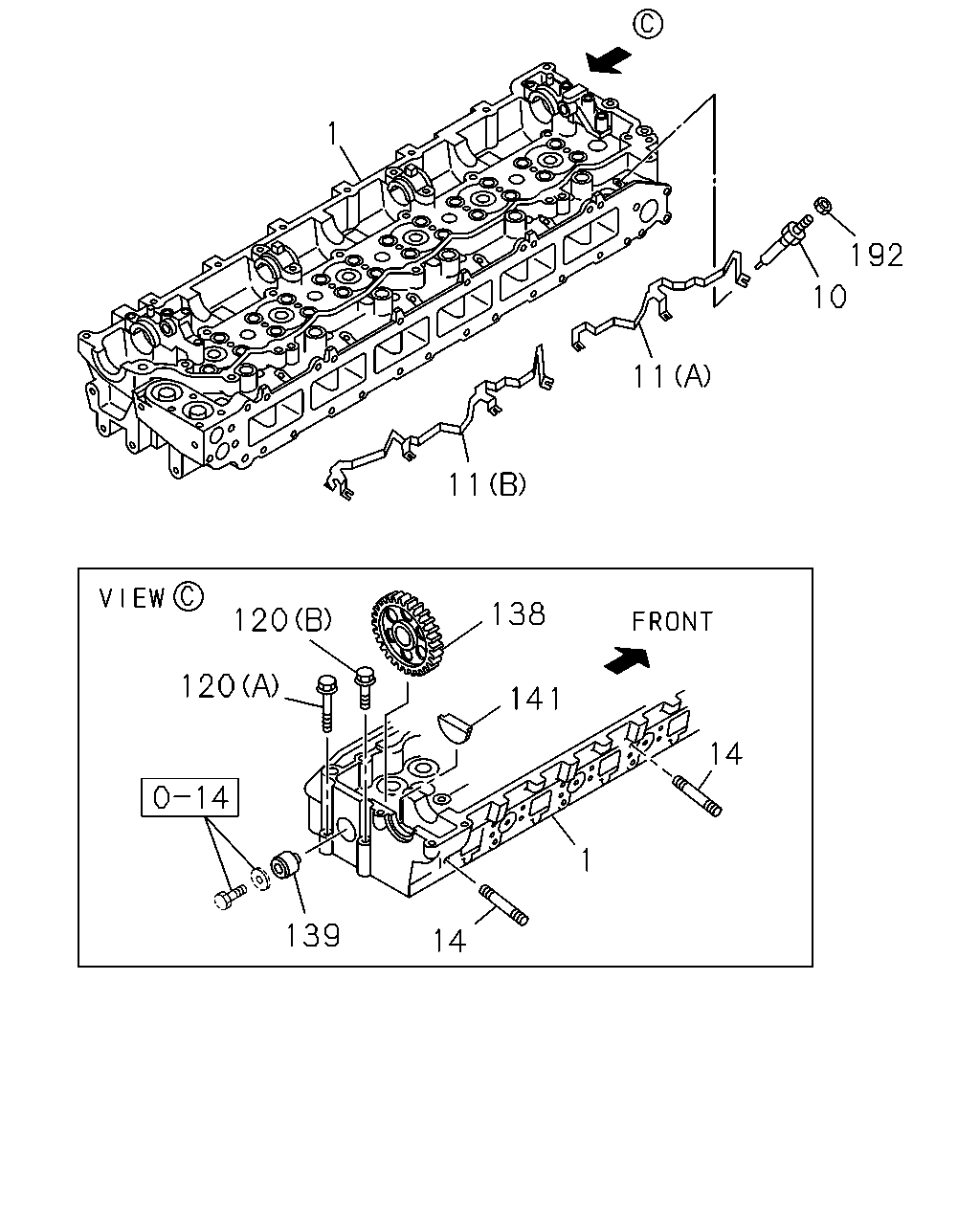

çizim 25011
1 192 10 11 11 138 120 120 141 14 1 139 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94390-967-1 01 1 9811-9906 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 9907-0211 ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-1 01 1 0508-0610 ●
1 HEAD ASM; CYL 8-97604-903-5 01 1 0611- ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9811-9906 ●
10 PLUG; GLOW 8-94392-815-3 06 1 9907-0610 ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0611- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9811-9906 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 9907-0610 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0611- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9811-9906 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 9907-0610 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0611- ● ●
14 STUD; EXH MANIF
M10X93 L=108 		8-94396-123-0 11 1 9811-9906 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 01 1 9811-9906 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9907-0610 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0611- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9811-9906 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9907-0610 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0611- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9811-9906 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9907-0610 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0611- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9811-9906 ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9907-0610 ●
138 GEAR; IDLE
Z=41 		8-97606-769-3 01 1 0611- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9811-9906 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9907-0610 ●
139 SHAFT; IDLE GEAR 8-97606-990-1 01 1 0611- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9811-9906 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9907-0610 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0611- ● ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0611- ● ●

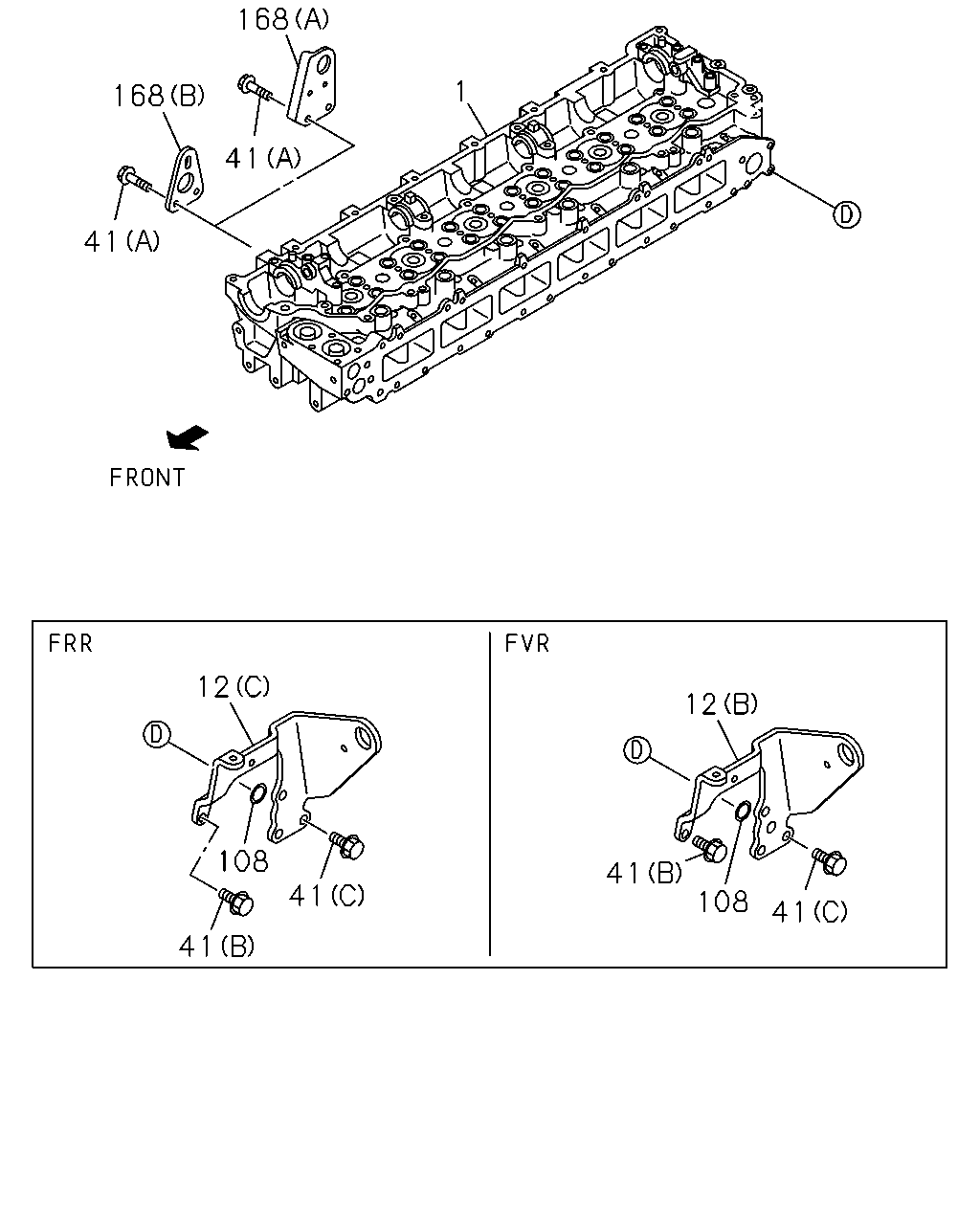

çizim 25026
168 1 168 41 41 12 12 108 41 41 108 41 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94390-967-1 01 1 9811-9906 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 9907-0211 ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-1 01 1 0508-0610 ●
1 HEAD ASM; CYL 8-97604-903-5 01 1 0611- ● ●
12 HANGER; ENG,RR
(A) 		8-94394-553-1 01 1 9811-9906 ●
12 HANGER; ENG,RR
FRR MIDDLE CHASSIS(FR****) (C) 		8-94391-640-2 01 1 9907-0610 ●
12 HANGER; ENG,RR
(D) 		8-94392-081-1 01 1 0611- ● ●
12 HANGER; ENG,RR
FVR MIDDLE CHASSIS(FV****) (B) 		8-94390-417-2 01 1 9907-0610 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9811-9906 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9907-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601-0610 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0611- ● ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28181-030-0 02 1 9811-9906 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 9907-0512 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0601-0610 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0611- ● ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9811-9906 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9907-0610 ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 0611- ● ●
108 GASKET; HANGER,RR
FVR MIDDLE CHASSIS(FV****) ID=35.2 		1-09623-375-0 01 1 9811-9906 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9907-0610 ●
168 HANGER; ENG,FRT
(C) 		8-94393-810-0 01 1 0611- ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-1 01 1 9811-9906 ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 9907-0610 ●
168 HANGER; ENG,FRT
(A) 		8-98043-134-0 01 1 0611- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 9811-9906 ●
168 HANGER; ENG,FRT
(B) 		8-94392-799-0 01 1 9907-0610 ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 0611- ●

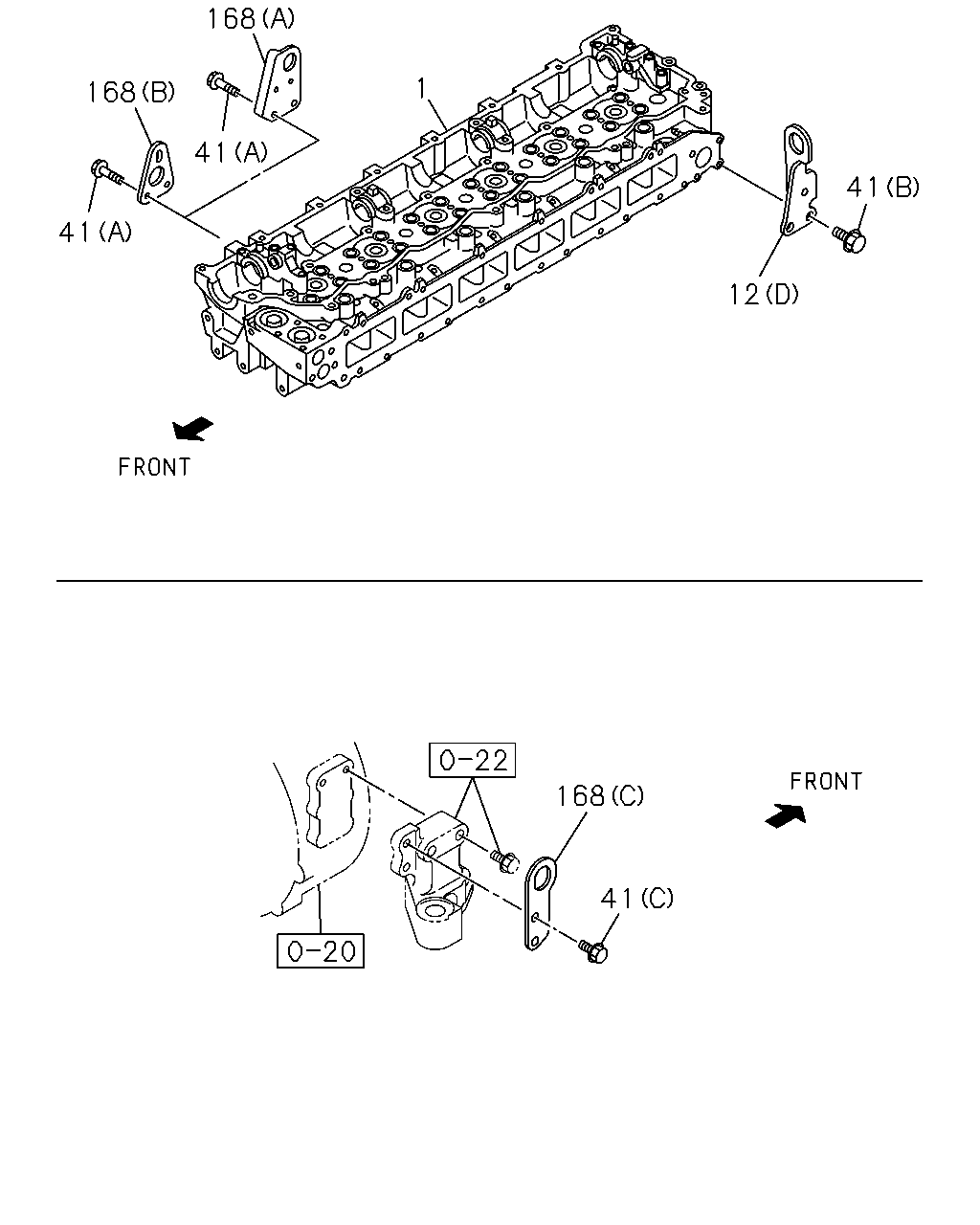

çizim 25254
168 1 168 41 41 41 12 168 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94390-967-1 01 1 9811-9906 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 9907-0211 ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-1 01 1 0508-0610 ●
1 HEAD ASM; CYL 8-97604-903-5 01 1 0611- ● ●
12 HANGER; ENG,RR
(A) 		8-94394-553-1 01 1 9811-9906 ●
12 HANGER; ENG,RR
FRR MIDDLE CHASSIS(FR****) (C) 		8-94391-640-2 01 1 9907-0610 ●
12 HANGER; ENG,RR
(D) 		8-94392-081-1 01 1 0611- ● ●
12 HANGER; ENG,RR
FVR MIDDLE CHASSIS(FV****) (B) 		8-94390-417-2 01 1 9907-0610 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9811-9906 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9907-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601-0610 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0611- ● ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28181-030-0 02 1 9811-9906 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 9907-0512 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0601-0610 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0611- ● ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9811-9906 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9907-0610 ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 0611- ● ●
168 HANGER; ENG,FRT
(C) 		8-94393-810-0 01 1 0611- ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-1 01 1 9811-9906 ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 9907-0610 ●
168 HANGER; ENG,FRT
(A) 		8-98043-134-0 01 1 0611- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 9811-9906 ●
168 HANGER; ENG,FRT
(B) 		8-94392-799-0 01 1 9907-0610 ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 0611- ●

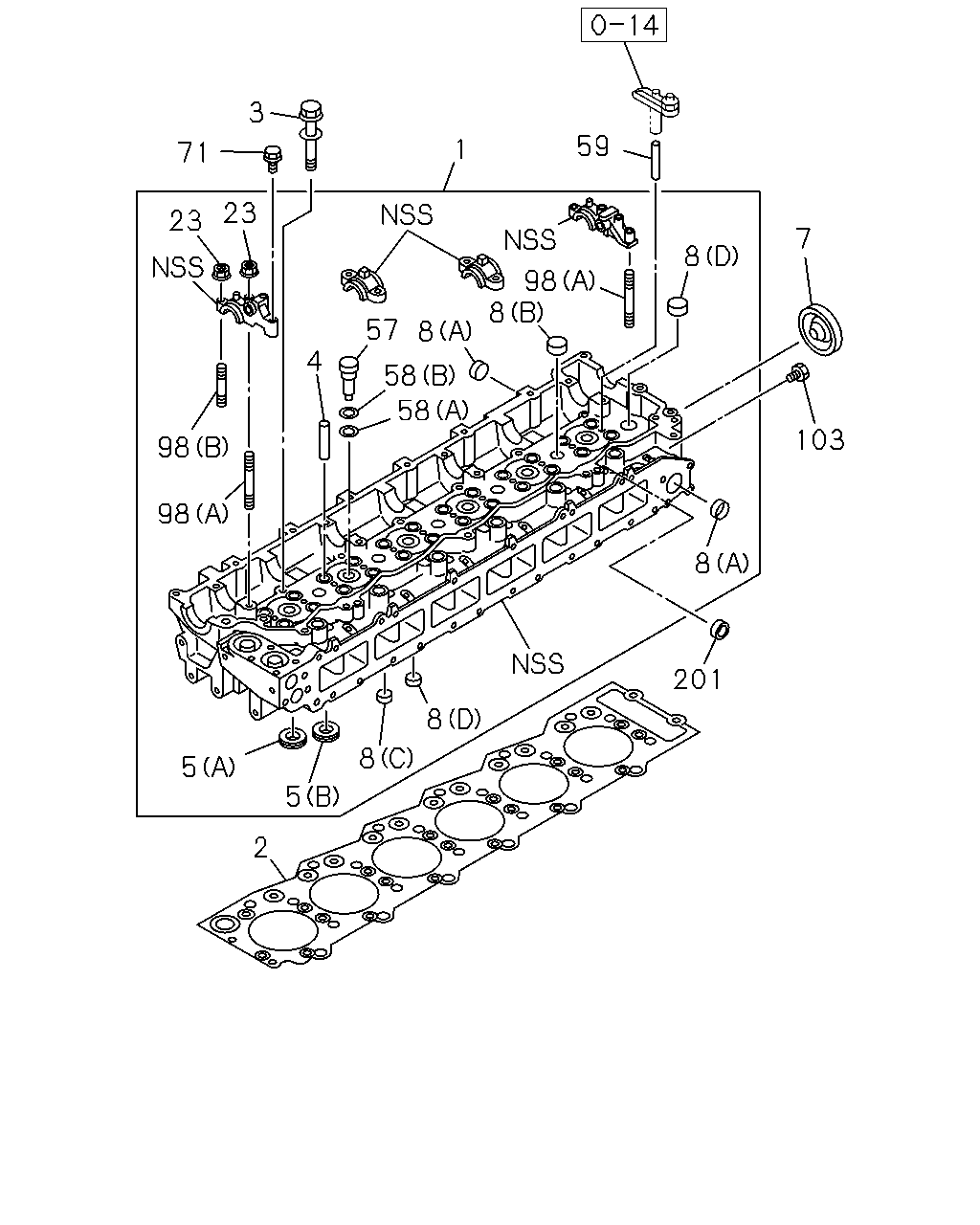

çizim 25256
3 59 1 71 23 23 7 8 98 8 57 8 4 58 58 103 98 98 8 201 8 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94390-967-1 01 1 9811-9906 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 9907-0211 ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-1 01 1 0508-0610 ●
1 HEAD ASM; CYL 8-97604-903-5 01 1 0611- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9811-9906 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 9907-0407 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 0611- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9811-9906 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9907-0610 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0611- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9811-9906 ●
4 GUIDE; VLV 8-94390-780-0 24 1 9907-0610 ●
4 GUIDE; VLV 8-97376-719-2 24 1 0611- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=48 		8-94394-462-0 06 1 9811-9906 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-94395-625-0 12 1 9907-0106 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0610 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0611-0703 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=32 OD=38 		8-98028-874-0 12 1 0704- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 06 1 9811-9906 ●
5 SEAT; VLV INSERT
(A) INLET OD=38 		8-94395-888-0 12 1 9907-0610 ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-97606-247-0 12 1 0611-0703 ● ●
5 SEAT; VLV INSERT
(A) INLET ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9811-9906 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9907-0303 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0610 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 07 1 9907-9911 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 9912-0610 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
FRR MIDDLE CHASSIS(FR****) (D) OD=32 		1-09600-012-1 01 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
FRR MIDDLE CHASSIS(FR****) (A) OD=32 		1-09600-012-2 01 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 07 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0611- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9811-9906 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9907-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603-0610 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0611- ● ●
57 SLEEVE; NOZZLE HOLDER 8-94390-869-1 06 1 9907-9910 ●
57 SLEEVE; NOZZLE HOLDER 8-97600-972-0 06 1 9911-0109 ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0110-0507 ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 06 1 0508-0610 ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 06 1 0611- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0508-0610 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0611- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=27 		1-09623-355-0 06 1 9907-0406 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0407-0610 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0611- ● ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 9907-0409 ●
59 GUIDE; BRIDGE 8-97381-603-0 12 1 0410-0610 ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0611- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9811-9906 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9907-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0610 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0611- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9811-9906 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9907-0610 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0611- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9811-9906 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9907-0610 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0611- ● ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 9907-0501 ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0502-0610 ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0611- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 06 1 9907-0610 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 06 1 0611- ● ●

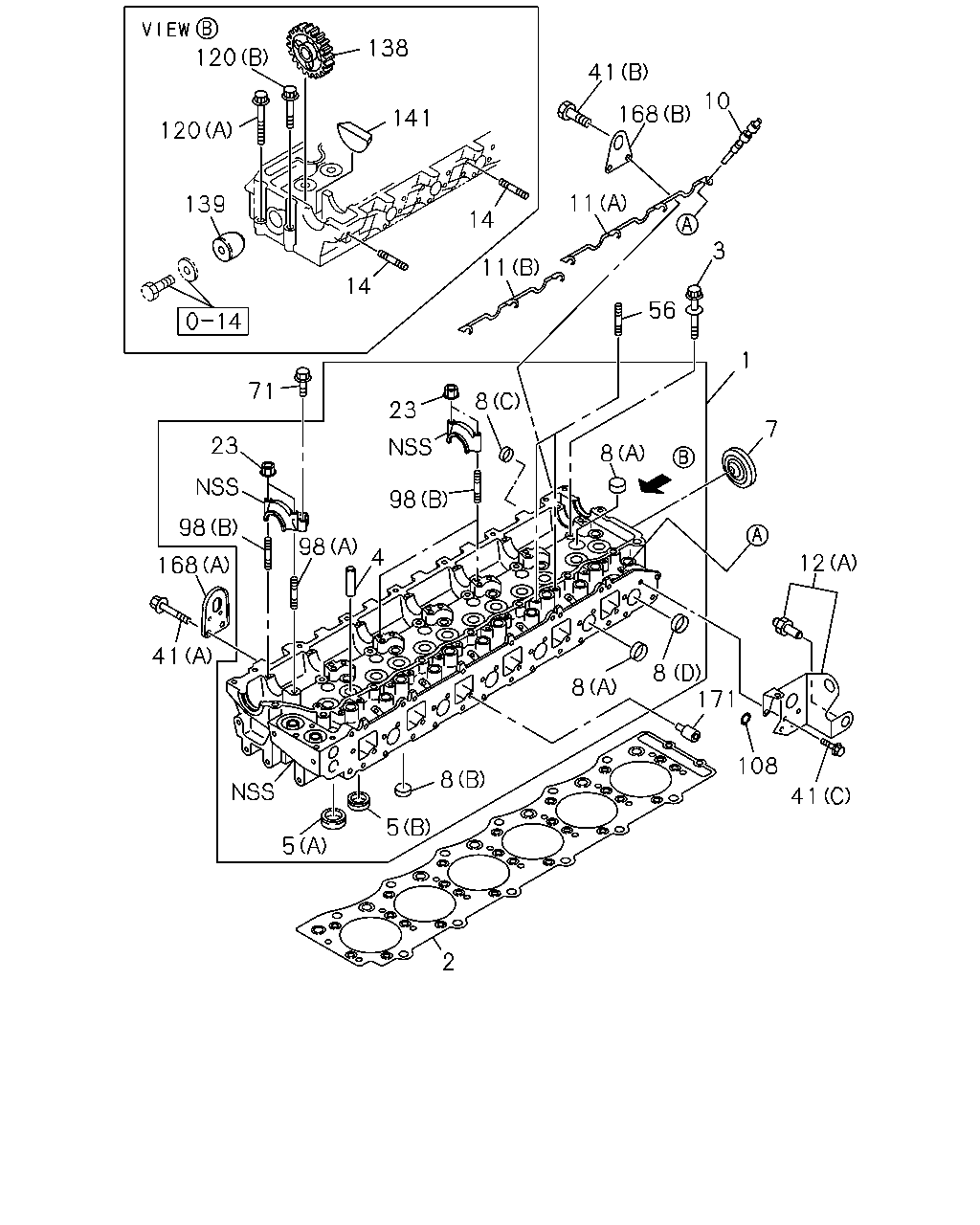

çizim 99166
138 120 41 10 168 141 120 11 139 14 3 11 14 56 1 71 8 23 7 23 8 98 98 98 4 12 168 41 8 171 8 108 8 41 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94390-967-1 01 1 9811-9906 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 9907-0211 ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-991-1 01 1 0508-0610 ●
1 HEAD ASM; CYL 8-97604-903-5 01 1 0611- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9811-9906 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 9907-0407 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 0611- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9811-9906 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9907-0610 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0611- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9811-9906 ●
4 GUIDE; VLV 8-94390-780-0 24 1 9907-0610 ●
4 GUIDE; VLV 8-97376-719-2 24 1 0611- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=48 		8-94394-462-0 06 1 9811-9906 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-94395-625-0 12 1 9907-0106 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0610 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0611-0703 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=32 OD=38 		8-98028-874-0 12 1 0704- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 06 1 9811-9906 ●
5 SEAT; VLV INSERT
(A) INLET OD=38 		8-94395-888-0 12 1 9907-0610 ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-97606-247-0 12 1 0611-0703 ● ●
5 SEAT; VLV INSERT
(A) INLET ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9811-9906 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9907-0303 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0610 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 07 1 9907-9911 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 9912-0610 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
FRR MIDDLE CHASSIS(FR****) (D) OD=32 		1-09600-012-1 01 1 9811-9906 ●
8 CUP; SEALING,WATER JACKET
FRR MIDDLE CHASSIS(FR****) (A) OD=32 		1-09600-012-2 01 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 07 1 0611- ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 9907-0610 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0611- ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9811-9906 ●
10 PLUG; GLOW 8-94392-815-3 06 1 9907-0610 ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0611- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9811-9906 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 9907-0610 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0611- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9811-9906 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 9907-0610 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0611- ● ●
12 HANGER; ENG,RR
(A) 		8-94394-553-1 01 1 9811-9906 ●
12 HANGER; ENG,RR
FRR MIDDLE CHASSIS(FR****) (C) 		8-94391-640-2 01 1 9907-0610 ●
12 HANGER; ENG,RR
(D) 		8-94392-081-1 01 1 0611- ● ●
12 HANGER; ENG,RR
FVR MIDDLE CHASSIS(FV****) (B) 		8-94390-417-2 01 1 9907-0610 ●
14 STUD; EXH MANIF
M10X93 L=108 		8-94396-123-0 11 1 9811-9906 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 01 1 9811-9906 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9907-0610 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0611- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9811-9906 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9907-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603-0610 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0611- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9811-9906 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9907-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601-0610 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0611- ● ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28181-030-0 02 1 9811-9906 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 9907-0512 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0601-0610 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0611- ● ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9811-9906 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9907-0610 ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 0611- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9811-9906 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9811-9906 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9907-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0610 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0611- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9811-9906 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9907-0610 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0611- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9811-9906 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9907-0610 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0611- ● ●
108 GASKET; HANGER,RR
FVR MIDDLE CHASSIS(FV****) ID=35.2 		1-09623-375-0 01 1 9811-9906 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9907-0610 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9811-9906 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9907-0610 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0611- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9811-9906 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9907-0610 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0611- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9811-9906 ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9907-0610 ●
138 GEAR; IDLE
Z=41 		8-97606-769-3 01 1 0611- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9811-9906 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9907-0610 ●
139 SHAFT; IDLE GEAR 8-97606-990-1 01 1 0611- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9811-9906 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9907-0610 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0611- ● ●
168 HANGER; ENG,FRT
(C) 		8-94393-810-0 01 1 0611- ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-1 01 1 9811-9906 ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 9907-0610 ●
168 HANGER; ENG,FRT
(A) 		8-98043-134-0 01 1 0611- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 9811-9906 ●
168 HANGER; ENG,FRT
(B) 		8-94392-799-0 01 1 9907-0610 ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 0611- ●
171 SEAT; VLV 8-94395-571-1 06 1 9811-9906 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
