Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-68 - ROOF VENTILATOR
▶

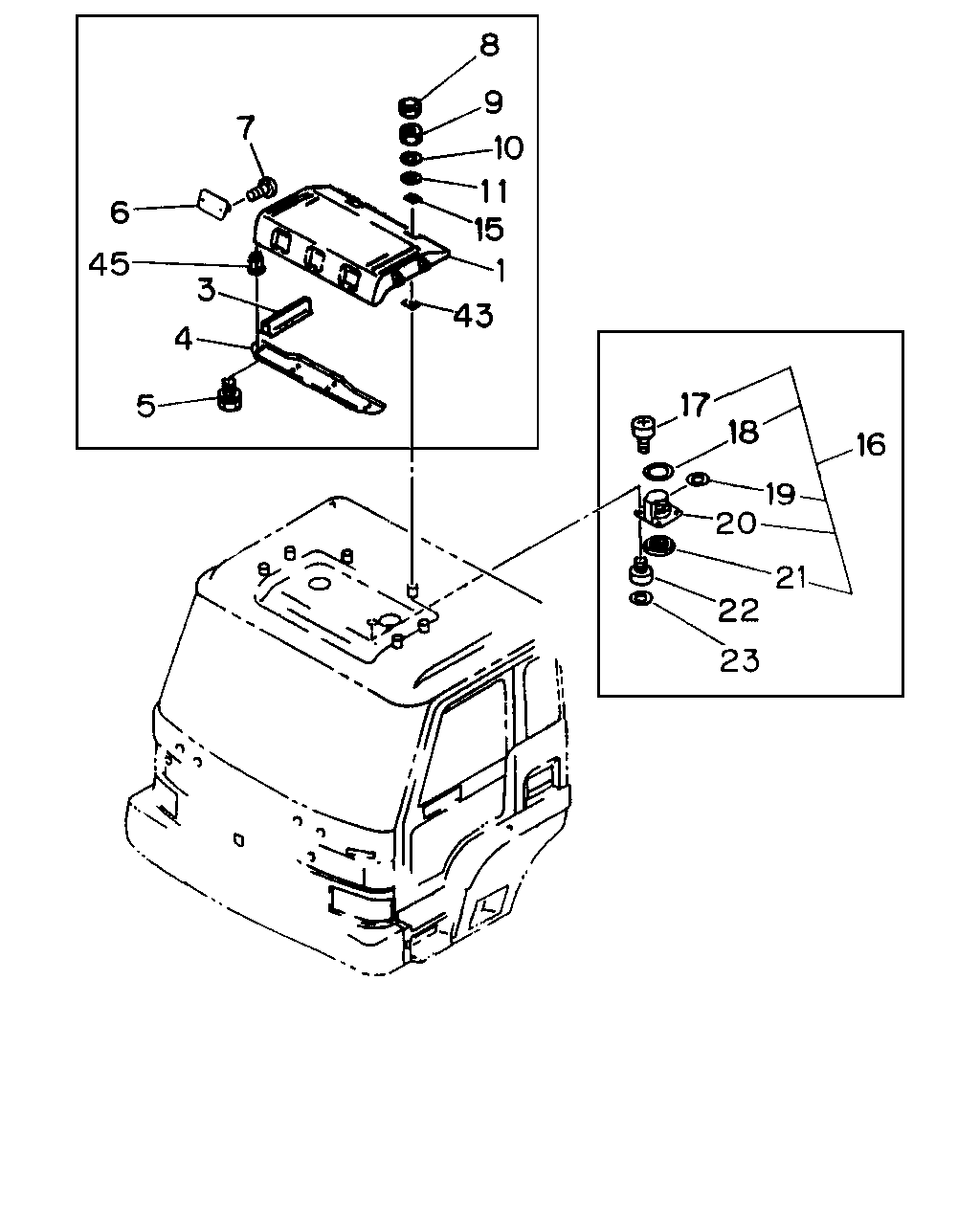

6-68 — ROOF VENTILATOR
(#566) — 33 parça
8
9
10
11
15
1
43
7
6
45
3
4
5
17
18
16
19
20
21
22
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOOD; ROOF VENT
1-76337-297-0
01
1
8712-9001
1
HOOD; ROOF VENT
1-76337-437-0
01
1
9002-
3
SEAL; HOOD,ROOF VENT
1-76777-066-0
04
1
8712-
4
GUARD; MOTH,ROOF VENT
1-76337-265-0
01
1
8712-
5
SCREW; MOTH GUARD
M5X10
1-09981-428-0
10
1
8712-9112
5
SCREW; MOTH GUARD
M5X10
1-09981-428-0
08
1
9201-
6
COVER; SPD INDICATOR LAMP
NEW ZEALAND EQUIPMENT(PK5)
1-76337-394-0
01
1
8712-
6
COVER; SPD INDICATOR LAMP
EXC. NEW ZEALAND EQUIPMENT(PK5)
1-76337-394-0
03
1
8712-
7
SCREW; COVER
NEW ZEALAND EQUIPMENT(PK5) M5X12 W/LK&PL WASHER
1-09981-464-0
02
1
8712-
7
SCREW; COVER
EXC. NEW ZEALAND EQUIPMENT(PK5) M5X12 W/LK&PL WASHER
1-09981-464-0
06
1
8712-
8
NUT; CAP,HOOD,ROOF VENT
M8 FLANGE
1-09984-126-0
06
1
8712-
9
NUT; HOOD
M8
1-09984-149-0
06
1
8712-
10
WASHER; LK,HOOD,ROOF VENT
ID=8.2
1-09985-177-0
06
1
8712-
11
WASHER; PL,HOOD,ROOF VENT
ID=8.4 OD=22
1-09985-188-0
06
1
8712-
15
PATCH; HOOD,ROOF VENT
1-76337-319-0
06
1
8712-
16
DEVICE; VENT,ROOF VENT
1-76337-230-5
02
1
8712-9001
16
DEVICE; VENT,ROOF VENT
1-76337-443-0
02
1
9002-9306
16
DEVICE; VENT,ROOF VENT
1-76337-456-0
02
1
9307-
17
SCREW; BODY,ROOF VENT
1-76337-282-0
18
1
8712-
18
SEAL; BODY,ROOF VENT
1-76337-279-0
02
1
8712-
19
SEAL; DAMPER,ROOF VENT
1-76337-280-0
02
1
8712-
20
BODY ASM; ROOF VENT
1-76337-278-0
02
1
8712-9001
20
BODY ASM; ROOF VENT
1-76337-444-0
02
1
9002-9306
20
BODY ASM; ROOF VENT
1-76337-457-0
02
1
9307-
21
GRILLE ASM; ROOF VENT
1-76337-281-0
02
1
8712-9001
21
GRILLE ASM; ROOF VENT
1-76337-446-0
02
1
9002-9306
21
GRILLE ASM; ROOF VENT
1-76337-458-0
02
1
9307-
22
SCREW; DEVICE,ROOF VENT
M6X20 W/LK&PL WASHER
1-09981-312-0
08
1
8712-
23
COVER; DEVICE,HOLE,ROOF VENT
1-76337-268-0
08
1
8712-9001
23
COVER; DEVICE,HOLE,ROOF VENT
1-76337-445-0
08
1
9002-9306
23
COVER; DEVICE,HOLE,ROOF VENT
1-73337-366-0
08
1
9307-
43
SHEET; HOOD,ROOF VENT
1-76337-271-1
06
1
8712-
45
NUT; ROOF VENTILATOR
1-72447-135-1
10
1
8712-8906
