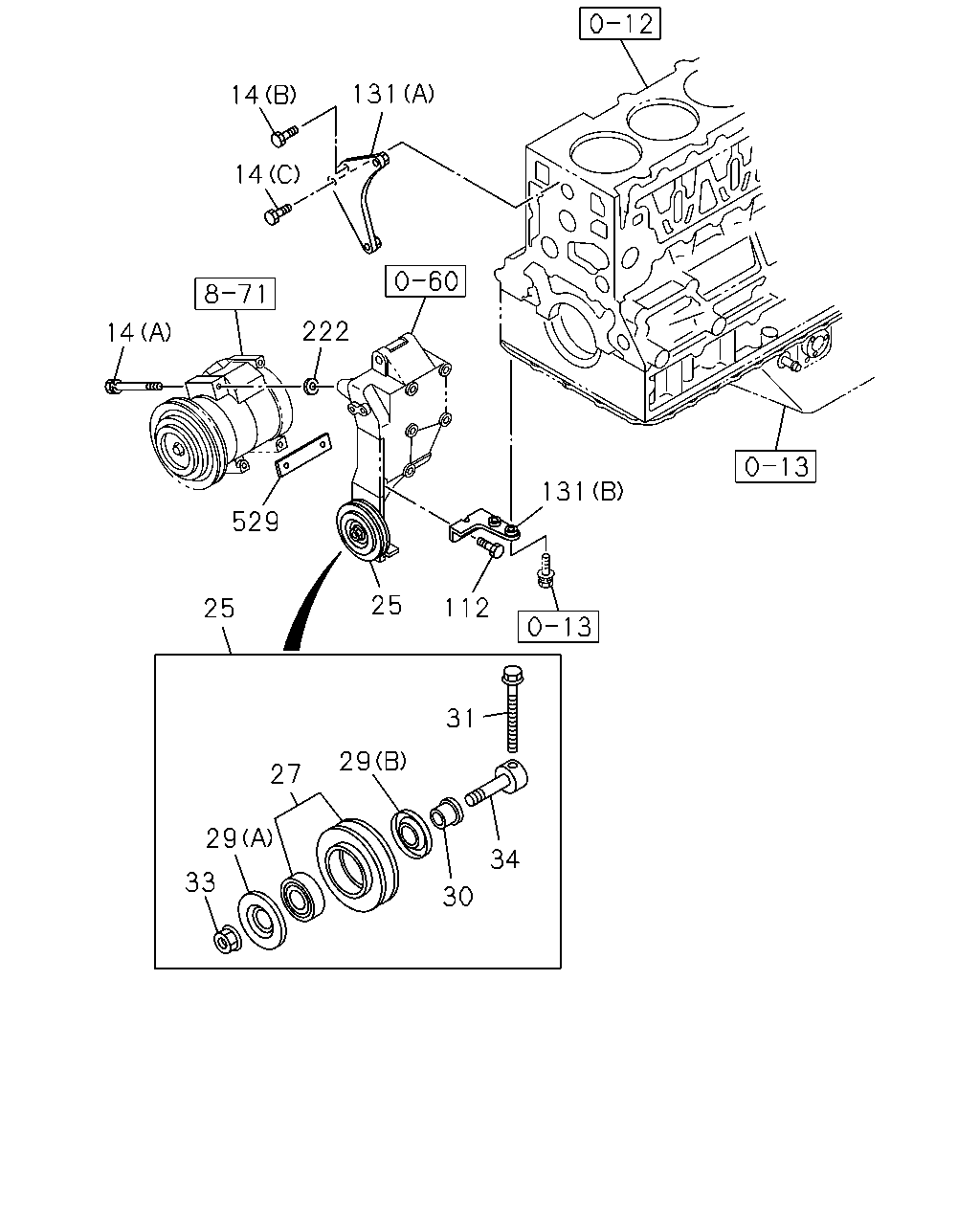

8-50 — AIR CONDITIONING SYSTEM; FRONT (#56592) — 24 parça

131 14 14 222 14 131 529 25 112 25 31 29 27 29 34 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	BOLT; CMPR (B) M10X35 FLANGE	0-28151-035-0	01	1	1006-
14	BOLT; CMPR (C) M10X45 FLANGE THA	0-28151-045-0	01	1	1006-
14	BOLT; CMPR (A) M8X78 W/LK WASHER	5-09000-228-1	04	1	1006-
25	PULLEY ASM; IDLER,CMPR	8-97605-079-0	01	1	1006-
27	PULLEY; IDLE,A/C	8-97605-323-0	01	1	1006-
29	COVER; DUST,IDLE PULLEY (A)	8-97605-329-0	01	1	1006-
29	COVER; DUST,IDLE PULLEY (B)	8-97605-330-0	01	1	1006-
30	COLLAR; IDLE PULLEY	8-97605-328-0	01	1	1006-
31	BOLT; ADJ,IDLE PULLEY	8-97605-325-0	01	1	1006-
33	NUT; IDLER PULLEY	8-97605-326-0	01	1	1006-
34	SHAFT; IDLE PULLEY	8-97605-327-0	01	1	1006-
112	BOLT; STAY M8X16 FLANGE THA	0-28050-816-0	02	1	1006-
131	STAY; CMPR BRKT (B)	8-94393-451-0	01	1	1006-
131	STAY; CMPR BRKT (A)	8-98051-636-0	01	1	1006-
222	GASKET; CONNECTOR ID=8.2	8-94312-733-0	02	1	1006-
529	SPACER	1-83573-271-0	01	1	1006-

71 378 378 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	COVER; EVAP,A/C VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98017-234-1	01	1	1305-
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-94423-042-0	01	1	1006-
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98041-759-0	01	1	1006-1111
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98204-846-0	01	1	1112-
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98041-428-0	01	1	1006-

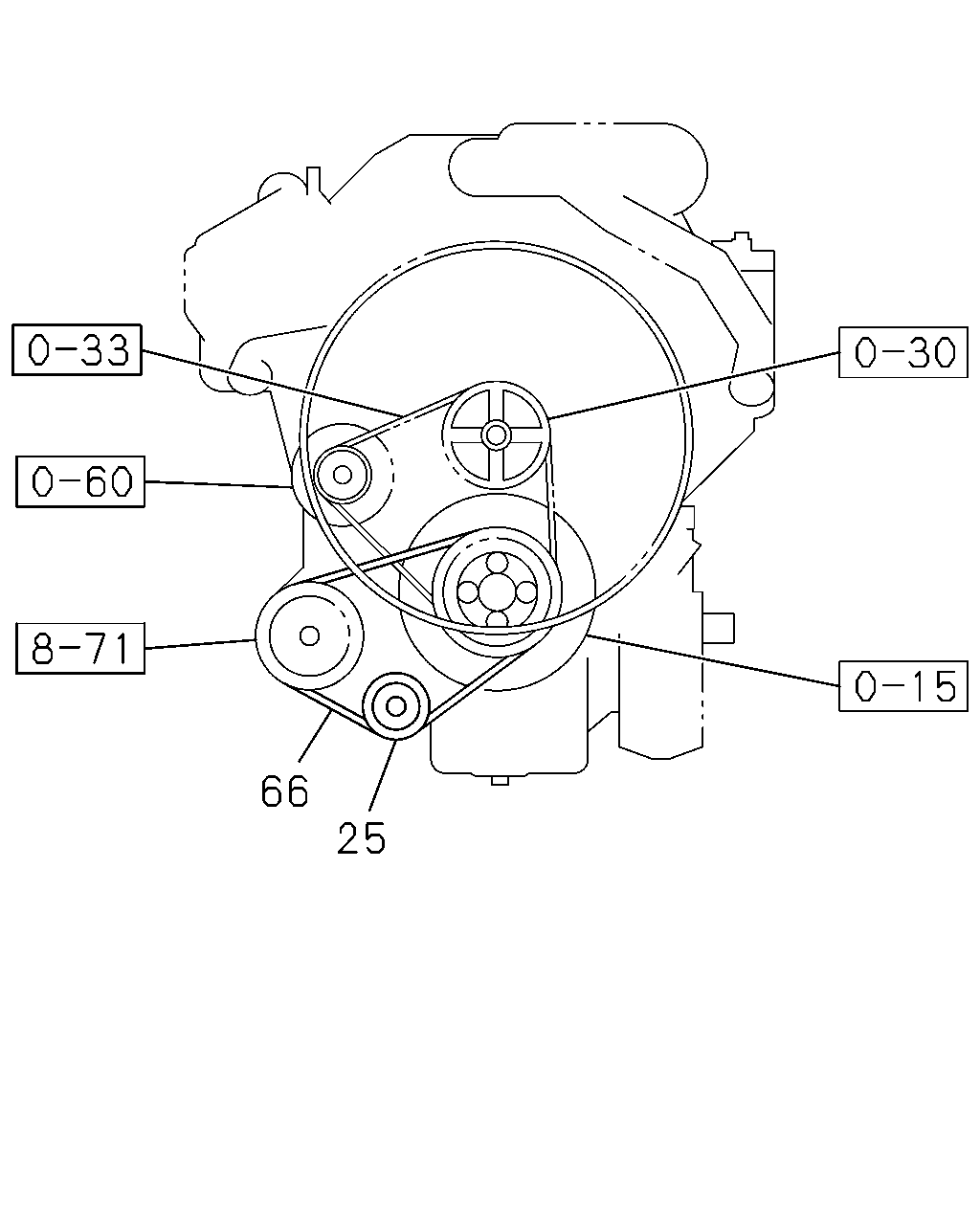

66 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR	8-97605-079-0	01	1	1006-
66	BELT; A/C CMPR BEST VALUE PARTS	1-87610-104-0	01	1	1006-
66	BELT; A/C CMPR L=1114	8-97605-102-0	01	1	1006-
