Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#56589) — 51 parça

615 531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
531	RELAY; MAIN 24V 30A JIDECO	8-97238-540-0	01	1	1006-1402
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
615	RELAY; TRAILER 24V 30A JIDECO	8-97238-540-0	01	1	1006-1402
615	RELAY; TRAILER 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

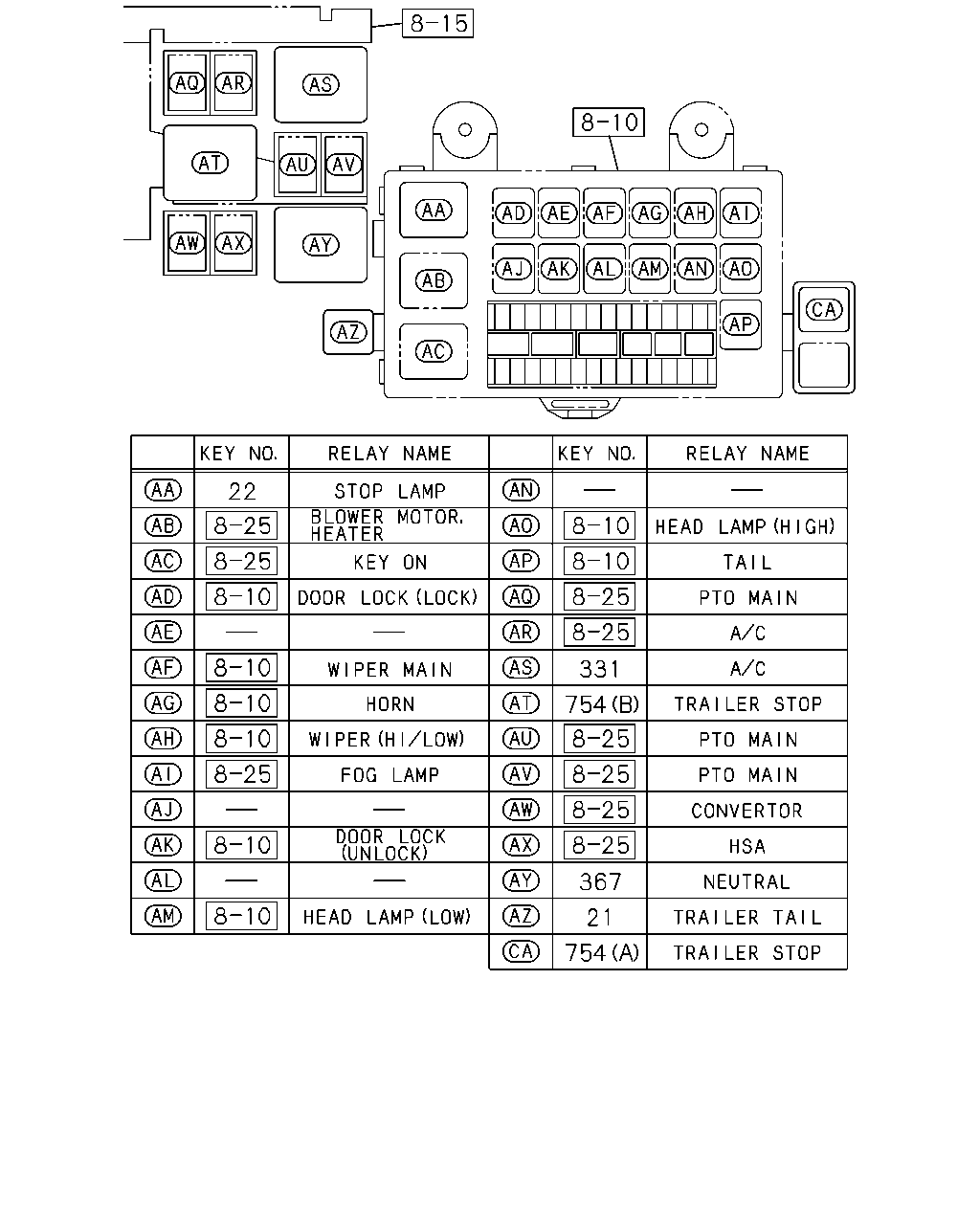

22 331 754 367 21 754

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	RELAY; TRAILER TAIL 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	1006-
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	1006-
331	RELAY; A/C 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	1006-
367	RELAY; NEUTRAL 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	1006-
754	RELAY; TRAILER STOP (B) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	1006-
754	RELAY; TRAILER STOP (A) 24V 10A MATSUSHITA	8-97173-035-1	01	1	1006-
754	RELAY; TRAILER STOP (A) 24V 10A MATSUSHITA	8-97173-035-1	01	1	1006-

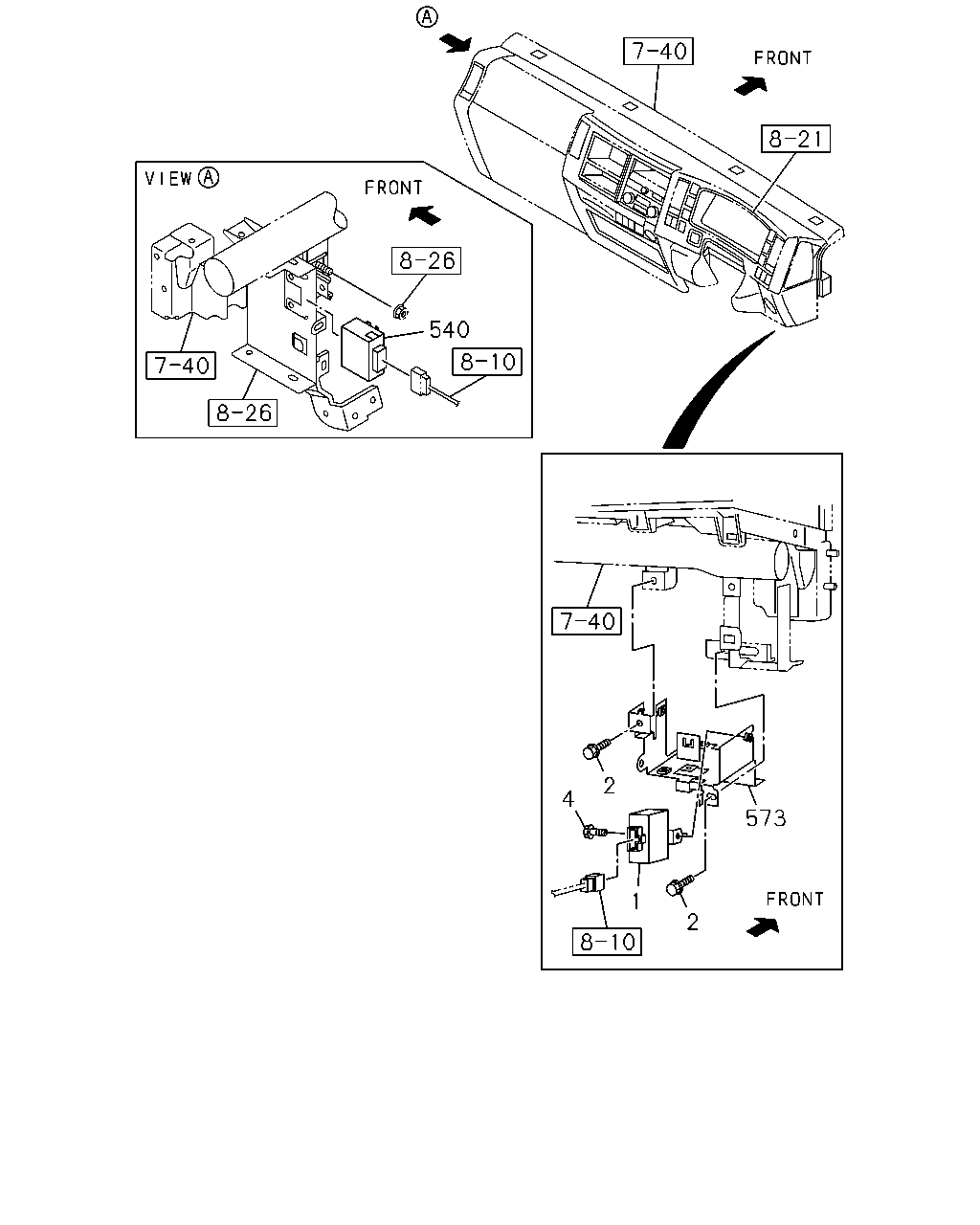

540 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-970-1	01	1	1006-
2	BOLT; FLASHER UNIT M6X16 FLANGE THA	0-28650-616-0	02	1	1006-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1006-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1006-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1006-

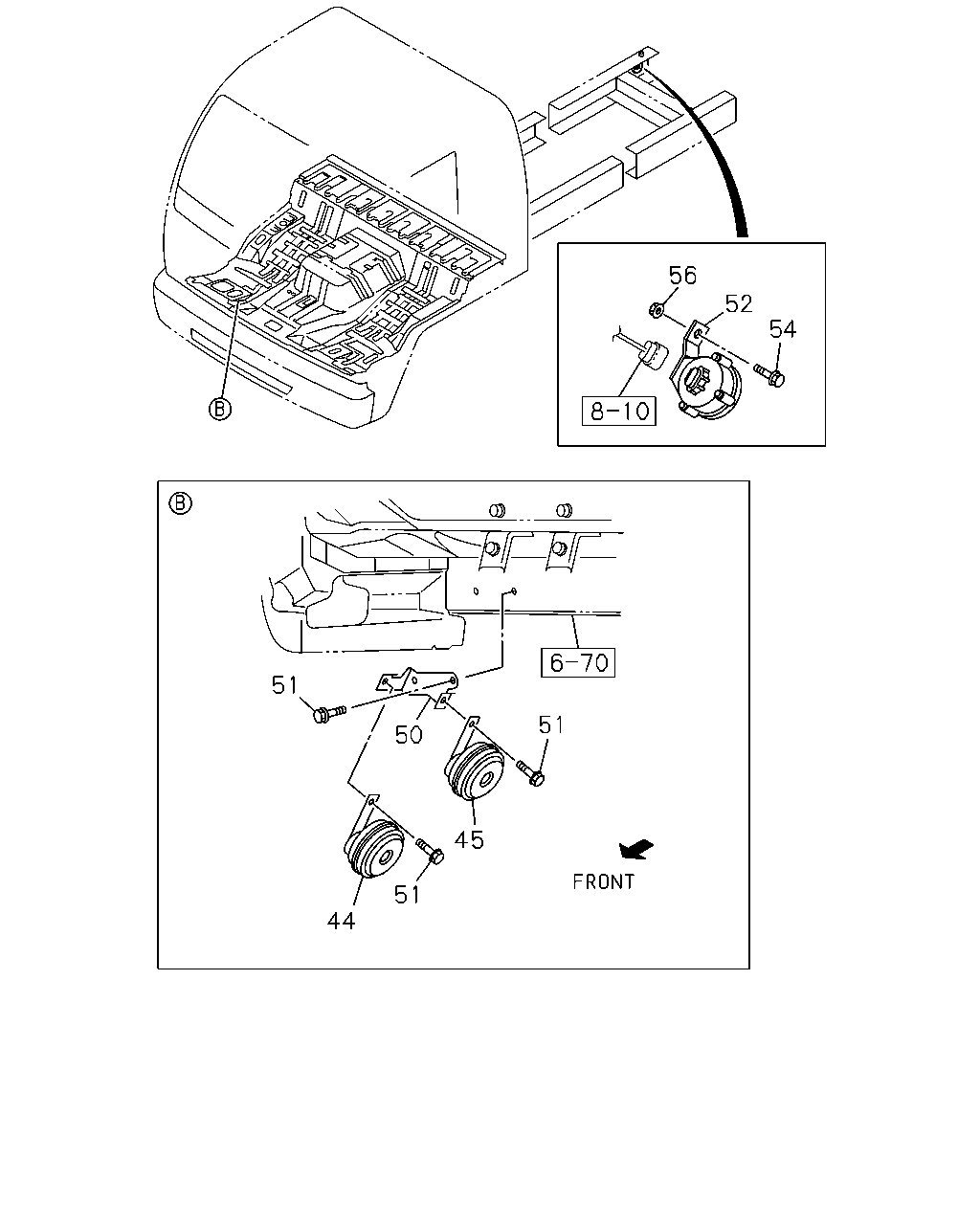

56 52 54 51 51 50 45 51 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> THA	8-97925-171-0	01	1	1109-
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98022-022-0	01	1	1006-
45	HORN; LOW NOTE THA	8-97925-172-0	01	1	1109-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1006-
50	BRACKET; HORN	8-97613-300-2	01	1	1006-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1006-
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1006-
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1006-
52	BUZZER; BACK	8-97617-027-0	01	1	1006-
54	BOLT; BACK BUZZER M10X30 FLANGE THA	0-28651-030-0	01	1	1006-
56	NUT; BACK BUZZER M10 FLANGE THA	0-91180-210-0	01	1	1006-

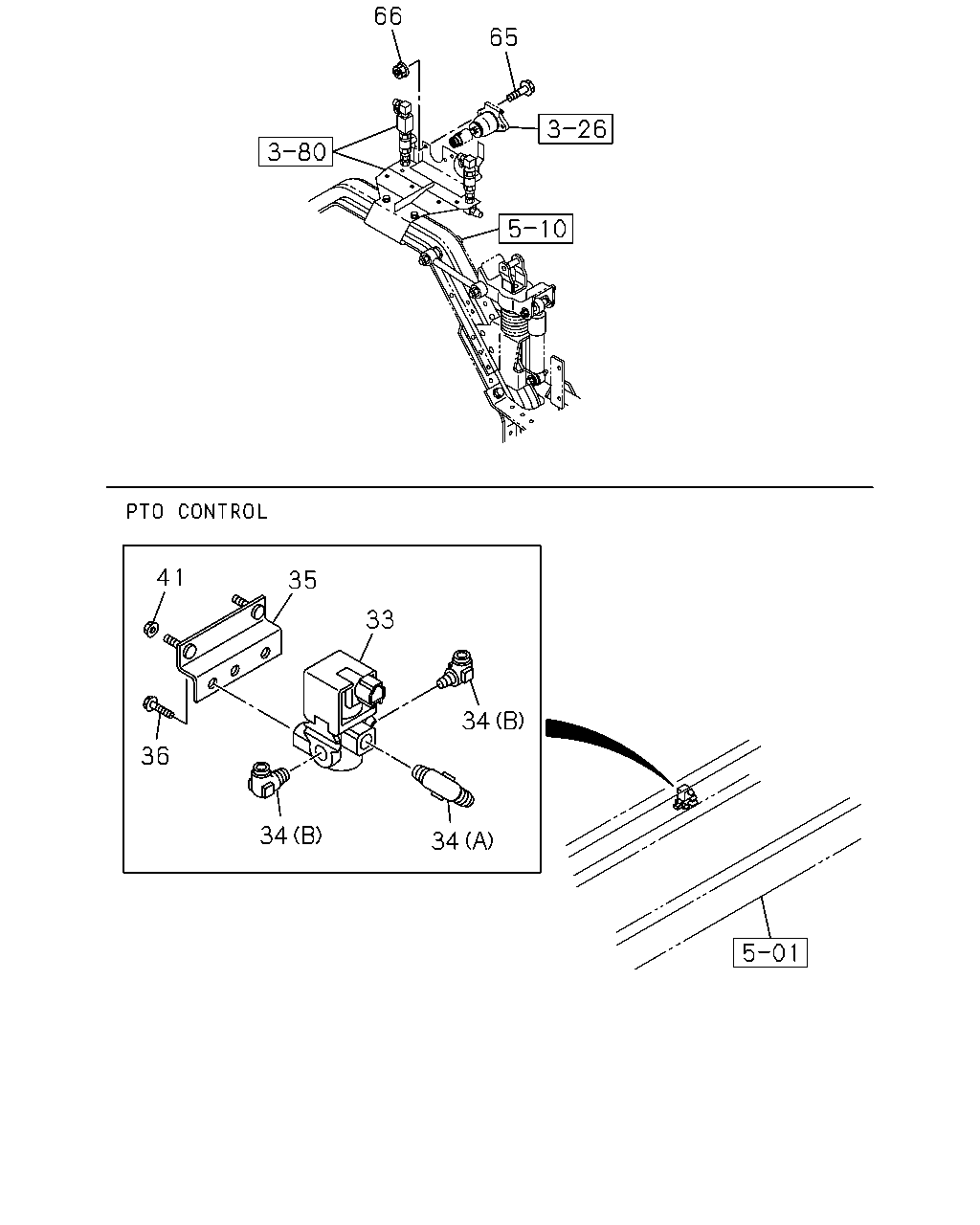

66 65 41 35 33 34 36 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	1006-1306
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> THA	8-97948-152-0	01	1	1307-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1006-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98098-592-1	01	1	1006-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE THA	0-28650-820-0	02	1	1006-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE THA	0-91180-108-0	02	1	1006-
65	BOLT; SOCKET FIX M8X25 FLANGE THA	0-28650-825-0	02	1	1006-
66	NUT; SOCKET FIX M8 FLANGE THA	0-91180-108-0	02	1	1006-

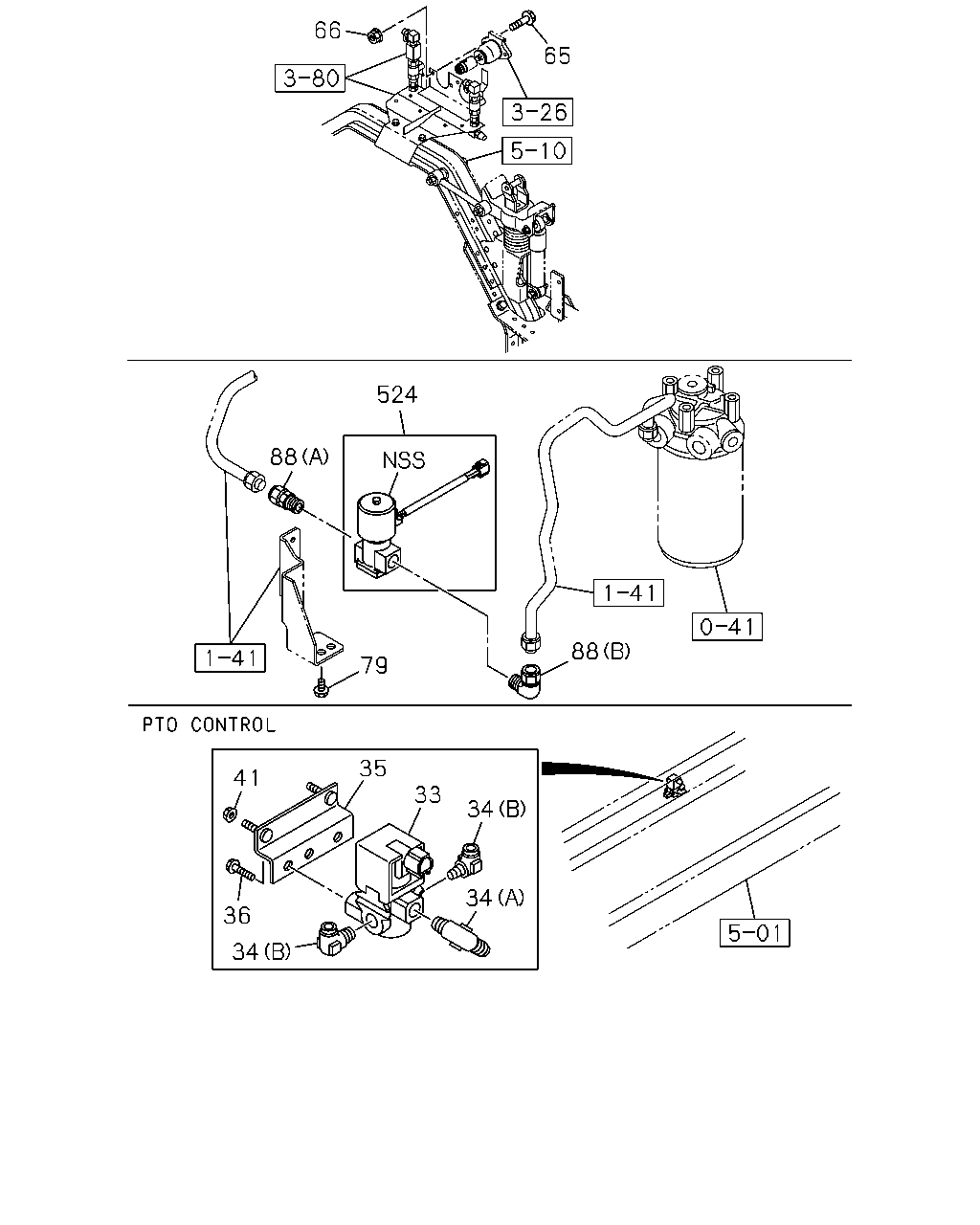

66 65 524 88 88 79 35 41 33 34 34 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	1006-1306
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> THA	8-97948-152-0	01	1	1307-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1006-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98098-592-1	01	1	1006-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE THA	0-28650-820-0	02	1	1006-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE THA	0-91180-108-0	02	1	1006-
65	BOLT; SOCKET FIX M8X25 FLANGE THA	0-28650-825-0	02	1	1006-
66	NUT; SOCKET FIX M8 FLANGE THA	0-91180-108-0	02	1	1006-
79	BOLT; MAG VLV M8X16 THA	8-94139-492-0	02	1	1006-
88	CONNECTOR; MAG VLV (B) M16 ELBOW	8-97630-844-0	01	1	1006-
88	CONNECTOR; MAG VLV (A) STRAIGHT	8-98163-158-0	01	1	1006-
524	VALVE; MAG,CNG	8-98163-157-0	01	1	1106-
524	VALVE; MAG,CNG	8-98163-157-0	01	1	1006-
