Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#56585) — 232 parça

530 14 48 14 16 48 49 208 217 225 224 1 224 538 178 596 178 14 16 48 14 48 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER ID=14 OD=18 L=60	1-09337-030-0	03	1	1006-
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	08	1	1006-1209
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	08	1	1210-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1006-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	02	1	1006-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	06	1	1006-1106
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	09	1	1107-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	09	1	1206-
14	CLIP; BAND,HARNESS (D) L=100	5-09707-036-1	03	1	1006-1106
14	CLIP; BAND,HARNESS (E) L=140	8-97122-360-0	01	1	1006-
16	CLIP; HARNESS (Q) ID=25 H=30 L=35	1-09700-944-0	01	1	1006-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1006-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1006-
16	CLIP; HARNESS (H) ID=15 H=24 L=20	1-09700-606-0	02	1	1006-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1006-
16	CLIP; HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1006-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1006-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	1006-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	04	1	1006-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1006-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	1006-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	05	1	1006-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1006-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1006-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1006-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1006-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1006-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	03	1	1006-
48	CLIP; FRAME HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1006-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1006-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1006-
48	CLIP; FRAME HARNESS (D) ID=25 L=50	1-09701-019-0	01	1	1006-
48	CLIP; FRAME HARNESS (G) ID=11 H=34 L=27	1-09701-023-0	03	1	1006-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1006-
48	CLIP; FRAME HARNESS (N) L=300	1-09707-001-1	01	1	1006-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1006-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1006-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=22	1-09709-292-0	01	1	1006-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=22	1-09709-292-0	03	1	1006-
48	CLIP; FRAME HARNESS (M) L=250	5-09707-030-1	04	1	1006-
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1006-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	03	1	1006-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	03	1	1006-
48	CLIP; FRAME HARNESS (L) ID=13-18 L=26	1-09709-293-0	01	1	1006-
48	CLIP; FRAME HARNESS (L) ID=13-18 L=26	1-09709-293-0	01	1	1006-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	1006-
49	CLIP; GEN HARNESS (B) L=250	5-09707-030-1	01	1	1006-
178	GROMMET; HARNESS (A)	9-09575-625-0	01	1	1006-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1006-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1006-
206	CLIP; FUEL TANK HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1006-
206	CLIP; FUEL TANK HARNESS (A) L=350	1-09707-183-0	05	1	1006-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> L=250	5-09707-030-1	01	1	1006-
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	01	1	1006-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1006-
224	SLEEVE; RUBBER,HARNESS (B) ID=23 OD=27 L=40	1-09337-015-0	01	1	1006-
224	SLEEVE; RUBBER,HARNESS (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	1006-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1006-
530	SEAL; HARNESS 180X40	1-72498-019-1	19	1	1006-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	17	1	1306-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1006-
596	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	1006-

7 53 59 59 137 137 59 59 312 308 312 428 312 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

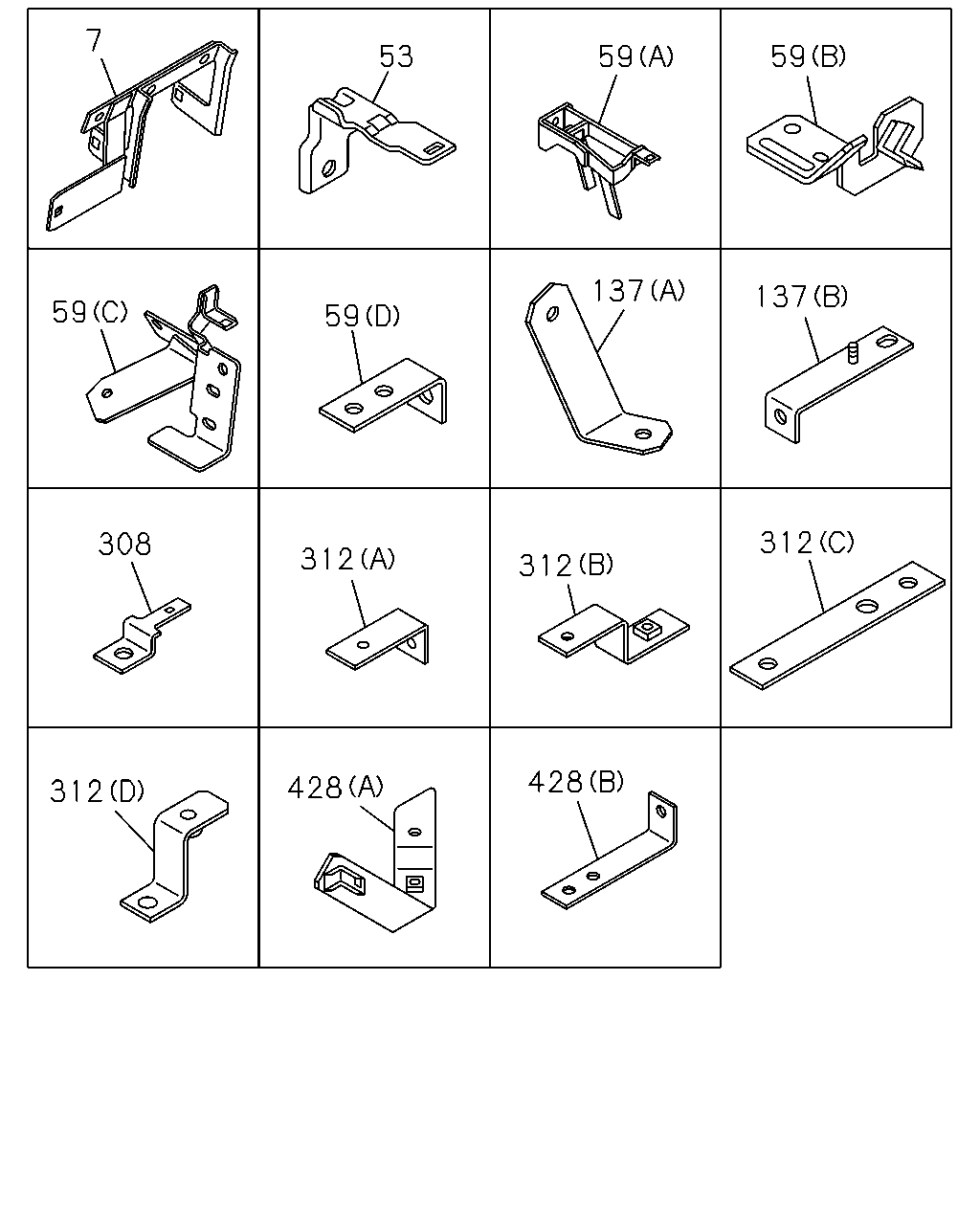

7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1006-
53	BRACKET; HARNESS	8-98052-458-0	01	1	1006-
59	BRACKET; FRAME HARNESS (D) L=115 H=30	1-47477-715-3	01	1	1006-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1006-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	1006-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1006-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1006-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1006-
308	BRACKET; CLIP,ENG HARNESS	8-97602-870-1	01	1	1006-
312	BRACKET; CLIP HARNESS (A) L=55	1-47475-304-0	01	1	1006-
312	BRACKET; CLIP HARNESS (C) L=100	1-47477-620-1	01	1	1006-
312	BRACKET; CLIP HARNESS (B)	8-97609-110-1	01	1	1006-
312	BRACKET; CLIP HARNESS (D) THA	8-98133-253-0	01	1	1006-
428	BRACKET (B) THA	1-82699-630-1	01	1	1006-
428	BRACKET (A) THA	8-98133-254-0	01	1	1006-

16 16 305 49 48 16 16 206 16 16 16 213 48 48 48 116 16 16 171 470 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

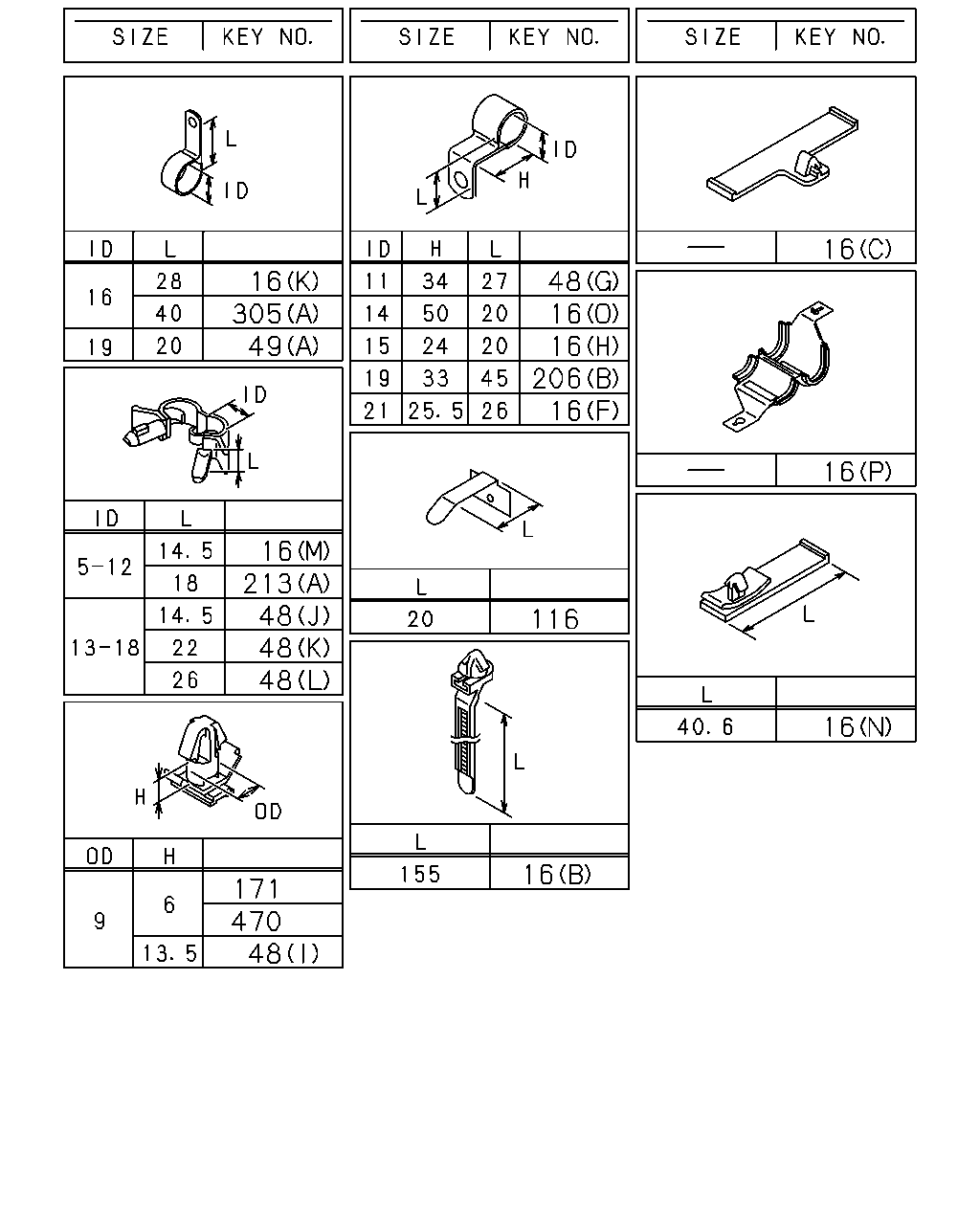

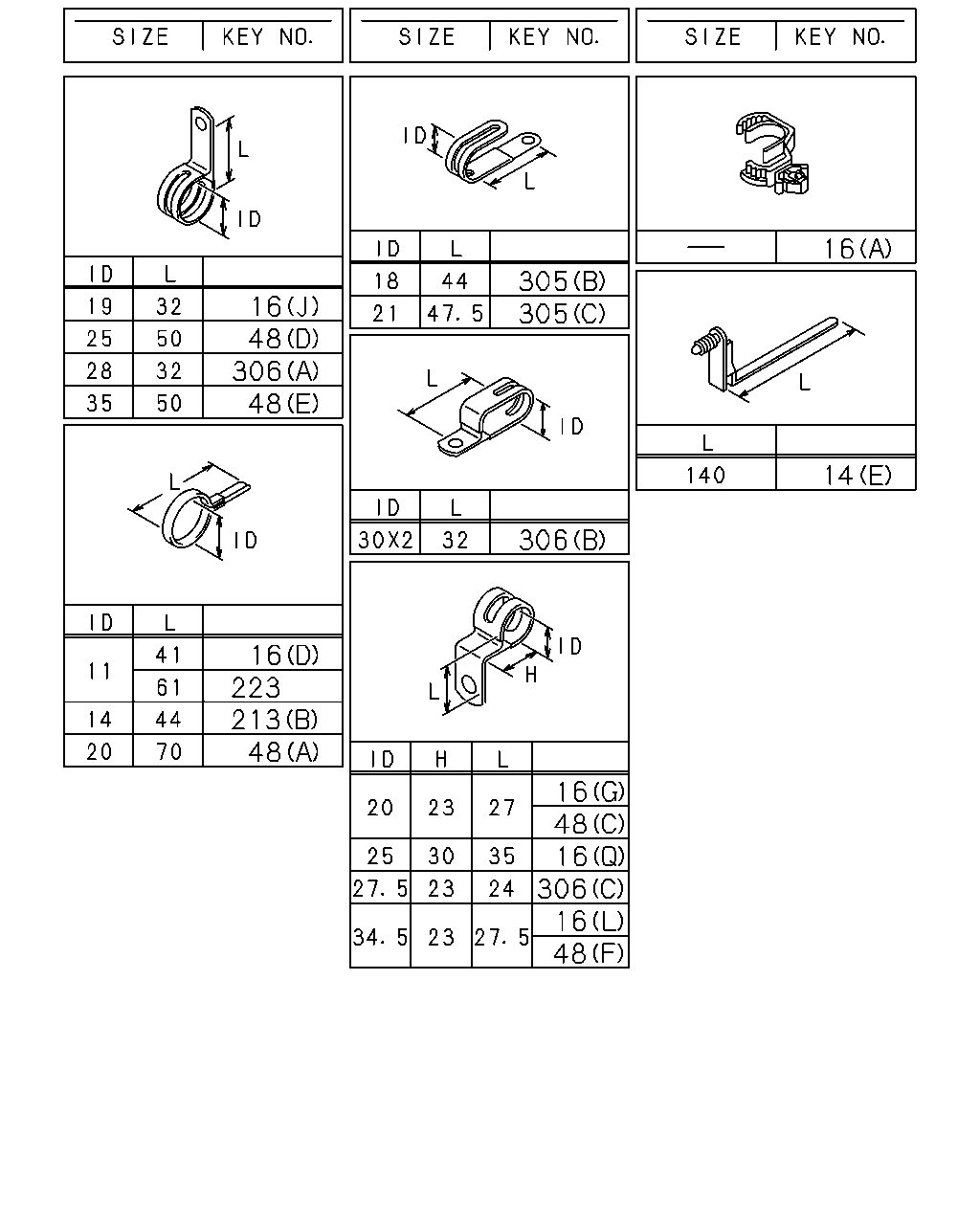

16	CLIP; HARNESS (Q) ID=25 H=30 L=35	1-09700-944-0	01	1	1006-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1006-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1006-
16	CLIP; HARNESS (H) ID=15 H=24 L=20	1-09700-606-0	02	1	1006-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1006-
16	CLIP; HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1006-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1006-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	1006-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	04	1	1006-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1006-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	1006-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	05	1	1006-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1006-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1006-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1006-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1006-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1006-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	03	1	1006-
48	CLIP; FRAME HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1006-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1006-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1006-
48	CLIP; FRAME HARNESS (D) ID=25 L=50	1-09701-019-0	01	1	1006-
48	CLIP; FRAME HARNESS (G) ID=11 H=34 L=27	1-09701-023-0	03	1	1006-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1006-
48	CLIP; FRAME HARNESS (N) L=300	1-09707-001-1	01	1	1006-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1006-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1006-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=22	1-09709-292-0	01	1	1006-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=22	1-09709-292-0	03	1	1006-
48	CLIP; FRAME HARNESS (M) L=250	5-09707-030-1	04	1	1006-
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1006-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	03	1	1006-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	03	1	1006-
48	CLIP; FRAME HARNESS (L) ID=13-18 L=26	1-09709-293-0	01	1	1006-
48	CLIP; FRAME HARNESS (L) ID=13-18 L=26	1-09709-293-0	01	1	1006-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	1006-
49	CLIP; GEN HARNESS (B) L=250	5-09707-030-1	01	1	1006-
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	03	1	1006-
171	CLIP; STARTER HARNESS OD=9 H=6	1-09709-178-0	02	1	1006-
206	CLIP; FUEL TANK HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1006-
206	CLIP; FUEL TANK HARNESS (A) L=350	1-09707-183-0	05	1	1006-
213	CLIP; END CROSS HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1006-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1006-
305	CLIP; ENG HARNESS (A) ID=16 L=40	0-95235-576-0	01	1	1006-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1006-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1006-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1006-

139 38 304 371 38 313 304 38 127 38 38 139 38 150 139 313 150 139 313 38 139 139 139 377 38 386 524 294 219 525 294 47 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

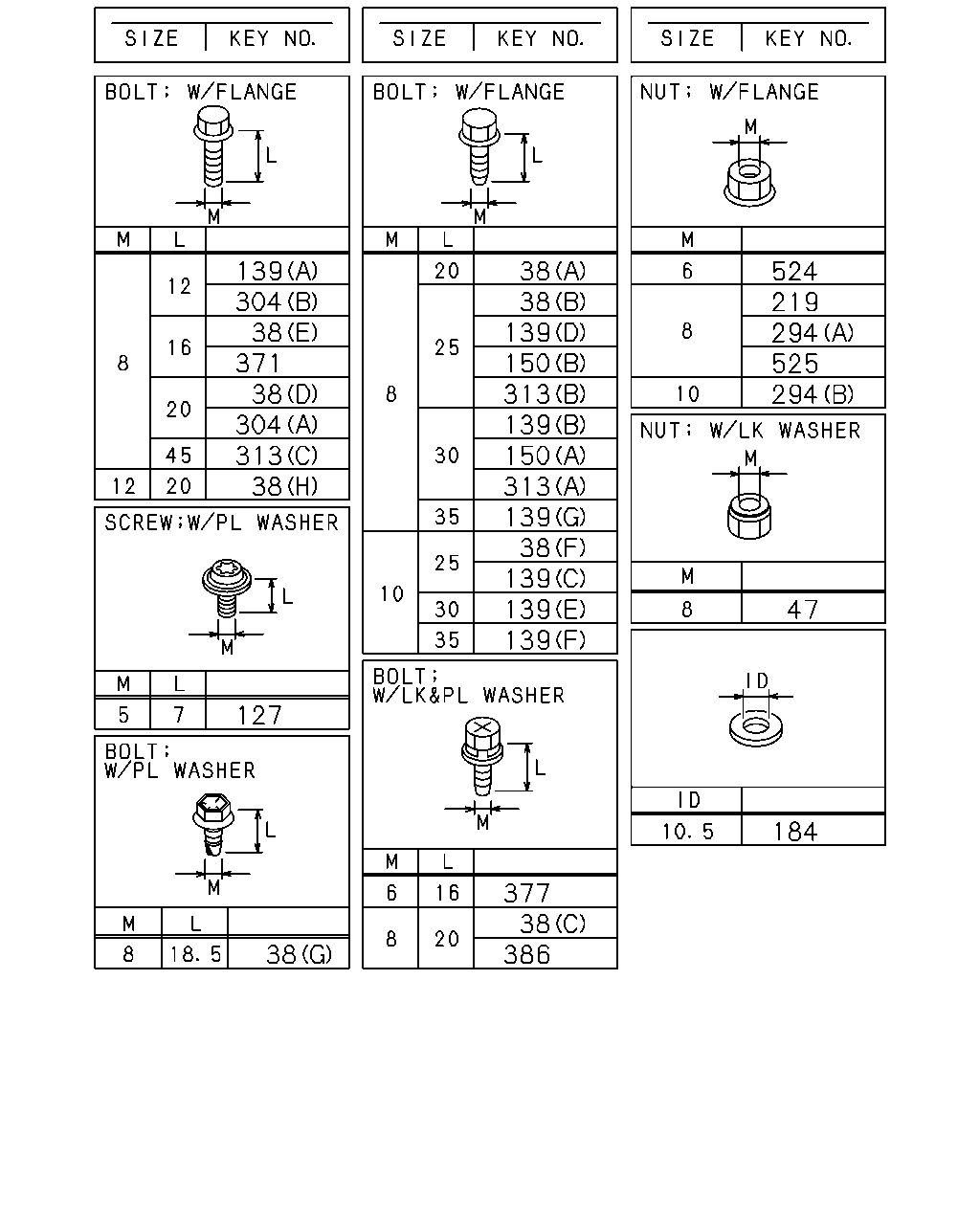

38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	03	1	1006-
38	BOLT; CLIP,HARNESS (F) M10X25 FLANGE THA	0-28151-025-0	01	1	1006-
38	BOLT; CLIP,HARNESS (H) M12X20 FLANGE	0-28151-220-0	01	1	1006-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1006-1202
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	04	1	1203-
38	BOLT; CLIP,HARNESS (E) M8X16 FLANGE THA	0-28050-816-0	02	1	1006-
38	BOLT; CLIP,HARNESS (E) M8X16 FLANGE THA	0-28050-816-0	06	1	1006-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1006-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	06	1	1006-
38	BOLT; CLIP,HARNESS (G) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1006-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1006-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1006-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1006-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1006-
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1006-
139	BOLT; BRKT (D) M8X25 FLANGE THA	0-28650-825-0	01	1	1006-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1006-
139	BOLT; BRKT (G) M8X35 FLANGE THA	0-28650-835-0	01	1	1006-
139	BOLT; BRKT (E) M10X30 FLANGE THA	0-28651-030-0	02	1	1006-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	1006-
150	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1006-
150	BOLT; CLIP (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1006-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1006-
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	1006-
219	NUT M8 FLANGE THA	0-91180-108-0	04	1	1006-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1006-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1006-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1006-1006
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	1007-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1006-1006
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1007-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1007-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	04	1	1006-1006
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	1006-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1006-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	01	1	1006-
313	BOLT; BRKT (C) M8X45 FLANGE THA	0-28050-845-0	01	1	1006-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1006-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1006-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1006-
371	BOLT; GEN HARNESS M8X16 FLANGE THA	0-28050-816-0	04	1	1006-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1006-
386	BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1006-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1006-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1008-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1008-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1006-1006
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1007-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1006-1006
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1006-1006
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1007-

16 305 305 16 48 306 48 14 306 16 223 213 48 16 48 16 306 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	08	1	1006-1209
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	08	1	1210-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1006-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	02	1	1006-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	06	1	1006-1106
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	09	1	1107-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	09	1	1206-
14	CLIP; BAND,HARNESS (D) L=100	5-09707-036-1	03	1	1006-1106
14	CLIP; BAND,HARNESS (E) L=140	8-97122-360-0	01	1	1006-
16	CLIP; HARNESS (Q) ID=25 H=30 L=35	1-09700-944-0	01	1	1006-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1006-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1006-
16	CLIP; HARNESS (H) ID=15 H=24 L=20	1-09700-606-0	02	1	1006-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1006-
16	CLIP; HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1006-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1006-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	1006-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	04	1	1006-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1006-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	1006-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	05	1	1006-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1006-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1006-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1006-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1006-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1006-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	03	1	1006-
48	CLIP; FRAME HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1006-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1006-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1006-
48	CLIP; FRAME HARNESS (D) ID=25 L=50	1-09701-019-0	01	1	1006-
48	CLIP; FRAME HARNESS (G) ID=11 H=34 L=27	1-09701-023-0	03	1	1006-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1006-
48	CLIP; FRAME HARNESS (N) L=300	1-09707-001-1	01	1	1006-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1006-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1006-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=22	1-09709-292-0	01	1	1006-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=22	1-09709-292-0	03	1	1006-
48	CLIP; FRAME HARNESS (M) L=250	5-09707-030-1	04	1	1006-
48	CLIP; FRAME HARNESS (H) L=140	5-09707-031-1	02	1	1006-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	03	1	1006-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	03	1	1006-
48	CLIP; FRAME HARNESS (L) ID=13-18 L=26	1-09709-293-0	01	1	1006-
48	CLIP; FRAME HARNESS (L) ID=13-18 L=26	1-09709-293-0	01	1	1006-
213	CLIP; END CROSS HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1006-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1006-
223	CLIP; AIR TANK HARNESS ID=11 L=61	1-09700-484-0	01	1	1006-
305	CLIP; ENG HARNESS (A) ID=16 L=40	0-95235-576-0	01	1	1006-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1006-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1006-
306	CLIP; HARNESS,ELEC GOV (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1006-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1006-
306	CLIP; HARNESS,ELEC GOV (B) ID=30X2 L=28	1-09701-266-0	01	1	1006-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
