◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#56575) — 135 parça

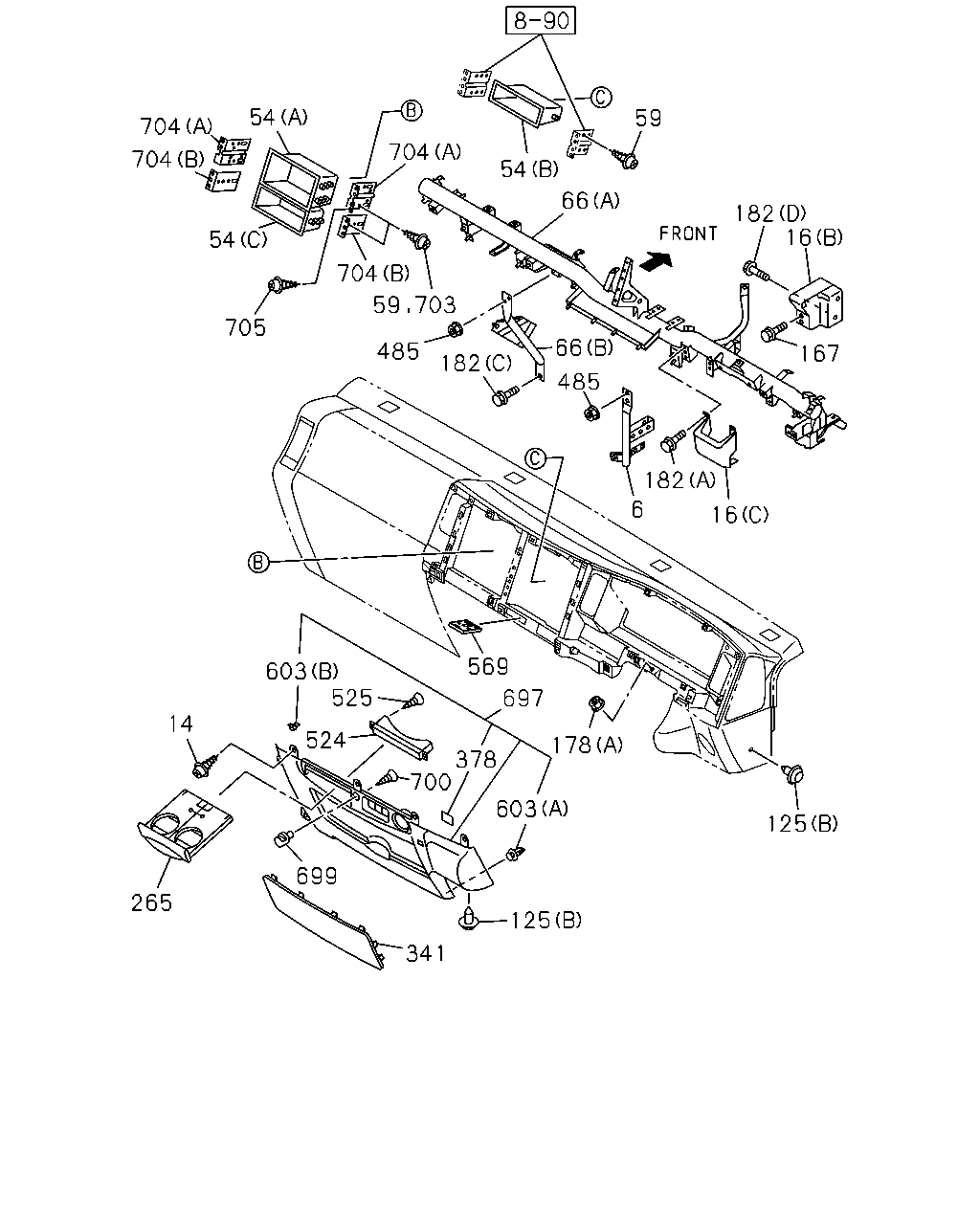

çizim 163040
704 704 54 54 705 704 704 59 703 485 182 66 485 6 182 16 167 16 182 66 54 59 125 178 697 569 603 525 524 378 603 700 125 341 699 14 265
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1006-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1006-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1006-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1006-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1006-
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 1006-1105
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1006-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-2 01 1 1006-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 1006-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 1006-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1006-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1006-
66 REINFORCEMENT; INST PANEL
(A) 		8-98154-701-1 01 1 1006-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1006-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1006-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1006-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1006-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1006-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 1006-1010
182 BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1006-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1006-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1006-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1006-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1006-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1006-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1006-
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1006-
569 HOLDER; CARD 8-97410-276-0 01 1 1006-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1006-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1006-1007
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1008-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1006-1007
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1006-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1006-
700 BOLT; HOOK
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1006-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1006-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1006-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1006-
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1006-

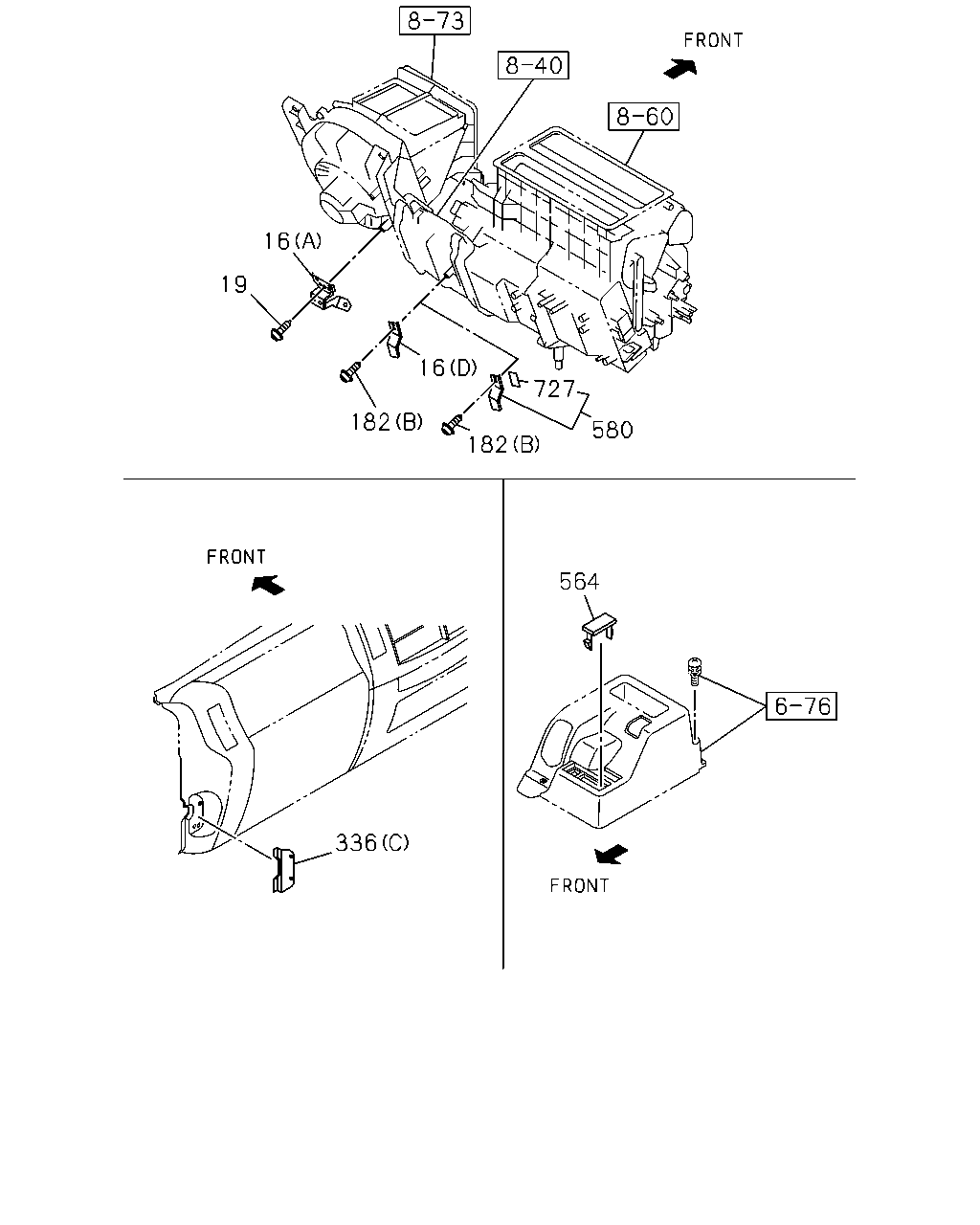

çizim 163174
16 19 16 727 182 580 182 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1006-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1006-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1006-
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 1006-1105
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1006-
19 SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1006-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 1006-1010
182 BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1006-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1006-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1006-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1006-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1006-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1006-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1006-
564 COVER; SW 8-97043-732-1 04 1 1006-
580 BRACKET; COVER 8-98017-528-1 01 1 1106-
727 SEAL; BRACKET 8-98186-934-0 01 1 1106-

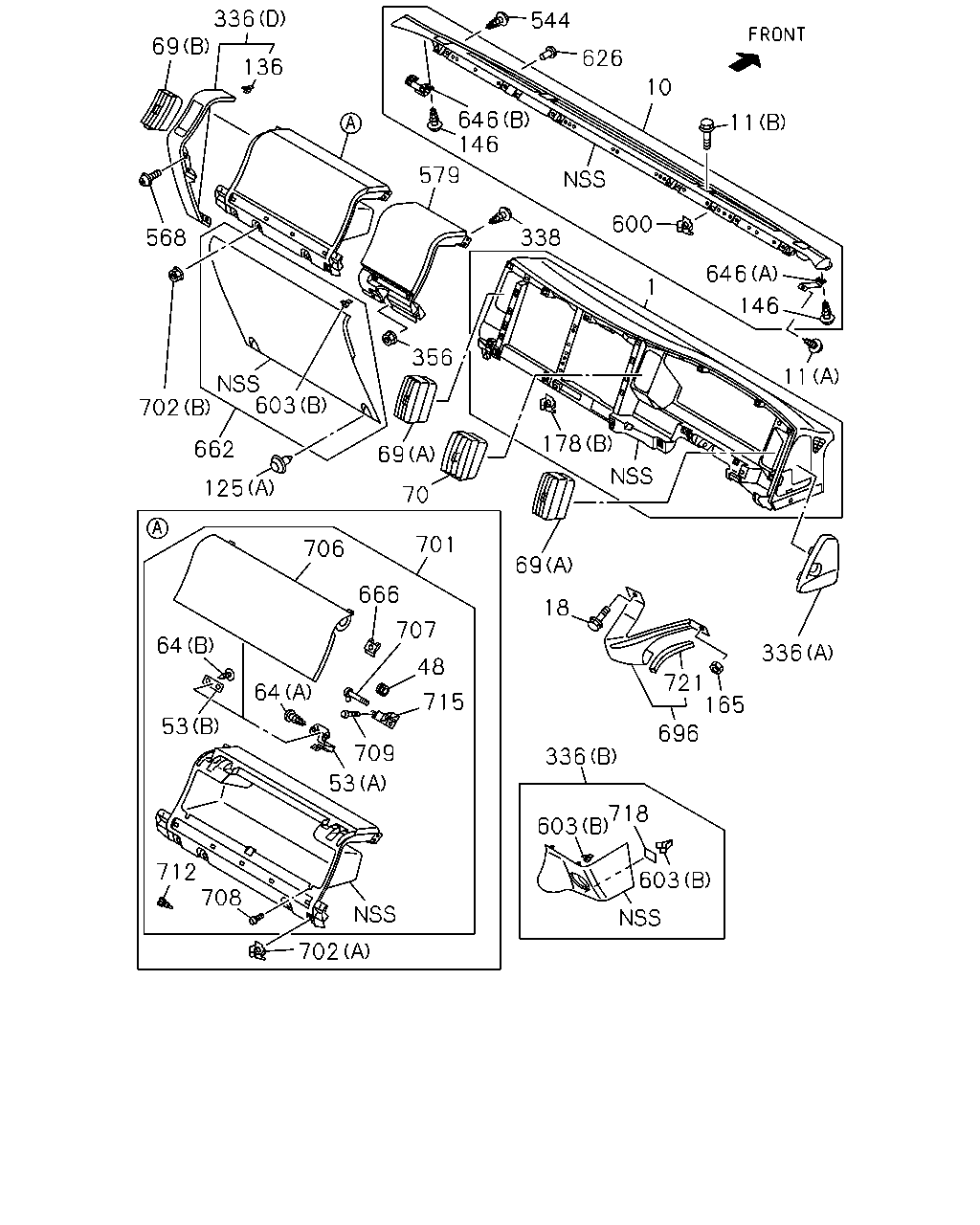

çizim 163182
336 136 69 568 702 603 662 125 69 70 356 579 338 646 146 544 10 626 11 600 646 1 11 146 178 336 165 721 696 18 69 336 718 603 603 701 706 666 707 48 715 709 53 64 64 53 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1006-
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 1006-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-0 01 1 1009-
11 BOLT; INST PNL
(A) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1006-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1006-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER THA 		0-52000-612-0 01 1 1006-1010
18 BOLT; BRKT
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1011-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1006-1311
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1006-1311
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1006-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1006-1405
64 SCREW; STRIKER
(B) M4X85 THA 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1006-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1006-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1006-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1006-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1006-
136 CLIP; INST COVER 8-98076-254-0 02 1 1006-
146 SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1006-
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 1006-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1006-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1006-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1006-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1006-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1006-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1006-
338 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1006-
356 NUT; COVER
M6 FLANGE THA 		0-91180-106-0 01 1 1006-
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1006-
568 BOLT; COVER
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1006-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1006-
600 NUT; PANEL 8-98037-629-0 02 1 1006-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1006-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1006-1007
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1008-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1006-1007
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1006-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1006-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1006-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1006-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1006-1311
666 INSERT; INST PANEL
M5 THA 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1006-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1006-1405
701 TRAY; INST
GRAY 		8-97429-703-0 01 1 1406-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1006-
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1006-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1006-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1006-1311
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1006-
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1006-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1006-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1006-1311
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1006-1311
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1006-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1006-
