7-20 — MIRROR AND MIRROR STAY (#56573) — 109 parça

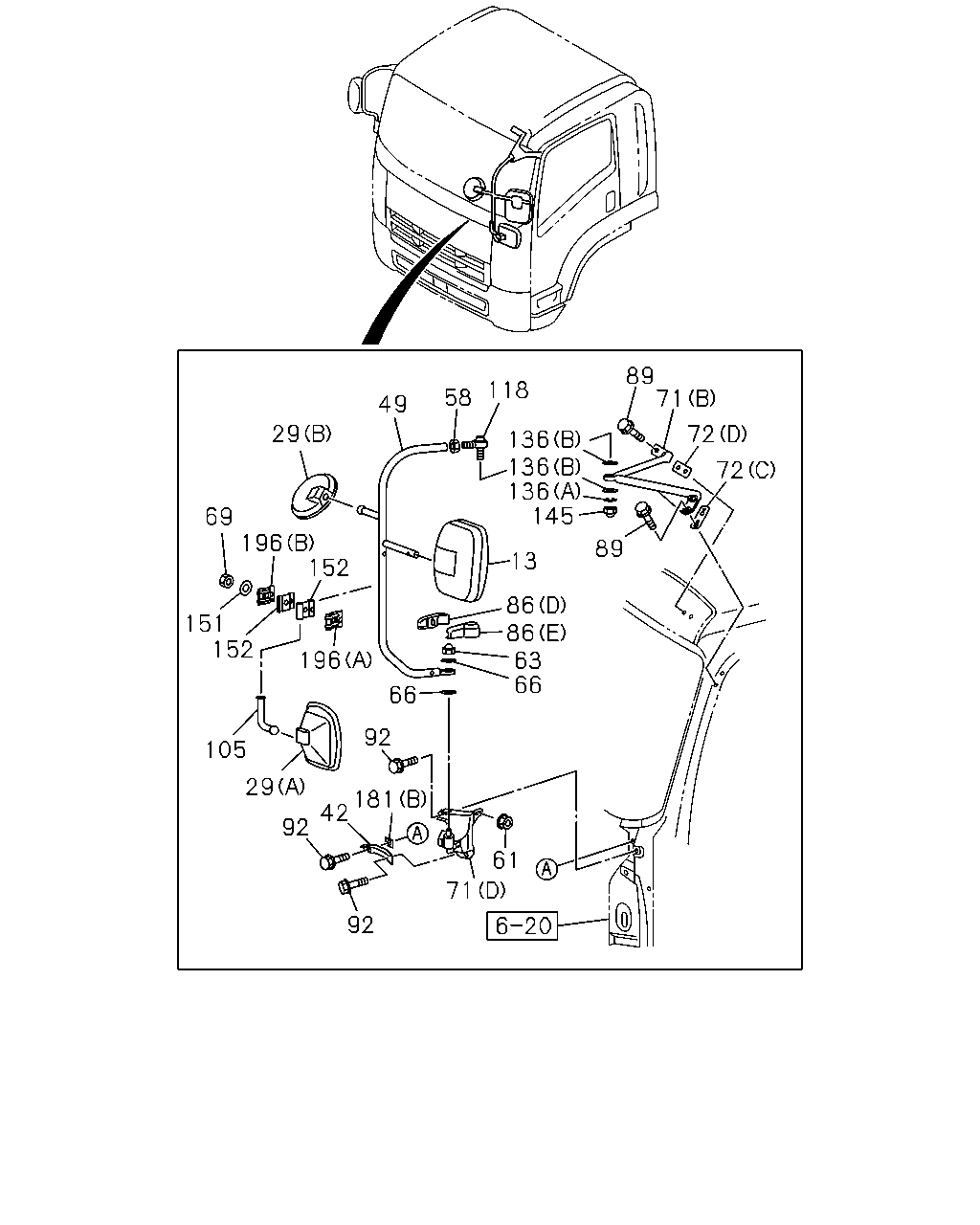

çizim 163039
89 71 118 58 49 29 72 136 136 136 145 72 69 196 152 89 13 86 86 63 66 151 152 196 66 92 105 29 181 42 92 61 71 92
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98028-332-0 01 1 1006-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98104-068-0 01 1 1006-
29 MIRROR ASM; UNDER
(A) 		1-71798-421-1 01 1 1006-
29 MIRROR ASM; UNDER
(B) 		1-71798-422-0 01 1 1006-
42 ATTACHMENT; OUTSIDE MIRROR 8-98070-643-0 01 1 1006-
49 STAY; MIRROR SIDE 8-98085-113-1 01 1 1006-
49 STAY; MIRROR SIDE 8-98091-477-0 01 1 1006-
58 NUT; MIRROR STAY 8-98061-883-0 01 1 1006-
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 01 1 1006-
63 NUT; STAY
M14 CAP NUT 		8-98041-311-1 01 1 1006-1006
63 NUT; STAY
M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1006-
66 WASHER; PL
UPPER 		8-98174-337-0 01 1 1006-1112
66 WASHER; PL
UPPER 		8-98201-756-0 01 1 1201-
66 WASHER; PL
LOWER 		0-91610-614-0 01 1 1006-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71707-224-0 04 1 1006-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-021-0 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98040-022-1 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98040-543-1 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-544-2 01 1 1006-1112
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98201-957-0 01 1 1201-
72 SHEET
(A) 		8-98040-351-0 01 1 1006-
72 SHEET
(B) 		8-98040-353-1 01 1 1006-
72 SHEET
(C) 		8-98040-535-0 01 1 1006-
72 SHEET
(D) 		8-98040-537-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-541-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-545-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-546-1 01 1 1006-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1006-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE THA 		8-98076-109-0 04 1 1006-
105 STAY; SUB UNDER MIRROR 8-98041-571-2 01 1 1006-
118 JOINT ASM; BALL 1-71798-356-2 01 1 1006-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1006-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1006-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1006-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1006-
151 WASHER; PL,MIRROR
ID=10.5 T=2.0 		1-09985-183-0 01 1 1006-
152 SHEET; MIRROR STAY 1-71798-445-1 02 1 1006-
181 SEAL; BRKT
(A) OD=25 BLACK THA 		1-76798-019-0 01 1 1006-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1006-
181 SEAL; BRKT
MATTRESS SLEEPER CAB<E40> (A) OD=25 BLACK THA 		1-76798-019-0 04 1 1006-
196 HOLDER; STAY
(A) 		1-71798-442-2 01 1 1006-
196 HOLDER; STAY
(B) 		1-71798-444-2 01 1 1006-
çizim 163157
13 53 53 71 26 14 25
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98028-332-0 01 1 1006-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98104-068-0 01 1 1006-
14 MIRROR ASM; OUTSIDE 8-98045-690-0 01 1 1006-
14 MIRROR ASM; OUTSIDE 8-98108-511-0 01 1 1006-
25 SCREW; OUTSIDE MIRROR
M6X40 		1-71707-223-0 04 1 1006-
26 COVER; OUTSIDE MIRROR 1-71707-221-0 01 1 1006-
26 COVER; OUTSIDE MIRROR 1-71707-222-0 01 1 1006-
53 PIVOT; SIDE MIRROR
ID=22.2 		1-71736-489-2 04 1 1006-
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71707-224-0 04 1 1006-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-021-0 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98040-022-1 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98040-543-1 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-544-2 01 1 1006-1112
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98201-957-0 01 1 1201-

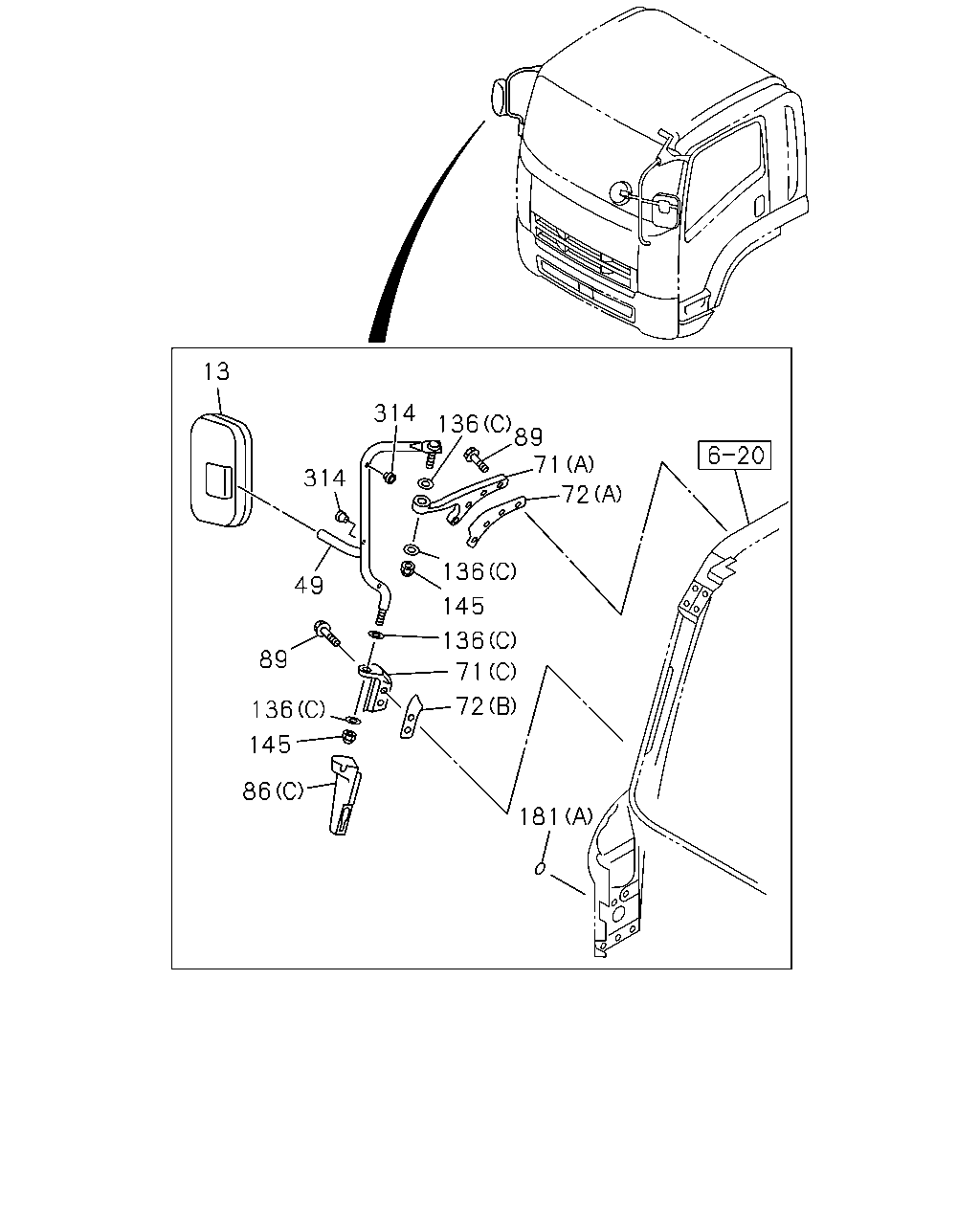

çizim 163167
13 314 136 89 71 314 72 136 49 145 136 89 71 72 136 145 86 181
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98028-332-0 01 1 1006-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98104-068-0 01 1 1006-
49 STAY; MIRROR SIDE 8-98085-113-1 01 1 1006-
49 STAY; MIRROR SIDE 8-98091-477-0 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71707-224-0 04 1 1006-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-021-0 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98040-022-1 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98040-543-1 01 1 1006-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-544-2 01 1 1006-1112
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98201-957-0 01 1 1201-
72 SHEET
(A) 		8-98040-351-0 01 1 1006-
72 SHEET
(B) 		8-98040-353-1 01 1 1006-
72 SHEET
(C) 		8-98040-535-0 01 1 1006-
72 SHEET
(D) 		8-98040-537-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-541-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-545-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-546-1 01 1 1006-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1006-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1006-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1006-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1006-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1006-
181 SEAL; BRKT
(A) OD=25 BLACK THA 		1-76798-019-0 01 1 1006-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1006-
181 SEAL; BRKT
MATTRESS SLEEPER CAB<E40> (A) OD=25 BLACK THA 		1-76798-019-0 04 1 1006-
314 BUFFER; STOPPER 8-94314-317-0 02 1 1006-

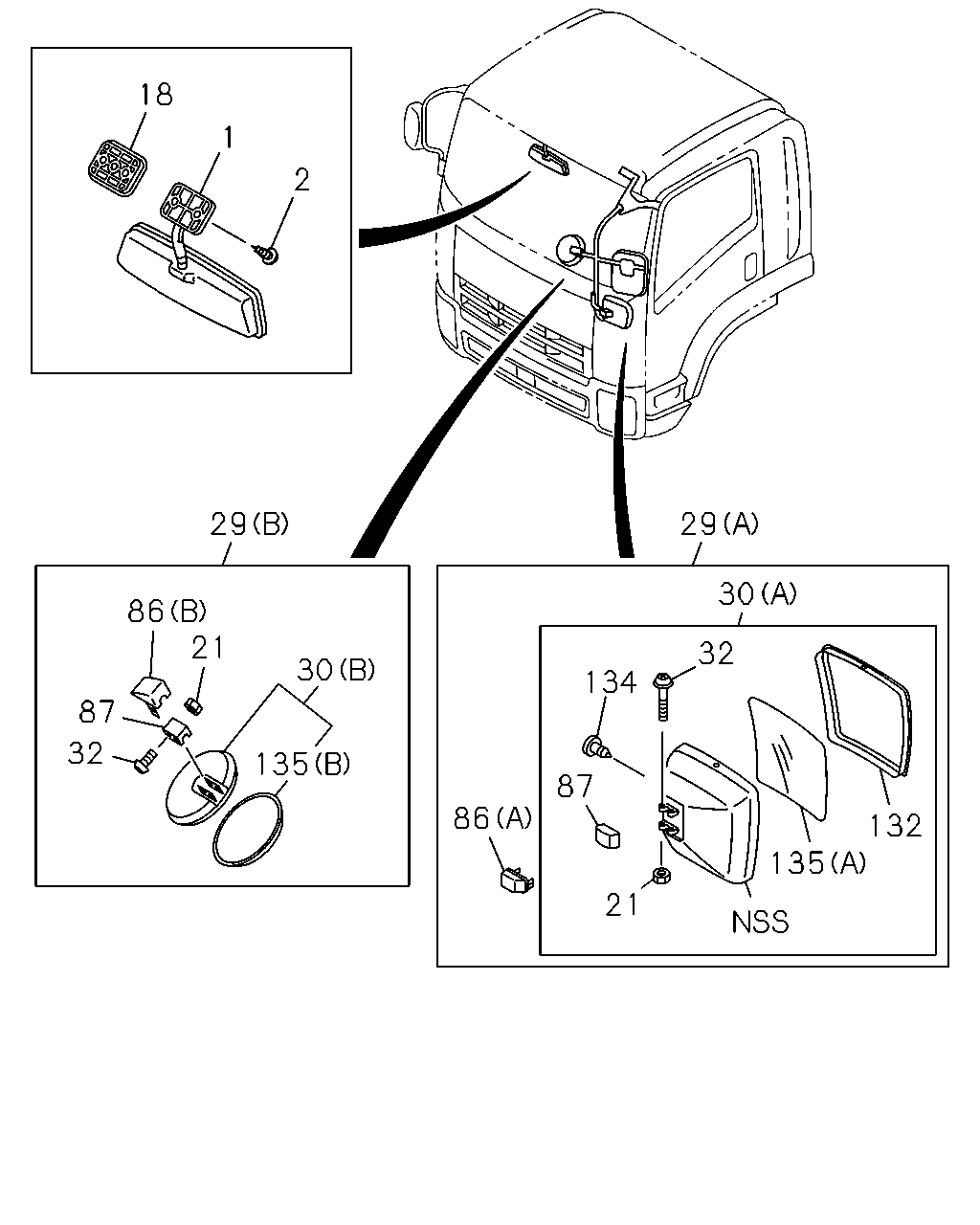

çizim 163180
18 1 2 29 29 30 86 21 32 30 134 87 32 135 87 86 132 135 21
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 1006-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1006-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1006-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1006-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1006-
29 MIRROR ASM; UNDER
(A) 		1-71798-421-1 01 1 1006-
29 MIRROR ASM; UNDER
(B) 		1-71798-422-0 01 1 1006-
30 MIRROR; UNDER
(B) 		1-71798-591-1 01 1 1006-
30 MIRROR; UNDER
(A) 		1-71798-592-1 01 1 1006-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1006-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-541-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-545-1 01 1 1006-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-546-1 01 1 1006-
87 SPACER 1-71737-646-2 01 1 1006-
87 SPACER 1-71737-646-2 01 1 1006-
132 RING; MIRROR 1-71737-935-0 01 1 1006-
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 1006-
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1006-
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71798-838-0 01 1 1006-
