Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

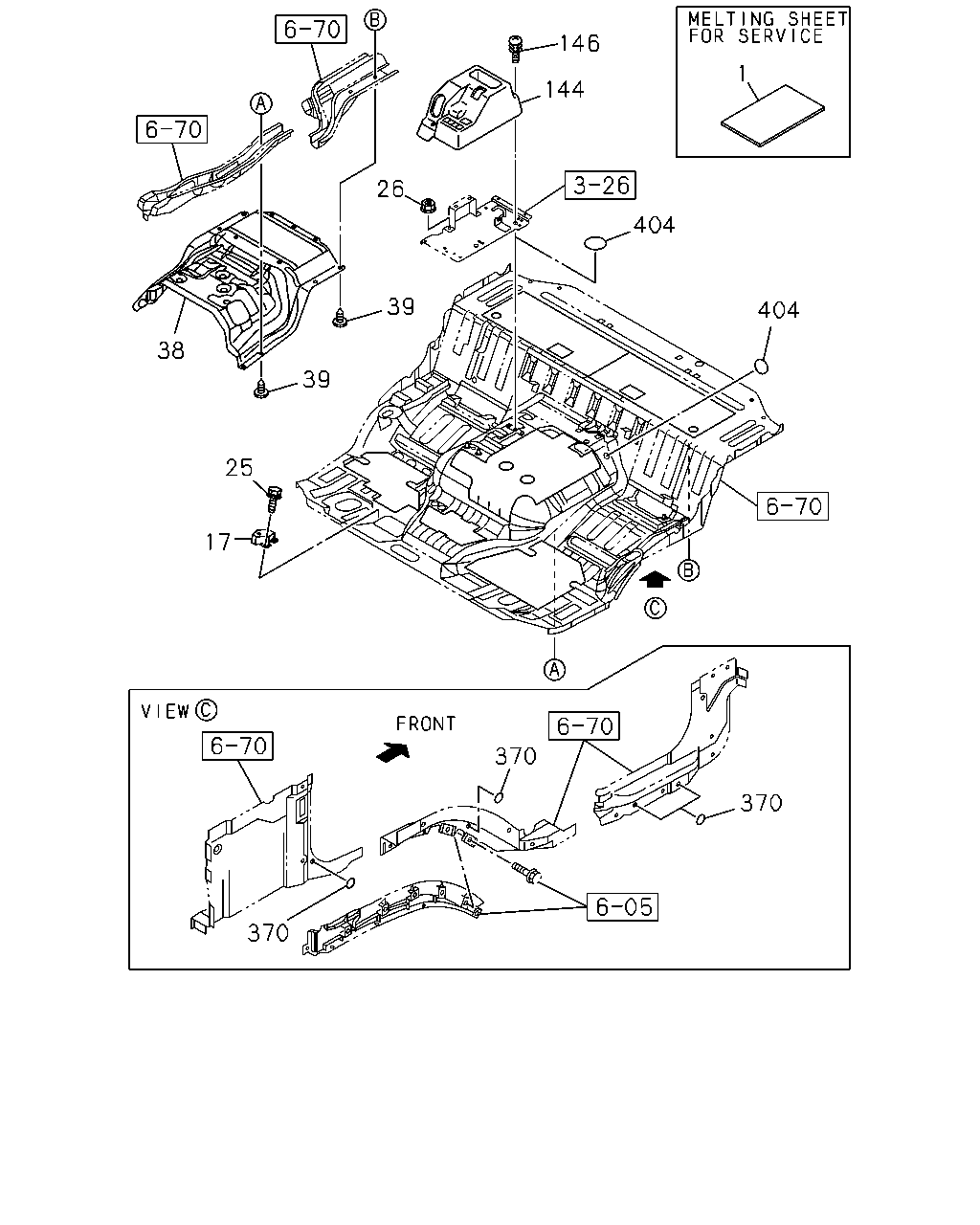

6-76 — FLOOR EQUIPMENT AND SEALING
(#56565) — 14 parça
146
1
144
26
404
39
404
38
39
25
17
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1006-
17
REST; FOOT,DRIVER
8-98076-322-1
01
1
1006-
25
SCREW; FOOT REST
BOLT M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
1006-
26
NUT; FLANGE
M8 FLANGE THA
0-91180-108-0
02
1
1006-
38
INSULATOR; ENG COVER
8-98127-749-1
01
1
1006-1310
38
INSULATOR; ENG COVER
8-98248-306-0
01
1
1311-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4 THA
8-97808-623-0
19
1
1006-
144
COVER; HAND BRK VLV
THA
8-97925-580-1
01
1
1202-
144
COVER; HAND BRK VLV
GRAY
8-97409-900-0
01
1
1006-
146
BOLT; COVER BRKT
SCREW M6X24 W/LK&PL WASHER
8-94279-404-0
03
1
1006-
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
1006-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
404
SEAL; FLOOR,HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1006-
404
SEAL; FLOOR,HOLE
OD=25 BLACK THA
1-76798-019-0
12
1
1006-
