◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#56562) — 9 parça

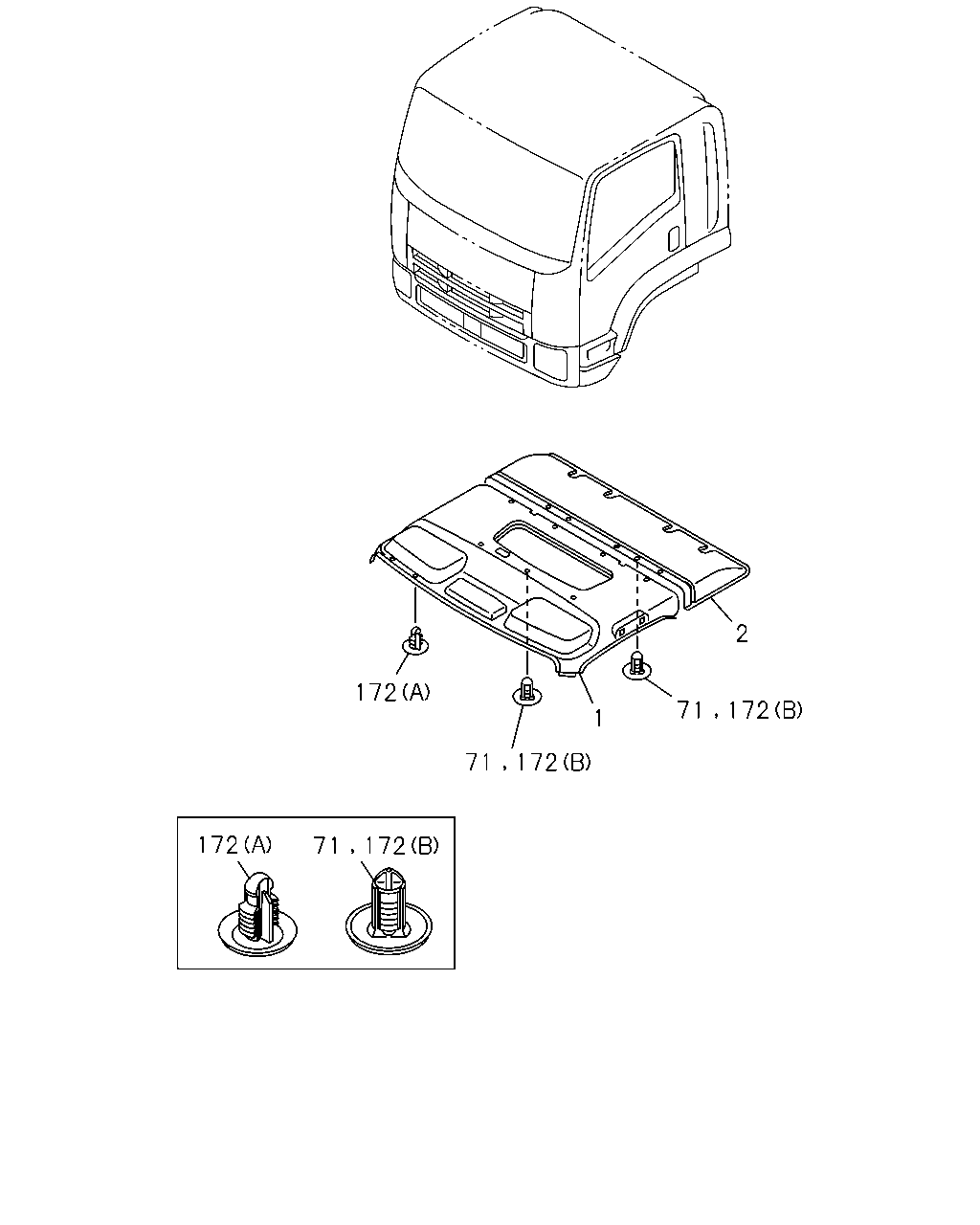

çizim 163147
172 71 172 1 71 2 172 172 71 172
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-898-3 01 1 1006-1306
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-727-0 01 1 1307-
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-899-3 01 1 1006-1306
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-728-0 01 1 1307-
2 LINING; HD,ROOF RR
DARK GRAY 		8-97415-674-0 01 1 1006-1306
2 LINING; HD,ROOF RR
DARK GRAY 		8-97427-627-0 01 1 1307-
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1210-
172 RETAINER; HEAD LINING
(B) DARK GRAY 		8-97405-282-0 07 1 1006-1209
172 RETAINER; HEAD LINING
(A) DARK GRAY 		8-97411-875-0 14 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
