Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

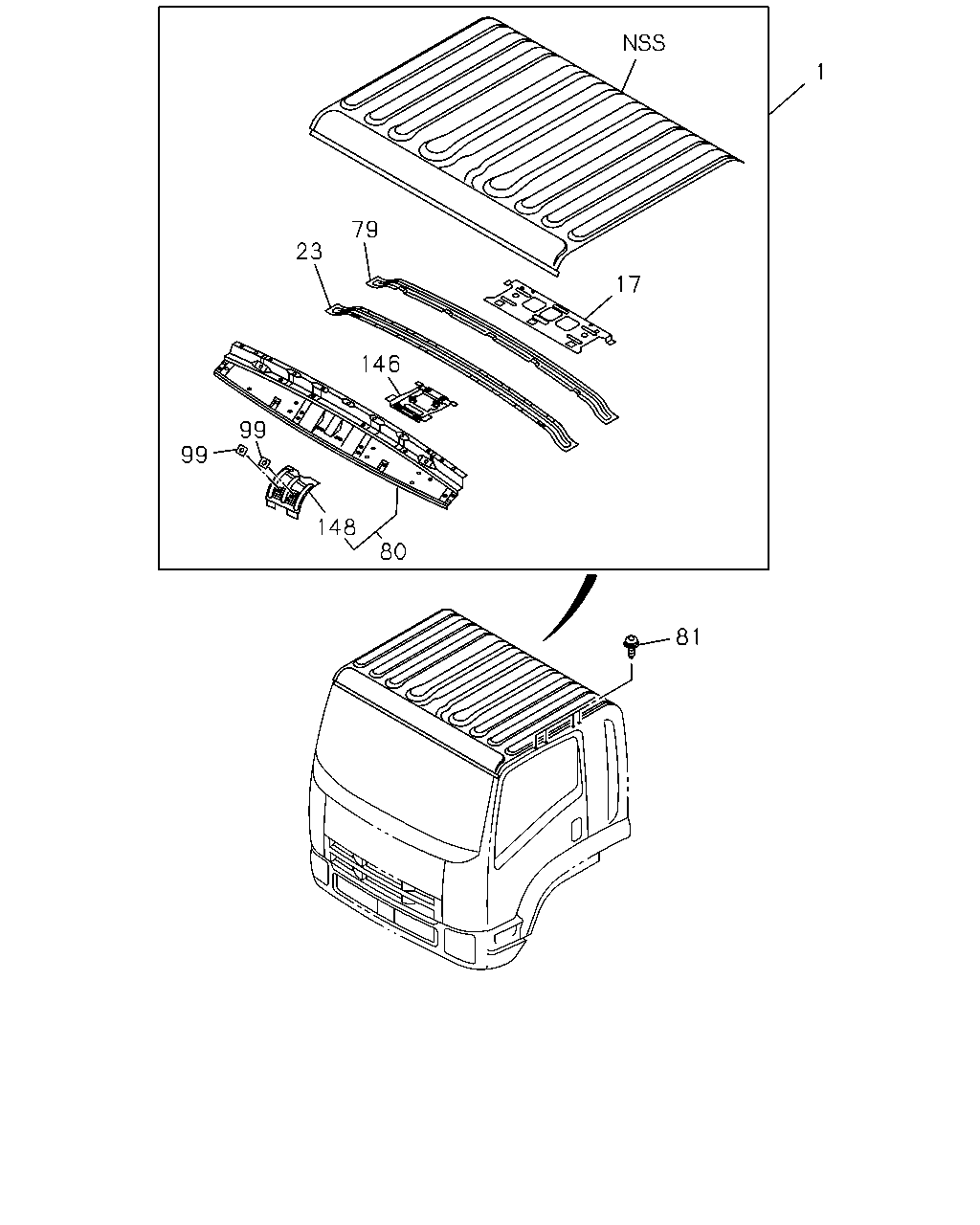

6-60 — ROOF PANEL
(#56561) — 11 parça
1
17
79
23
146
99
99
148
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
THA
8-97925-345-0
01
1
1006-
17
REINFORCEMENT; ROOF PNL CENTER
8-97584-203-5
01
1
1006-
23
REINFORCEMENT; ROOF PANEL,FRT
THA
8-98019-316-0
01
1
1006-
79
REINFORCEMENT; ROOF PANEL,RR
THA
8-97948-276-0
01
1
1306-1306
79
REINFORCEMENT; ROOF PANEL,RR
8-97584-200-1
01
1
1006-
80
PANEL; HEADER,ROOF
THA
8-97925-343-0
01
1
1006-
81
BOLT; ROOF
M8X15.5 HEX SOCKET
8-98141-874-0
08
1
1006-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
02
1
1210-
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1006-
148
REINFORCEMENT; MIRROR
THA
8-97948-275-0
01
1
1306-1306
148
REINFORCEMENT; MIRROR
8-97411-015-1
01
1
1006-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
