Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#56560) — 56 parça
◀
[647A] COVER;HEAT (3 parça)
[647A] MUD GUARD;FRONT (11 parça)
[647A] MUD GUARD;REAR AND SIDE PANEL (32 parça)
[647A] MUD COVER AND SEAL (10 parça)
▶

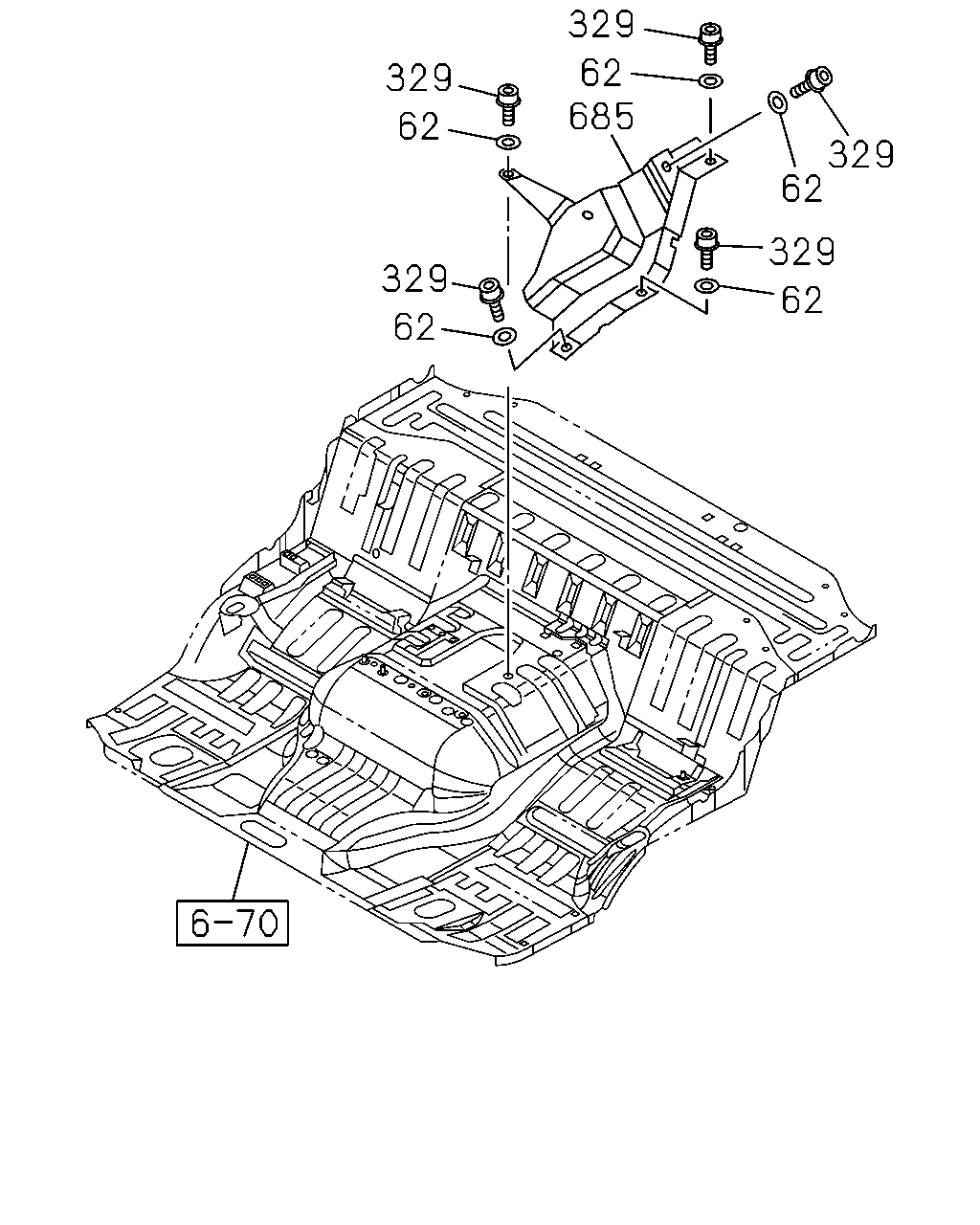

329
62
685
329
62
329
62
329
329
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
WASHER; COVER
ID=6.4 OD=18
0-91610-706-0
05
1
1006-
329
SCREW
0-72180-612-0
05
1
1006-
685
COVER; HEAT
8-98146-953-1
01
1
1006-

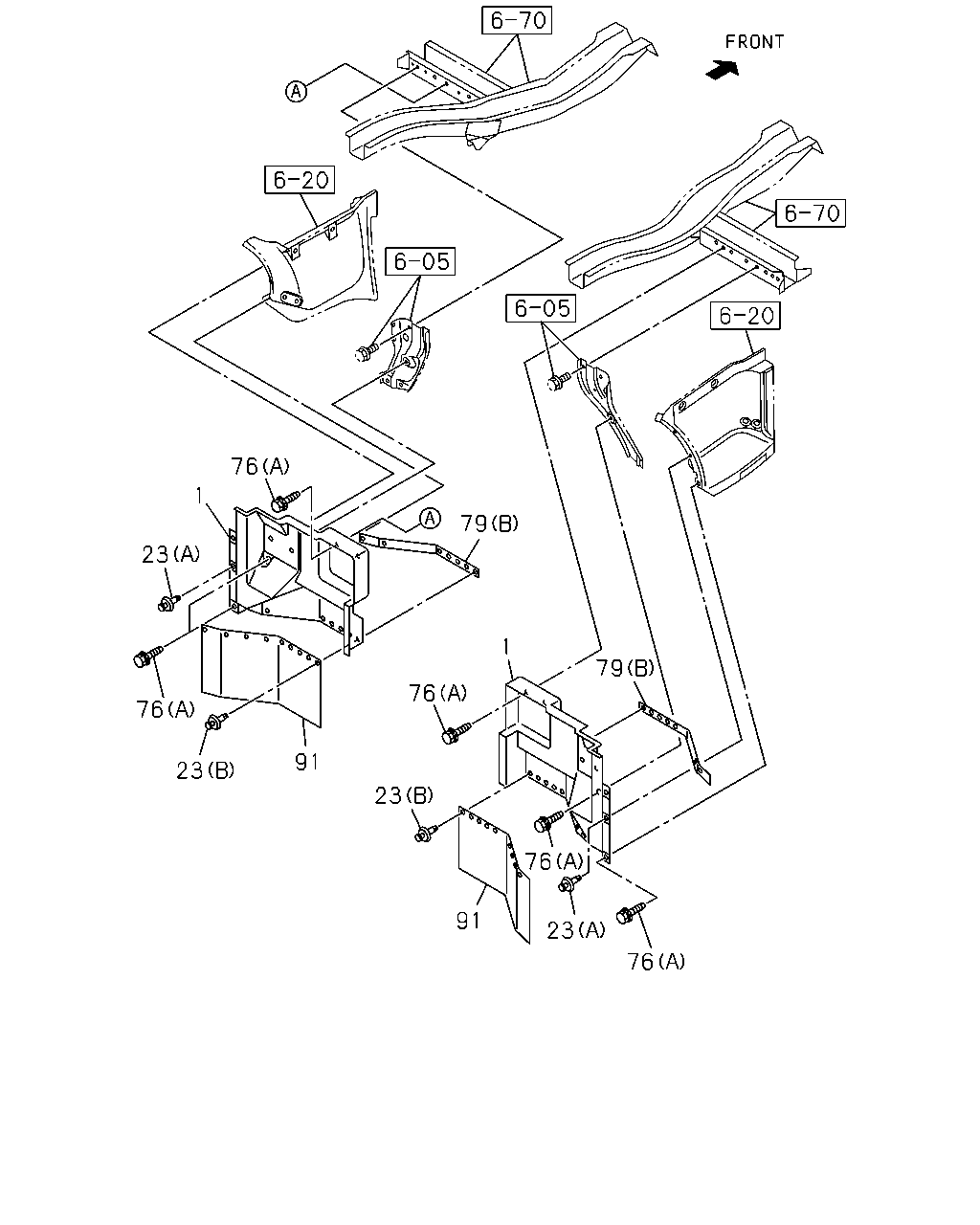

76
1
79
23
1
79
76
76
91
23
23
76
91
23
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
8-98039-850-1
01
1
1006-
1
GUARD; MUD,FRT
8-98039-851-1
01
1
1006-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
10
1
1006-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1006-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1006-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1006-
79
RETAINER; MUD COVER
(B)
8-98060-066-0
02
1
1006-
79
RETAINER; MUD COVER
(A)
8-98102-105-0
01
1
1006-
79
RETAINER; MUD COVER
(A)
8-98102-106-0
01
1
1006-
91
COVER; MUD,FRT
8-98136-976-0
02
1
1006-

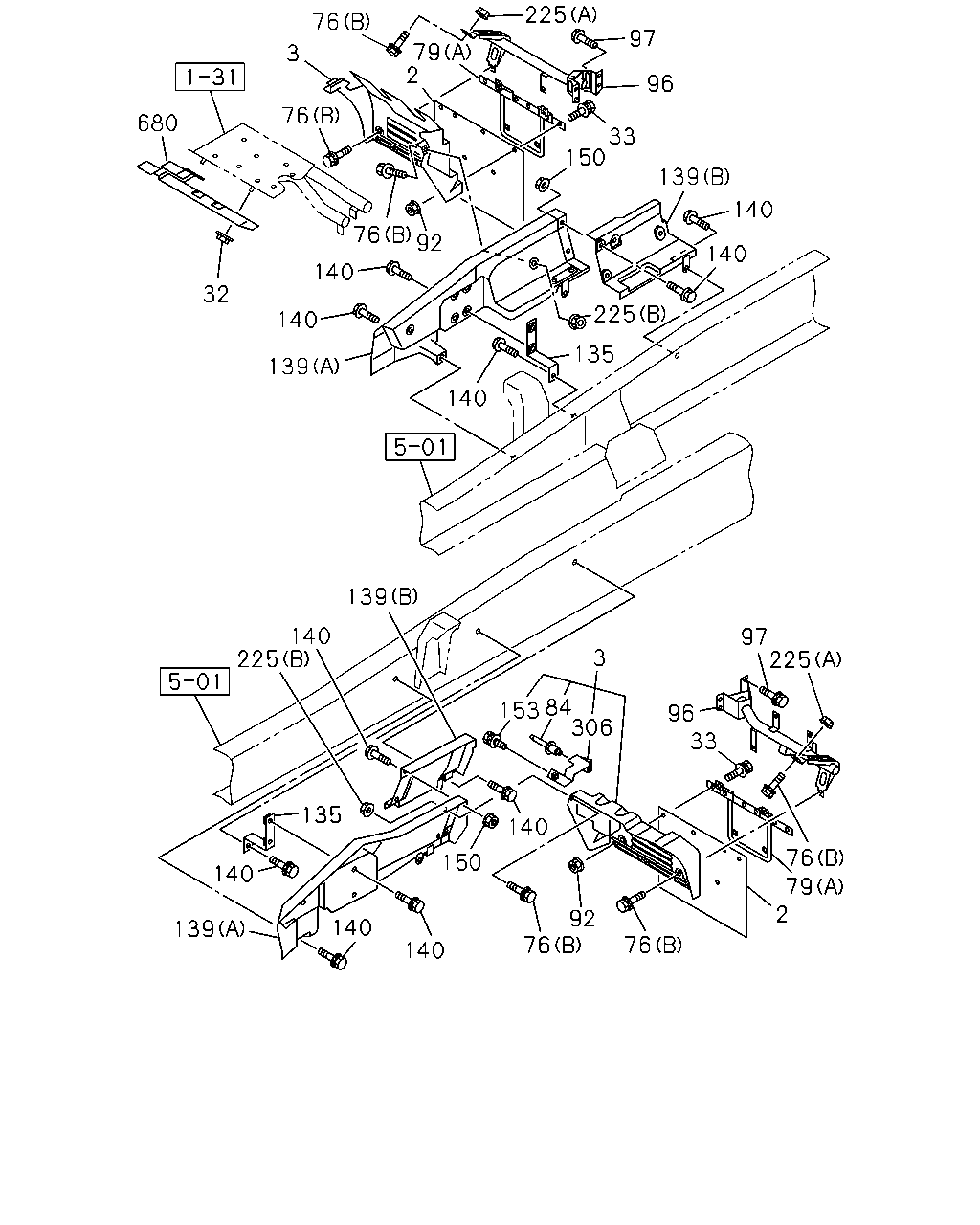

76
3
680
76
2
79
225
96
97
33
150
139
140
140
76
32
140
140
139
92
225
135
140
139
140
225
3
153
84
306
96
33
97
225
76
79
76
92
76
140
140
150
140
135
140
139
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
1-79931-512-1
02
1
1006-
3
GUARD; MUD,RR
1-79931-473-1
01
1
1006-1211
3
GUARD; MUD,RR
8-98196-109-0
01
1
1212-
3
GUARD; MUD,RR
8-98124-771-1
01
1
1006-1302
3
GUARD; MUD,RR
8-98219-767-0
01
1
1303-
32
NUT; MUD GUARD
M8 W/DISHED WASHER
8-97329-625-0
02
1
1006-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
12
1
1006-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1006-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1006-
79
RETAINER; MUD COVER
(B)
8-98060-066-0
02
1
1006-
79
RETAINER; MUD COVER
(A)
8-98102-105-0
01
1
1006-
79
RETAINER; MUD COVER
(A)
8-98102-106-0
01
1
1006-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1212-
92
NUT; MUD COVER
M6 FLANGE THA
0-91180-106-0
08
1
1006-
96
STAY; MUD GUARD
THA
1-79931-519-4
01
1
1006-
96
STAY; MUD GUARD
THA
1-79931-540-3
01
1
1006-
97
BOLT; STAY TO FRAME
M10X35 FLANGE THA
0-28651-035-0
08
1
1006-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1006-
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
1006-
139
PANEL; SIDE
(A)
1-53194-620-5
01
1
1006-
139
PANEL; SIDE
(B)
8-98094-073-0
01
1
1006-
139
PANEL; SIDE
(A)
8-98125-340-0
01
1
1006-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
06
1
1006-1007
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
16
1
1008-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1006-1007
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
1006-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1212-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1006-
225
NUT; MUD GUARD
(A) M8 FLANGE THA
0-91180-108-0
02
1
1006-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1212-
680
GUARD; MUD,UPPER
8-98123-402-0
01
1
1006-

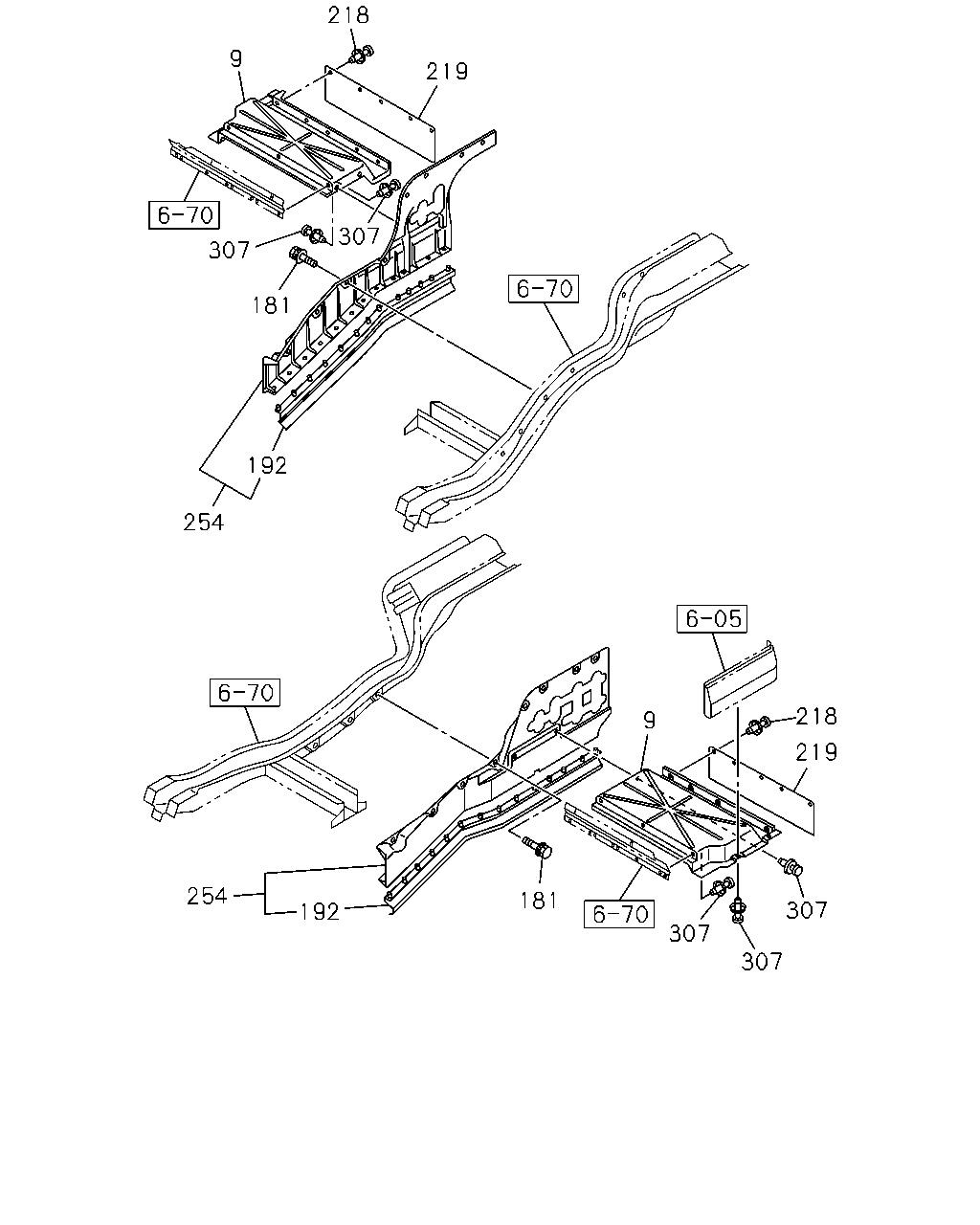

218
9
219
307
307
181
192
254
218
9
219
254
181
307
192
307
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GUARD; SPLASH,WHEEL HOUSE
8-98040-119-2
01
1
1006-
9
GUARD; SPLASH,WHEEL HOUSE
8-98040-120-2
01
1
1006-
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1006-
192
SEAL; MUD COVER
8-98041-158-1
01
1
1006-
192
SEAL; MUD COVER
8-98041-159-2
01
1
1006-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
10
1
1006-
219
FLAP; MUD GUARD
8-98041-149-1
02
1
1006-
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1006-
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1006-
307
RETAINER
D8X13.5
1-09987-248-1
14
1
1006-
