9-01 — TOOLS (#5656) — 83 parça

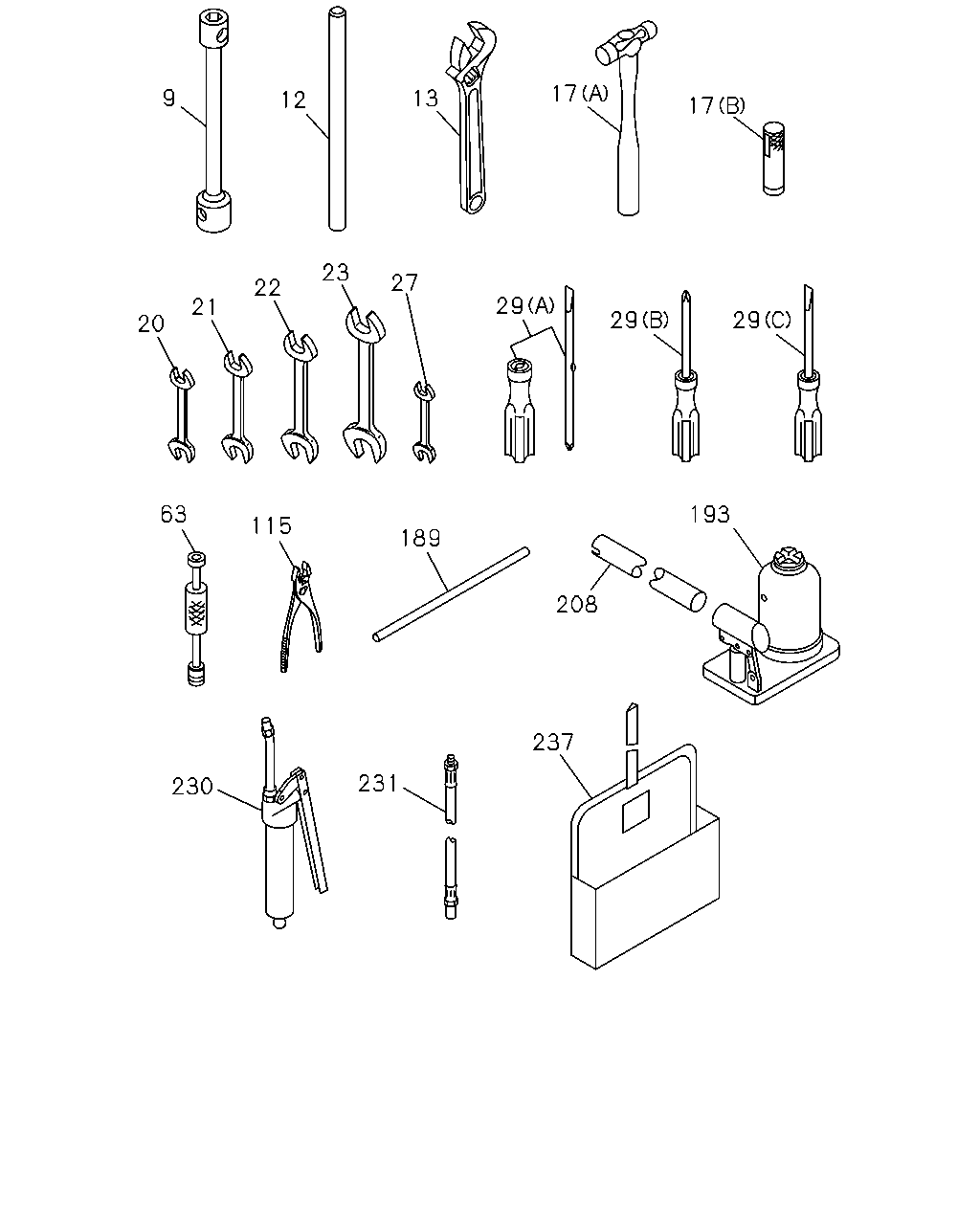

çizim 41111
17 9 13 12 17 23 27 22 29 21 29 29 20 63 193 115 189 208 237 231 230
BalonParca AdiParca NoAdetTipApplied Date
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 9705-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9705-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9705-
17 HAMMER
(A) 		9-85121-406-0 01 1 9705-
17 HAMMER
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (B) 		1-85220-021-0 01 1 9705-9708
17 HAMMER
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (B) 		1-85220-021-0 01 1 9709-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9705-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9705-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9705-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9705-
29 DRIVER; SCREW
(C) <-> L=285 		1-85151-004-0 01 1 9705-
29 DRIVER; SCREW
(A) <+>,<-> L=160 		8-94242-798-1 01 1 9705-
29 DRIVER; SCREW
(B) <+> L=270 		9-09595-523-0 01 1 9705-
63 PULLER; NOZZLE SLEEVE
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-026-0 01 1 9705-9708
63 PULLER; NOZZLE SLEEVE
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-026-0 01 1 9709-
115 PLIER 5-85171-001-0 01 1 9705-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9705-
193 JACK ASM 1-85510-022-0 01 1 9709-9709
193 JACK ASM
15TON 		1-85510-020-1 01 1 9710-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9705-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-
230 PUMP; GREASE 1-85556-007-2 01 1 9705-
231 HOSE; FLEX,GREASE PUMP 9-85521-257-1 01 1 9705-
237 BAG; TOOL 8-97130-902-0 01 1 9705-
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 9705-

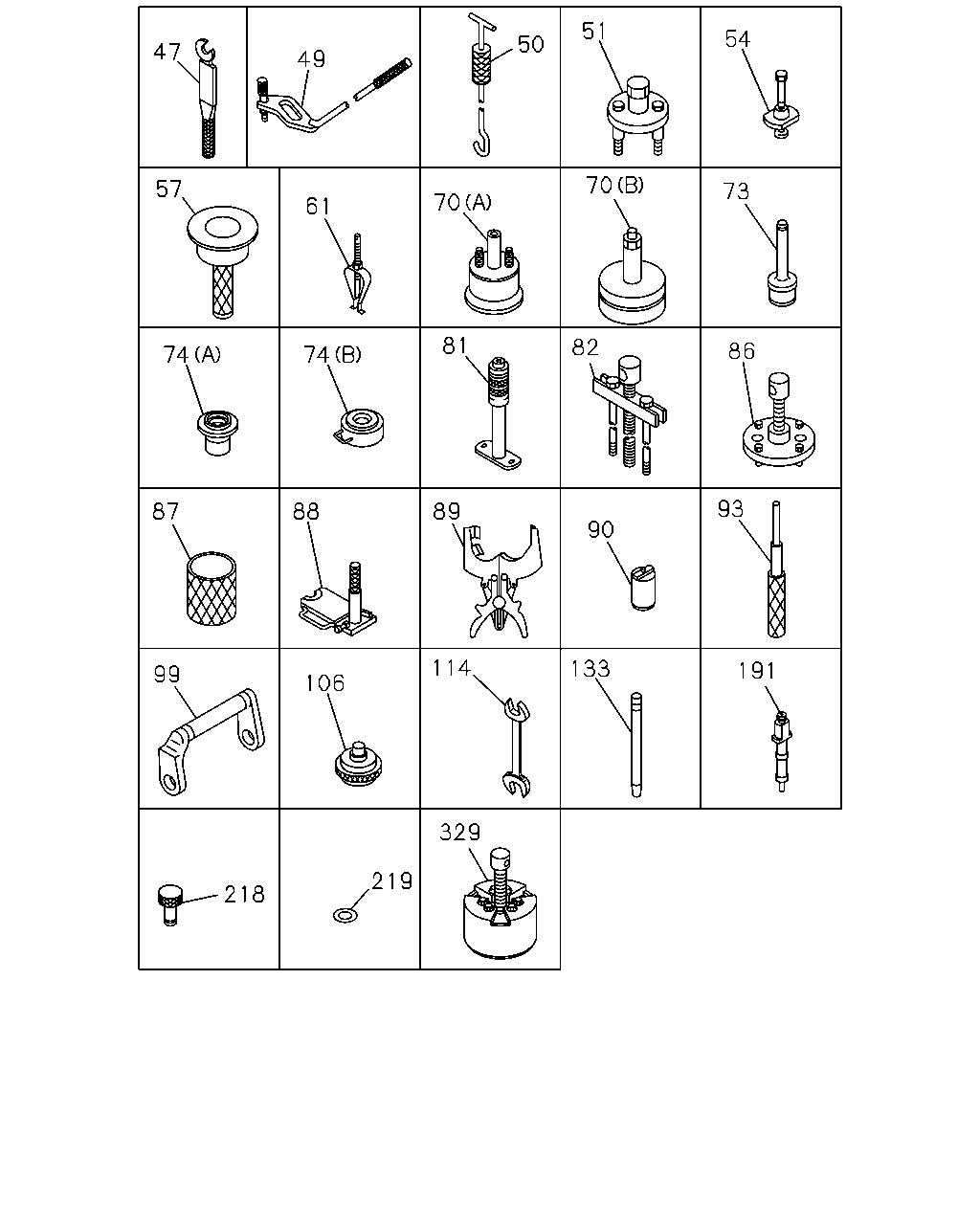

çizim 42085
51 54 50 47 49 70 57 73 70 61 81 82 86 74 74 93 87 88 89 90 114 133 191 99 106 329 219 218
BalonParca AdiParca NoAdetTipApplied Date
47 WRENCH ASM; UNIVERSAL,INJ PUMP
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-018-0 01 1 9705-9708
47 WRENCH ASM; UNIVERSAL,INJ PUMP
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-018-0 01 1 9709-
49 REPLACER ASM; VALVE
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85235-001-0 01 1 9705-9708
49 REPLACER ASM; VALVE
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85235-001-0 01 1 9709-
50 REPLACER; NOZZLE HOLDER
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> L=500 		1-85230-007-0 01 1 9705-9708
50 REPLACER; NOZZLE HOLDER
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> L=500 		1-85230-007-0 01 1 9709-
51 PULLER ASM; WATER PUMP
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-028-0 01 1 9705-9708
51 PULLER ASM; WATER PUMP
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-028-0 01 1 9709-
54 PULLER; THERMOSTAT SEAL
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-029-0 01 1 9705-9708
54 PULLER; THERMOSTAT SEAL
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-029-0 01 1 9709-
57 TOOL; SETTING CRANK GEAR
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> OD=175 		1-85221-028-0 01 1 9705-9708
57 TOOL; SETTING CRANK GEAR
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> OD=175 		1-85221-028-0 01 1 9709-
61 PULLER ASM; PILOT BRG
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		9-85210-157-0 01 1 9705-9708
61 PULLER ASM; PILOT BRG
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		9-85210-157-0 01 1 9709-
70 TOOL; SETTING,OIL SEAL
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (A) FOR OIL SEAL 		1-85220-051-0 01 1 9705-9708
70 TOOL; SETTING,OIL SEAL
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (A) FOR OIL SEAL 		1-85220-051-0 01 1 9709-
70 TOOL; SETTING,OIL SEAL
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (B) FOR OIL THROWER 		1-85220-053-0 01 1 9705-9708
70 TOOL; SETTING,OIL SEAL
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (B) FOR OIL THROWER 		1-85220-053-0 01 1 9709-
73 TOOL; SETTING,THERMOSTAT SEAL
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-034-0 01 1 9705-9708
73 TOOL; SETTING,THERMOSTAT SEAL
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-034-0 01 1 9709-
74 TOOL; SETTING,INJ PUMP BRG
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (A) 		1-85220-019-0 01 1 9705-9708
74 TOOL; SETTING,INJ PUMP BRG
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (A) 		1-85220-019-0 01 1 9709-
74 TOOL; SETTING,INJ PUMP BRG
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (B) 		1-85220-020-1 01 1 9705-9708
74 TOOL; SETTING,INJ PUMP BRG
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> (B) 		1-85220-020-1 01 1 9709-
81 PULLER; BRG CAP
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-015-0 01 1 9705-9708
81 PULLER; BRG CAP
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-015-0 01 1 9709-
82 PULLER ASM; CR/SHF GEAR
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		9-85211-139-0 01 1 9705-9708
82 PULLER ASM; CR/SHF GEAR
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		9-85211-139-0 01 1 9709-
86 REPLACER; FLYWHEEL
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85230-006-0 01 1 9705-9708
86 REPLACER; FLYWHEEL
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85230-006-0 01 1 9709-
87 TOOL; PISTON
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-058-0 01 1 9705-9708
87 TOOL; PISTON
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-058-0 01 1 9709-9806
87 TOOL; PISTON
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-082-0 01 1 9807-
88 TOOL; CONNROD BUSHING
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-002-0 01 1 9705-9708
88 TOOL; CONNROD BUSHING
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-002-0 01 1 9709-
89 TOOL; PISTON RING
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-029-0 01 1 9705-9708
89 TOOL; PISTON RING
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-029-0 01 1 9709-
90 PULLER; INJ PUMP BRG
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-039-0 01 1 9705-9708
90 PULLER; INJ PUMP BRG
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85210-039-0 01 1 9709-
93 SETTING KIT; VALVE GUIDE
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> L=260 		9-85231-202-0 01 1 9705-9708
93 SETTING KIT; VALVE GUIDE
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> L=260 		9-85231-202-0 01 1 9709-
99 WRENCH; CYL HD BOLT
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85115-013-0 01 1 9705-9708
99 WRENCH; CYL HD BOLT
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85115-013-0 01 1 9709-
106 TOOL; SETTING PILOT BRG
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-057-0 01 1 9705-9708
106 TOOL; SETTING PILOT BRG
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-057-0 01 1 9709-
114 WRENCH; INJ PUMP
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-027-0 01 1 9705-9708
114 WRENCH; INJ PUMP
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85220-027-0 01 1 9709-
133 WRENCH; NUT STARTER
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-030-0 02 1 9705-9708
133 WRENCH; NUT STARTER
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85221-030-0 02 1 9709-
191 ADAPTER
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85317-002-0 01 1 9705-9708
191 ADAPTER
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85317-002-0 01 1 9709-
218 PLUG
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-15629-043-0 01 1 9705-9708
218 PLUG
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-15629-043-0 01 1 9709-
219 GASKET
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		9-09720-555-0 01 1 9705-9708
219 GASKET
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		9-09720-555-0 01 1 9709-
329 PULLER ASM; SLINGER
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> ID=124 		1-85220-052-0 01 1 9705-9708
329 PULLER ASM; SLINGER
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> ID=124 		1-85220-052-0 01 1 9709-
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 9705-
