6-20 — SIDE PANEL AND STEP (#56554) — 185 parça

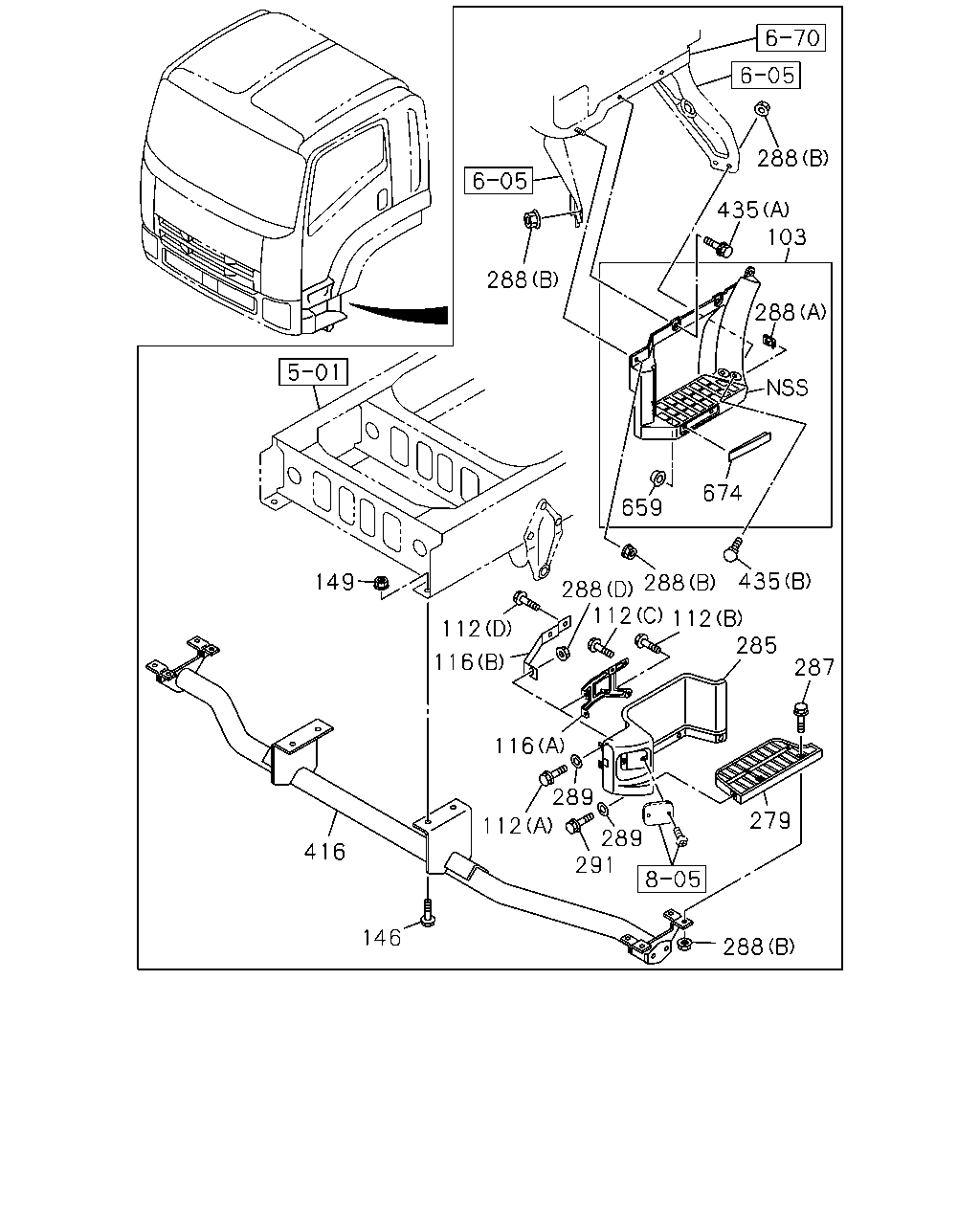

çizim 163078
288 435 103 288 288 674 659 435 149 288 288 112 112 285 112 116 287 116 289 279 112 289 291 416 146 288
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-976-2 01 1 1006-
103 PLATE; STEP 8-98069-977-2 01 1 1006-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 04 1 1006-1108
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1109-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 1006-1108
112 BOLT; 1ST STEP
(D) M8X12 FLANGE THA 		0-28050-812-0 04 1 1109-
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 1006-1108
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1109-1207
112 BOLT; 1ST STEP
VIN MODEL YEAR 2011<VZB> (B) M6X20 FLANGE 		0-28050-620-0 02 1 1208-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 1006-1108
116 STAY; 1ST STEP,FRT
(B) THA 		8-98196-756-0 02 1 1109-1207
116 STAY; 1ST STEP,FRT
VIN MODEL YEAR 2011<VZB> (B) THA 		8-98196-756-0 02 1 1208-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 1006-1108
146 BOLT; STEP BRKT
M14X45 FLANGE THA 		0-28851-445-0 04 1 1006-
149 NUT; STEP BRKT
M14 FLANGE THA 		0-91180-214-0 04 1 1006-
279 BOARD; STEP 1ST
THA 		8-97924-109-0 01 1 1006-
279 BOARD; STEP 1ST
THA 		8-97924-110-0 01 1 1006-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1006-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1006-
287 BOLT; BOARD STEP
VIN MODEL YEAR 2011<VZB> M8X35 FLANGE THA 		0-28650-835-0 08 1 1010-1104
287 BOLT; BOARD STEP
M8X35 FLANGE THA 		0-28650-835-0 08 1 1105-
287 BOLT; BOARD STEP
M8X40 FLANGE THA 		0-28650-840-0 08 1 1006-1009
287 BOLT; BOARD STEP
EXC. VIN MODEL YEAR 2011<VZB> M8X40 FLANGE THA 		0-28650-840-0 08 1 1010-1104
288 NUT; STEP
(D) M6 FLANGE THA 		0-91180-106-0 02 1 1109-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1006-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 08 1 1006-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1006-
288 NUT; STEP
(C) M12 FLANGE THA 		0-91180-212-0 06 1 1006-1009
288 NUT; STEP
EXC. VIN MODEL YEAR 2011<VZB> (C) M12 FLANGE THA 		0-91180-212-0 06 1 1010-
289 WASHER; PL,STEP
EXC. VIN MODEL YEAR 2011<VZB> ID=6.4 OD=18 		0-91610-706-0 20 1 1208-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1006-1207
289 WASHER; PL,STEP
VIN MODEL YEAR 2011<VZB> ID=6.4 OD=18 		0-91610-706-0 10 1 1208-
291 BOLT; STEP PLATE
M6X12 FLANGE THA 		0-28050-612-0 06 1 1006-
416 BRACKET; ASSIST STEP
VIN MODEL YEAR 2011<VZB> THA 		8-98167-277-2 01 1 1010-
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 1006-1009
416 BRACKET; ASSIST STEP
EXC. VIN MODEL YEAR 2011<VZB> 		8-98053-542-4 01 1 1010-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1006-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1006-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1006-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1006-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1006-

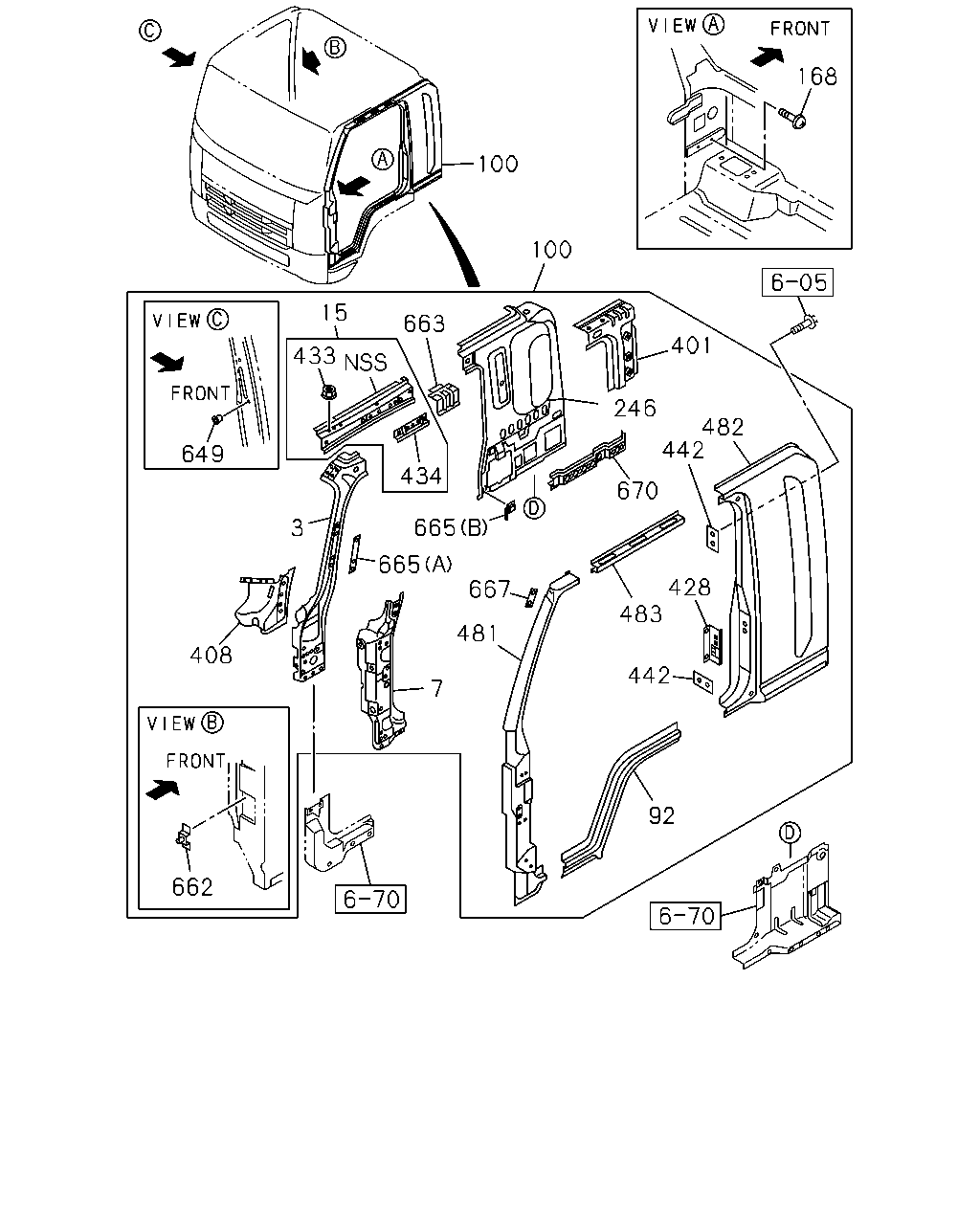

çizim 163176
15 100 100 401 482 442 246 670 428 442 483 667 665 434 433 649 408 662 92 168 663 3 665 481 7
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1312-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1401-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1006-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1006-
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 1006-
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1310-1312
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1401-
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1310-1311
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1312-
7 REINFORCEMENT; HINGE
CLASS A,L CLASS A \ 		8-97585-240-2 01 1 1006-1309
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1312-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1401-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1006-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1006-1309
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1006-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1006-
100 PANEL ASM; BODY SIDE
THA 		8-98096-023-2 01 1 1006-1309
100 PANEL ASM; BODY SIDE
THA 		8-97948-576-1 01 1 1310-
100 PANEL ASM; BODY SIDE
THA 		8-98163-856-0 01 1 1006-1309
100 PANEL ASM; BODY SIDE
THA 		8-97948-562-1 01 1 1310-
168 BOLT; BODY SIDE PANEL
SCREW M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1006-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1006-1106
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1107-1309
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1310-1312
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1401-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1310-1311
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1312-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1006-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1006-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1006-1106
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1107-1309
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1310-1312
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1401-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1310-1311
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1312-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1312-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1401-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1107-1309
408 GUSSET; PILLAR 8-97586-193-3 01 1 1006-1309
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1312-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1401-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1107-1309
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1006-1309
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1312-1312
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 1401-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1006-1106
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1006-1106
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1006-1106
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 1107-1309
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 1310-1312
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 1006-1006
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1006-1106
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1107-1309
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1310-1312
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1401-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1006-1309
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1006-1309
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1310-1311
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1312-
442 PATCH
THA 		8-98096-158-0 02 1 1312-1312
442 PATCH
THA 		8-98096-158-0 04 1 1401-
442 PATCH
THA 		8-98096-158-0 04 1 1006-
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1006-
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1006-
482 PANEL; SIDE RR PILLAR 8-98103-377-0 01 1 1006-
482 PANEL; SIDE RR PILLAR 8-98103-378-0 01 1 1006-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1006-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1006-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1312-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1006-1309
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1312-
662 BRACKET; DUCT 8-97584-611-1 01 1 1006-1309
662 BRACKET; DUCT 8-97584-611-1 01 1 1006-1309
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1312-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1401-
663 BRACKET; AIR 8-97585-208-2 01 1 1006-1106
663 BRACKET; AIR 8-97585-208-2 01 1 1107-1309
663 BRACKET; AIR 8-97585-207-2 01 1 1006-1309
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1006-1309
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1006-1309
667 BRACKET; MIRROR 8-98109-948-0 02 1 1312-1312
667 BRACKET; MIRROR 8-98109-948-0 03 1 1401-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1006-1109
667 BRACKET; MIRROR 8-98109-948-0 02 1 1006-1109
667 BRACKET; MIRROR 8-98109-948-0 03 1 1107-1309
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1312-1312
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 02 1 1401-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1209-1209
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 02 1 1006-1209
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 02 1 1210-1309
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 02 1 1310-1312

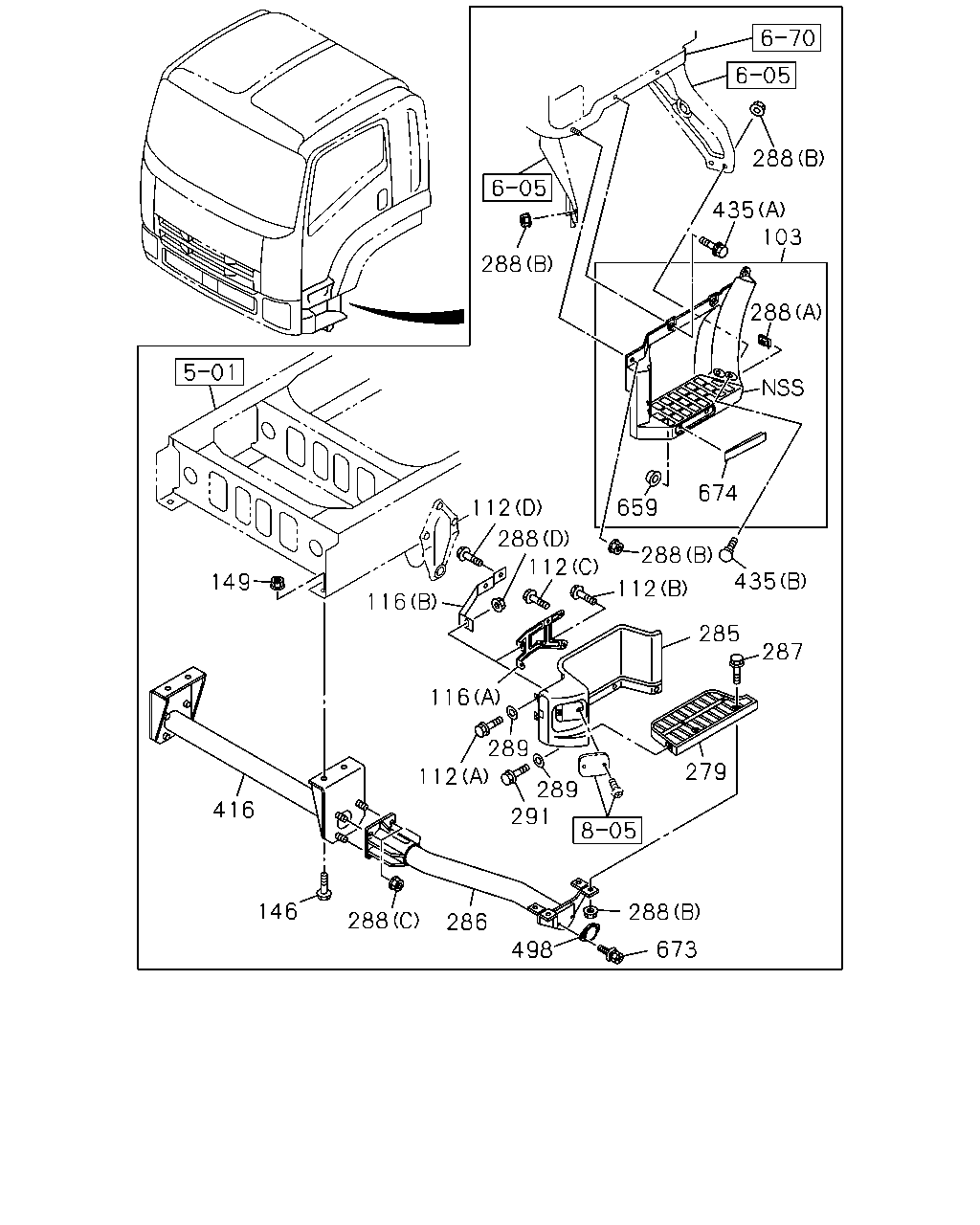

çizim 163192
288 435 103 288 288 674 659 112 288 112 288 435 149 112 116 285 287 116 289 279 112 289 291 416 146 288 288 286 673 498
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-976-2 01 1 1006-
103 PLATE; STEP 8-98069-977-2 01 1 1006-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 04 1 1006-1108
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1109-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 1006-1108
112 BOLT; 1ST STEP
(D) M8X12 FLANGE THA 		0-28050-812-0 04 1 1109-
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 1006-1108
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1109-1207
112 BOLT; 1ST STEP
VIN MODEL YEAR 2011<VZB> (B) M6X20 FLANGE 		0-28050-620-0 02 1 1208-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 1006-1108
116 STAY; 1ST STEP,FRT
(B) THA 		8-98196-756-0 02 1 1109-1207
116 STAY; 1ST STEP,FRT
VIN MODEL YEAR 2011<VZB> (B) THA 		8-98196-756-0 02 1 1208-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 1006-1108
146 BOLT; STEP BRKT
M14X45 FLANGE THA 		0-28851-445-0 04 1 1006-
149 NUT; STEP BRKT
M14 FLANGE THA 		0-91180-214-0 04 1 1006-
279 BOARD; STEP 1ST
THA 		8-97924-109-0 01 1 1006-
279 BOARD; STEP 1ST
THA 		8-97924-110-0 01 1 1006-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1006-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1006-
286 STEP ASM; 1ST
THA 		8-98082-430-1 01 1 1006-1009
286 STEP ASM; 1ST
EXC. VIN MODEL YEAR 2011<VZB> 		8-98082-430-2 01 1 1010-
286 STEP ASM; 1ST
THA 		8-98082-431-1 01 1 1006-1009
286 STEP ASM; 1ST
EXC. VIN MODEL YEAR 2011<VZB> 		8-98082-431-2 01 1 1010-
287 BOLT; BOARD STEP
VIN MODEL YEAR 2011<VZB> M8X35 FLANGE THA 		0-28650-835-0 08 1 1010-1104
287 BOLT; BOARD STEP
M8X35 FLANGE THA 		0-28650-835-0 08 1 1105-
287 BOLT; BOARD STEP
M8X40 FLANGE THA 		0-28650-840-0 08 1 1006-1009
287 BOLT; BOARD STEP
EXC. VIN MODEL YEAR 2011<VZB> M8X40 FLANGE THA 		0-28650-840-0 08 1 1010-1104
288 NUT; STEP
(D) M6 FLANGE THA 		0-91180-106-0 02 1 1109-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1006-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 08 1 1006-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1006-
288 NUT; STEP
(C) M12 FLANGE THA 		0-91180-212-0 06 1 1006-1009
288 NUT; STEP
EXC. VIN MODEL YEAR 2011<VZB> (C) M12 FLANGE THA 		0-91180-212-0 06 1 1010-
289 WASHER; PL,STEP
EXC. VIN MODEL YEAR 2011<VZB> ID=6.4 OD=18 		0-91610-706-0 20 1 1208-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1006-1207
289 WASHER; PL,STEP
VIN MODEL YEAR 2011<VZB> ID=6.4 OD=18 		0-91610-706-0 10 1 1208-
291 BOLT; STEP PLATE
M6X12 FLANGE THA 		0-28050-612-0 06 1 1006-
416 BRACKET; ASSIST STEP
VIN MODEL YEAR 2011<VZB> THA 		8-98167-277-2 01 1 1010-
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 1006-1009
416 BRACKET; ASSIST STEP
EXC. VIN MODEL YEAR 2011<VZB> 		8-98053-542-4 01 1 1010-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1006-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1006-
498 REFLECTOR 1-82290-011-1 02 1 1006-1009
498 REFLECTOR
EXC. VIN MODEL YEAR 2011<VZB> 		1-82290-011-1 02 1 1010-1207
498 REFLECTOR
EXC. VIN MODEL YEAR 2011<VZB> 		1-82290-011-1 04 1 1208-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1006-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1006-1009
673 BOLT; REFLECTOR
EXC. VIN MODEL YEAR 2011<VZB> M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1010-1207
673 BOLT; REFLECTOR
EXC. VIN MODEL YEAR 2011<VZB> M5X16 W/LK&PL WASHER 		8-94198-538-0 08 1 1208-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1006-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
