Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

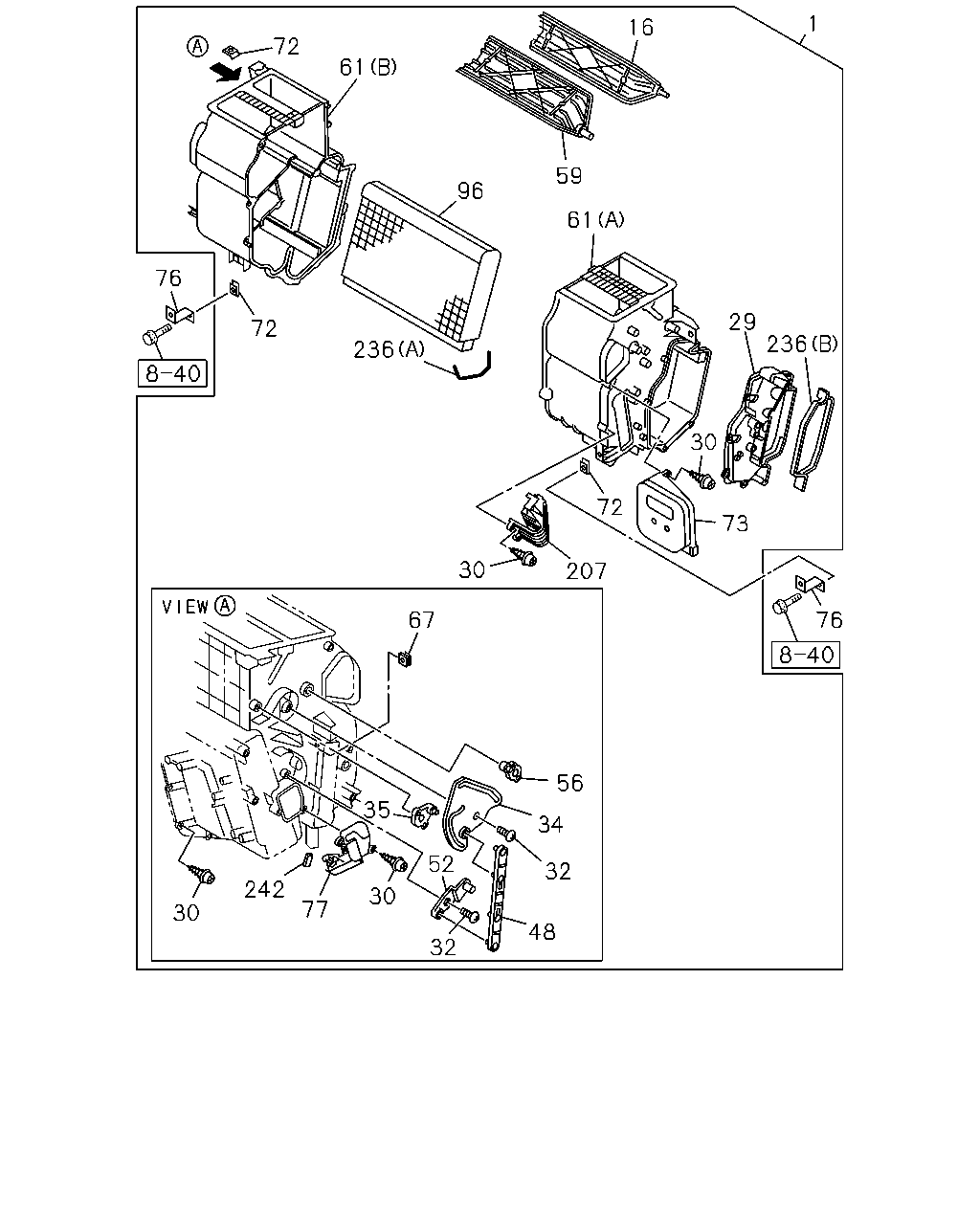

8-60 — HEATER UNIT; FRONT
(#56532) — 26 parça
1
16
72
61
59
96
61
76
29
72
236
236
30
72
73
30
207
67
76
56
35
34
52
32
242
30
77
30
48
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
8-98062-757-1
01
1
1108-1301
1
HEATER UNIT
8-98214-400-1
01
1
1302-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
1108-
29
COVER; HTR UNIT
8-98074-119-0
01
1
1108-1301
29
COVER; HTR UNIT
8-98231-367-0
01
1
1302-
30
SCREW; HTR UNIT
M4X16 TAPPING IDN
8-97957-708-0
25
1
1108-1301
30
SCREW; HTR UNIT
M4X16 TAPPING IDN
8-97957-708-0
20
1
1302-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
02
1
1108-
34
LEVER; SHUTTER,HTR UNIT
8-98047-389-0
01
1
1108-
35
LEVER; SHUTTER,HTR UNIT
8-98047-392-0
01
1
1108-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
1108-
52
LEVER; SHUTTER,HTR UNIT
8-98047-390-0
01
1
1108-
56
LEVER; SHUTTER,HTR UNIT
8-98047-393-0
01
1
1108-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
1108-
61
CASE; HTR UNIT
(A)
8-98077-422-0
01
1
1108-
61
CASE; HTR UNIT
(B)
8-98077-423-0
01
1
1108-
67
CLIP; HTR UNIT
8-98047-417-0
01
1
1108-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
1108-
73
PLATE; HTR UNIT
8-98077-419-0
01
1
1108-1301
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1108-
77
COVER; HTR CASE
8-98047-414-0
01
1
1108-
96
PLATE; HTR UNIT
8-98048-815-0
01
1
1108-1301
207
CLAMP; HTR UNIT
8-98047-379-0
01
1
1108-1301
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
1108-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
1108-
242
GASKET; CASE
8-98048-816-0
01
1
1108-1411
