8-40 — HEATER SYSTEM (#56530) — 27 parça

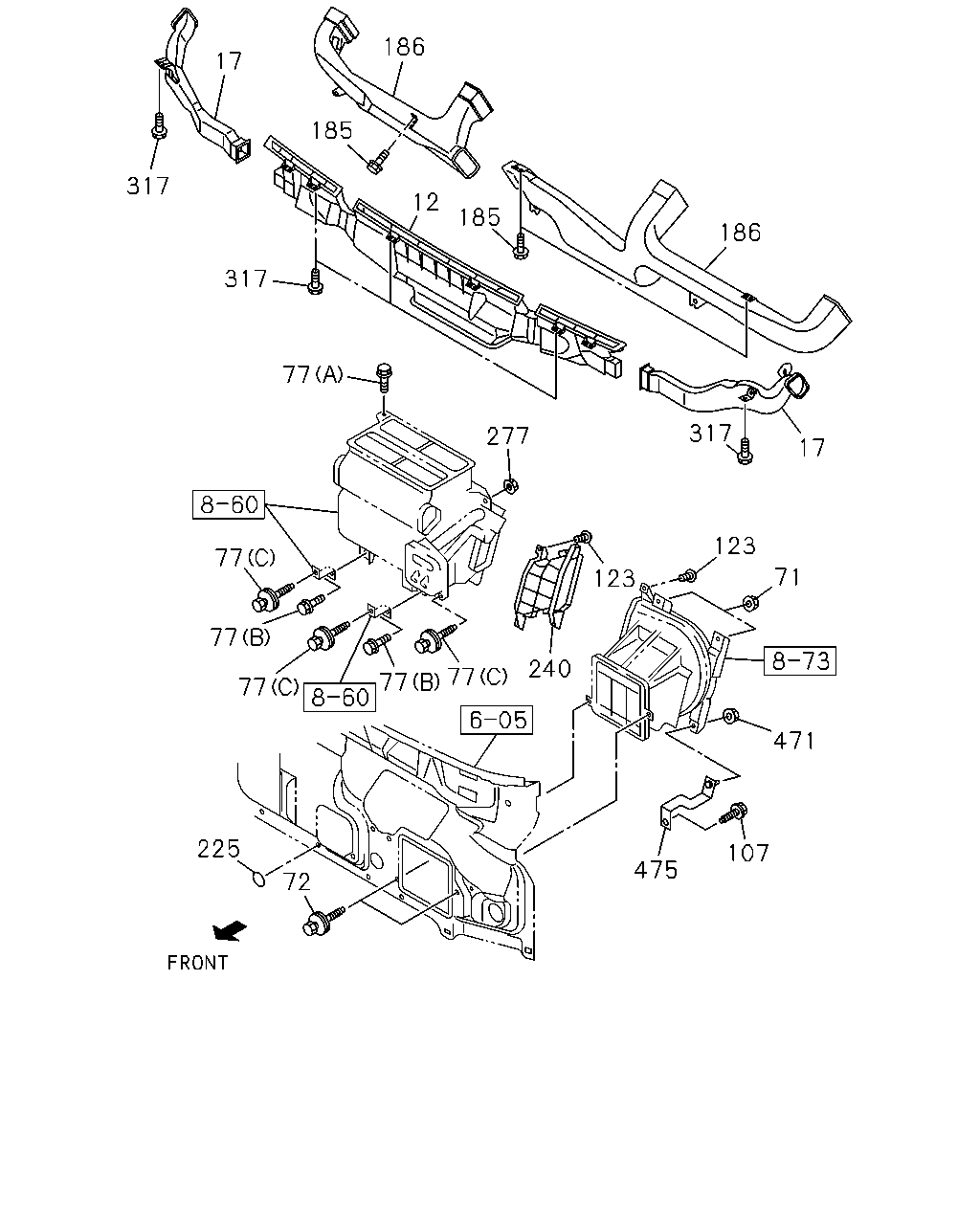

çizim 146087
186 186 17 317 123 71 471 107 475 72 225 77 240 123 277 77 77 77 77 77 317 185 12 185 17 317
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1108-
17 NOZZLE; DEFROSTER,SIDE 8-98040-018-1 01 1 1108-
17 NOZZLE; DEFROSTER,SIDE 8-98040-013-1 01 1 1108-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		0-91180-106-0 02 1 1108-
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1108-
77 BOLT; HTR UNIT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1108-
77 BOLT; HTR UNIT
(B) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1108-
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1108-1301
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1302-
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1108-
123 SCREW; DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1108-
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1108-
186 DUCT; VENTILATOR 8-97585-489-4 01 1 1108-1410
186 DUCT; VENTILATOR 8-98285-574-0 01 1 1411-
186 DUCT; VENTILATOR 8-98174-737-0 01 1 1108-1410
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1411-
225 SEAL; WATER
OD=25 BLACK 		1-76798-019-0 01 1 1304-
240 DUCT; AIR,HTR 8-98041-402-1 01 1 1108-
277 NUT; HTR
M6 FLANGE 		0-91180-106-0 01 1 1108-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1108-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1108-
471 NUT; BLOWER
M6 FLANGE 		0-91180-106-0 01 1 1108-
475 BRACKET; BLOWER 8-98043-500-1 01 1 1108-
çizim 146096
223 50 476 206
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR
IDN 		8-98080-998-1 01 1 1108-
206 GROMMET; A/C PIPE TO BLOWER UNIT
IDN 		8-98019-649-0 01 1 1108-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 IDN 		8-94441-539-0 01 1 1108-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR IDN 		8-98062-675-0 01 1 1108-
