◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10772 - LV280(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#5653) — 24 parça

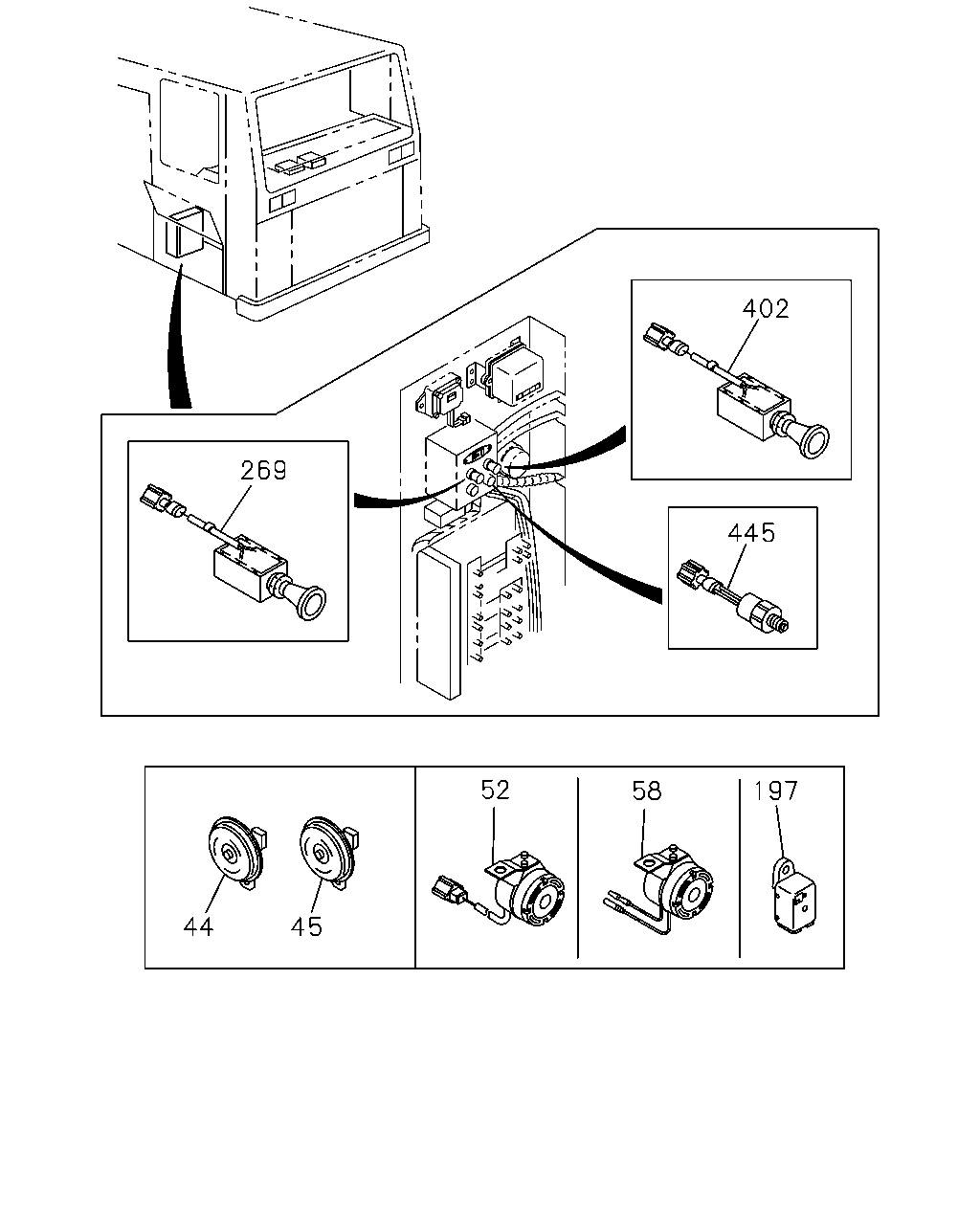

çizim 41038
402 269 445 52 58 197 45 44
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 1-83410-057-1 01 1 9705-
45 HORN; LOW NOTE 1-83410-058-1 01 1 9705-
52 BUZZER; BACK
NIKKO 		1-83460-052-0 01 1 9705-
52 BUZZER; BACK
METRO DENSO 		1-83460-088-0 01 1 9904-9907
52 BUZZER; BACK
EXC. NIKKO<Y70> METRO DENSO 		1-83460-088-1 01 1 9908-
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9705-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-
197 BUZZER; WARNING,AIR HEAT OIL BRK 1-83460-051-1 01 1 9705-
269 SWITCH; BATTERY,ENG ROOM 1-82340-358-0 01 1 9705-
402 SWITCH; IGNITION SAFETY 1-82340-382-0 01 1 9705-
445 SWITCH; ENG STOP 1-82380-107-1 01 1 9705-

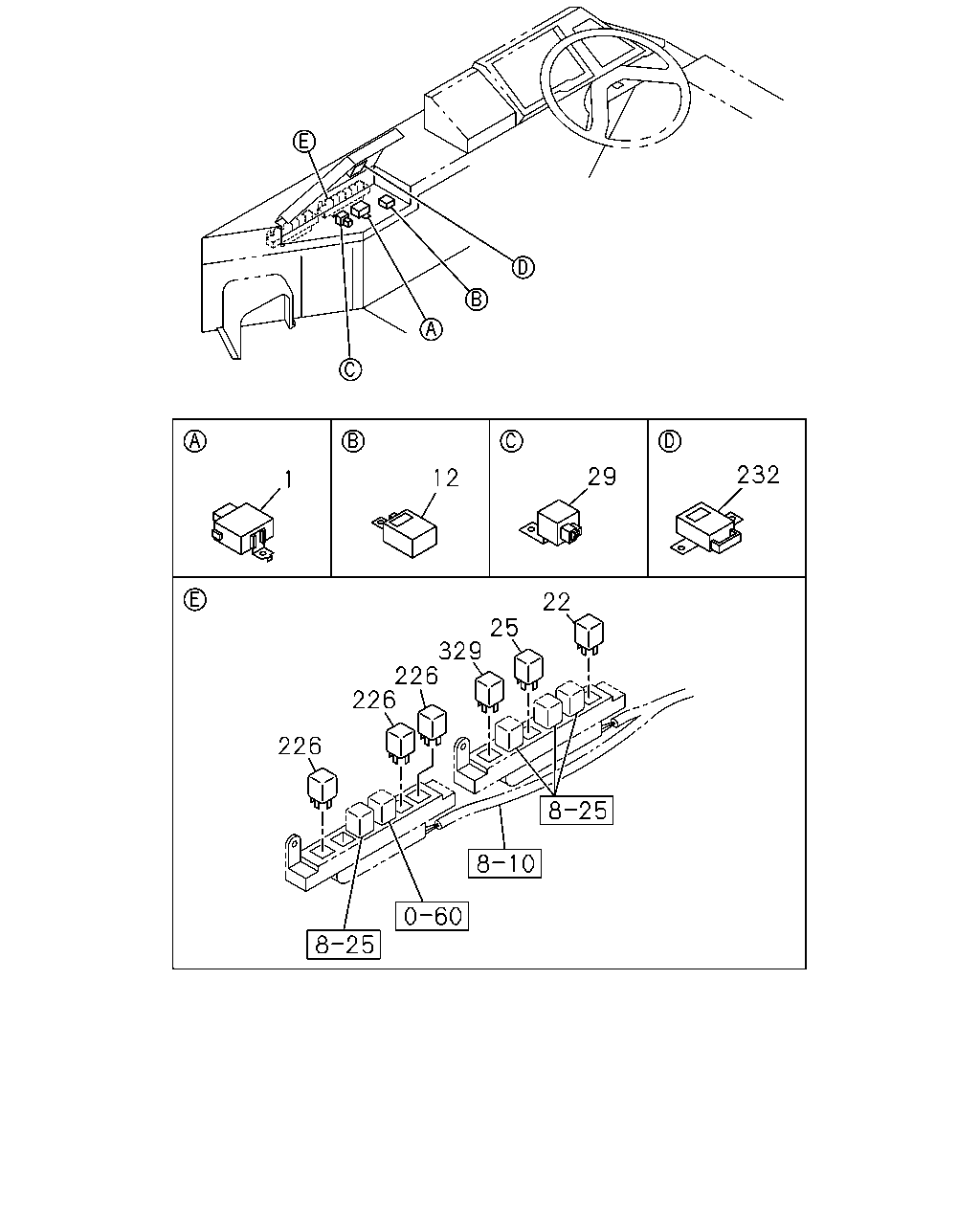

çizim 41114
232 29 12 1 22 25 329 226 226 226
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-064-0 01 1 9705-
12 RELAY; LAMP,FAILURE INDICATOR 1-82550-143-2 01 1 9705-
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9705-0111
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9705-0111
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
29 RELAY; HORN 1-83420-001-0 01 1 9705-
226 RELAY; EXH BRK
24V 12.5A MITUBA 		8-97062-815-1 03 1 9705-0111
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 03 1 0112-
232 RELAY; WARNING BUZZER 1-82550-119-1 01 1 9705-
329 RELAY; BACK LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9705-0111
329 RELAY; BACK LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
