◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11392 - FVR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#56525) — 156 parça

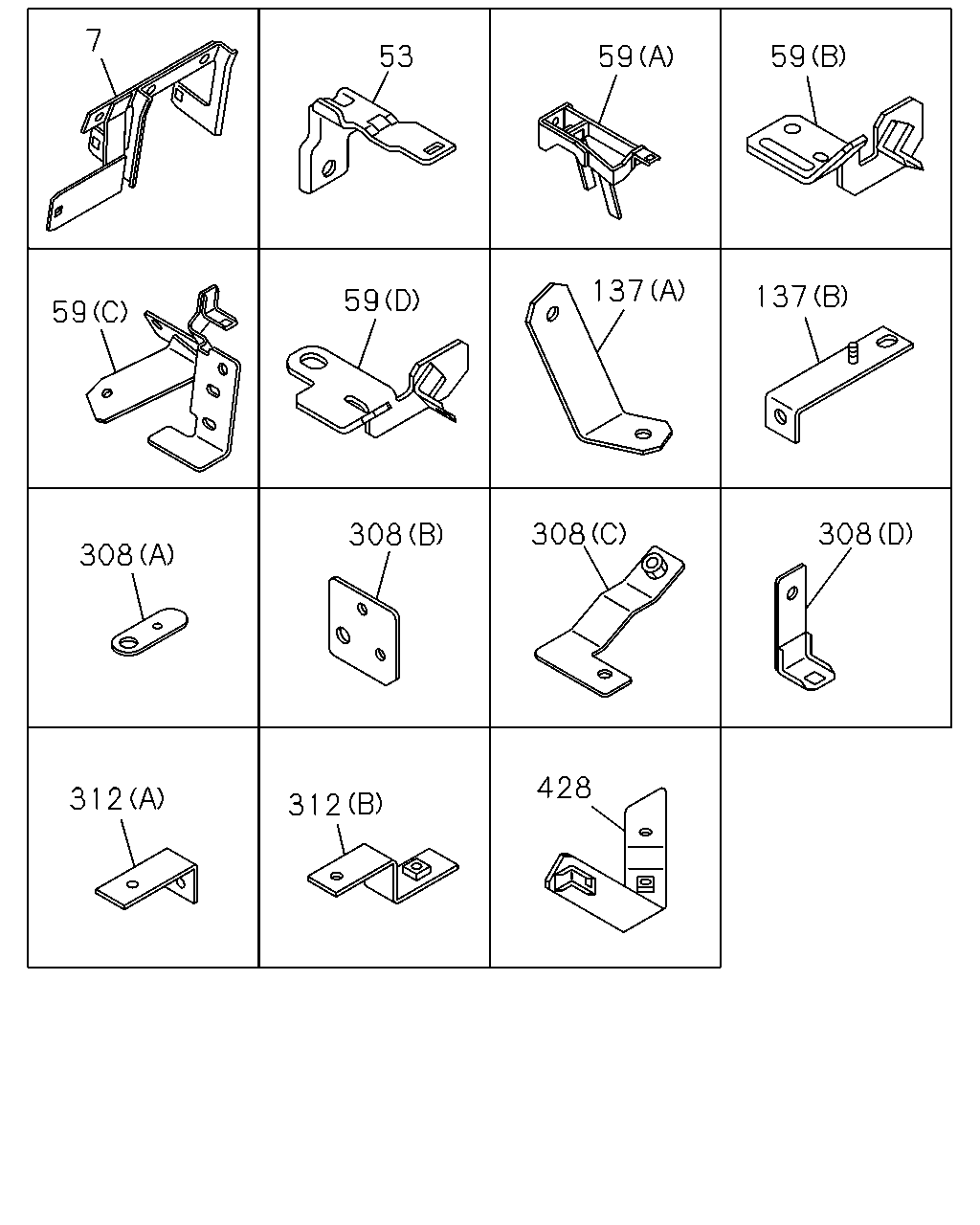

çizim 146075
308 137 59 59 137 308 428 53 59 308 312 312 308 59 7
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1108-
53 BRACKET; HARNESS
IDN 		8-98052-458-0 01 1 1108-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1108-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1108-1502
59 BRACKET; FRAME HARNESS
(D) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1108-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1108-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1108-
308 BRACKET; CLIP,ENG HARNESS
KD ENGINE<7MB> (C) 		8-97520-855-0 01 1 1411-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1108-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1108-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1108-1410
308 BRACKET; CLIP,ENG HARNESS
EXC. KD ENGINE<7MB> (C) 		8-98032-178-0 01 1 1411-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1108-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1108-
312 BRACKET; CLIP HARNESS
(B) 		8-97609-110-1 01 1 1108-
428 BRACKET 8-97620-514-0 01 1 1108-
çizim 146080
530 48 14 16 206 208 217 225 1 1 538 14 48 503 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
KD ENGINE<7MB> (B) ID=10 OD=14 L=30 IDN 		8-97520-857-0 04 1 1411-
1 SLEEVE; RUBBER
KD ENGINE<7MB> (A) ID=14 OD=18 L=60 		8-97520-856-0 01 1 1411-
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1108-1410
1 SLEEVE; RUBBER
EXC. KD ENGINE<7MB> (A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1411-
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1108-1410
1 SLEEVE; RUBBER
EXC. KD ENGINE<7MB> (B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1411-
14 CLIP; BAND,HARNESS
KD ENGINE<7MB> (A) L=250 		8-98216-430-0 13 1 1411-
14 CLIP; BAND,HARNESS
(A) L=250 IDN 		5-09707-030-1 09 1 1108-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1206-1410
14 CLIP; BAND,HARNESS
EXC. KD ENGINE<7MB> (A) L=250 		8-98216-430-0 09 1 1411-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1108-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1108-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1108-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1108-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1108-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1108-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1108-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 01 1 1108-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1108-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1108-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=26 		1-09709-289-0 02 1 1108-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=26 		1-09709-293-0 05 1 1108-
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=26 		1-09709-296-0 02 1 1108-
48 CLIP; FRAME HARNESS
(F) L=140 IDN 		5-09707-031-1 02 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (G) ID=15 L=65 		1-09700-466-0 14 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (G) ID=15 L=65 		1-09700-466-0 18 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (G) ID=15 L=65 		1-09700-466-0 23 1 1108-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1108-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1108-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1108-
206 CLIP; FUEL TANK HARNESS
L=250 IDN 		5-09707-030-1 02 1 1108-
208 CLIP; HARNESS,MAG VLV
L=250 IDN 		5-09707-030-1 01 1 1108-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 1108-
225 CLIP; AIR TANK HARNESS
L=250 IDN 		5-09707-030-1 02 1 1108-
503 CONNECTOR 1-82690-668-0 01 1 1108-
530 SEAL; HARNESS
180X40 		1-72498-019-1 11 1 1108-1402
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1108-

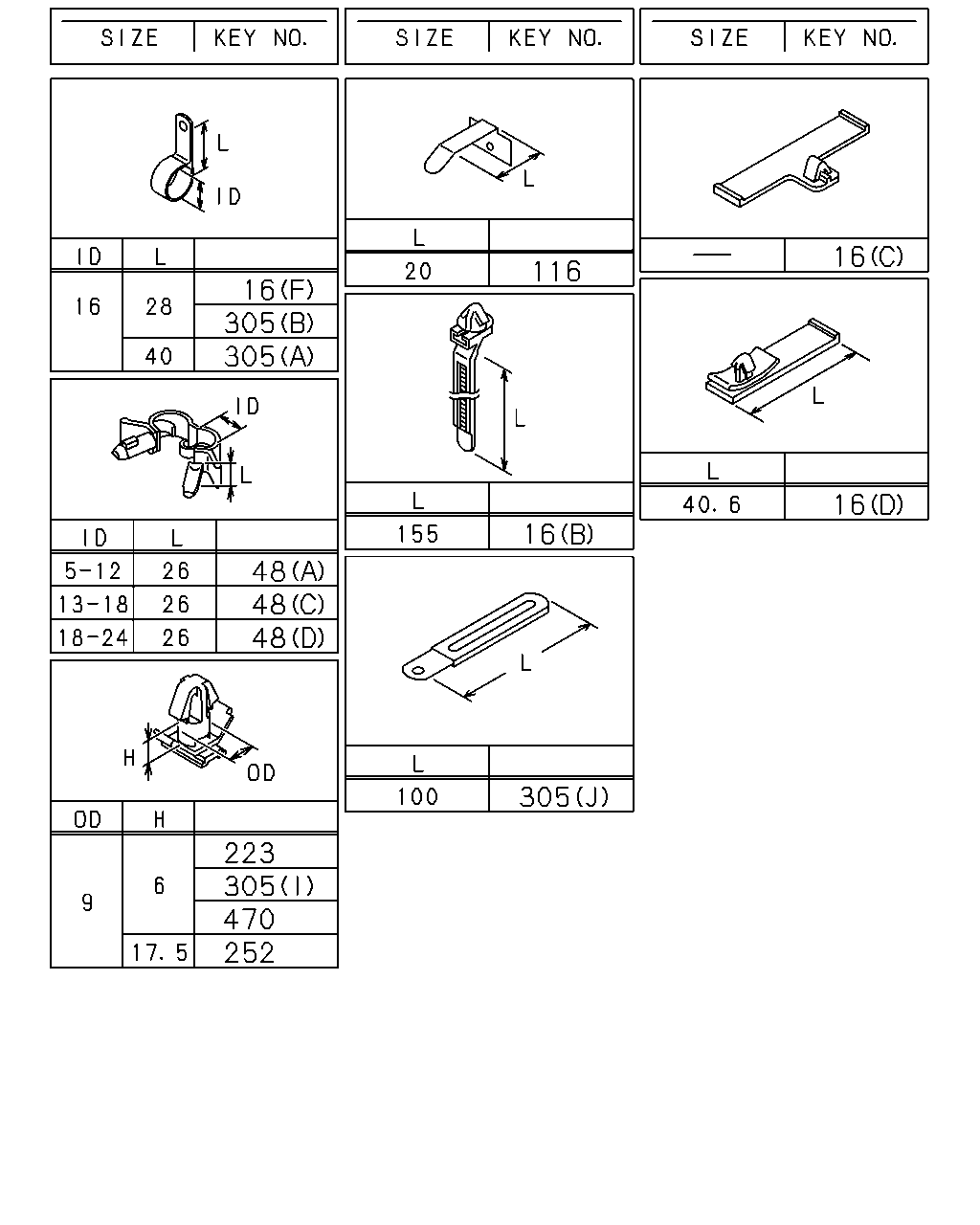

çizim 146089
16 116 16 305 305 16 16 48 48 48 305 223 305 470 252
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1108-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1108-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1108-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1108-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1108-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1108-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1108-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 01 1 1108-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1108-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1108-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=26 		1-09709-289-0 02 1 1108-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=26 		1-09709-293-0 05 1 1108-
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=26 		1-09709-296-0 02 1 1108-
48 CLIP; FRAME HARNESS
(F) L=140 IDN 		5-09707-031-1 02 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (G) ID=15 L=65 		1-09700-466-0 14 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (G) ID=15 L=65 		1-09700-466-0 18 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (G) ID=15 L=65 		1-09700-466-0 23 1 1108-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1108-
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1108-
223 CLIP; AIR TANK HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1108-
252 CLIP; CONNECTOR FIX
OD=9 H=17.5 		1-09709-181-0 01 1 1108-
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1108-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1108-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1108-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1108-
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1108-
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1108-
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1108-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1108-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1108-
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 01 1 1108-1310
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1311-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1108-

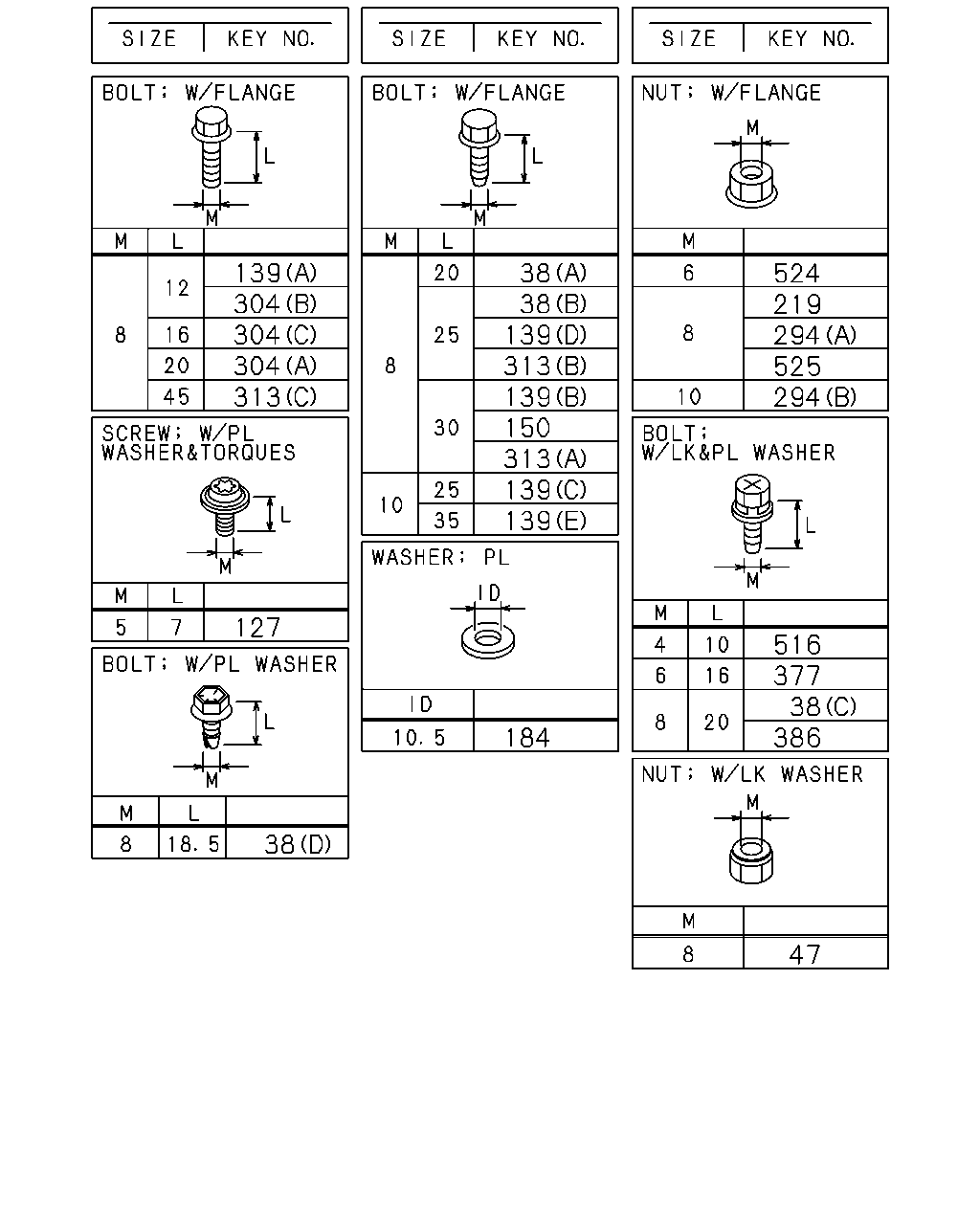

çizim 146095
139 313 304 304 304 127 38 38 139 38 139 139 313 150 139 313 184 524 294 219 525 516 294 38 386 377 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 05 1 1108-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 03 1 1108-1202
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 03 1 1203-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET IDN 		8-98063-767-0 01 1 1108-
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1108-
139 BOLT; BRKT
(D) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1108-
139 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1108-
139 BOLT; BRKT
(E) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1108-
150 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1108-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1108-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1108-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1108-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1108-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1108-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 05 1 1108-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1108-
313 BOLT; BRKT
(C) M8X45 FLANGE 		0-28050-845-0 01 1 1108-
313 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1108-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1108-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1108-
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 02 1 1108-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1108-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1108-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1108-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1108-

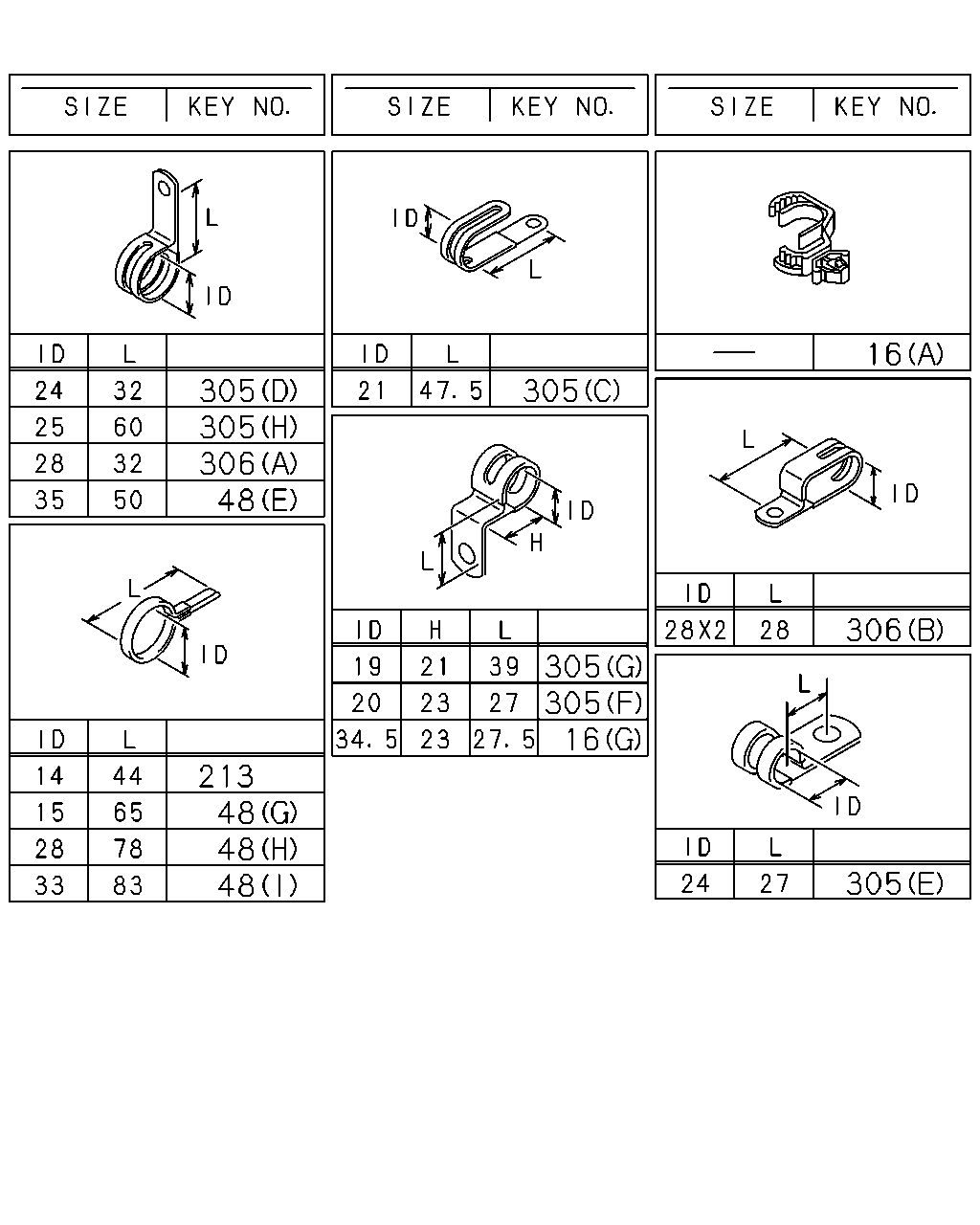

çizim 146097
16 305 305 306 48 305 306 305 305 16 213 48 48 48 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1108-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1108-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1108-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1108-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1108-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1108-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1108-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 01 1 1108-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1108-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1108-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1108-
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=26 		1-09709-289-0 02 1 1108-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=26 		1-09709-293-0 05 1 1108-
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=26 		1-09709-296-0 02 1 1108-
48 CLIP; FRAME HARNESS
(F) L=140 IDN 		5-09707-031-1 02 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (G) ID=15 L=65 		1-09700-466-0 14 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (G) ID=15 L=65 		1-09700-466-0 18 1 1108-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (G) ID=15 L=65 		1-09700-466-0 23 1 1108-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1108-
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1108-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1108-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1108-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1108-
305 CLIP; ENG HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1108-
305 CLIP; ENG HARNESS
(G) ID=19 L=39 H=21 		1-09700-972-1 01 1 1108-
305 CLIP; ENG HARNESS
(H) ID=25 L=60 		1-09701-041-1 01 1 1108-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1108-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1108-
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 01 1 1108-1310
305 CLIP; ENG HARNESS
(J) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1108-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
