Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#56524) — 61 parça
◀

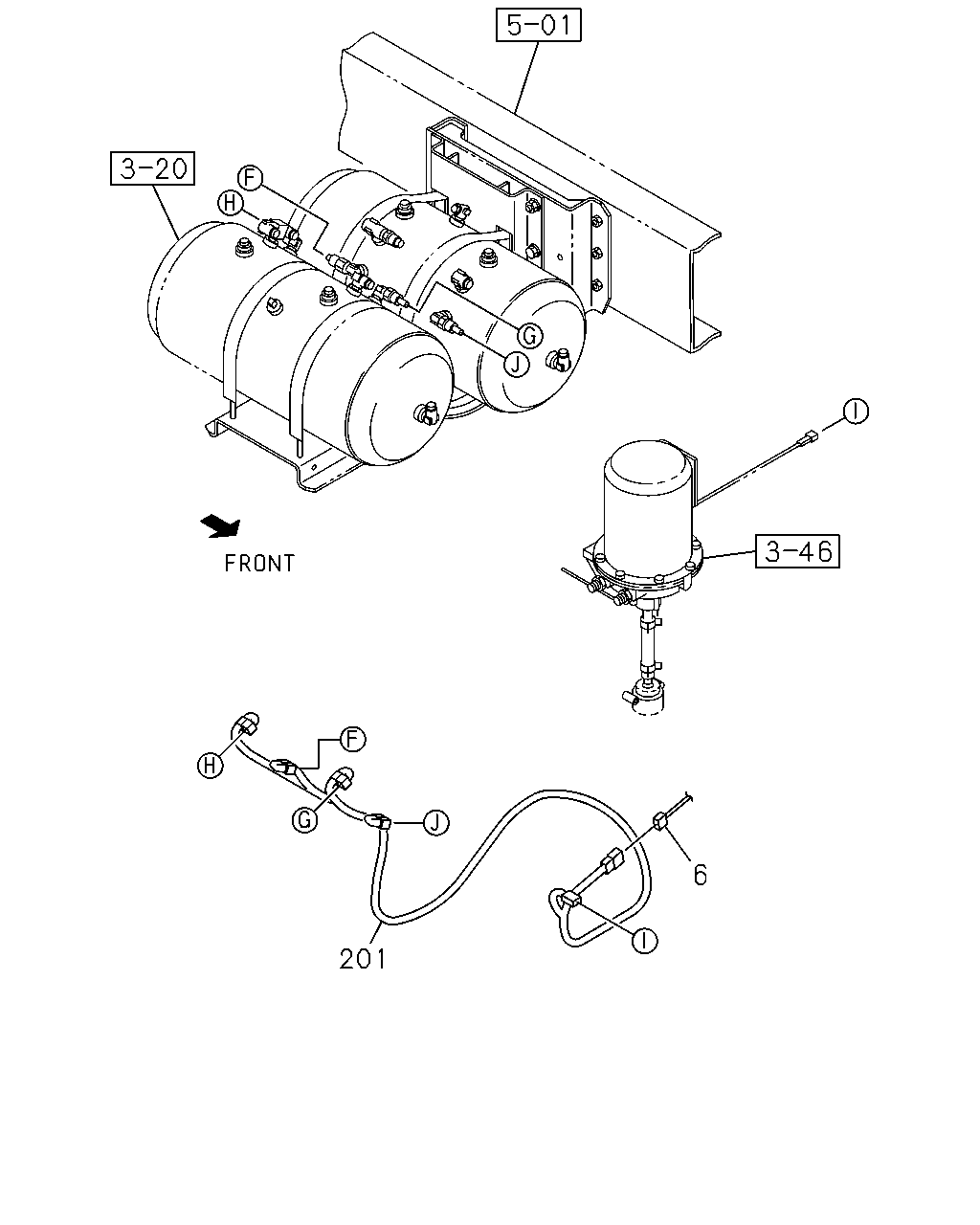

[810A] AIR TANK HARNESS (2 parça)
[810A] OTHER HARNESS NO.2 (6 parça)
[810A] FRAME HARNESS NO.1 (21 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] ENGINE,TRANSMISSION HARNESS (5 parça)
[810A] CAB HARNESS (16 parça)
[810A] OTHER HARNESS NO.1 (5 parça)
[810A] FRAME HARNESS NO.2 (4 parça)
▶
6
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
IDN
8-98186-221-2
01
1
1108-
201
HARNESS; AIR TANK
IDN
8-98178-658-2
01
1
1108-

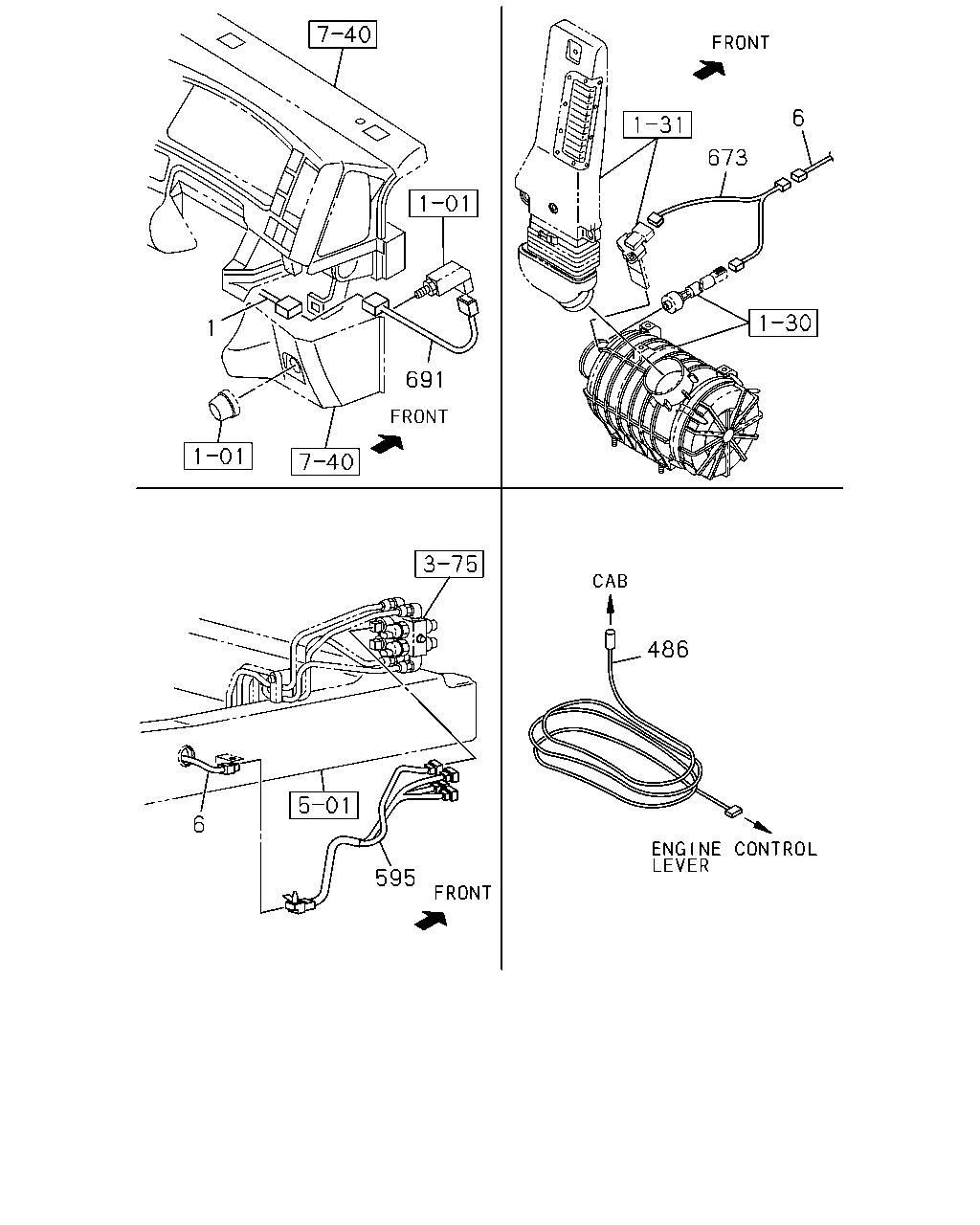

6
673
1
691
486
6
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
IDN
8-98178-157-1
01
1
1108-
6
HARNESS; FRAME
IDN
8-98186-221-2
01
1
1108-
486
HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82675-898-0
01
1
1108-1112
595
HARNESS; WARNING,BRK
IDN
8-97620-487-1
01
1
1108-
673
HARNESS; EXT,SENSOR
IDN
8-98069-172-0
01
1
1108-
691
HARNESS; IDLE CONT
IDN
8-98049-014-2
01
1
1108-

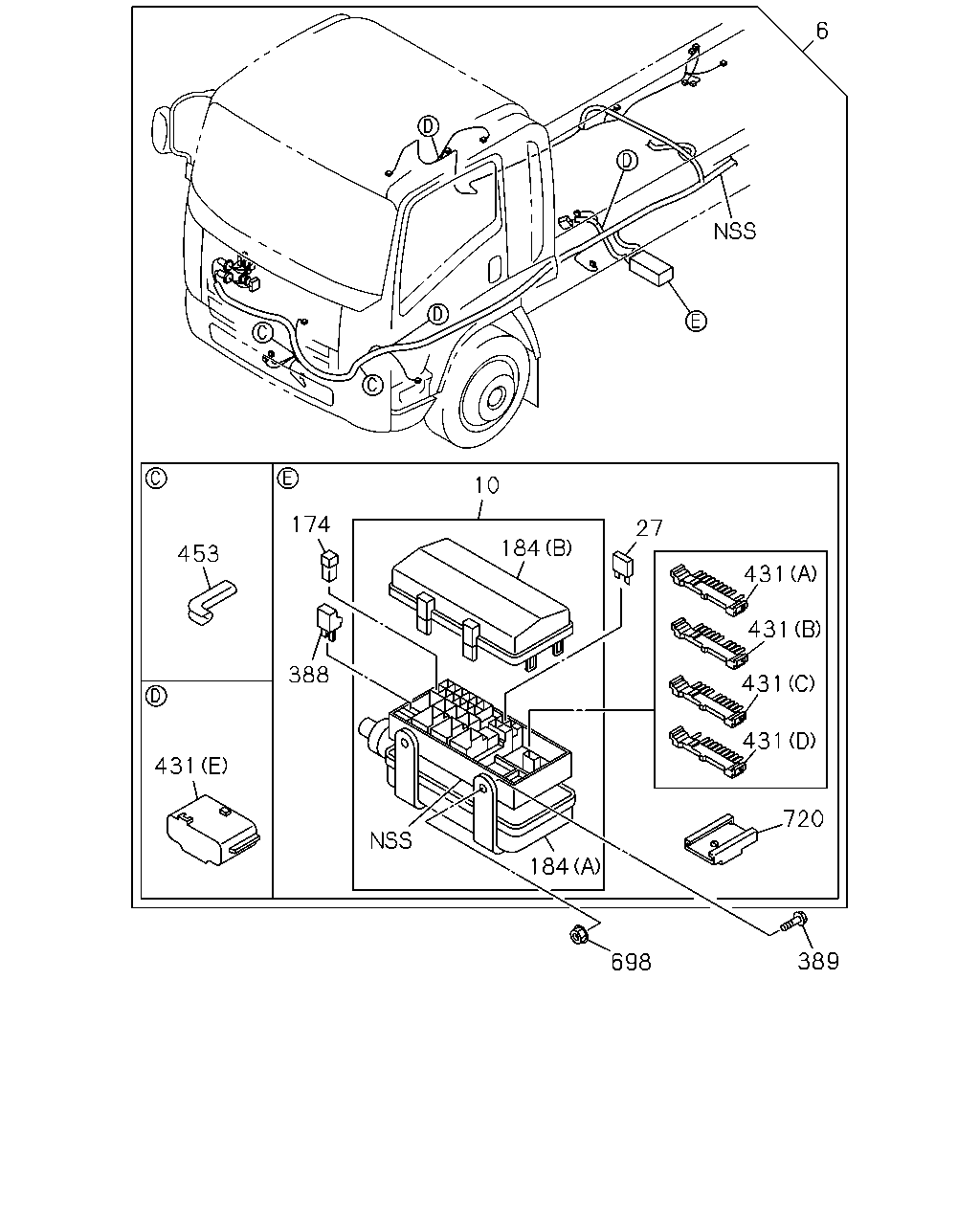

6
10
174
27
184
453
431
431
388
431
431
431
720
184
389
698
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
IDN
8-98186-221-2
01
1
1108-
10
BOX; FUSE,HARNESS
IDN
8-98030-762-0
01
1
1108-
27
FUSE UNIT
10A RED IDN
8-98054-257-0
01
1
1108-
27
FUSE UNIT
15A BLUE IDN
8-98054-258-0
02
1
1108-
174
FUSE; SLOW BLOW
60A YELLOW IDN
8-97219-407-0
01
1
1108-
174
FUSE; SLOW BLOW
60A YELLOW IDN
8-97219-407-0
01
1
1108-
174
FUSE; SLOW BLOW
30A PINK IDN
8-98079-191-0
01
1
1108-
174
FUSE; SLOW BLOW
40A GREEN IDN
8-98079-192-0
01
1
1108-
174
FUSE; SLOW BLOW
50A RED IDN
8-98079-193-0
03
1
1108-
184
COVER; RELAY & FUSE BOX
(A) IDN
8-98030-766-0
01
1
1108-
184
COVER; RELAY & FUSE BOX
(B) IDN
8-98030-767-1
01
1
1108-
388
DIODE; RELAY BOX
BLACK 2P-1.5A IDN
8-94422-639-1
01
1
1108-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1108-
431
CONNECTOR; JOINT
(C) 10P BLUE IDN
1-82699-598-0
05
1
1108-
431
CONNECTOR; JOINT
(A) 10P GREEN IDN
1-82698-579-0
02
1
1108-
431
CONNECTOR; JOINT
(B) 10P GREEN IDN
1-82699-599-0
04
1
1108-
431
CONNECTOR; JOINT
(D) 10P BROWN IDN
1-82699-601-0
01
1
1108-
431
CONNECTOR; JOINT
(E) 6P BLACK IDN
8-97616-194-0
01
1
1108-
453
PROTECTOR; HARNESS
IDN
1-82699-709-0
01
1
1108-
698
NUT; COVER,RELAY BOX
M8 FLANGE
0-91180-108-0
02
1
1108-
720
ATTACHMENT; CONNECTOR
IDN
1-82699-688-0
03
1
1108-

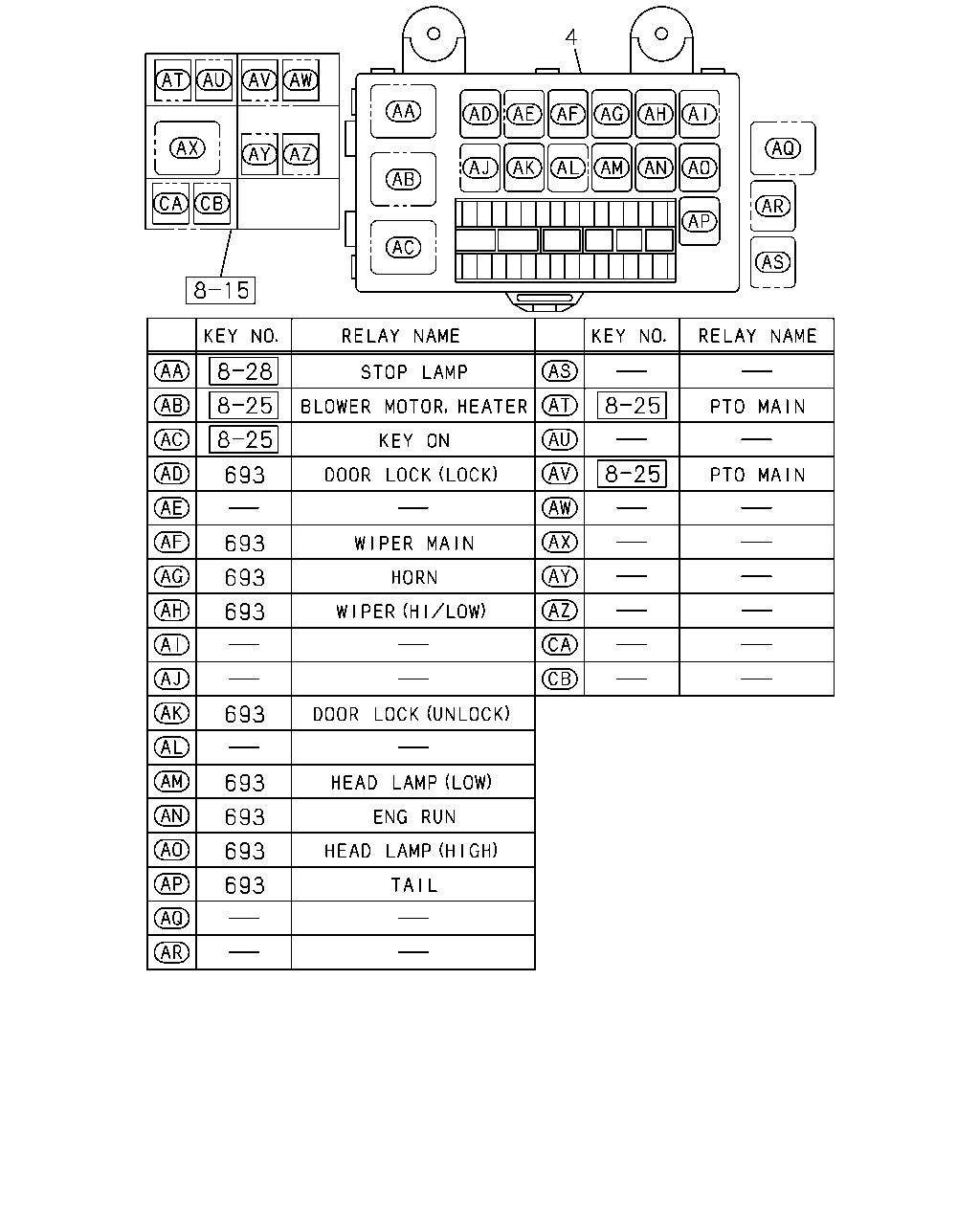

4
693
693
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
IDN
8-98065-666-0
01
1
1108-
693
RELAY; FUSE BOX
24V 10A PANASONIC IDN
8-97173-035-1
AR
1
1108-

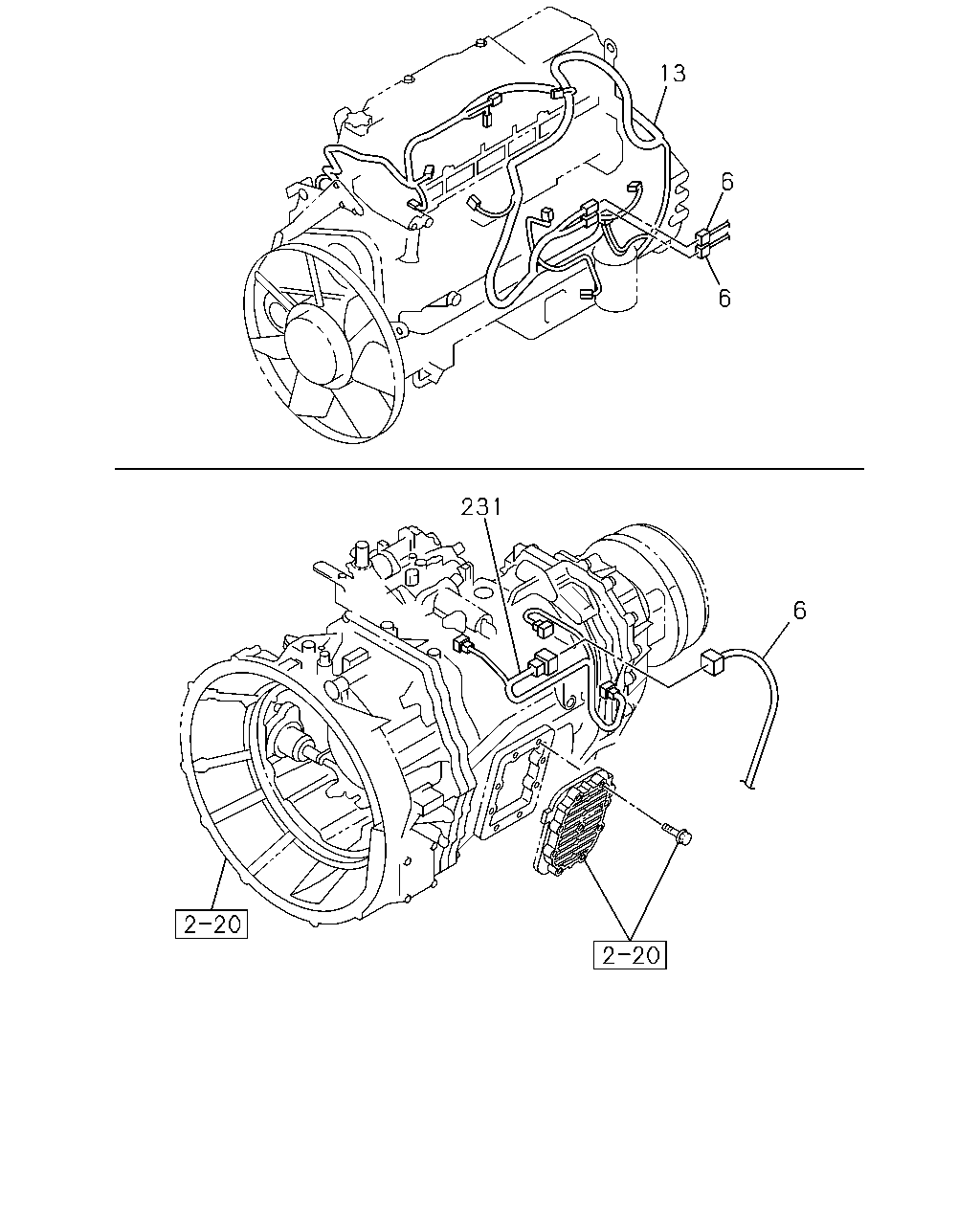

13
6
6
231
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
IDN
8-98186-221-2
01
1
1108-
13
HARNESS; ENG
KD ENGINE<7MB>
8-97520-854-0
01
1
1411-
13
HARNESS; ENG
8-98075-774-5
01
1
1108-1410
13
HARNESS; ENG
EXC. KD ENGINE<7MB>
8-98075-774-5
01
1
1411-
231
HARNESS; TRANS
IDN
8-97618-932-2
01
1
1108-

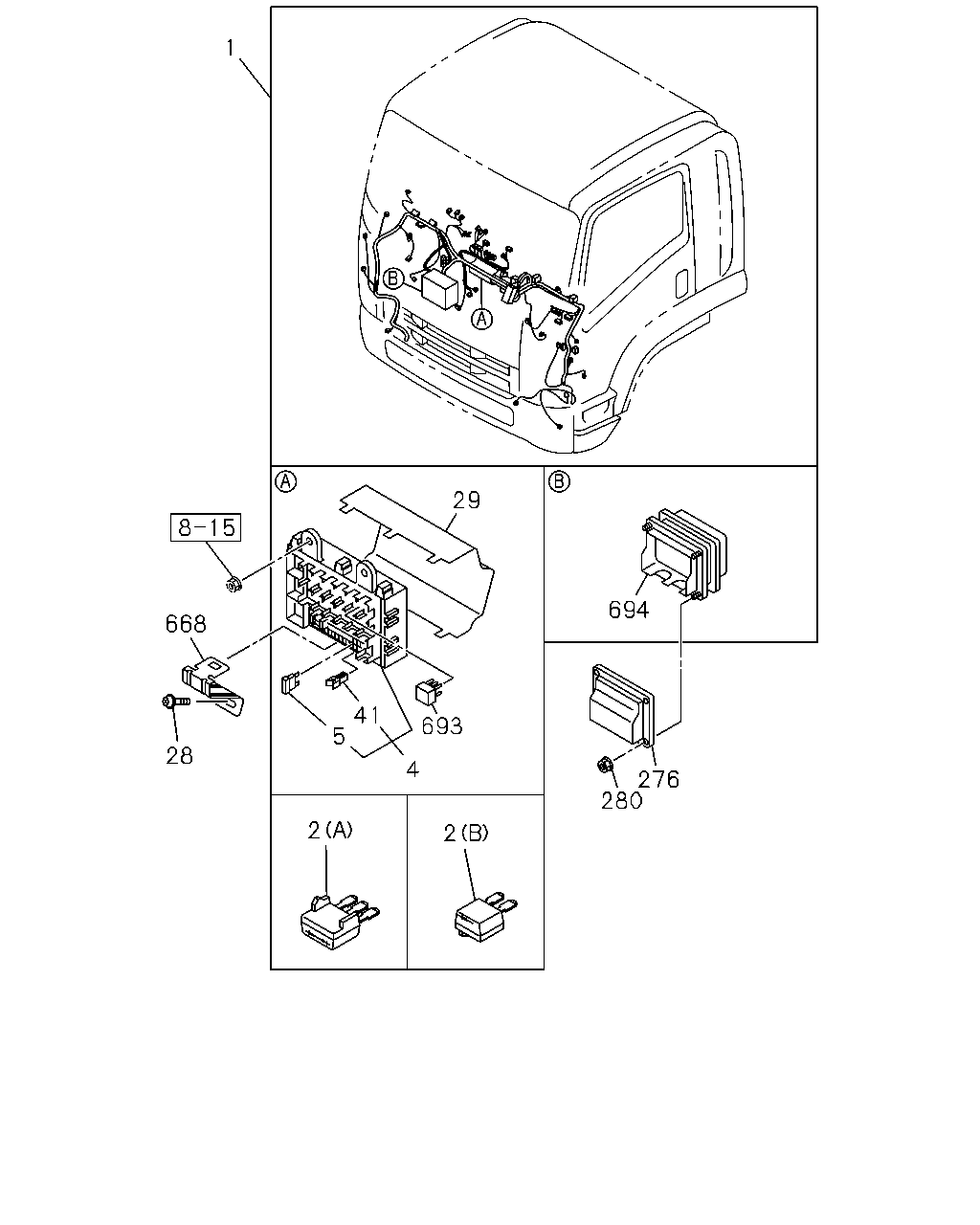

1
29
694
668
41
5
693
28
4
276
280
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
IDN
8-98178-157-1
01
1
1108-
2
DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A IDN
8-94416-438-1
01
1
1108-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A IDN
8-94422-639-1
02
1
1108-
4
BOX ASM; FUSE,HARNESS
IDN
8-98065-666-0
01
1
1108-
5
FUSE; FACIA HARNESS
10A RED IDN
8-98054-257-0
AR
1
1108-
5
FUSE; FACIA HARNESS
15A BLUE IDN
8-98054-258-0
AR
1
1108-
5
FUSE; FACIA HARNESS
20A YELLOW IDN
8-98054-259-0
AR
1
1108-
5
FUSE; FACIA HARNESS
25A WHITE IDN
8-98062-982-0
01
1
1108-
28
SCREW; FUSE BOX
BOLT M6X16 FLANGE
0-28650-616-0
01
1
1108-
29
COVER; FUSE BOX
IDN
8-98056-968-0
01
1
1108-
41
PULLER; FUSE
IDN
8-98054-260-0
01
1
1108-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1108-
280
NUT; BOX ASM FIX
M6 FLANGE
0-91180-106-0
04
1
1108-
668
BRACKET; HARNESS
8-98095-653-2
01
1
1108-
693
RELAY; FUSE BOX
24V 10A PANASONIC IDN
8-97173-035-1
AR
1
1108-
694
BOX ASM; CONNECTOR
IDN
8-98063-269-1
01
1
1108-

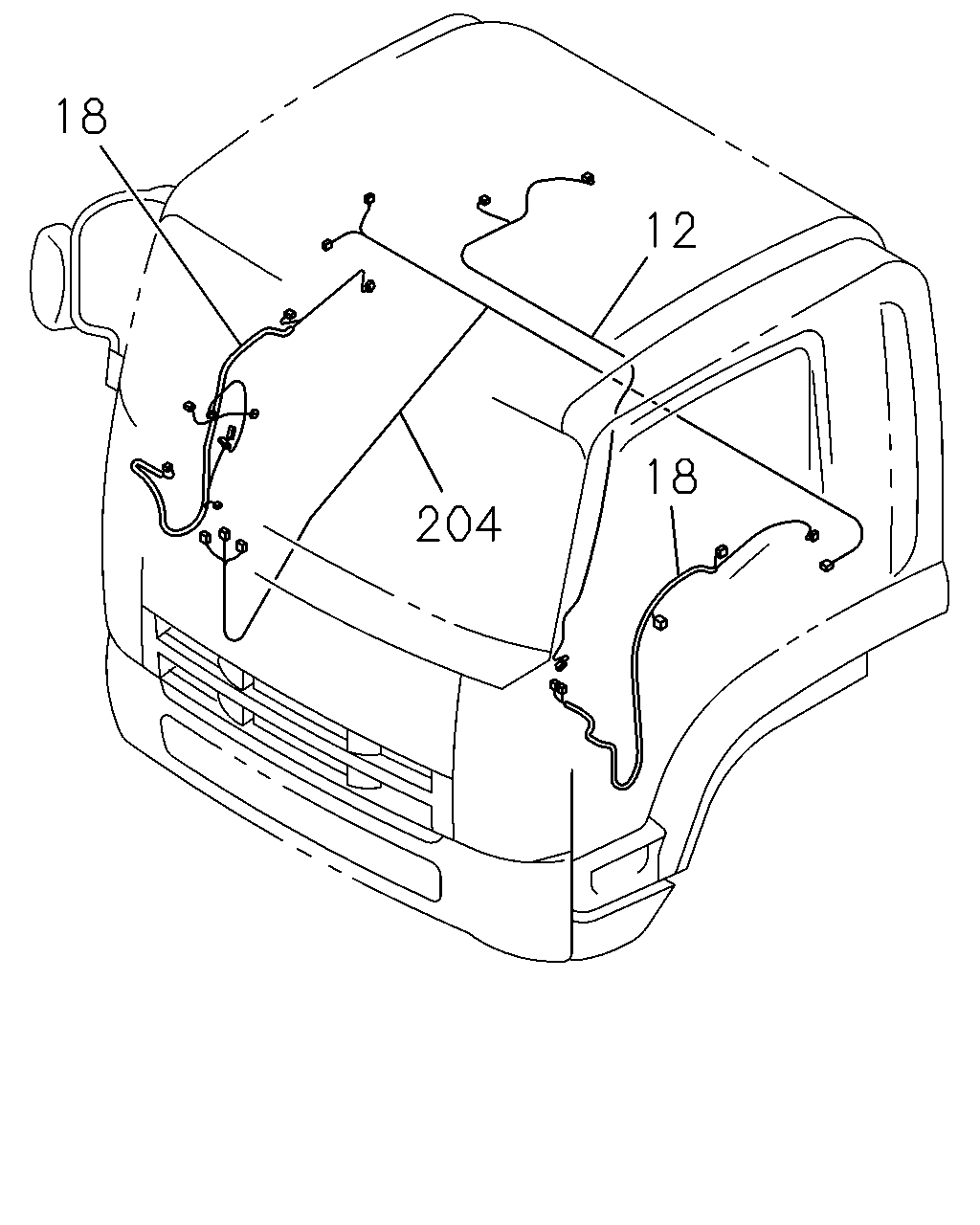

18
12
18
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC>
8-98085-333-0
01
1
1108-
12
HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> IDN
8-98041-949-2
01
1
1108-
18
HARNESS; DOOR
DRIVER IDN
8-98076-304-3
01
1
1108-
18
HARNESS; DOOR
PASSENGER IDN
8-98076-305-3
01
1
1108-
204
HARNESS; CABLE,FLOOR
IDN
8-98182-447-0
01
1
1108-

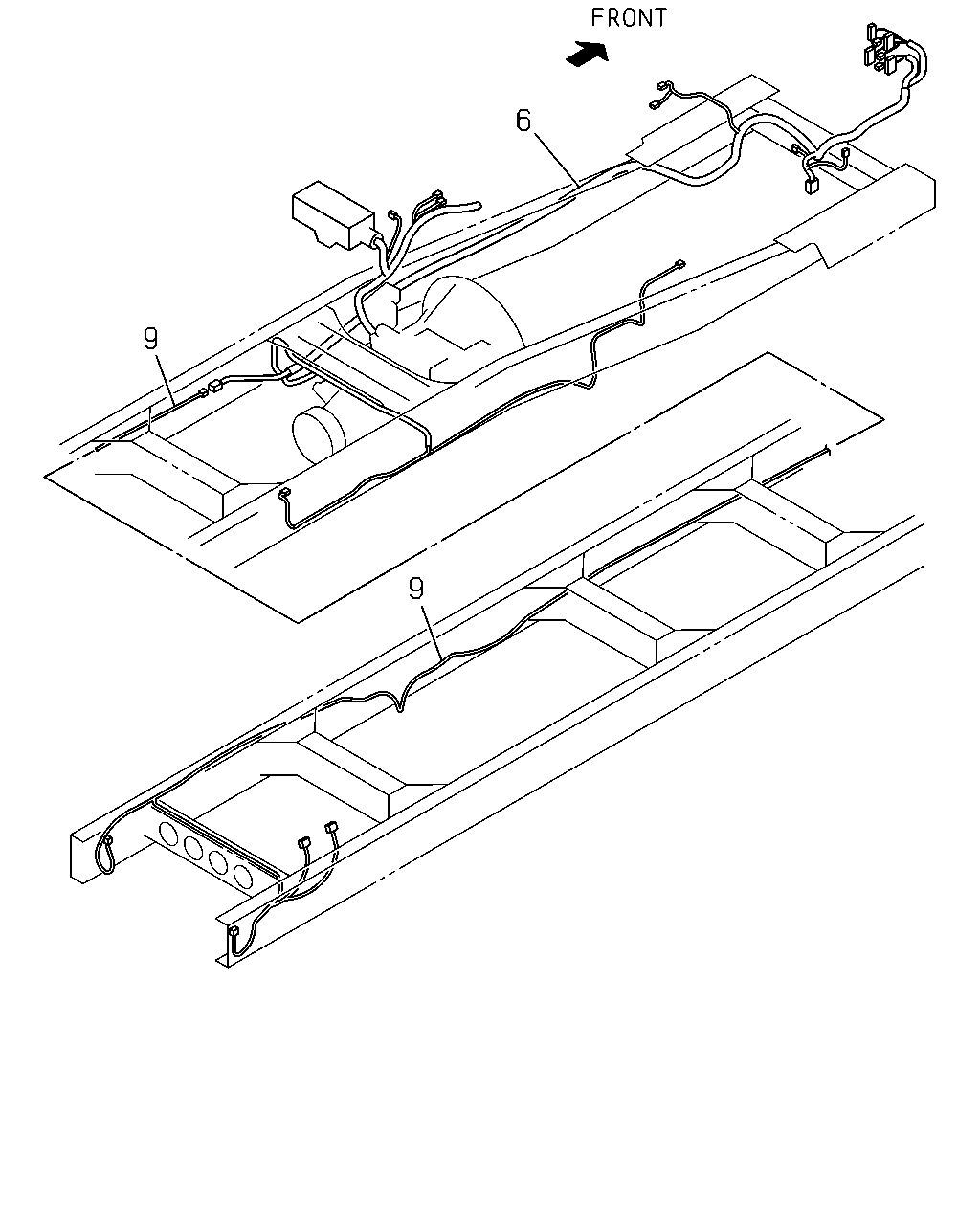

6
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
IDN
8-98186-221-2
01
1
1108-
9
HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) IDN
8-98186-225-0
01
1
1108-
9
HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) IDN
8-98186-226-0
01
1
1108-
9
HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) IDN
8-98186-227-0
01
1
1108-
