Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

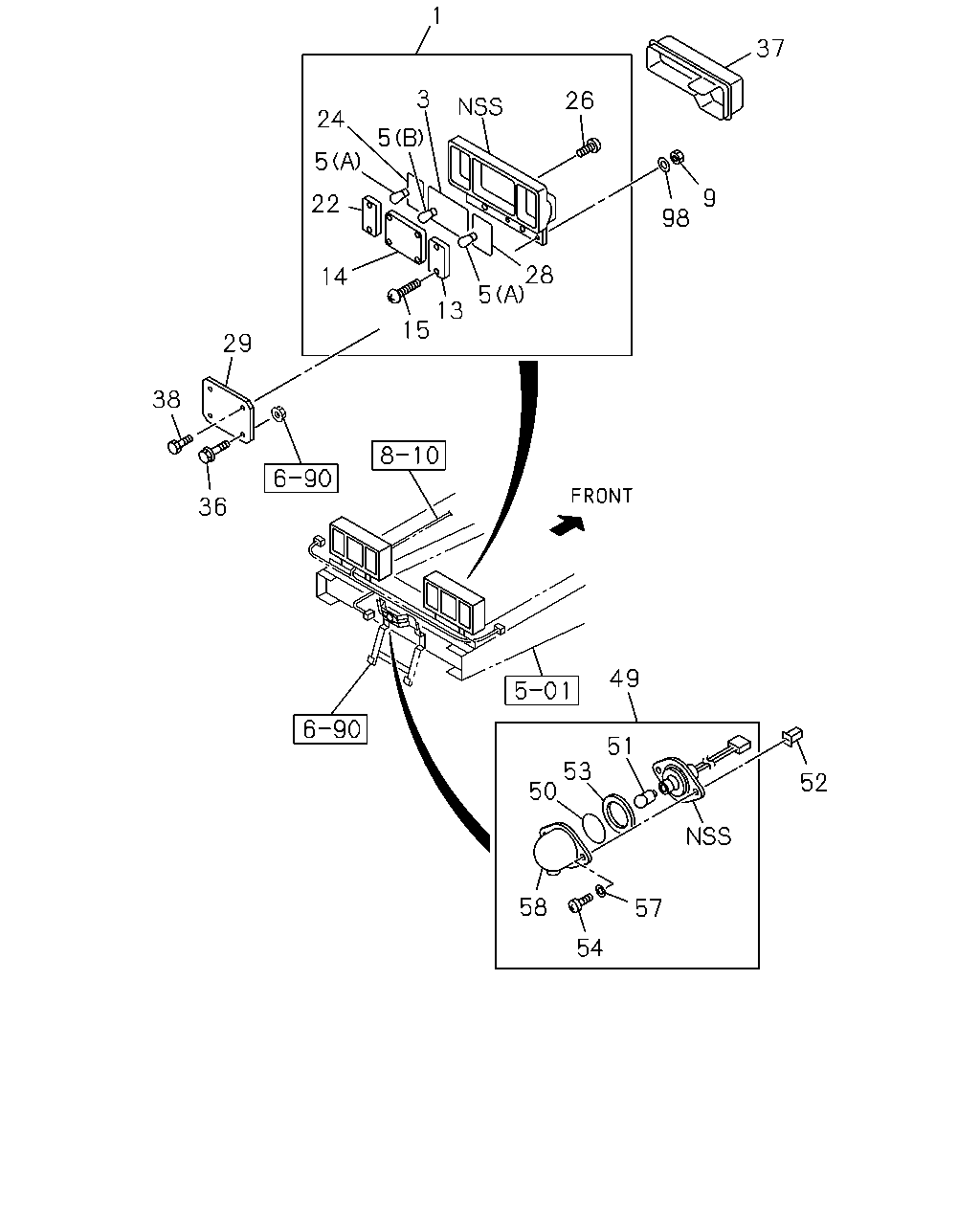

8-03 — LAMP; REAR AND REAR SIDE
(#56522) — 30 parça
1
37
3
26
24
5
5
9
22
98
28
14
5
13
15
29
38
36
49
51
53
50
52
58
57
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
IDN
8-98034-325-0
01
1
1108-
1
LAMP ASM; RR COMB
IDN
8-98034-324-0
01
1
1108-
3
GASKET; RR COMB LAMP
IDN
8-94257-505-0
02
1
1108-
5
BULB; RR COMB LAMP
(A) 24V 21W IDN
1-82194-108-0
04
1
1108-
5
BULB; RR COMB LAMP
(B) 24V 21/5W IDN
1-82194-109-0
02
1
1108-
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
1108-
13
LENS; TURN SIGNAL
IDN
8-94174-639-0
01
1
1108-
13
LENS; TURN SIGNAL
IDN
8-94174-638-0
01
1
1108-
14
LENS; TAIL & STOP,RR COMB LAMP
IDN
8-94178-625-0
01
1
1108-
14
LENS; TAIL & STOP,RR COMB LAMP
IDN
8-94178-624-0
01
1
1108-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS IDN
0-71190-420-0
16
1
1108-
22
LENS; BACKUP,RR COMB LAMP
IDN
8-94257-512-1
02
1
1108-
24
GASKET; BACK,LAMP
IDN
8-94257-506-0
02
1
1108-
26
SCREW; BACK HORN
M4X14 TAPPING IDN
9-07076-414-0
01
1
1108-
26
SCREW; BACK HORN
M4X12 TAPPING IDN
9-07076-412-0
01
1
1108-
28
GASKET; TURN,LAMP
IDN
8-94257-507-0
02
1
1108-
29
BRACKET; LAMP,RR COMB
1-82237-050-1
02
1
1108-
36
BOLT; BRKT,RR COMB
M8X25 FLANGE IDN
0-28650-825-0
02
1
1108-
37
COVER; RR COMB LAMP
IDN
8-94129-274-4
01
1
1108-
37
COVER; RR COMB LAMP
IDN
8-94128-858-4
01
1
1108-
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
1108-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
1108-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
1108-
51
BULB; LICENSE PLATE LAMP
24V 10W IDN
1-82194-037-0
01
1
1108-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
1108-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
1108-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
1108-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
1108-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
1108-
98
WASHER
ID=6.4 OD=18
0-91610-706-0
04
1
1108-
