Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

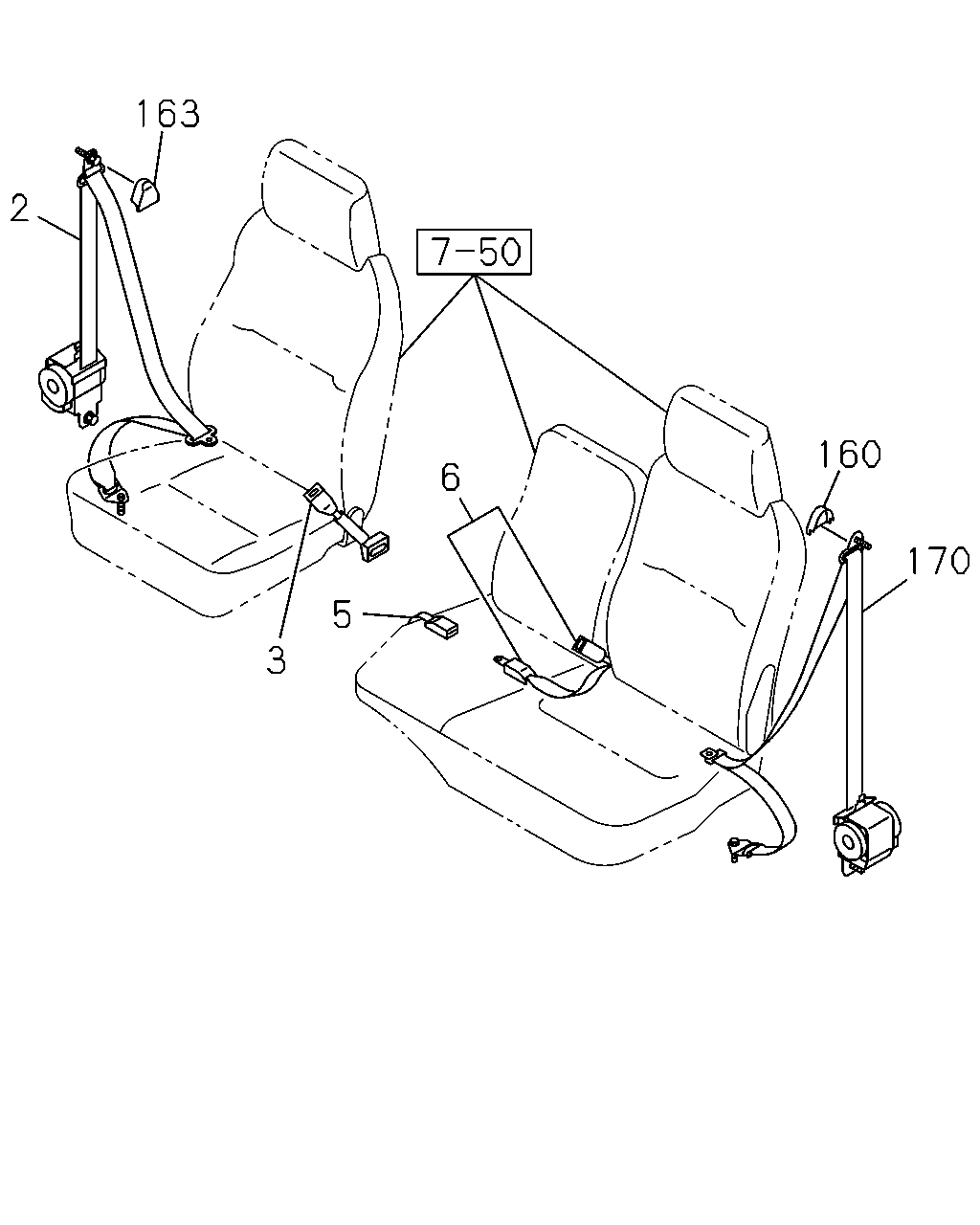

7-60 — SEAT BELT
(#56519) — 12 parça
163
2
160
6
170
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
GRAY IDN
8-97407-770-4
01
1
1108-1209
2
BELT; SEAT,TONGUE SIDE
GRAY
8-97423-516-1
01
1
1210-1407
2
BELT; SEAT,TONGUE SIDE
GRAY IDN
8-97428-435-0
01
1
1408-
3
BELT; SEAT,BUCKLE SIDE
GRAY IDN
8-97407-375-4
01
1
1108-
5
BELT; CENTER SEAT,BUCKLE SIDE
GRAY IDN
8-97407-377-1
01
1
1108-
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY IDN
8-97409-768-3
01
1
1108-1209
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97423-515-1
01
1
1210-
160
COVER; THROUGH ANCHOR
GRAY IDN
8-97405-991-0
01
1
1108-
163
COVER; ADJUSTER
GRAY IDN
8-97405-991-0
01
1
1108-
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY IDN
8-97407-770-4
01
1
1108-1209
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97423-516-1
01
1
1210-1407
170
BELT; PASSENGER SEAT,TONGUE SIDE
GRAY IDN
8-97428-435-0
01
1
1408-
