Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#56512) — 90 parça
◀

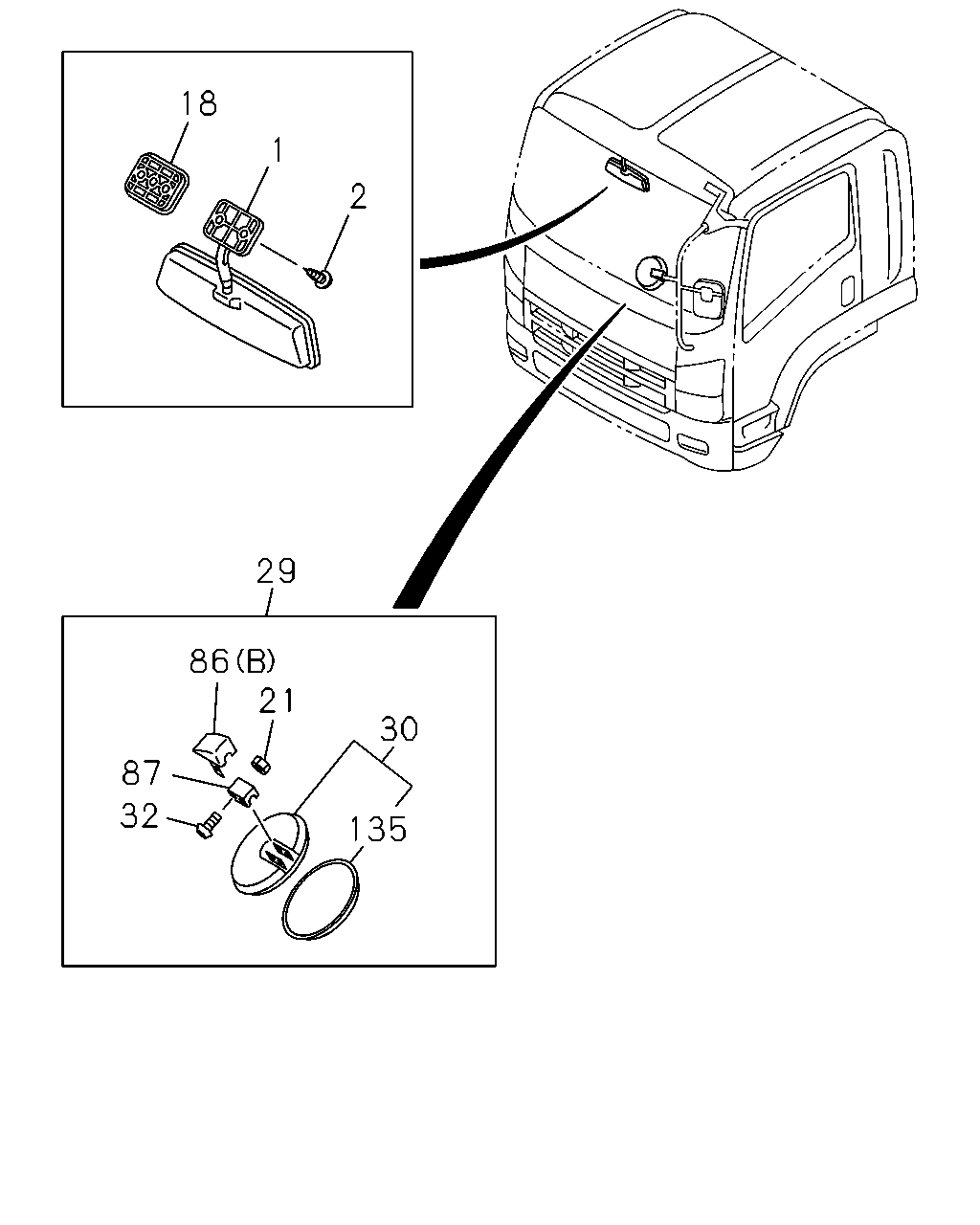

[720A] UNDER AND ROOM MIRROR (13 parça)

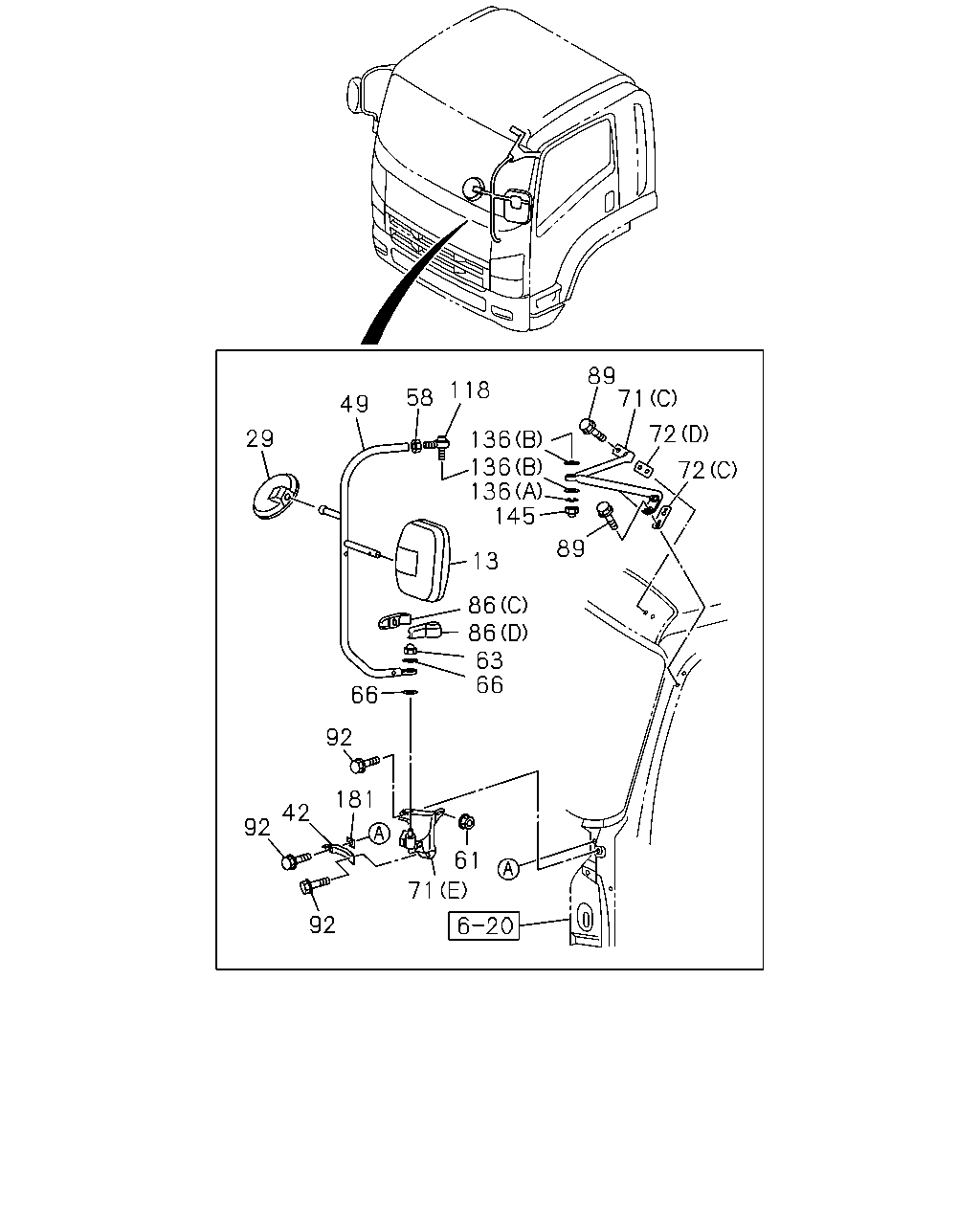

[720A] LH (36 parça)
[720A] COMPONENT;O/S RR VIEW MIRROR (14 parça)
[720A] RH (27 parça)
▶
18
1
2
29
86
21
30
87
32
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
DARK GRAY IDN
8-98097-534-1
01
1
1108-
2
SCREW; MIRROR TO BODY
M6X26
8-98033-674-0
02
1
1108-
18
CLIP; MIRROR
DARK GRAY
8-97408-241-0
01
1
1108-
21
NUT; MIRROR
M5
1-09984-124-0
02
1
1108-
29
MIRROR ASM; UNDER
1-71798-422-0
01
1
1108-
30
MIRROR; UNDER
1-71798-591-1
01
1
1108-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
02
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK
1-71737-649-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(C)
8-98040-545-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(D)
8-98040-546-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(A)
8-98040-541-1
01
1
1108-
87
SPACER
1-71737-646-2
01
1
1108-
135
LENS; MIRROR,SIDE UNDER
1-71798-838-0
01
1
1108-
89
71
118
58
49
72
29
136
136
136
145
72
89
13
86
86
63
66
66
92
181
42
92
61
71
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98028-332-0
01
1
1108-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98104-068-0
01
1
1108-
29
MIRROR ASM; UNDER
1-71798-422-0
01
1
1108-
42
ATTACHMENT; OUTSIDE MIRROR
8-98070-643-0
01
1
1108-
49
STAY; MIRROR SIDE
8-98085-112-1
01
1
1108-
49
STAY; MIRROR SIDE
8-98091-477-0
01
1
1108-1502
49
STAY; MIRROR SIDE
8-98305-582-0
01
1
1503-
58
NUT; MIRROR STAY
M12
8-98061-883-0
01
1
1108-
61
NUT; STAY,OUTSIDE MIRROR
M8 FLANGE
0-91180-108-0
01
1
1108-
63
NUT; STAY
M14 TOUGH LOCK NUT W/FLANGE
8-98174-339-0
01
1
1108-
66
WASHER; PL
LOWER
0-91610-614-0
01
1
1108-
66
WASHER; PL
UPPER
8-98174-337-0
01
1
1108-1112
66
WASHER; PL
UPPER
8-98201-756-0
01
1
1201-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71707-224-0
04
1
1108-
71
BRACKET; OUTSIDE MIRROR
(C)
8-98040-022-1
01
1
1108-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98040-544-2
01
1
1108-1112
71
BRACKET; OUTSIDE MIRROR
(E)
8-98201-957-0
01
1
1201-
71
BRACKET; OUTSIDE MIRROR
(B)
8-98040-021-0
01
1
1108-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98040-543-1
01
1
1108-
72
SHEET
(C)
8-98040-535-0
01
1
1108-
72
SHEET
(D)
8-98040-537-1
01
1
1108-
72
SHEET
(A)
8-98040-351-0
01
1
1108-
72
SHEET
(B)
8-98040-353-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK
1-71737-649-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(C)
8-98040-545-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(D)
8-98040-546-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(A)
8-98040-541-1
01
1
1108-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER
8-98067-249-2
10
1
1108-
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
8-98076-109-0
04
1
1108-
118
JOINT ASM; BALL
1-71798-356-2
01
1
1108-
136
WASHER; LK,BRKT,MIRROR STAY
(A) ID=10
1-09985-180-0
01
1
1108-
136
WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
02
1
1108-
136
WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1108-
145
NUT; CAP,SUB STAY
M10 CAP NUT
1-09984-134-0
03
1
1108-
181
SEAL; BRKT
25X25
8-94272-533-0
01
1
1108-
181
SEAL; BRKT
OD=25 BLACK
1-76798-019-0
01
1
1108-
13
53
53
71
26
14
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98028-332-0
01
1
1108-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98104-068-0
01
1
1108-
14
MIRROR ASM; OUTSIDE
8-98045-690-0
01
1
1108-
14
MIRROR ASM; OUTSIDE
8-98108-511-0
01
1
1108-
25
SCREW; OUTSIDE MIRROR
M6X40
1-71707-223-0
04
1
1108-
26
COVER; OUTSIDE MIRROR
1-71707-222-0
01
1
1108-
26
COVER; OUTSIDE MIRROR
1-71707-221-0
01
1
1108-
53
PIVOT; SIDE MIRROR
ID=22.2
1-71736-489-2
04
1
1108-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71707-224-0
04
1
1108-
71
BRACKET; OUTSIDE MIRROR
(C)
8-98040-022-1
01
1
1108-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98040-544-2
01
1
1108-1112
71
BRACKET; OUTSIDE MIRROR
(E)
8-98201-957-0
01
1
1201-
71
BRACKET; OUTSIDE MIRROR
(B)
8-98040-021-0
01
1
1108-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98040-543-1
01
1
1108-

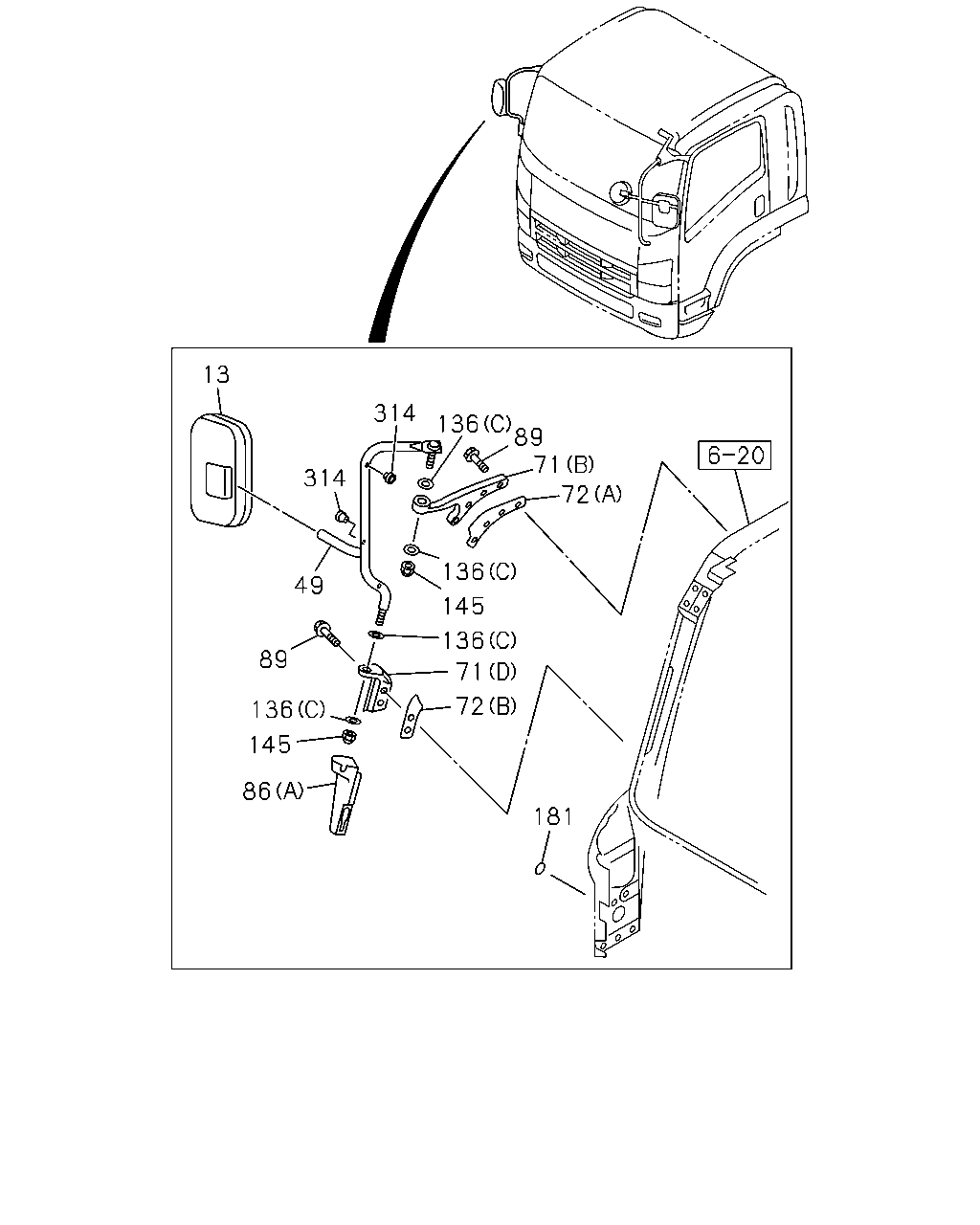

13
314
136
89
71
314
72
136
49
145
136
89
71
72
136
145
86
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98028-332-0
01
1
1108-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98104-068-0
01
1
1108-
49
STAY; MIRROR SIDE
8-98085-112-1
01
1
1108-
49
STAY; MIRROR SIDE
8-98091-477-0
01
1
1108-1502
49
STAY; MIRROR SIDE
8-98305-582-0
01
1
1503-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71707-224-0
04
1
1108-
71
BRACKET; OUTSIDE MIRROR
(C)
8-98040-022-1
01
1
1108-
71
BRACKET; OUTSIDE MIRROR
(E)
8-98040-544-2
01
1
1108-1112
71
BRACKET; OUTSIDE MIRROR
(E)
8-98201-957-0
01
1
1201-
71
BRACKET; OUTSIDE MIRROR
(B)
8-98040-021-0
01
1
1108-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98040-543-1
01
1
1108-
72
SHEET
(C)
8-98040-535-0
01
1
1108-
72
SHEET
(D)
8-98040-537-1
01
1
1108-
72
SHEET
(A)
8-98040-351-0
01
1
1108-
72
SHEET
(B)
8-98040-353-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK
1-71737-649-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(C)
8-98040-545-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(D)
8-98040-546-1
01
1
1108-
86
COVER; STAY,OUTSIDE MIRROR
(A)
8-98040-541-1
01
1
1108-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER
8-98067-249-2
10
1
1108-
136
WASHER; LK,BRKT,MIRROR STAY
(A) ID=10
1-09985-180-0
01
1
1108-
136
WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
02
1
1108-
136
WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1108-
145
NUT; CAP,SUB STAY
M10 CAP NUT
1-09984-134-0
03
1
1108-
181
SEAL; BRKT
25X25
8-94272-533-0
01
1
1108-
181
SEAL; BRKT
OD=25 BLACK
1-76798-019-0
01
1
1108-
314
BUFFER; STOPPER
8-94314-317-0
02
1
1108-
