Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

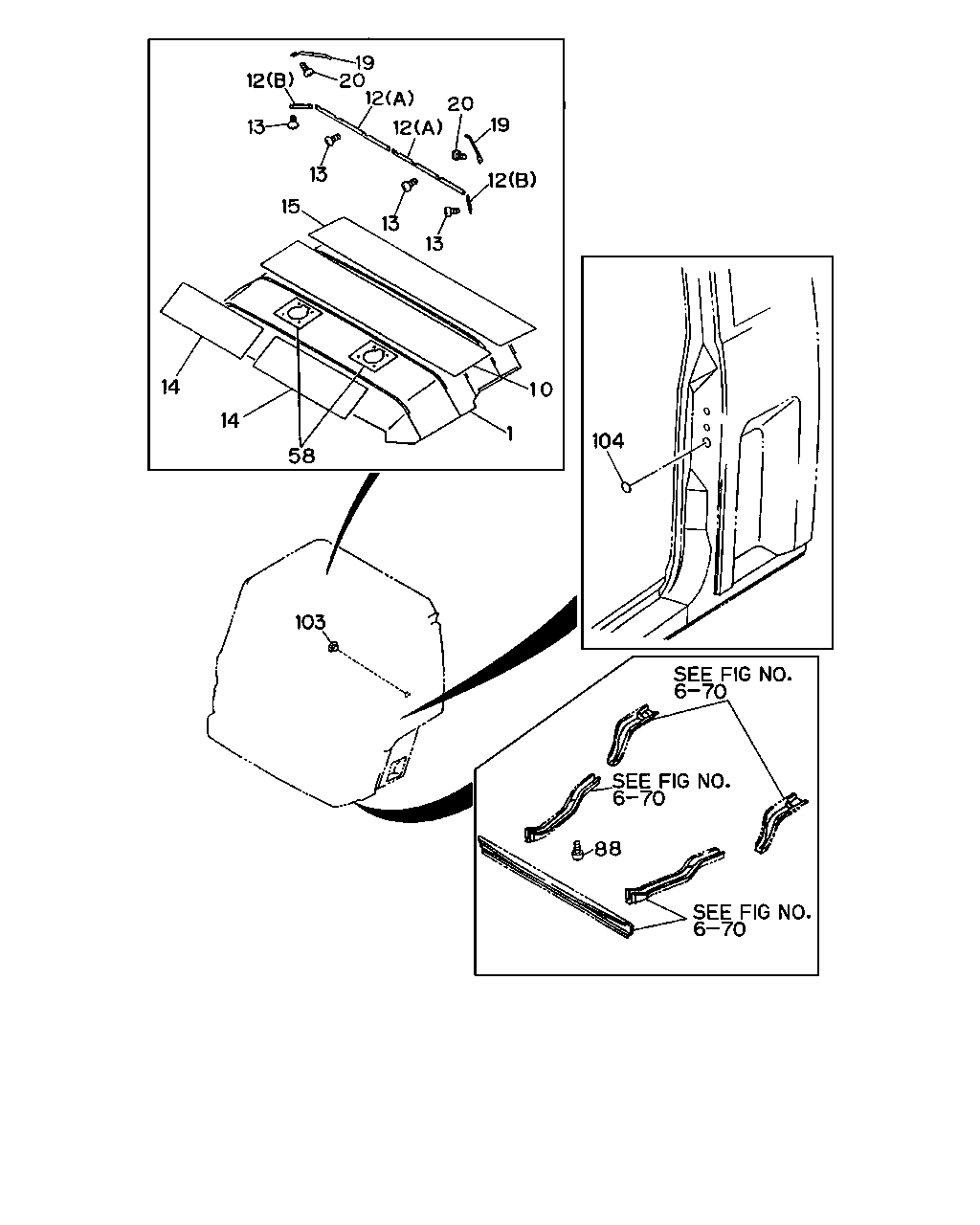

6-66 — HEAD LINING AND TRIM
(#565) — 20 parça
12
19
20
12
12
20
19
12
13
13
13
13
15
14
14
58
1
10
104
88
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
1-73317-266-3
01
1
8712-9306
1
LINING; HD
1-73317-299-0
01
1
9307-
10
INSULATOR; NOISE,ROOF CENTER
1-73317-115-3
02
1
8712-
12
RETAINER; HD LINING BACK CORNER
(A)
1-73317-123-0
02
1
8712-
12
RETAINER; HD LINING BACK CORNER
(B)
1-73317-124-4
02
1
8712-
13
SCREW; RET
M4X16 TAPPING
1-09981-474-0
04
1
8712-
14
INSULATOR; NOISE,ROOF FRT
1-73317-114-3
02
1
8712-
15
INSULATOR; NOISE,ROOF,RR
1-73317-116-3
02
1
8712-
19
FINISHER; BACK CORNER,HEADLINING
1-73317-130-0
01
1
8712-9001
19
FINISHER; BACK CORNER,HEADLINING
1-73317-129-0
01
1
8712-9001
19
FINISHER; BACK CORNER,HEADLINING
1-73317-237-0
01
1
9002-9306
19
FINISHER; BACK CORNER,HEADLINING
1-73317-236-0
01
1
9002-9306
19
FINISHER; BACK CORNER,HEADLINING
1-73317-275-1
01
1
9307-
19
FINISHER; BACK CORNER,HEADLINING
1-73317-274-1
01
1
9307-
20
SCREW; FINISHER,BACK CORNER,HEADLINING
M4X16 TAPPING
1-09981-476-0
06
1
8712-
58
CUSHION ASM; ROOF VENT
1-73317-119-1
02
1
8712-
88
PLUG; UNDER FRAME
OD=15 L=14.5
1-76378-157-0
01
1
8712-
103
SEAL; RR PILLAR
1-76798-005-0
02
1
8712-8907
104
SEAL; RR PILLAR LWR
OD=20 T=0.05 BLACK
5-76777-036-0
02
1
8712-8907
104
SEAL; RR PILLAR LWR
OD=20 T=0.4 BLACK
1-76798-020-0
02
1
8908-
