Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

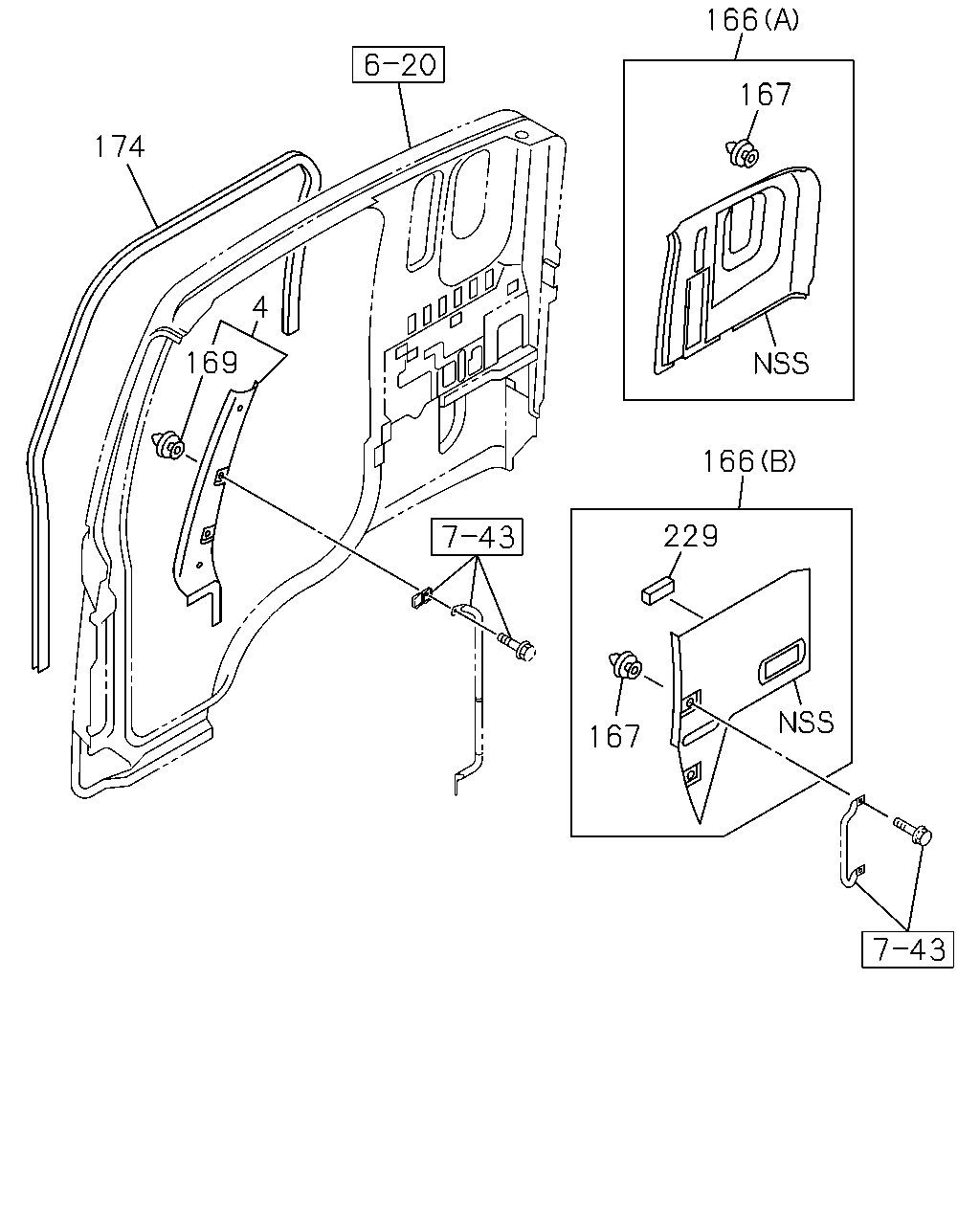

6-43 — SIDE TRIM
(#56498) — 13 parça
166
167
174
4
169
166
229
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; TRIM,FRT SIDE
DARK GRAY IDN
8-97405-255-2
01
1
1108-
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-415-1
01
1
1108-
166
TRIM; RR PILLAR
(B) GRAY
8-97407-460-1
01
1
1108-1210
166
TRIM; RR PILLAR
(B) GRAY
8-97425-039-0
01
1
1211-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-651-0
01
1
1108-
166
TRIM; RR PILLAR
(B) GRAY
8-97407-459-1
01
1
1108-1210
166
TRIM; RR PILLAR
(B) GRAY
8-97425-038-0
01
1
1211-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-652-0
01
1
1108-
167
CLIP; TRIM,RR PILLAR
IDN
8-98059-610-0
16
1
1108-
169
CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK
8-94279-974-1
04
1
1108-
174
FINISHER; BODY SIDE
IDN
8-98155-184-0
01
1
1108-
174
FINISHER; BODY SIDE
IDN
8-98155-183-0
01
1
1108-
229
SEAL
8-98080-972-0
04
1
1108-1210
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
