Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

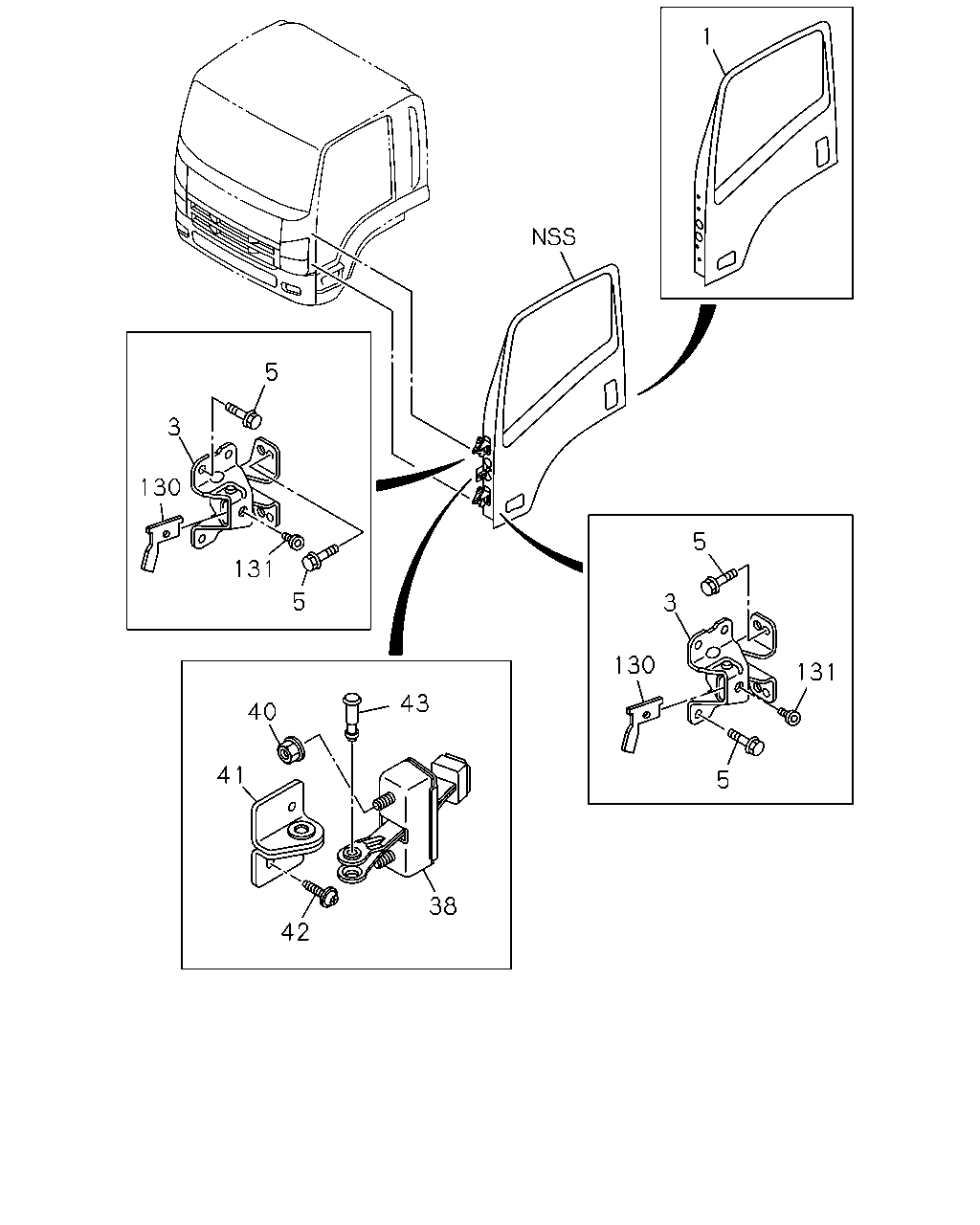

6-30 — FRONT DOOR AND HINGE
(#56494) — 16 parça
1
5
3
130
5
131
5
3
130
131
43
40
41
5
38
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-98171-232-0
01
1
1108-1411
1
DOOR ASM; FRT,WO/TRIM
8-98260-600-0
01
1
1412-
1
DOOR ASM; FRT,WO/TRIM
8-98171-224-0
01
1
1108-1411
1
DOOR ASM; FRT,WO/TRIM
8-98260-599-0
01
1
1412-
3
HINGE; DOOR FRT
IDN
8-98191-302-0
04
1
1108-
5
BOLT; HINGE
M8X20 FLANGE
8-98049-756-0
20
1
1108-
38
CHECKER ASM; DOOR
8-98029-417-5
02
1
1108-1203
38
CHECKER ASM; DOOR
IDN
8-98208-189-1
02
1
1204-1508
38
CHECKER ASM; DOOR
IDN
8-98296-601-0
02
1
1509-
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1108-1508
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1509-
41
BRACKET; CHECKER
IDN
8-98029-290-3
02
1
1108-
42
BOLT; BRKT
M6X20 W/PL WASHER IDN
8-98032-159-2
04
1
1108-
43
PIN
IDN
8-98037-152-2
02
1
1108-
130
STOPPER; HINGE
IDN
8-98038-299-1
04
1
1108-
131
BOLT; DOOR STOPPER
M10X11 IDN
8-98039-593-1
04
1
1108-
