Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
5 - Frame, Cab Mounting
▶

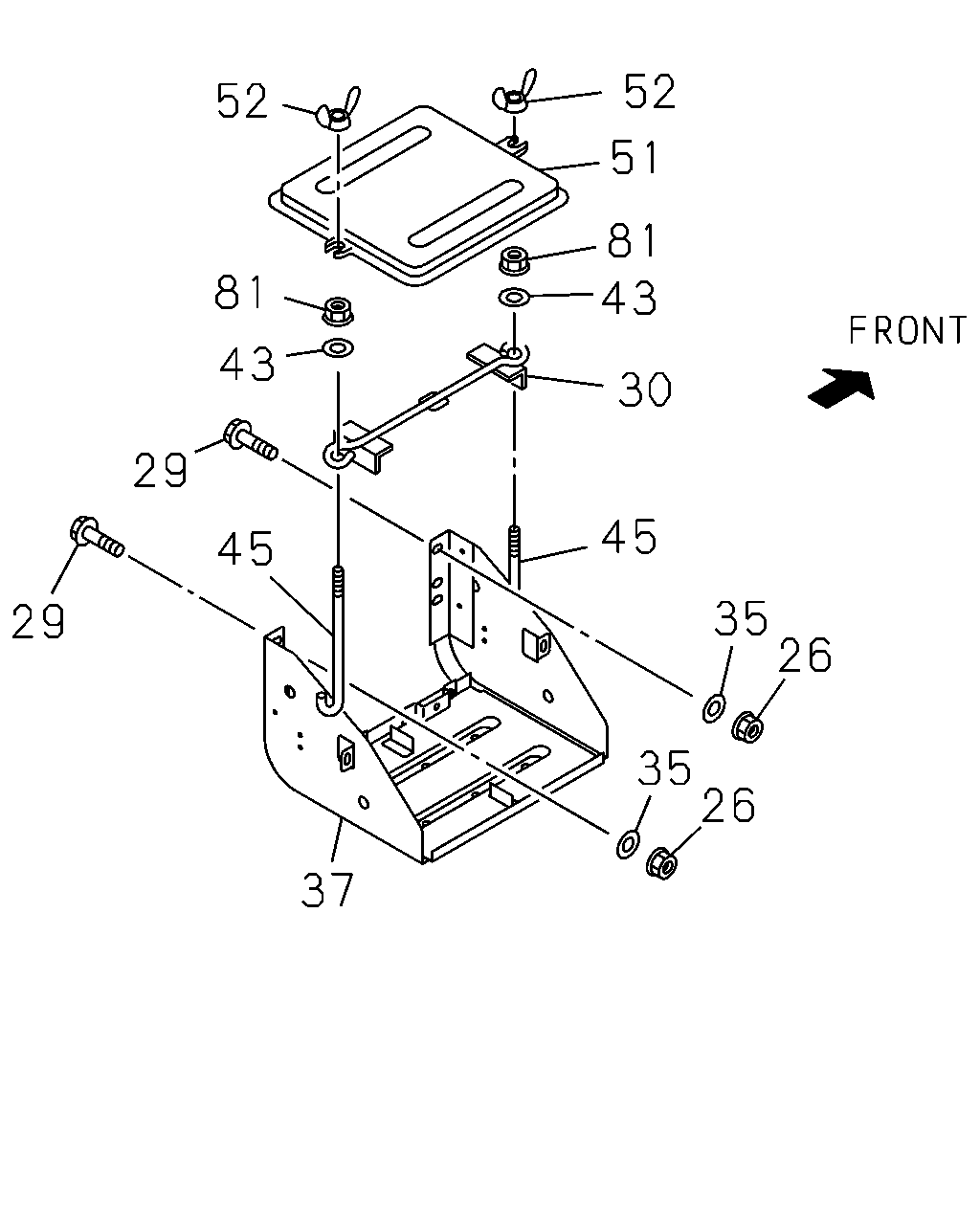

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#56487) — 12 parça
52
52
51
81
43
81
43
30
29
45
45
35
26
29
35
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1108-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE IDN
0-28651-035-0
04
1
1108-
30
PLATE; BATTERY
INDONESIA KD DELETION<35D> IDN
5-53615-004-1
01
1
1210-1210
30
PLATE; BATTERY
IDN
5-53615-004-1
01
1
1108-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1108-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> IDN
8-97384-068-2
01
1
1108-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> IDN
8-97384-067-2
01
1
1108-
43
WASHER; PL,CLAMP
ID=8.4 OD=22 IDN
0-91614-708-0
02
1
1108-
45
ROD; TENSION,BATTERY
IDN
9-53616-615-0
02
1
1108-
51
COVER; BATTERY
IDN
8-97120-747-0
01
1
1108-
52
NUT; WING,COVER FIX
M8 WING NUT IDN
0-91118-408-0
02
1
1108-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
