5-01 — FRAME AND OTHER PARTS (#56484) — 54 parça

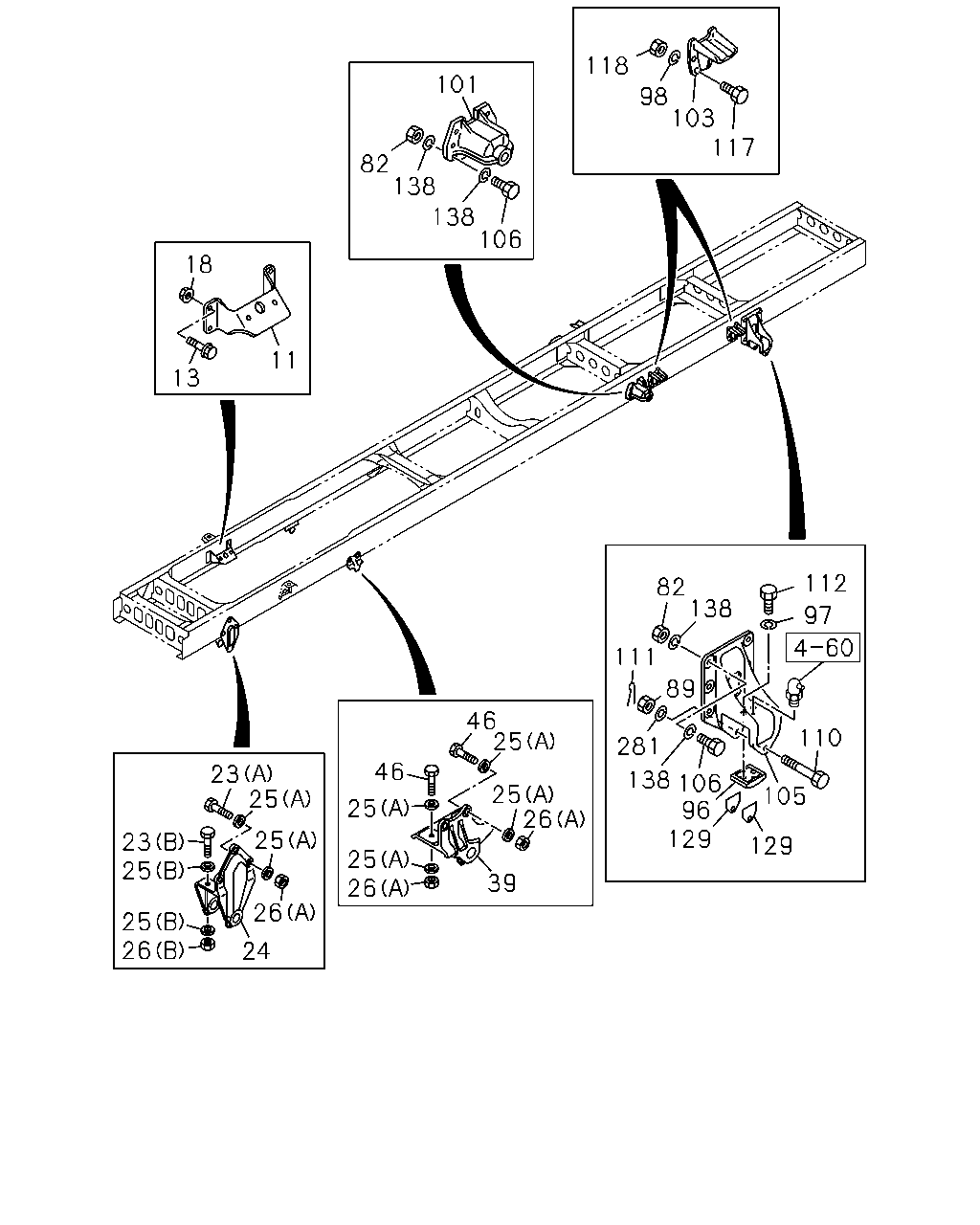

çizim 146254
118 101 98 103 117 82 138 138 106 18 11 13 112 82 138 97 111 89 138 106 105 96 129 46 25 110 281 46 23 25 25 25 26 25 23 25 129 25 26 39 26 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1108- ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1108- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1108- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1108- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1108- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1108- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1108- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1108- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1108- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1108- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1108- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1108- ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1108- ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1108- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1108- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 1108- ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 1108- ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 1108- ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1108- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1108- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1108- ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1108- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1108- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 1108- ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 1108- ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1108- ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 1108- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1108- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1108- ● ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 1108- ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 1108- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1108- ● ● ●
281 WASHER; LEAF SPR STOPPER 0-91610-614-0 04 1 1108- ● ● ●

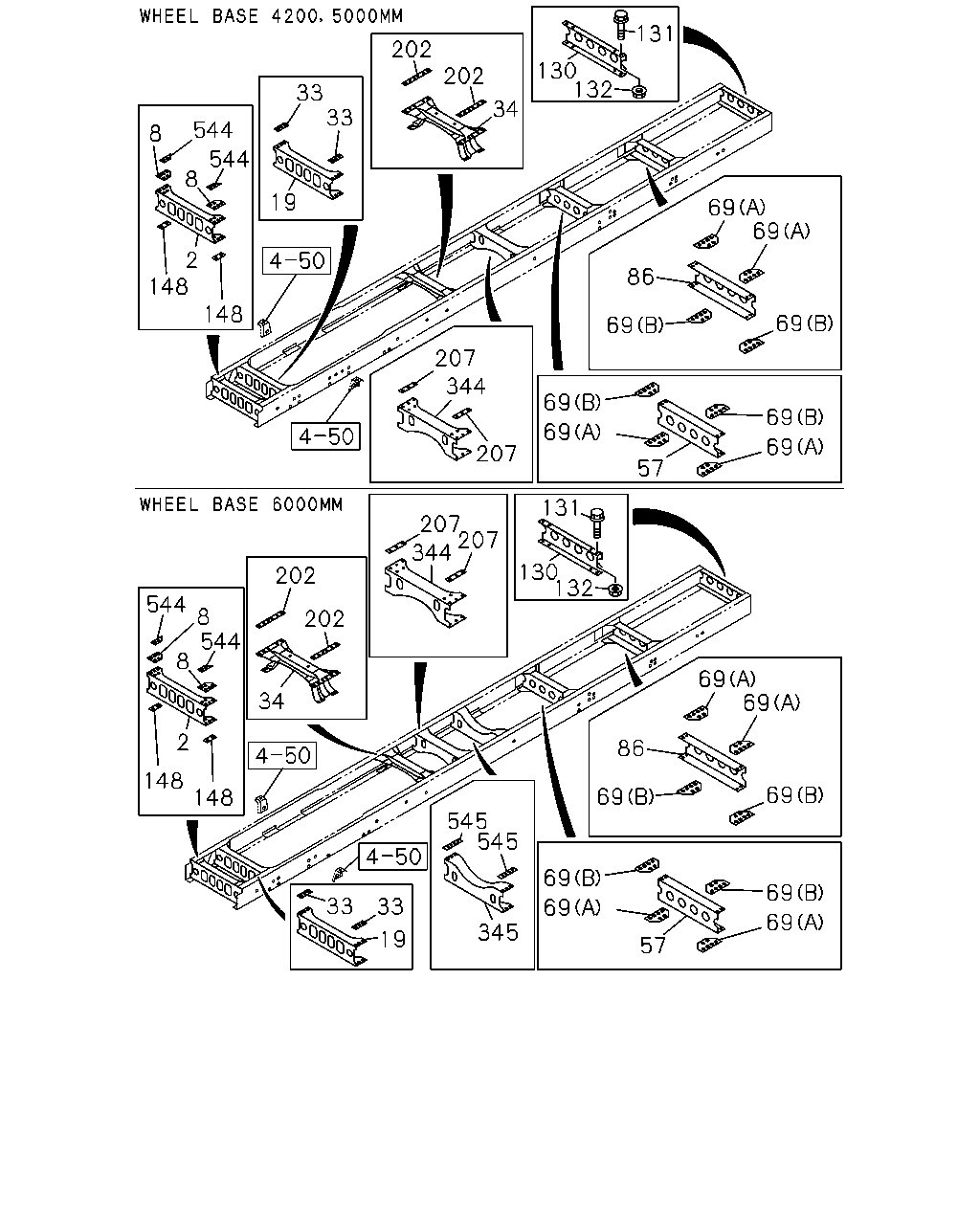

çizim 146279
131 202 130 132 202 33 33 34 544 8 544 8 19 69 69 2 148 86 148 69 69 207 344 69 69 69 69 207 57 131 207 207 344 130 132 202 544 8 544 202 8 69 69 34 2 86 148 69 69 148 545 545 69 69 33 33 69 69 345 19 57
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
IDN 		8-97610-852-7 01 1 1108- ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1108- ● ● ●
19 MEMBER; CROSS,2ND
IDN 		8-97610-853-5 01 1 1108- ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1108- ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1108- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
IDN 		8-97619-888-3 01 1 1108- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97619-889-0 04 1 1108- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97619-890-0 04 1 1108- ● ● ●
86 MEMBER; CROSS,RR SUSP RR
IDN 		8-97619-888-3 01 1 1108- ● ● ●
130 MEMBER; CROSS,END
IDN 		8-97610-869-1 01 1 1108- ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1108- ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1108- ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1108- ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1108- ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1108- ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1108- ●
344 MEMBER; CROSS,4TH
IDN 		8-97611-238-1 01 1 1108- ● ● ●
345 MEMBER; CROSS,5TH
IDN 		8-97611-238-1 01 1 1108- ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 1108- ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1108- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1108- ●
