Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶

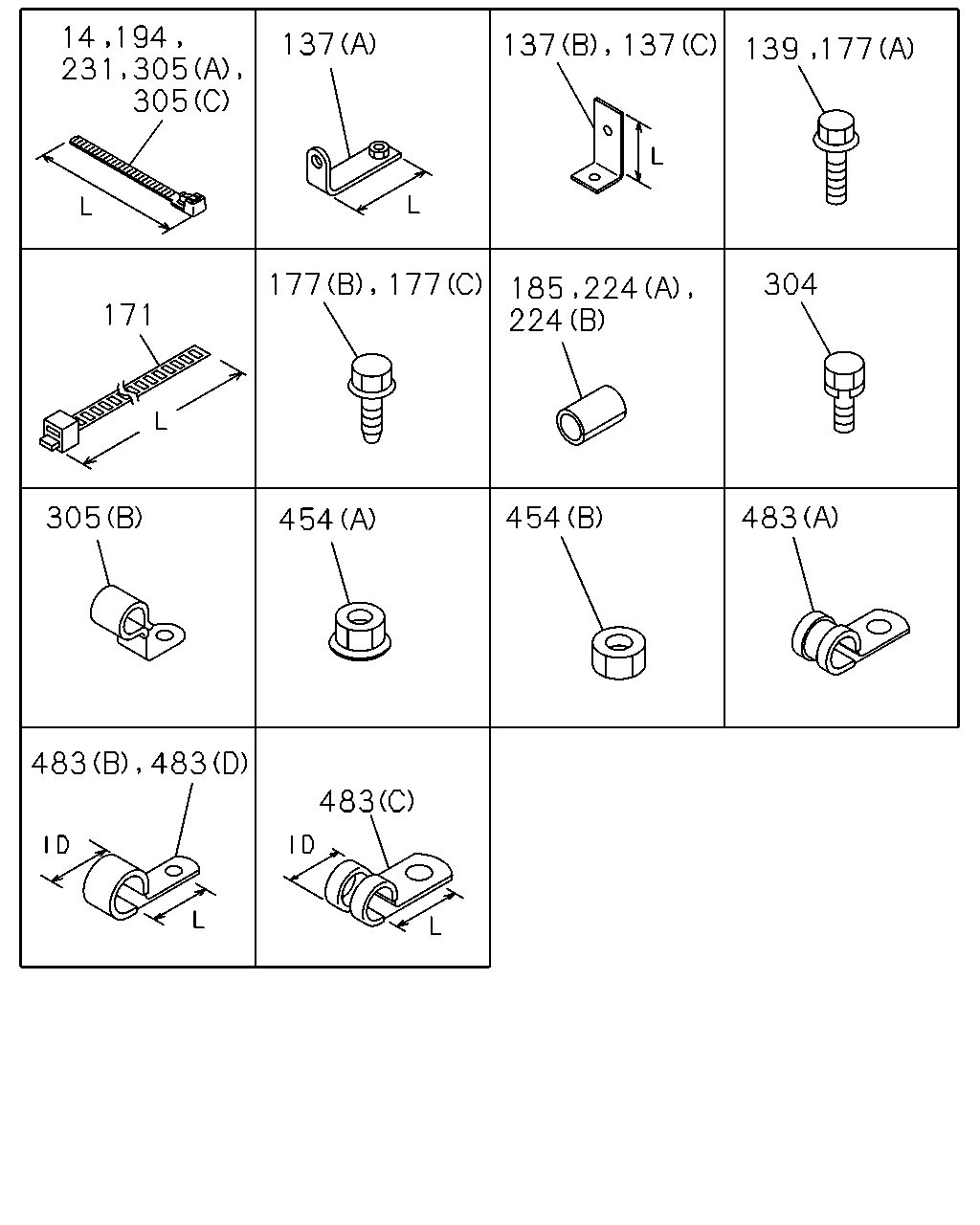

8-15 — FIXING PARTS; WIRING HARNESS
(#5648) — 25 parça
305
137
137
137
139
177
304
177
177
224
171
483
305
454
454
483
14
194
231
305
224
185
483
483
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CLIP; BAND,HARNESS
L=250
5-09707-030-1
05
1
9705-
137
BRACKET; HARNESS CLAMP
(A) L=71
1-15419-131-1
01
1
9705-
137
BRACKET; HARNESS CLAMP
(B) L=55
1-47475-304-0
01
1
9705-
137
BRACKET; HARNESS CLAMP
(C) L=115 B=25
1-47476-758-0
01
1
9705-
139
BOLT; BRKT
M10X16 FLANGE
0-28181-016-0
01
1
9705-
171
CLIP; STARTER HARNESS
L=300
1-09707-001-1
02
1
9705-
177
BOLT; ENG STOP CLIP
(A) M10X16 FLANGE
0-28181-016-0
01
1
9705-
177
BOLT; ENG STOP CLIP
(B) M6X16 FLANGE
0-28680-616-0
01
1
9705-
177
BOLT; ENG STOP CLIP
(C) M8X20 FLANGE
0-28680-820-0
02
1
9705-
185
SLEEVE; RUBBER
ID=29 OD=39 L=40
1-09337-013-0
05
1
9705-
194
CLIP; BAND
L=250
5-09707-030-1
05
1
9705-
224
SLEEVE; RUBBER,HARNESS
(A) ID=29 OD=39 L=40
1-09337-013-0
02
1
9705-
224
SLEEVE; RUBBER,HARNESS
(B) ID=23 OD=27 L=40
1-09337-015-0
03
1
9705-
231
CLIP; BAND,OIL PRESS
L=250
5-09707-030-1
01
1
9705-
304
BOLT; ENG HARNESS CLIP
M10X16 W/LK WASHER
1-09033-012-0
05
1
9705-
305
CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5
1-09700-562-1
05
1
9705-
305
CLIP; ENG HARNESS
(A) L=250
5-09707-030-1
02
1
9705-
305
CLIP; ENG HARNESS
(C) L=140
5-09707-031-1
03
1
9705-
454
NUT
(A) M8 FLANGE
0-91150-108-0
02
1
9705-9803
454
NUT
(B) M8
9-09110-408-0
02
1
9705-
454
NUT
(A) M8 FLANGE
0-91150-108-0
01
1
9804-9804
483
CLIP; ENG HARNESS
(A) ID=25 L=30
1-09700-705-0
01
1
9705-
483
CLIP; ENG HARNESS
(C) ID=28 L=32
1-09701-107-1
02
1
9705-
483
CLIP; ENG HARNESS
(B) ID=13 L=28
9-09525-252-0
01
1
9705-
483
CLIP; ENG HARNESS
(D) ID=16 L=40
9-09525-576-0
02
1
9705-
