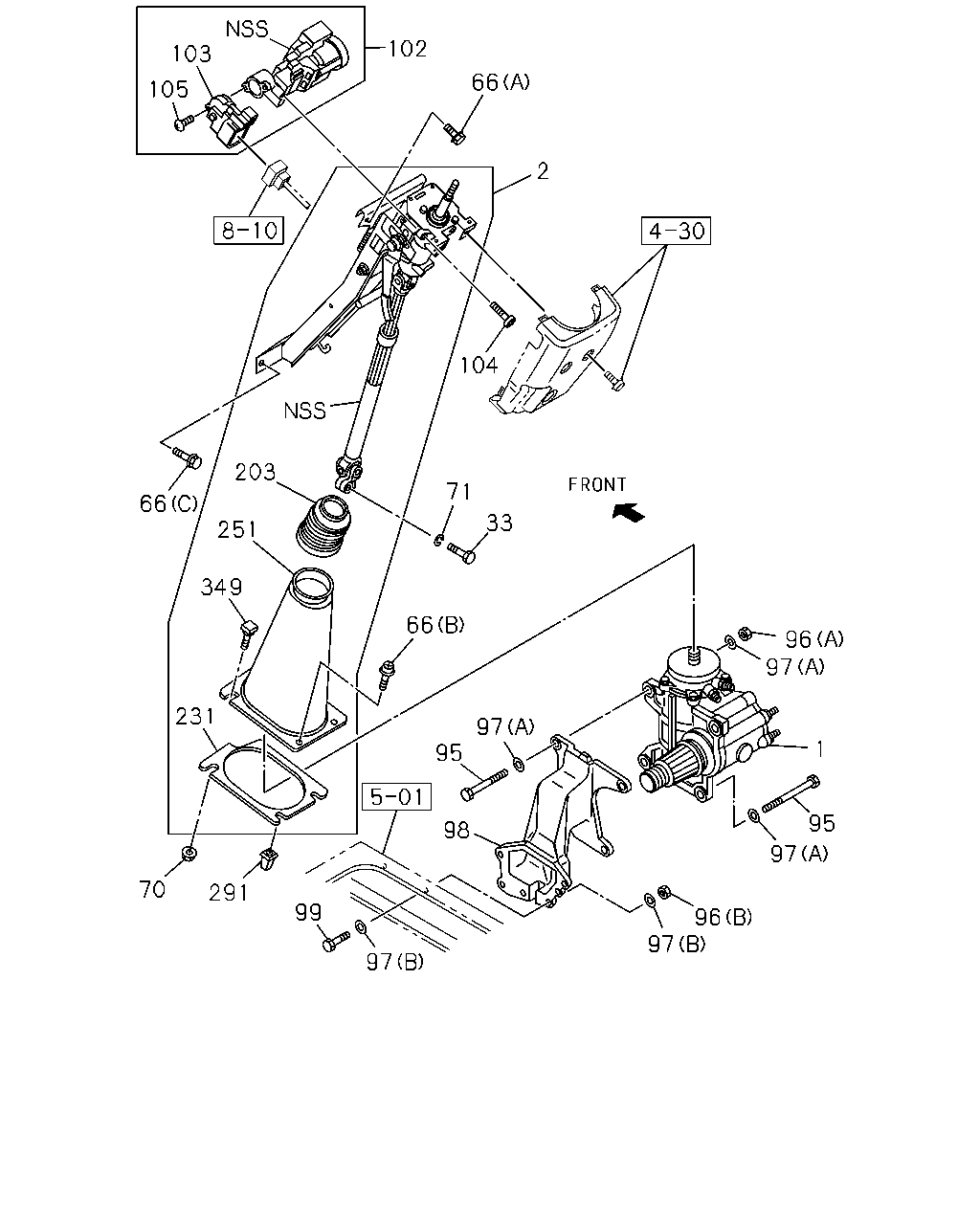

4-31 — STEERING COLUMN AND SHAFT (#56473) — 25 parça

102 103 66 105 2 104 203 71 66 33 251 349 66 96 97 231 97 1 95 95 98 97 70 291 99 96 97 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. IDN	1-44000-953-1	01	1	1108-
2	SHAFT ASM; STRG BLACK IDN	8-97415-618-2	01	1	1108-
33	BOLT; STRG SHAFT TO UNIT M10X35	1-09009-126-1	01	1	1108-
66	BOLT; STRG COLUMN (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1108-
66	BOLT; STRG COLUMN (B) M5X18 TAPPING	0-72180-518-0	02	1	1108-
66	BOLT; STRG COLUMN (C) M8X25 W/LK&PL WASHER	8-98018-439-0	02	1	1108-
70	NUT; STRG COLUMN M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1108-
71	WASHER; LK,SHAFT TO UNIT ID=10.2 IDN	0-91510-810-0	01	1	1108-
95	BOLT; STRG UNIT M16X66	1-09000-305-0	04	1	1108-
96	NUT; STRG UNIT (A) M16	0-91110-516-0	02	1	1108-
96	NUT; STRG UNIT (B) M14	1-09440-097-0	06	1	1108-
97	WASHER; PL,STRG UNIT (A) ID=16.2	1-09503-316-0	06	1	1108-
97	WASHER; PL,STRG UNIT (B) ID=15	8-98010-627-1	12	1	1108-
98	BRACKET; STRG GEAR BOX INDONESIA KD DELETION<35D>	1-44226-136-1	01	1	1210-1210
98	BRACKET; STRG GEAR BOX	1-44226-136-1	01	1	1108-
99	BOLT; BRKT TO FRAME M14X50	1-09000-787-1	06	1	1108-
102	LOCK ASM; STRG	8-98006-150-0	01	1	1108-
103	SWITCH; IGNITION	8-98045-349-0	01	1	1108-
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT	8-97321-385-0	02	1	1108-
105	SCREW; IGN SW	8-98045-346-0	02	1	1108-
203	BOOT; STRG COLUMN LWR IDN	8-98137-333-0	01	1	1108-
231	SEAL; RUBBER,STRG COLUMN IDN	8-98137-330-0	01	1	1108-
251	COVER; LWR BLACK IDN	8-97417-050-0	01	1	1108-
291	GROMMET; STRG SHAFT COVER D=7.8X7.8 L=18 NATURAL IDN	8-94279-043-0	02	1	1108-
349	BOLT; COVER IDN	8-98137-334-0	02	1	1108-
