◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10772 - LV280(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#5647) — 25 parça

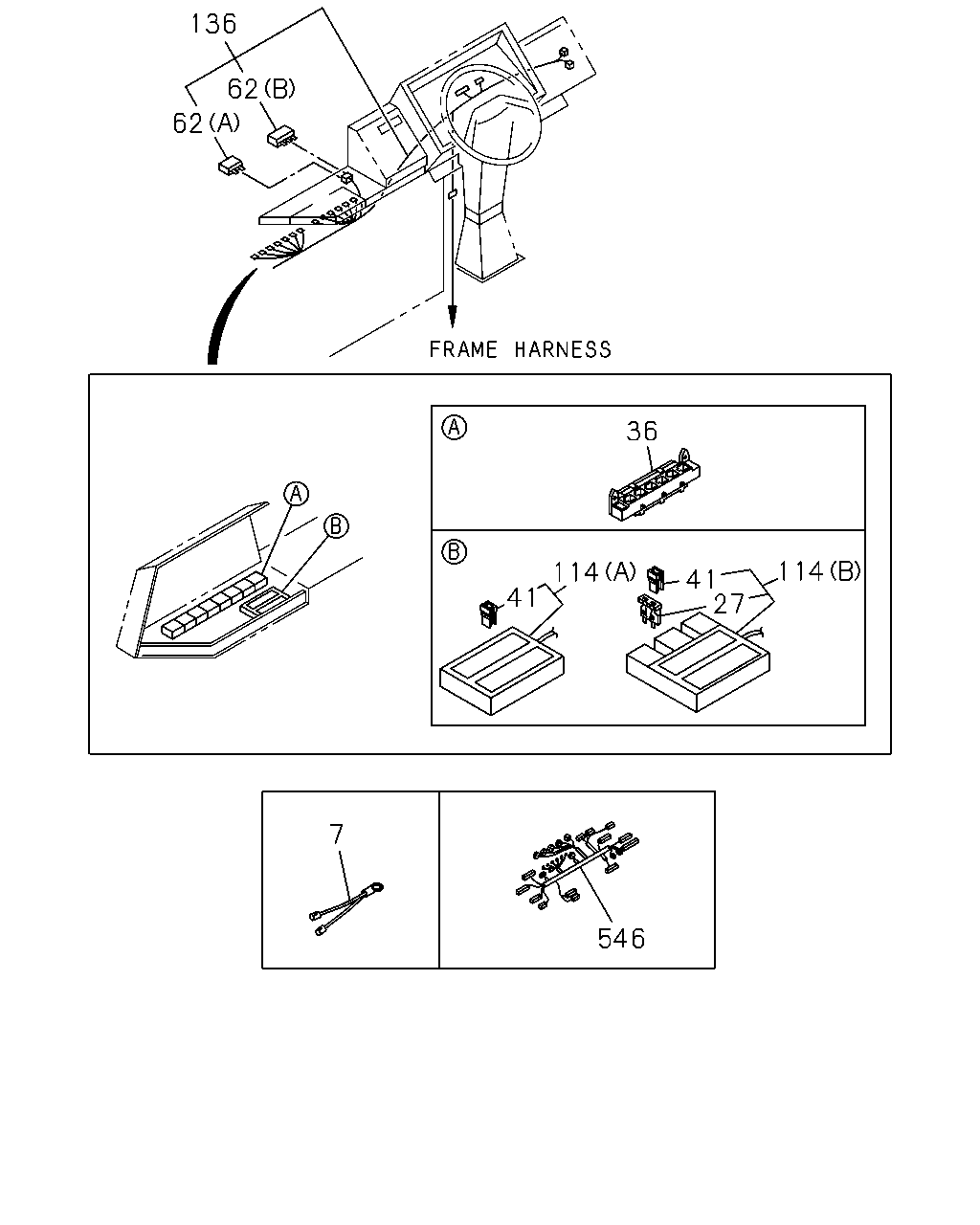

çizim 43744
136 62 62 36 114 114 41 27 41 7 546
BalonParca AdiParca NoAdetTipApplied Date
7 LINK ASM; FUSIBLE
L=150 BLACK 		1-82659-108-0 01 1 9705-
27 FUSE UNIT
10A RED 		5-82516-002-0 19 1 9705-
27 FUSE UNIT
15A BLUE 		5-82516-003-0 07 1 9705-
27 FUSE UNIT
20A YELLOW 		5-82516-004-0 04 1 9705-
27 FUSE UNIT
30A GREEN 		8-94159-008-0 02 1 9705-
36 BOX; RELAY 8-97087-639-1 02 1 9705-
41 PULLER; FUSE
L=31.0 B=10.0 		8-94369-144-0 03 1 9705-
62 DIODE; HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 02 1 9705-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 9705-
114 BOX ASM; FUSE
(A) 		1-82510-343-1 02 1 9705-
114 BOX ASM; FUSE
(B) 		1-82510-382-1 01 1 9705-
136 HARNESS; DASH 1-82626-744-1 01 1 9705-
546 HARNESS; EVT
DENSHI TIMER<WW8> 		1-82638-844-0 01 1 9705-
570 HARNESS; SPEED SENSOR
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> 		1-82670-566-0 01 1 9905-

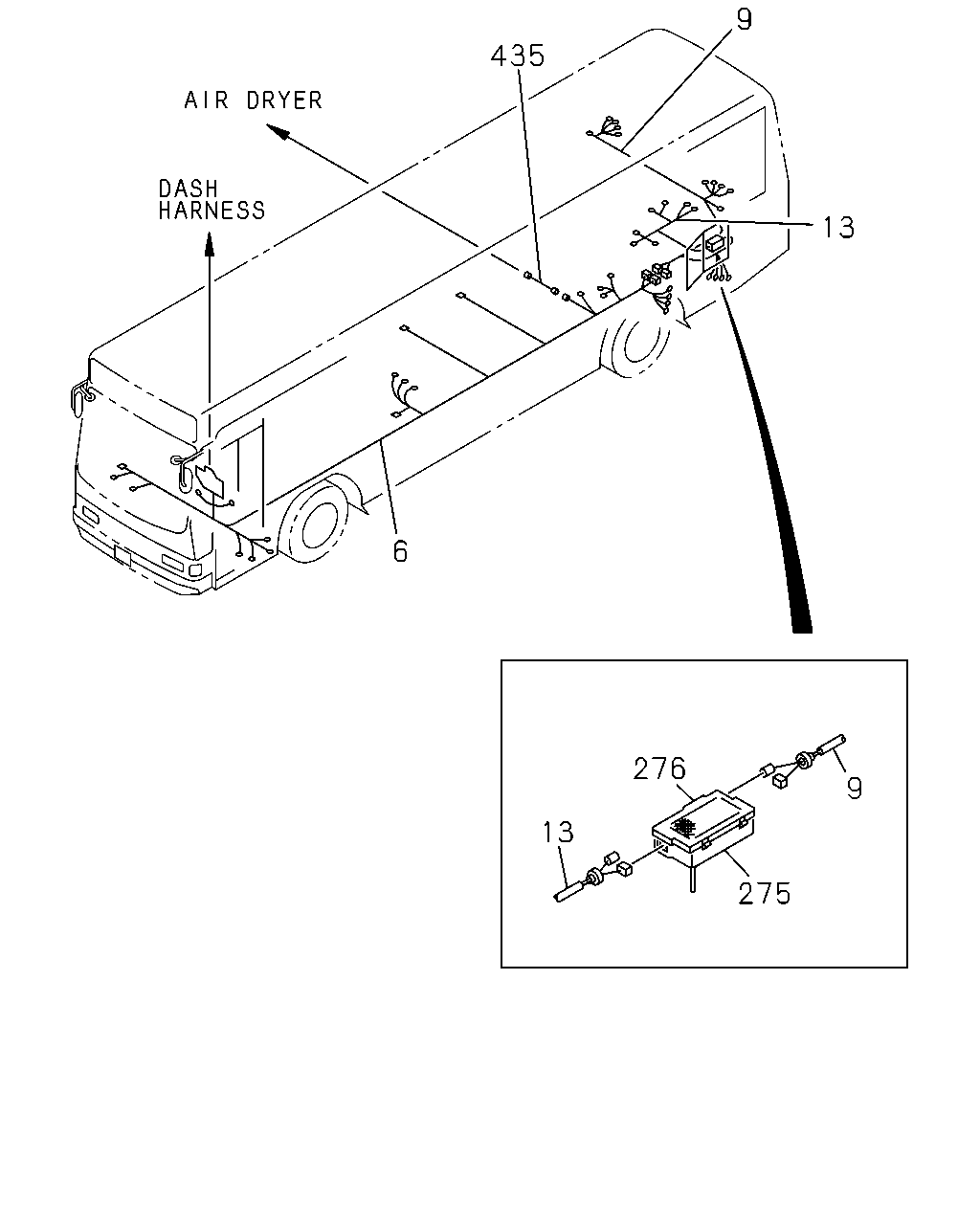

çizim 44652
9 435 13 6 276 9 13 275
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 1-82670-040-1 01 1 9705-
9 HARNESS; FRAME,RR
EXC. DENSHI TIMER<WW8> AGC FUSE 150A 		1-82639-102-2 01 1 9705-
9 HARNESS; FRAME,RR
EXC. DENSHI TIMER<WW8> AGC FUSE 170A 		1-82672-513-0 01 1 9905-9907
9 HARNESS; FRAME,RR
EXC. NIKKO<Y70> EXC. DENSHI TIMER<WW8> AGC FUSE 170A 		1-82672-513-0 01 1 9908-
13 HARNESS; ENG
EXC. DENSHI TIMER<WW8> AGC FUSE 150A 		1-82640-683-4 01 1 9705-
13 HARNESS; ENG
EXC. DENSHI TIMER<WW8> AGC FUSE 170A 		1-82641-079-0 01 1 9905-9907
13 HARNESS; ENG
EXC. NIKKO<Y70> EXC. DENSHI TIMER<WW8> 		1-82641-079-0 01 1 9908-
275 BOX ASM; FRAME HARNESS 1-82699-223-0 01 1 9705-
276 COVER; BOX,FRAME HARNESS 1-82699-215-0 01 1 9705-
435 HARNESS; AIR DRYER 1-82639-510-0 01 1 9705-
570 HARNESS; SPEED SENSOR
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> 		1-82670-566-0 01 1 9905-
