◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11392 - FVR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#56467) — 164 parça

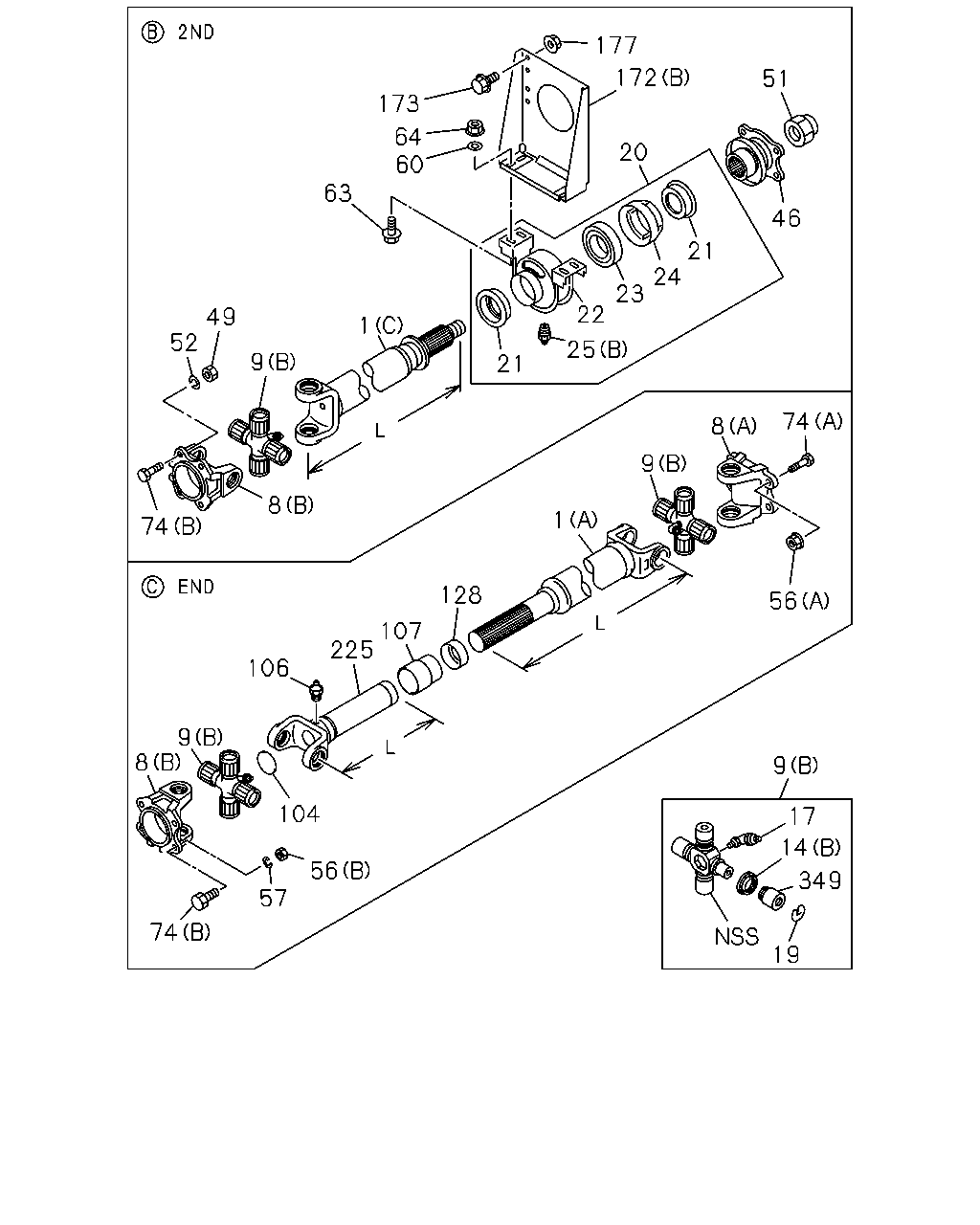

çizim 146145
177 172 51 173 64 60 20 63 46 21 24 23 22 49 52 1 25 9 21 74 8 9 8 74 1 128 56 107 225 106 9 8 9 104 17 14 56 349 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1176 		1-37124-342-1 01 1 1108- ●
1 SHAFT; PROP
(B) L=849 		8-98095-876-0 01 1 1108-1111 ●
1 SHAFT; PROP
(B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1504 		8-98095-877-0 01 1 1108-1111 ●
1 SHAFT; PROP
(B) L=1504 		8-98090-933-0 01 1 1112- ●
1 SHAFT; PROP
(A) L=1281 		1-37124-249-1 01 1 1108- ● ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1108- ●
1 SHAFT; PROP
(B) L=1219 		8-98106-153-0 01 1 1108-1111 ●
1 SHAFT; PROP
(B) L=1219 		8-98090-948-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-1 01 1 1108-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1108- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1108- ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		8-98178-052-0 01 1 1108-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1108-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-0 AR 1 1108-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-1 01 1 1108- ●
14 COVER; DUST,SPIDER
(A) IDN 		1-37319-012-0 04 1 1108-1111 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 08 1 1108- ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 04 1 1108-1111 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 04 1 1112- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1108- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1108- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1108- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1108- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1108- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1108- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1108-1111 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		8-98020-881-0 01 1 1108-1111 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1108- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1108- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1108- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1108- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1108- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1108- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1108-1111 ● ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		8-98020-882-0 01 1 1108-1111 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1108- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
(B) 		8-98020-889-0 01 1 1108- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1108-1111 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		8-98020-815-0 01 1 1108-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1108- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1108- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1108- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1108-1202 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1108- ● ● ●
56 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1108- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1108-1202 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1108- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1108- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1108- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1108- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1108- ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1108- ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1108- ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1108- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1108- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1108- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 1108- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1108- ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98084-679-0 01 1 1108- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1108- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1108- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-127-0 01 1 1108- ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108- ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1108- ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 1108- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 08 1 1108- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1108- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1108- ●

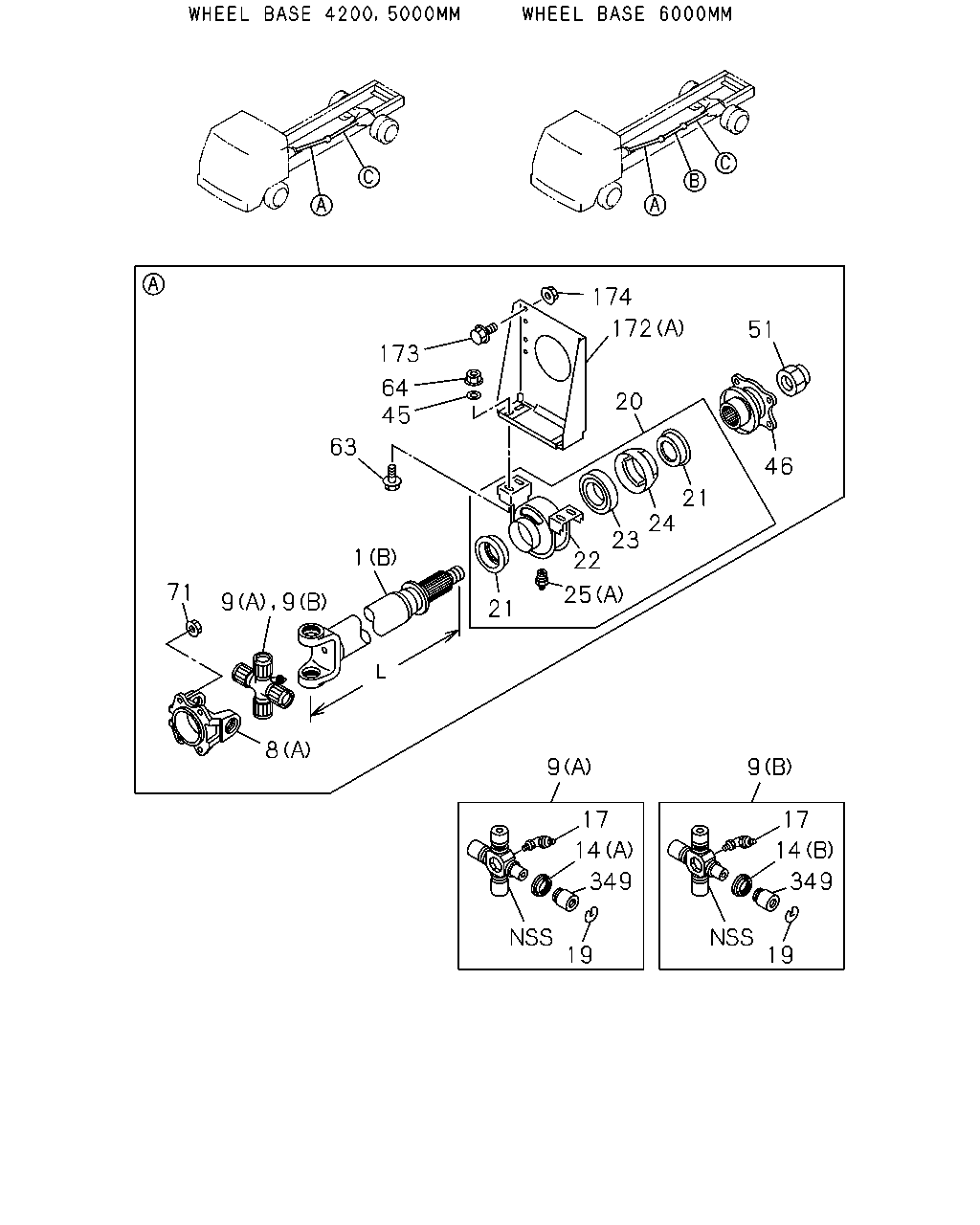

çizim 146255
174 172 51 173 64 45 20 63 46 21 24 23 1 22 71 25 9 9 21 8 9 9 17 17 14 14 349 349 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1176 		1-37124-342-1 01 1 1108- ●
1 SHAFT; PROP
(B) L=849 		8-98095-876-0 01 1 1108-1111 ●
1 SHAFT; PROP
(B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1504 		8-98095-877-0 01 1 1108-1111 ●
1 SHAFT; PROP
(B) L=1504 		8-98090-933-0 01 1 1112- ●
1 SHAFT; PROP
(A) L=1281 		1-37124-249-1 01 1 1108- ● ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1108- ●
1 SHAFT; PROP
(B) L=1219 		8-98106-153-0 01 1 1108-1111 ●
1 SHAFT; PROP
(B) L=1219 		8-98090-948-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-1 01 1 1108-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1108- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1108- ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		8-98178-052-0 01 1 1108-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1108-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-0 AR 1 1108-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98048-925-1 01 1 1108- ●
14 COVER; DUST,SPIDER
(A) IDN 		1-37319-012-0 04 1 1108-1111 ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 08 1 1108- ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 04 1 1108-1111 ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 04 1 1112- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1108- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1108- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1108- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1108- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1108- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1108- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1108- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1108-1111 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		8-98020-881-0 01 1 1108-1111 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1108- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1108- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1108- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1108- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1108- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1108- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1108-1111 ● ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		8-98020-882-0 01 1 1108-1111 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1108- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
(B) 		8-98020-889-0 01 1 1108- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1108- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1108-1111 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		8-98020-815-0 01 1 1108-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1108- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1108- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1108- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1108- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1108- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1108- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1108- ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98084-679-0 01 1 1108- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1108- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1108- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-127-0 01 1 1108- ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1108- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 08 1 1108- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1108- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
