Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#56466) — 30 parça
◀
[378A] NO.3 (13 parça)

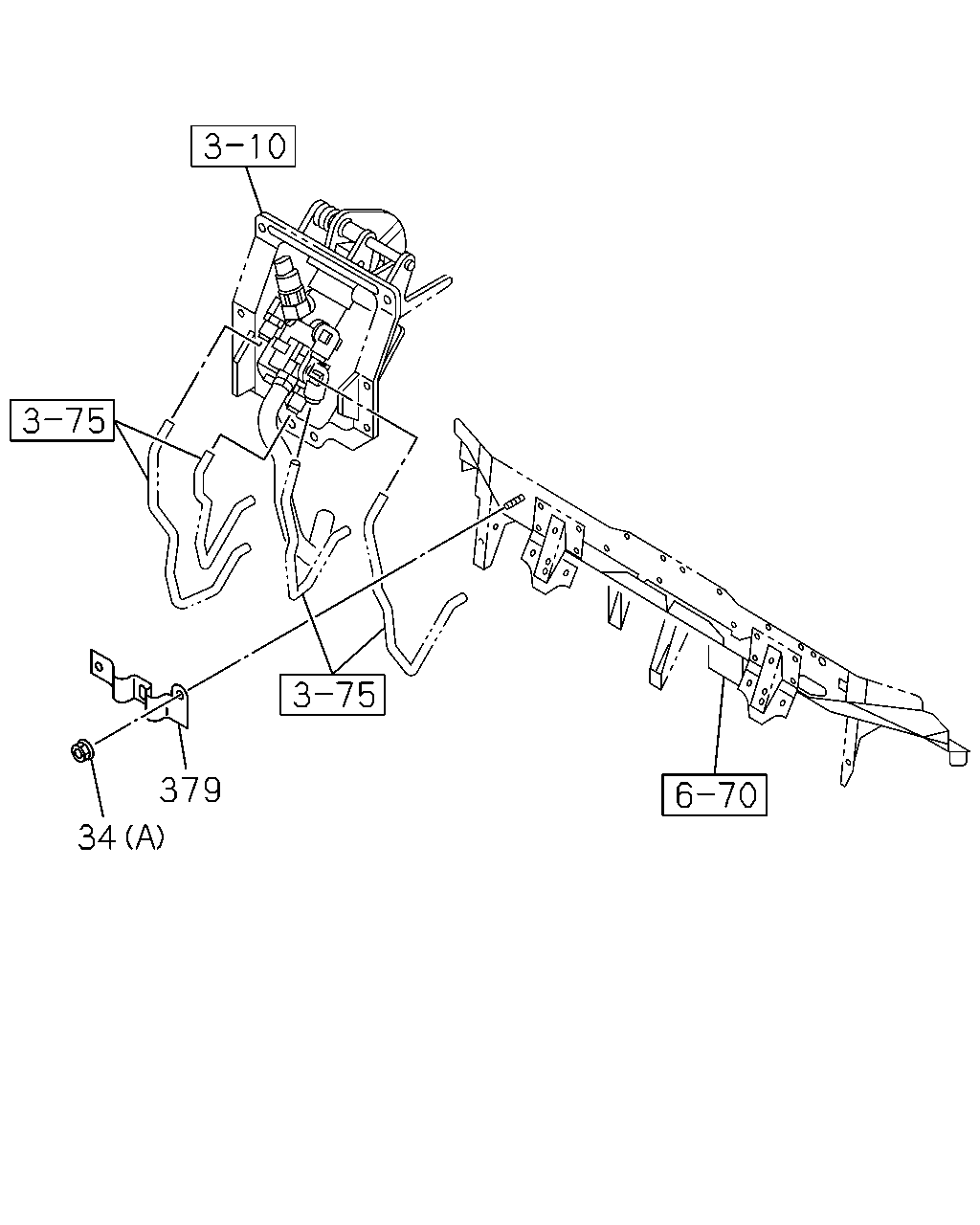

[378A] NO.1 (3 parça)

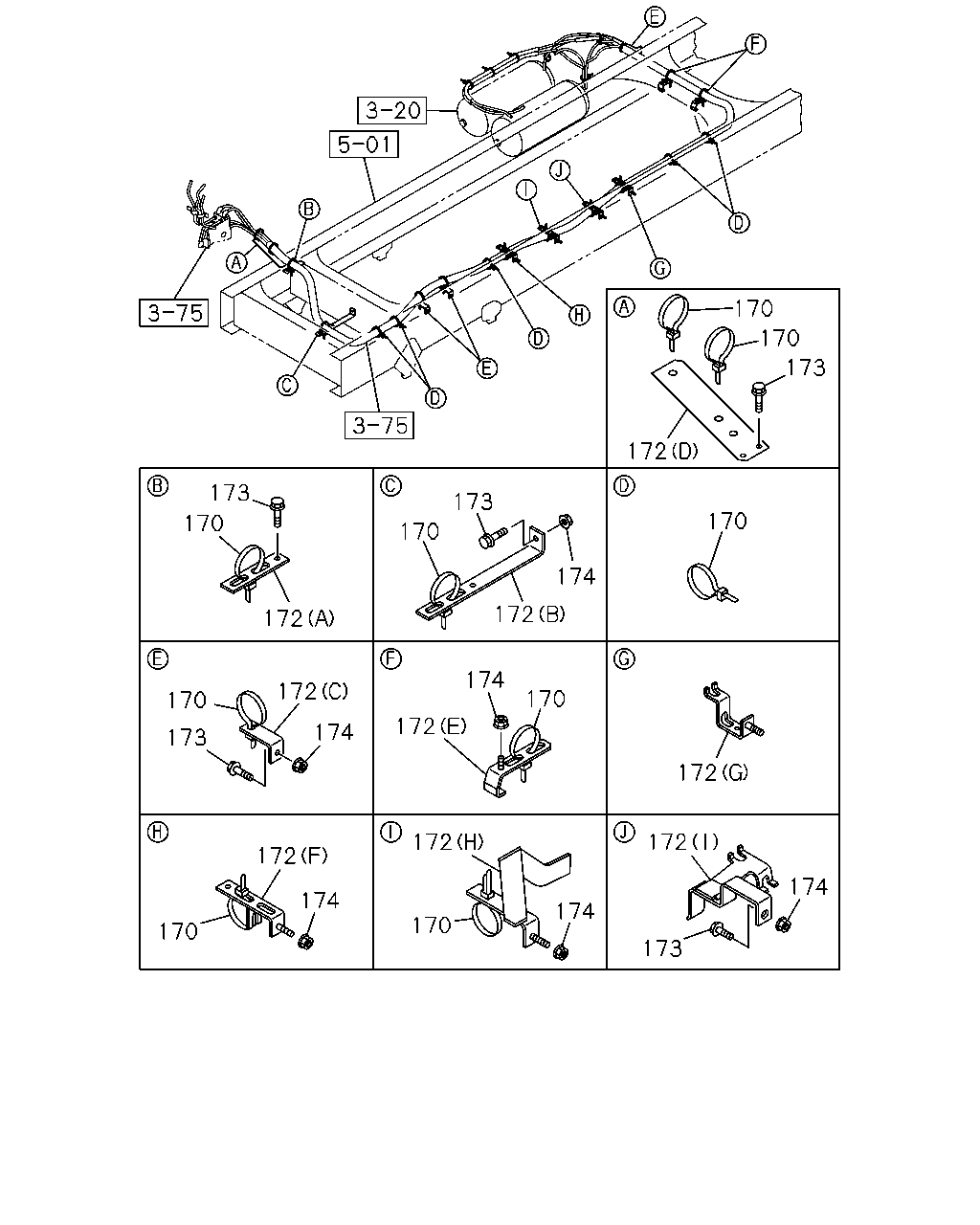

[378A] NO.2 (14 parça)
▶
288
13
290
134
320
170
389
34
133
13
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
CLIP; AIR PIPE
(A) ID=8 H=20 L=20
1-09700-604-0
01
1
1108-
13
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
01
1
1108-1201
24
CLIP; PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1108-
24
CLIP; PIPE
ID=6.35 & 15
1-09709-276-1
03
1
1108-
34
NUT; BRKT
(A) M6 FLANGE
0-91180-106-0
02
1
1108-
34
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1108-
133
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1108-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1108-
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
25
1
1108-
288
BOLT; CLIP,AIR PIPE
M8X20 FLANGE IDN
0-28650-820-0
01
1
1108-
290
NUT; CLIP,AIR PIPE
M8 FLANGE
0-91180-108-0
01
1
1108-
320
CLIP; BAND,FLEX FIX
L=250 IDN
5-09707-030-1
01
1
1108-
389
BRACKET; UNION
1-47471-363-0
01
1
1108-
379
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
(A) M6 FLANGE
0-91180-106-0
02
1
1108-
34
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1108-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1108-
170
170
173
172
173
173
170
170
170
174
172
172
174
172
170
170
172
174
173
172
172
172
172
174
174
174
170
170
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
25
1
1108-
172
BRACKET; TUBE CLIP
(A)
1-47477-514-3
01
1
1108-
172
BRACKET; TUBE CLIP
(B) L=225
1-47477-646-3
01
1
1108-
172
BRACKET; TUBE CLIP
(C) L=60 H=30
1-47477-716-1
03
1
1108-
172
BRACKET; TUBE CLIP
(D)
8-98031-420-2
01
1
1108-
172
BRACKET; TUBE CLIP
(E)
8-98047-730-0
02
1
1108-
172
BRACKET; TUBE CLIP
(G)
8-98169-222-0
01
1
1108-
172
BRACKET; TUBE CLIP
(F)
8-98177-873-0
01
1
1108-
172
BRACKET; TUBE CLIP
(H)
8-98182-331-0
01
1
1108-
172
BRACKET; TUBE CLIP
(I)
8-98182-760-0
01
1
1108-
173
BOLT; CLIP BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1108-
173
BOLT; CLIP BRKT
M8X25 FLANGE IDN
0-28650-825-0
02
1
1108-
173
BOLT; CLIP BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1108-
174
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
10
1
1108-
