Isuzu WW
▶
TRUCKS
▶
FVR
▶
11392 - FVR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#56464) — 21 parça
◀

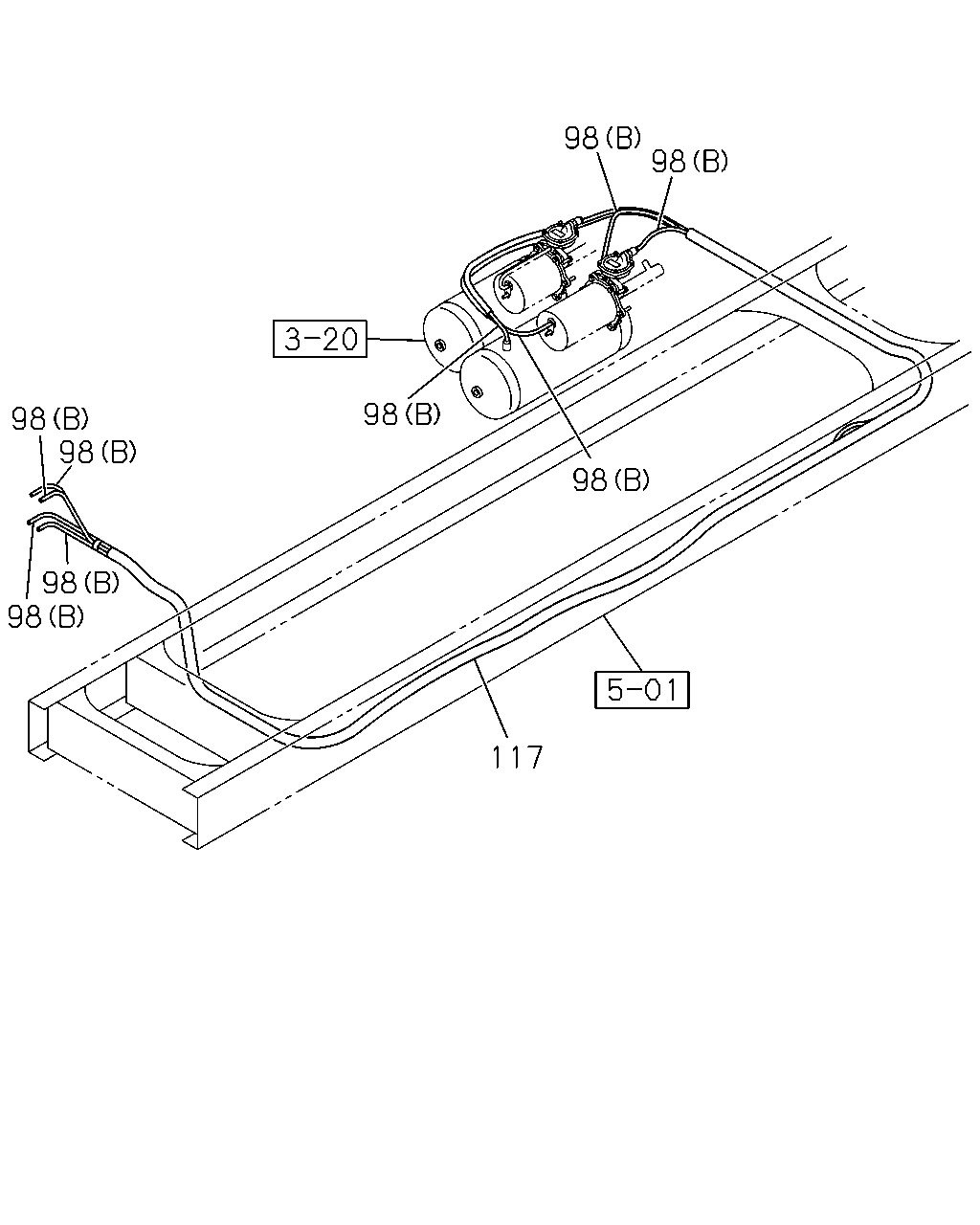

[375A] FRAME SIDE (7 parça)

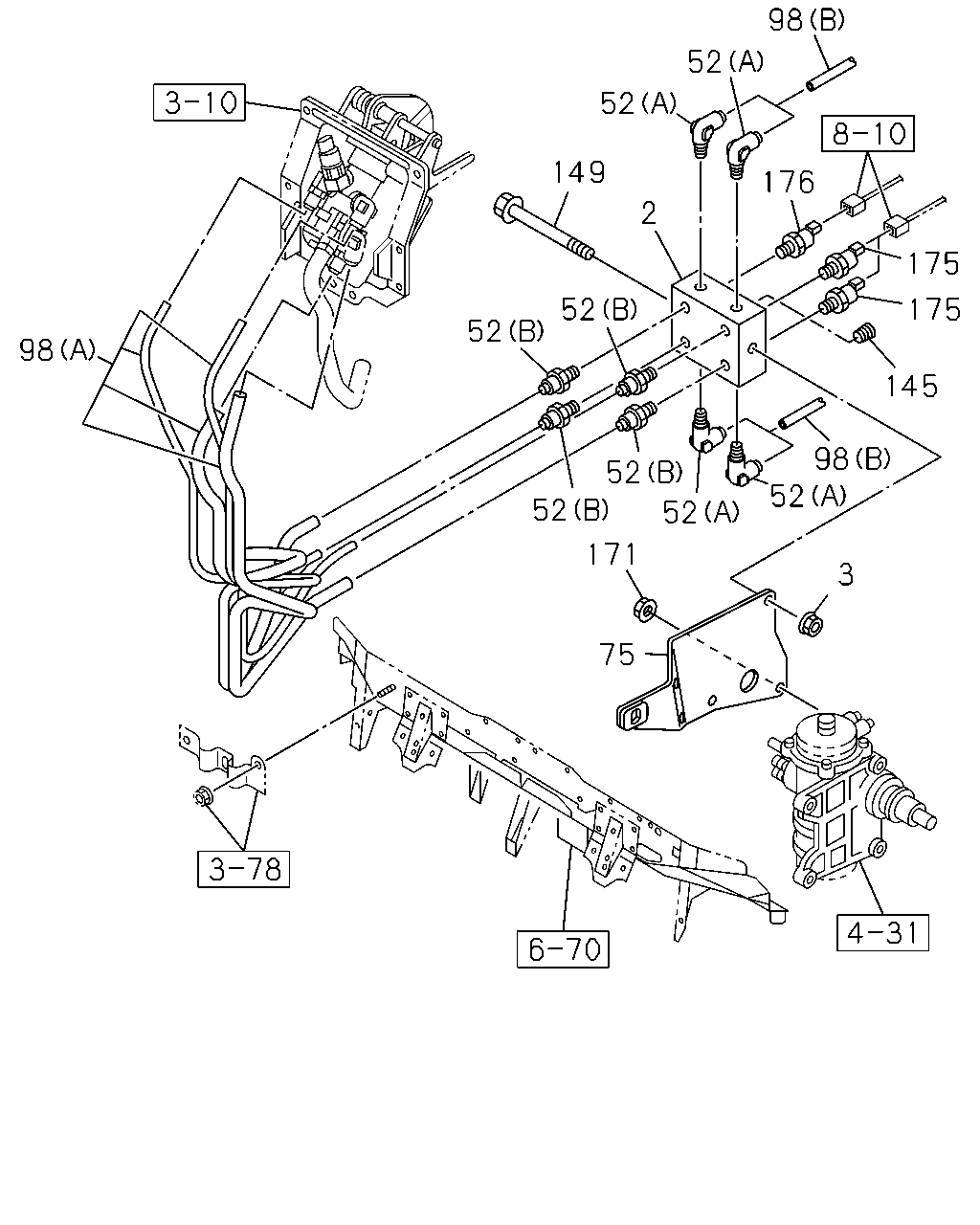

[375A] CAB UNDER (14 parça)
▶
98
98
98
98
98
98
98
98
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1108-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
01
1
1108-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
03
1
1108-
98
TUBE; NYLON
(A) IDN
8-98139-141-0
01
1
1108-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
03
1
1108-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28
1-87411-034-0
01
1
1108-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
01
1
1108-
98
52
52
149
176
2
175
52
175
52
98
145
98
52
52
52
52
171
3
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
8-98057-394-1
01
1
1108-
3
NUT; PIPE UNION
M8 FLANGE
0-91180-108-0
01
1
1108-
52
CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
04
1
1108-
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
1108-
75
BRACKET; UNION
8-98099-485-1
01
1
1108-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1108-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
01
1
1108-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
03
1
1108-
98
TUBE; NYLON
(A) IDN
8-98139-141-0
01
1
1108-
145
PLUG
PT1/4
9-99204-513-0
01
1
1108-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1108-
171
NUT; BRACKET
M10 FLANGE
0-91180-210-0
02
1
1108-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1108-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1108-
