3-70 — BRAKE PIPING; AIR,AIR MASTER (#56463) — 41 parça

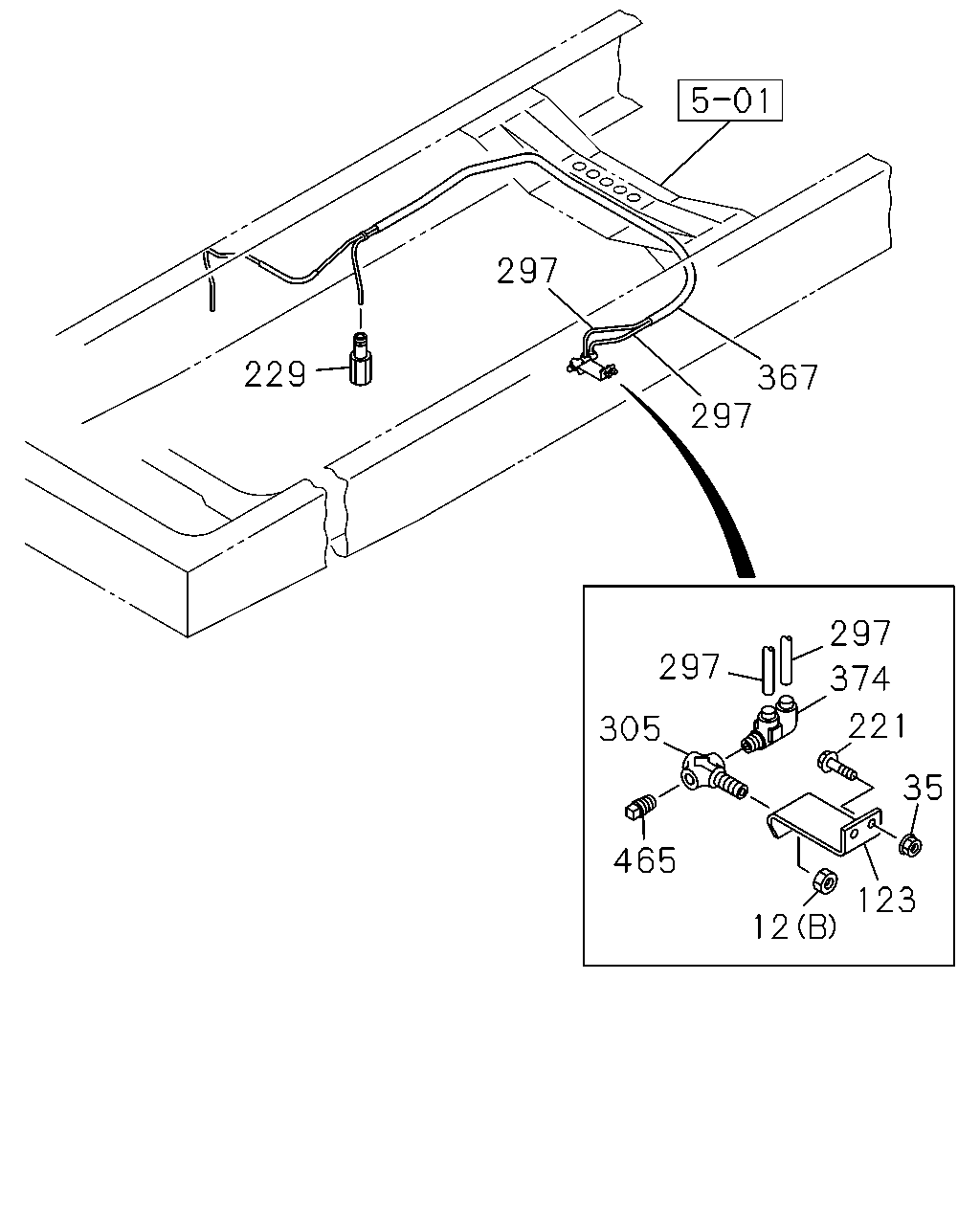

çizim 146236
297 229 367 297 297 297 374 221 305 35 465 123 12
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1108-
12 NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1108-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1108-
123 BRACKET; UNION
EXC. PTO CONTROL<SV6> IDN 		8-98118-545-0 01 1 1108-
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1108-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1108-
305 UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6> 		8-98120-049-0 01 1 1108-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1108-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1108-
374 CONNECTOR
EXC. PTO CONTROL<SV6> DIN13X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1108-
465 PLUG
EXC. PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1108-

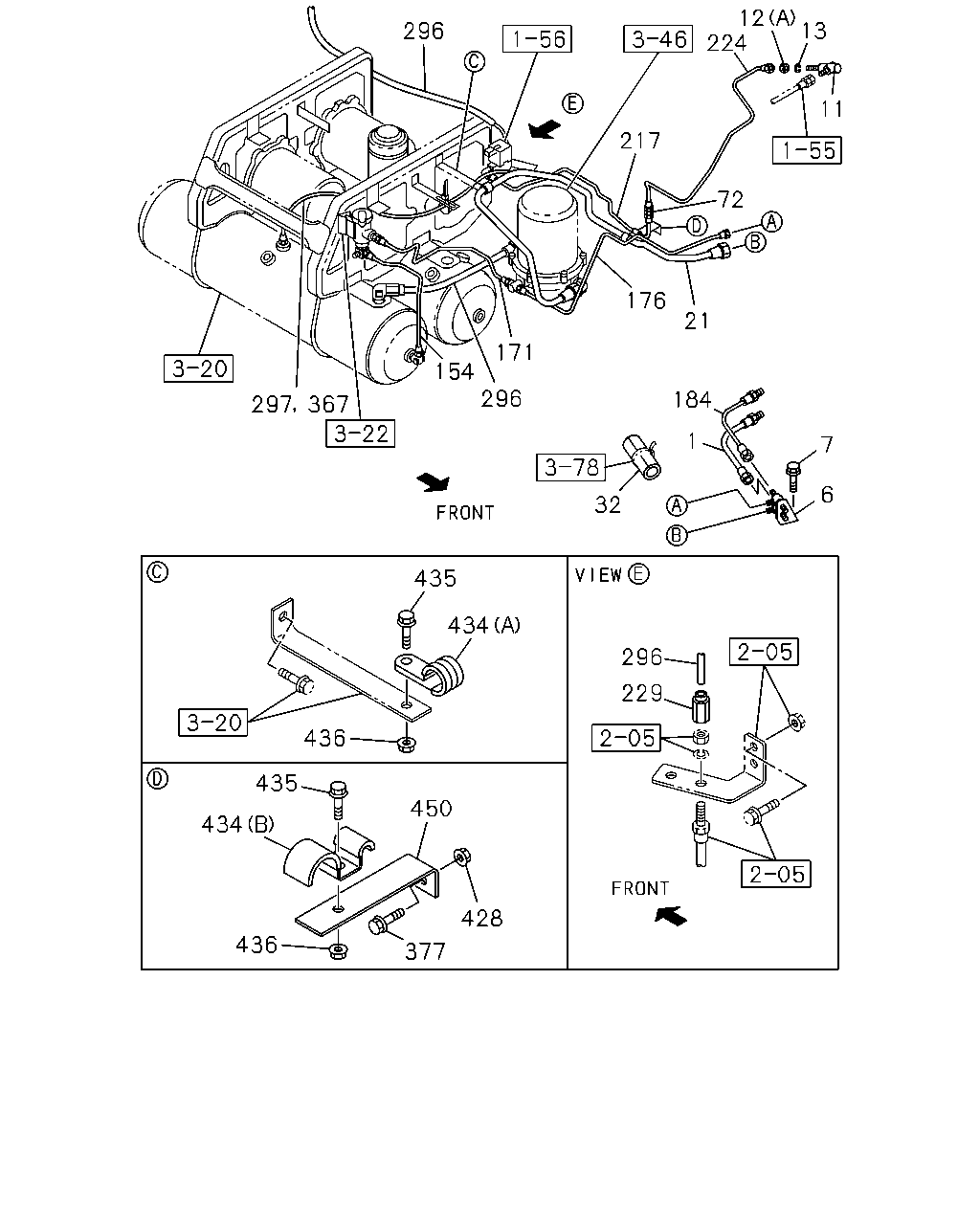

çizim 146270
12 224 13 296 11 217 72 176 21 171 154 296 184 297 367 1 7 6 32 435 434 296 229 436 435 450 434 428 436 377
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1108-
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1108-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1108-
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1108-
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1108-
12 NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1108-
13 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1108-
21 PIPE; AIR,UNION TO AIR DRYER
L=1338 IDN 		8-98185-672-0 01 1 1108-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1108-
72 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1108-
154 PIPE; AIR,AIR TANK TO AIR GOV
L=370 IDN 		8-98178-053-0 01 1 1108-
171 PIPE; AIR,GOV TO AIR DRYER
L=571 SERVICED BY L=600 		1-47428-809-0 01 1 1108-
176 PIPE; AIR,AIR DRYER TO UNION
L=978 SERVICED BY L=1000 		1-47428-814-0 01 1 1108-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1108-
217 PIPE; VAC,UNION TO MAG VLV
L=651 SERVICED BY L=700 		1-47428-811-0 01 1 1108-
224 PIPE; AIR,UNION TO FLEX HOSE
L=720 SERVICED BY L=800 		1-47428-812-0 01 1 1108-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1108-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1108-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1108-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1108-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1108-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1108-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1108-
434 CLIP
(A) ID=16 L=28 		0-95235-556-0 01 1 1108-
434 CLIP
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1108-
435 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1108-
450 BRACKET; CLIP
L=115 B=25 		1-47476-758-0 01 1 1108-
