Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11363 - FORWARD800 MEXICO
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#56462) — 54 parça
◀

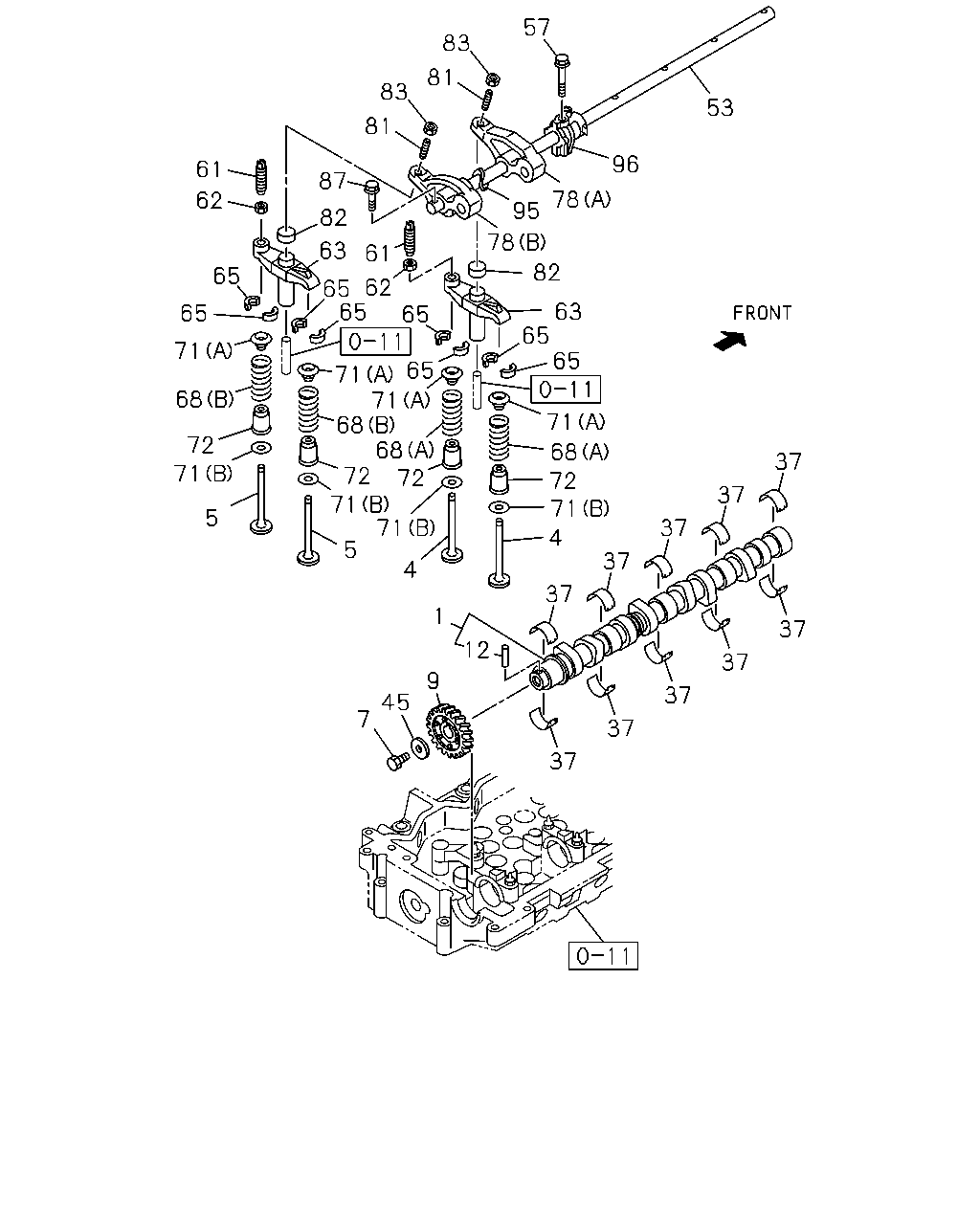

[014A] VALVE AND CAMSHAFT (27 parça)

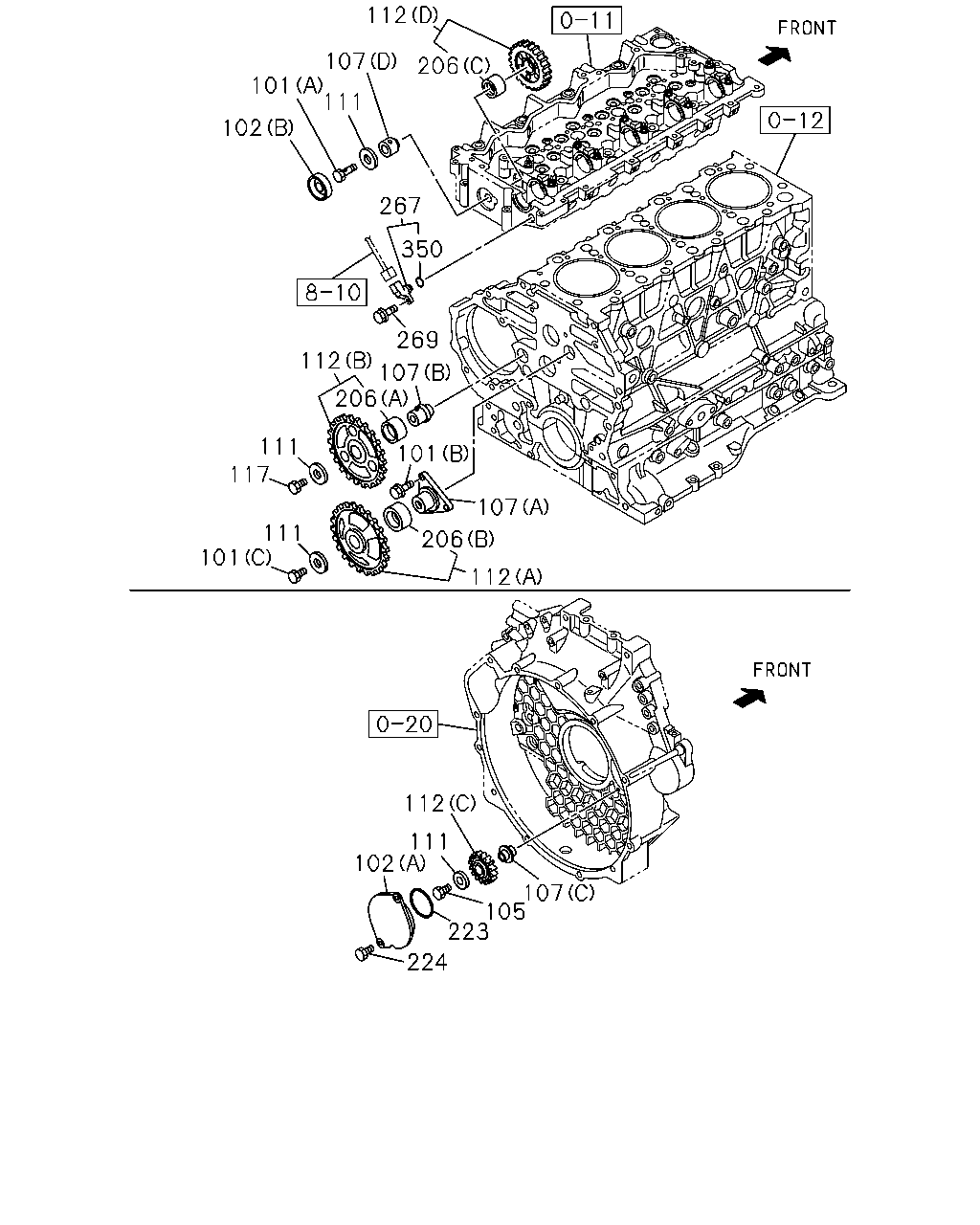

[014A] IDLE GEAR (27 parça)
▶
53
57
96
83
81
78
95
83
81
78
63
82
87
61
65
62
82
65
63
65
61
71
68
71
72
5
5
4
4
1
12
7
37
45
37
37
37
37
37
37
37
37
37
9
71
72
71
71
68
71
65
65
62
65
65
65
71
68
72
72
68
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97262-166-0
01
1
1102-
4
VALVE; INL
8-94395-882-2
08
1
1102-
5
VALVE; EXH
8-97209-876-4
08
1
1102-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1102-
9
GEAR; CM/SHF
Z=35
8-98018-935-3
01
1
1102-
12
KEY; CAM GEAR SET
OD=7 L=7.5
8-94399-487-0
02
1
1102-
37
METAL; CM/SHF
B=16
8-97386-189-0
10
1
1102-
45
WASHER; GEAR CAM
ID=14.5
9-09851-850-3
01
1
1102-
53
SHAFT; ROCKER ARM
8-97389-921-0
01
1
1102-
57
BOLT; ROCKER ARM BRKT
M10X62 FLANGE
8-94393-131-0
03
1
1102-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
08
1
1102-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE
9-09844-574-0
08
1
1102-
63
BRIDGE
8-94392-002-3
08
1
1102-
65
COLLAR; SPLIT
5-12565-004-0
32
1
1102-
68
SPRING; VLV
(B) EXHAUST MARK RED
8-97210-682-0
08
1
1102-
68
SPRING; VLV
(A) INLET MARK BLUE
8-97352-888-0
08
1
1102-
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
16
1
1102-
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
16
1
1102-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
16
1
1102-
78
ARM; ROCKER
(A) INLET
8-97306-421-3
04
1
1102-
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
04
1
1102-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
08
1
1102-
82
CAP; ROCKER SHAFT
8-94396-015-2
08
1
1102-
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
08
1
1102-
87
BOLT; ROCKER SHAFT
M8X40 FLANGE
0-28050-840-0
02
1
1102-
95
SPRING; ROCKER SHAFT
8-94392-999-0
04
1
1102-
96
BRACKET; ROCKER ARM SHAFT
8-97334-414-0
03
1
1102-
112
107
101
111
206
267
102
350
112
269
107
206
111
117
111
101
107
206
101
112
112
111
102
224
223
105
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1102-
101
BOLT; THRUST COLLAR
(A) M14X36.5
8-94372-221-1
01
1
1102-
101
BOLT; THRUST COLLAR
(C) M14X25
9-92361-425-0
01
1
1102-1310
101
BOLT; THRUST COLLAR
(C) M14X25
0-23951-425-0
01
1
1311-
102
COVER; IDLE GEAR
(A)
8-94334-681-1
01
1
1102-
102
COVER; IDLE GEAR
(B) OD=51
8-97096-826-0
01
1
1102-
105
BOLT; IDLE GEAR SHAFT
M14X60
0-16956-460-0
01
1
1102-
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
1102-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1102-
107
SHAFT; IDLE GEAR
(D)
8-97606-990-1
01
1
1102-
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1102-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
04
1
1102-
112
GEAR; IDLE
(C) Z=34
8-97120-005-1
01
1
1102-
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
1102-1402
112
GEAR; IDLE
(B) Z=72-60-30
8-98254-970-0
01
1
1403-
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
1102-
112
GEAR; IDLE
(D) Z=41
8-98058-320-1
01
1
1102-
117
BOLT; FLANGE
M14X65 FLANGE
8-97113-167-0
01
1
1102-
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
1-12528-028-0
01
1
1102-1402
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
8-98255-899-0
01
1
1403-
206
BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT.
8-97606-768-0
01
1
1102-
206
BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT.
8-97606-770-0
01
1
1102-
223
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
1102-
224
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
02
1
1102-
267
SENSOR; CAM ANGLE
8-98019-024-0
01
1
1102-
269
BOLT; SENSOR
M6X12 FLANGE
0-28050-612-0
01
1
1102-
350
GASKET; SENSOR,CAM ANGLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8
8-97369-404-0
01
1
1102-
