Isuzu WW
▶
TRUCKS
▶
FRR
▶
11362 - FRR RHD EURO4 SPACECAB WITH DOC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#56441) — 31 parça
◀
[826A] FRONT SIDE NO.2 (5 parça)
[826A] SENSOR;VEHICLE SPEED,CRANK ANGLE (6 parça)
[826A] FRONT SIDE NO.3 (7 parça)
[826A] FRONT SIDE NO.1 (10 parça)
[826A] CONTROL UNIT;TURBOCHARGER (3 parça)
▶
68
69
264
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1012-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1012-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1012-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98064-901-0
01
1
1012-
507
CONNECTOR
EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1012-

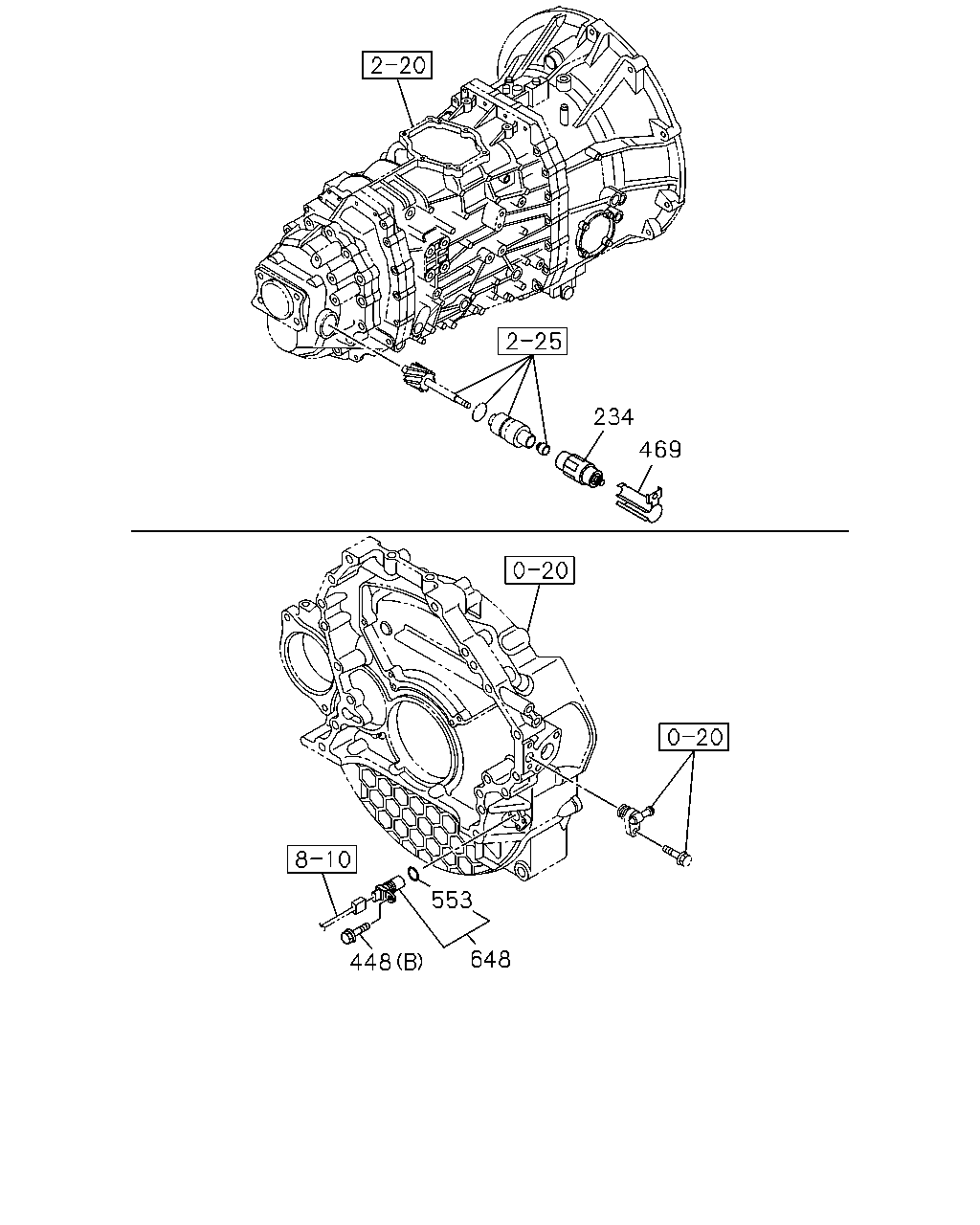

234
469
553
648
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1012-
448
BOLT; SENSOR
(B) M6X16 FLANGE
0-28050-616-0
01
1
1012-
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1012-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1012-
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
1012-
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1012-
744
448
491
380

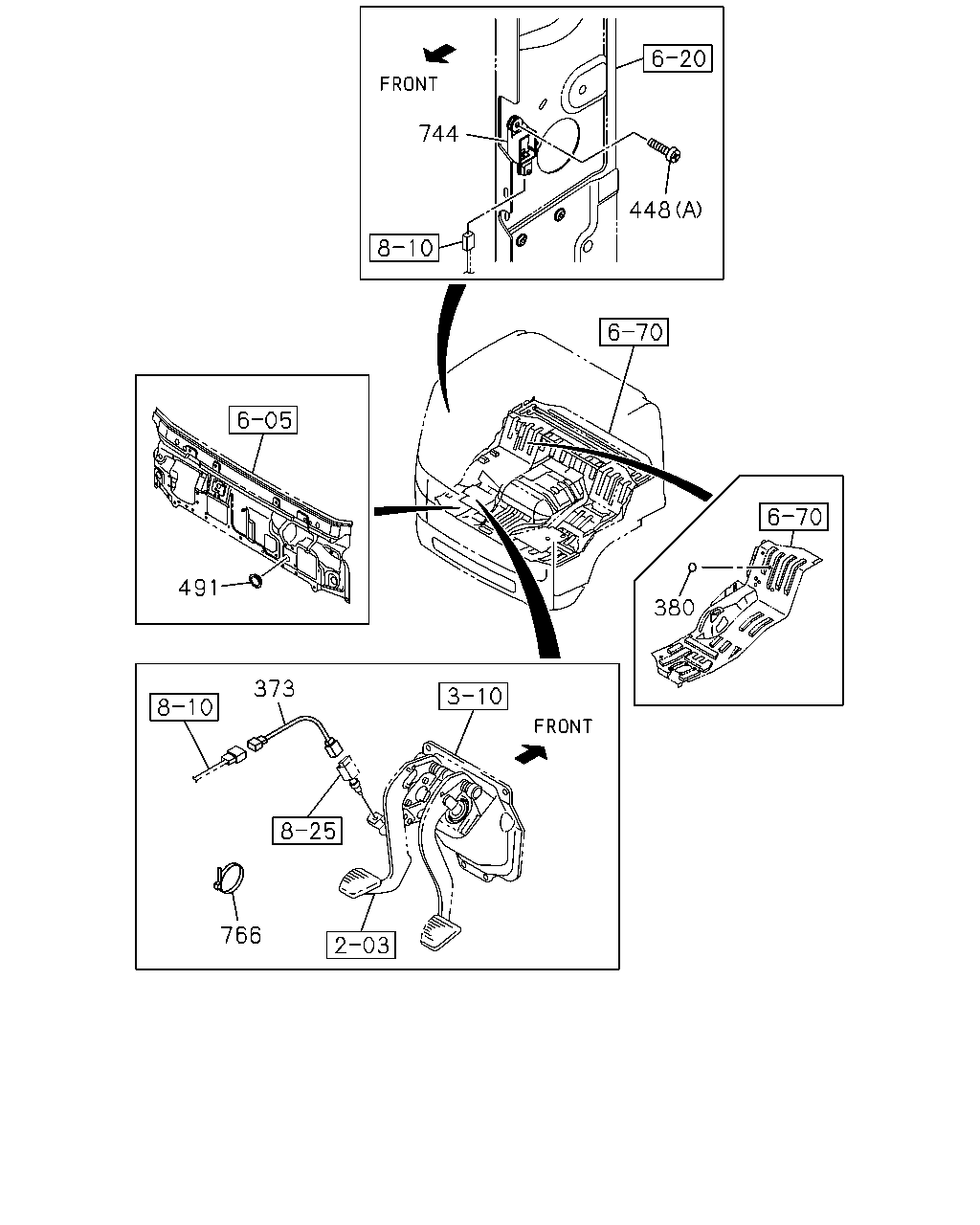

373
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
8-98059-419-2
01
1
1012-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1012-
448
BOLT; SENSOR
(B) M6X16 FLANGE
0-28050-616-0
01
1
1012-
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1012-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1012-
744
SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-97386-841-2
01
1
1012-
766
BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140
5-09707-031-1
01
1
1012-

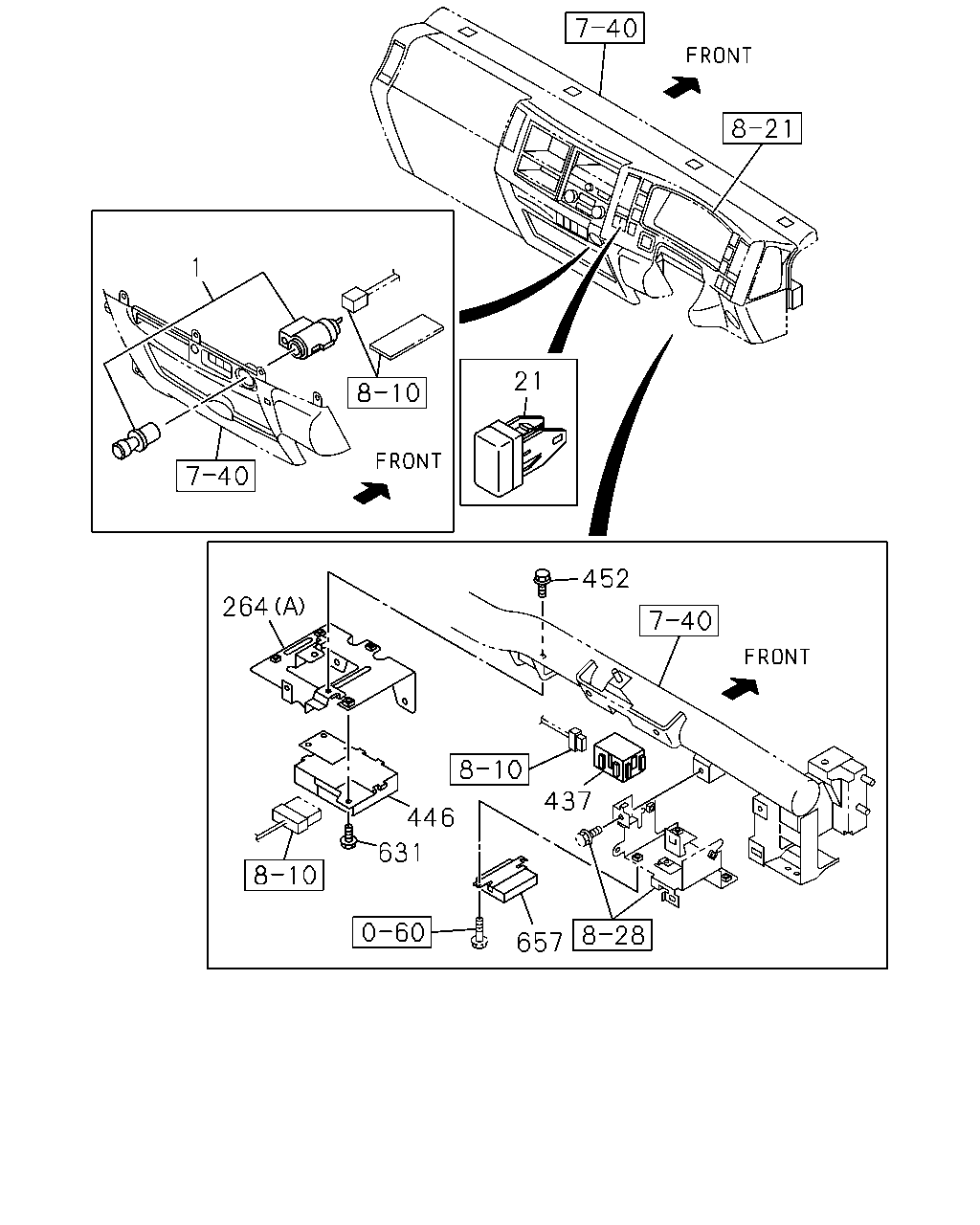

21
1
264
446
631
657
437
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1012-
21
COVER; HOLE
8-98025-954-1
01
1
1012-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1012-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98064-901-0
01
1
1012-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1012-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
8-98136-318-1
01
1
1012-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1012-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1012-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1012-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-0
01
1
1402-
747
275
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
275
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1012-
747
CONTROL UNIT; TURBOCHARGER
8-98077-118-2
01
1
1012-1103
747
CONTROL UNIT; TURBOCHARGER
8-98162-807-0
01
1
1104-
