◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11362 - FRR RHD EURO4 SPACECAB WITH DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#56438) — 189 parça

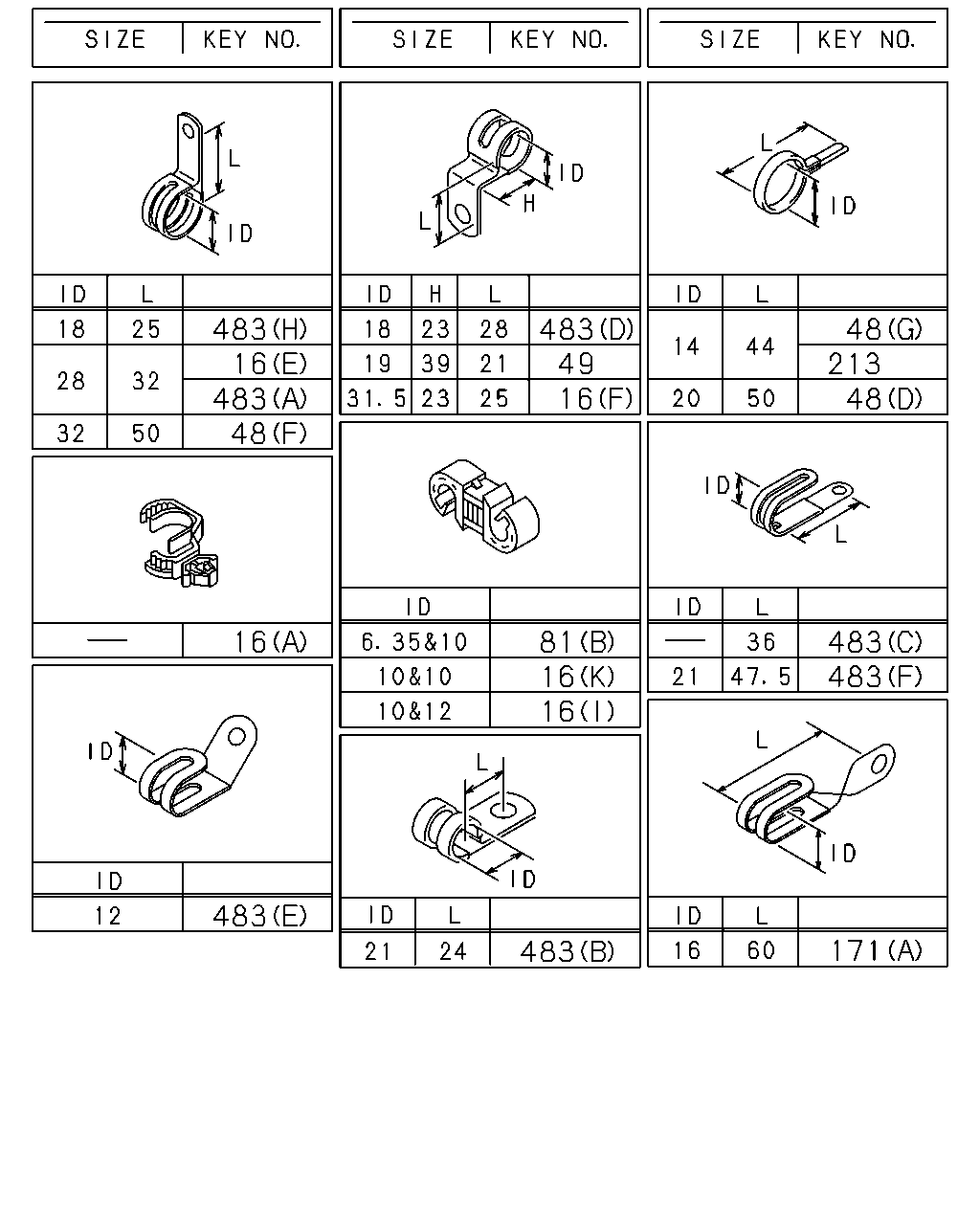

çizim 173803
483 16 483 48 483 49 16 48 213 48 16 81 16 16 483 483 483 171 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(L) ID=5-12 L=18 		1-09709-287-0 01 1 1108-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1012-
16 CLIP; HARNESS
(E) ID=28 L=32 		1-09701-107-1 02 1 1012-
16 CLIP; HARNESS
(H) L=250 		1-09707-126-0 02 1 1012-
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 1012-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1012-
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1012-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1012-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1012-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1012-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1012-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1012-
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1012-
48 CLIP; FRAME HARNESS
(B) ID=5.5X2 L=35 		1-09700-974-0 01 1 1012-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1012-
48 CLIP; FRAME HARNESS
(I) L=600 		1-09707-107-1 01 1 1012-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1012-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 13 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1012-1201
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=22 		1-09709-292-0 01 1 1012-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 04 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1012-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1012-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1012-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1012-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1012-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1012-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1012-
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1012-
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1012-
483 CLIP; ENG HARNESS
(G) 		1-09987-281-0 01 1 1012-
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1012-
483 CLIP; ENG HARNESS
(H) ID=18 L=25 		8-94121-004-1 01 1 1012-
483 CLIP; ENG HARNESS
(F) ID=21 L=47.5 		8-94178-108-0 01 1 1012-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1012-

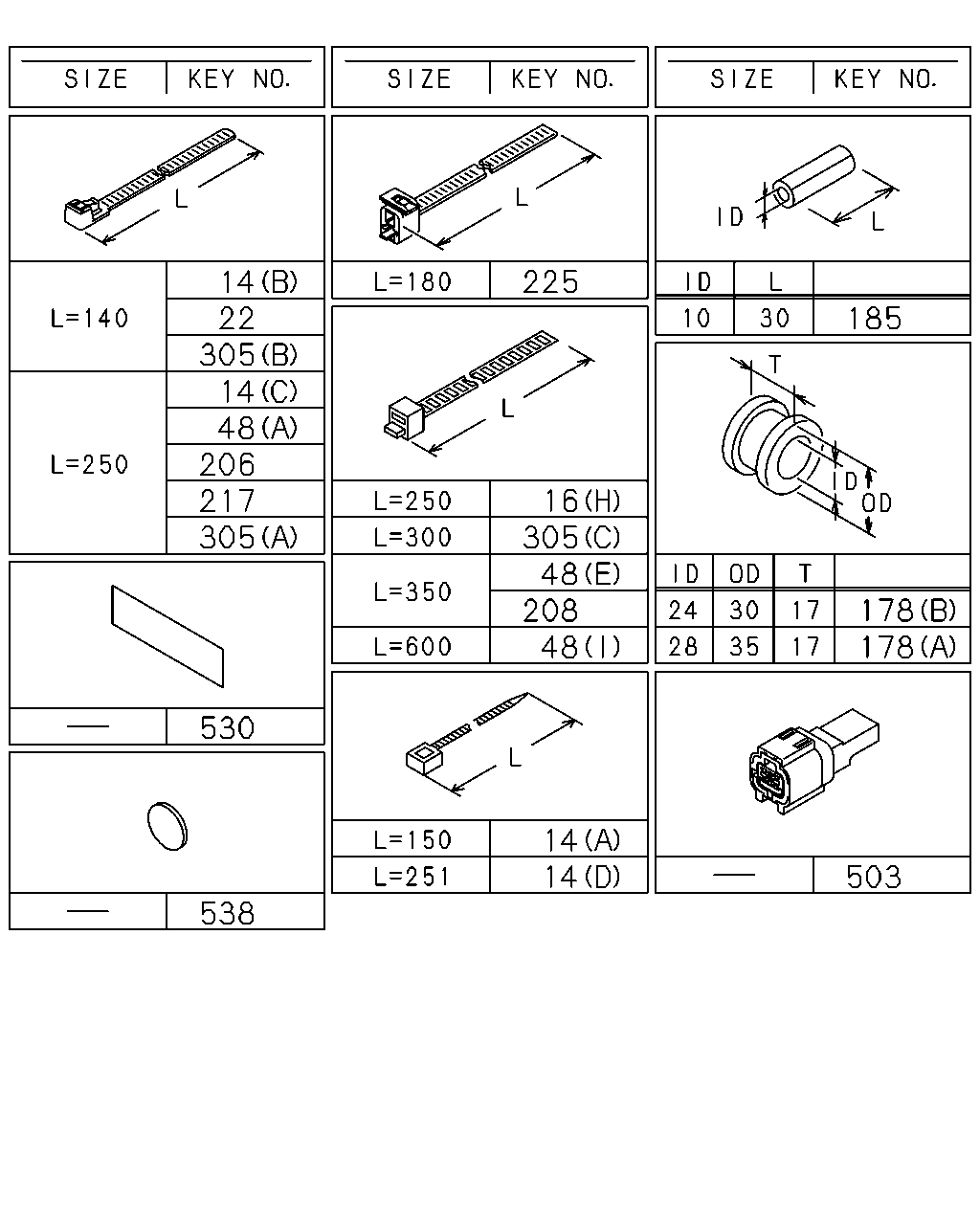

çizim 173805
14 22 305 14 48 206 217 305 225 185 16 305 48 208 48 178 178 530 14 14 503 538
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1012-
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 02 1 1012-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1012-
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 02 1 1012-1107
14 CLIP; BAND,HARNESS
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44), GENERATOR 24V50A(K89) (B) L=140 		5-09707-031-1 02 1 1012-1107
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108-
14 CLIP; BAND,HARNESS
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44), GENERATOR 24V50A(K89) (B) L=140 		5-09707-031-1 02 1 1108-
16 CLIP; HARNESS
(L) ID=5-12 L=18 		1-09709-287-0 01 1 1108-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1012-
16 CLIP; HARNESS
(E) ID=28 L=32 		1-09701-107-1 02 1 1012-
16 CLIP; HARNESS
(H) L=250 		1-09707-126-0 02 1 1012-
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 1012-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1012-
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1012-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1012-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1012-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1012-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1012-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1012-
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1012-
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1012-
48 CLIP; FRAME HARNESS
(B) ID=5.5X2 L=35 		1-09700-974-0 01 1 1012-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1012-
48 CLIP; FRAME HARNESS
(I) L=600 		1-09707-107-1 01 1 1012-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1012-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 13 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1012-1201
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=22 		1-09709-292-0 01 1 1012-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 04 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1012-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1012-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1012-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1012-
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1012-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 1012-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1012-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1012-
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 1012-
305 CLIP; ENG HARNESS
(C) L=300 		1-09707-001-1 01 1 1012-
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 01 1 1012-
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 1012-
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 1012-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1012-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1012-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1012-

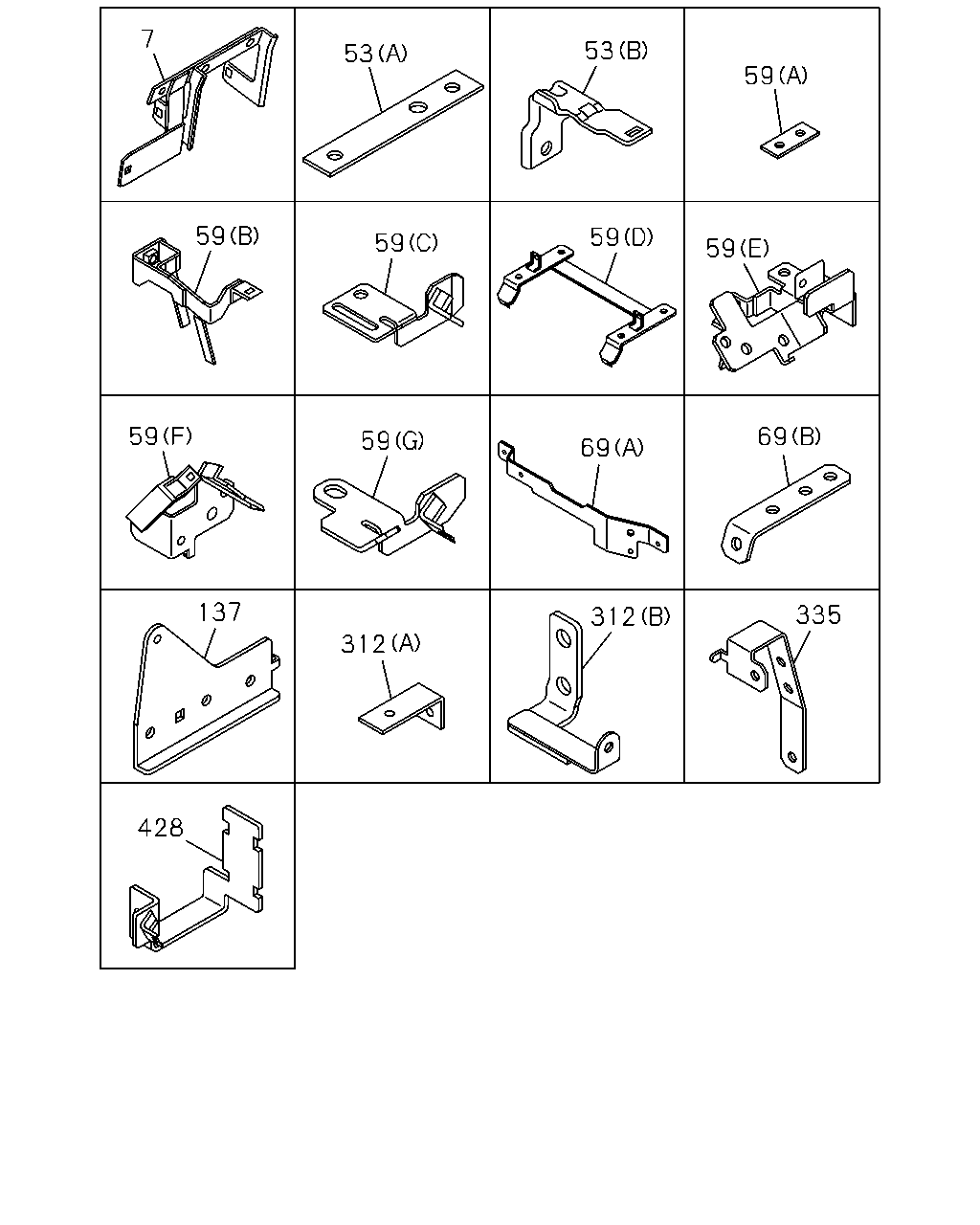

çizim 173811
7 53 53 59 59 59 59 59 59 59 69 69 137 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1012-
53 BRACKET; HARNESS
(A) L=170 		1-47479-380-0 01 1 1012-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1012-
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 1012-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 1012-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-535-0 01 1 1012-1401
59 BRACKET; FRAME HARNESS
(F) 		8-97622-828-0 01 1 1402-
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 1012-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1012-
69 BRACKET; CLIP
(B) 		1-82698-167-0 01 1 1012-
69 BRACKET; CLIP
(A) 		8-97614-738-0 01 1 1012-
137 BRACKET; HARNESS CLAMP 8-97624-016-0 01 1 1012-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1012-
312 BRACKET; CLIP HARNESS
(B) 		8-98094-804-0 01 1 1012-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1012-
428 BRACKET 8-98116-461-0 01 1 1012-

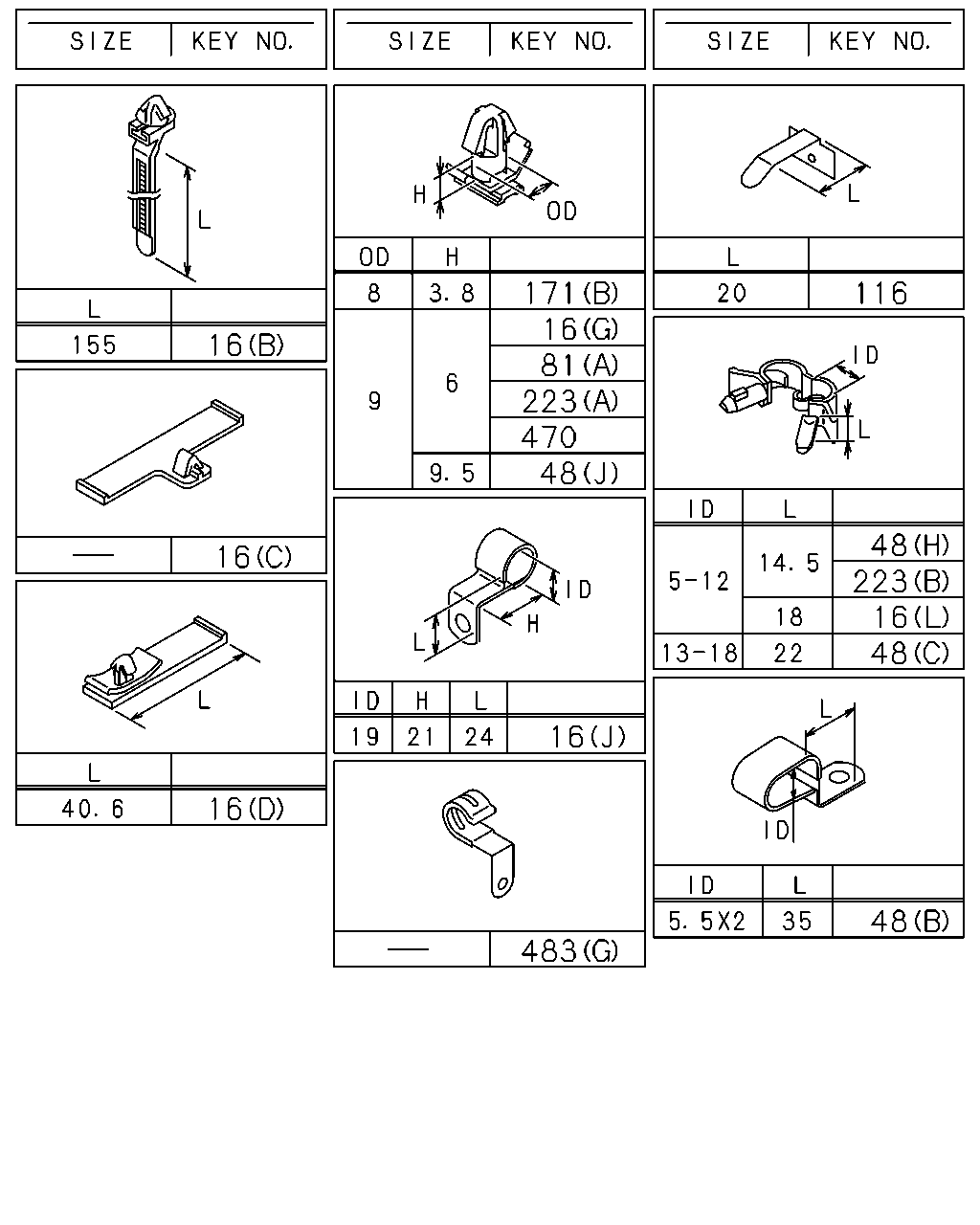

çizim 173819
171 16 81 223 470 48 116 16 48 223 16 48 16 16 16 48 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(L) ID=5-12 L=18 		1-09709-287-0 01 1 1108-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1012-
16 CLIP; HARNESS
(E) ID=28 L=32 		1-09701-107-1 02 1 1012-
16 CLIP; HARNESS
(H) L=250 		1-09707-126-0 02 1 1012-
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 1012-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1012-
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1012-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1012-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1012-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1012-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1012-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1012-
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1012-
48 CLIP; FRAME HARNESS
(B) ID=5.5X2 L=35 		1-09700-974-0 01 1 1012-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1012-
48 CLIP; FRAME HARNESS
(I) L=600 		1-09707-107-1 01 1 1012-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1012-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 13 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1012-1201
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(C) ID=13-18 L=22 		1-09709-292-0 01 1 1012-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 04 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1012-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1012-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1012-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1012-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1012-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 1012-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1012-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1012-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1012-
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1012-
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1012-
483 CLIP; ENG HARNESS
(G) 		1-09987-281-0 01 1 1012-
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1012-
483 CLIP; ENG HARNESS
(H) ID=18 L=25 		8-94121-004-1 01 1 1012-
483 CLIP; ENG HARNESS
(F) ID=21 L=47.5 		8-94178-108-0 01 1 1012-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1012-

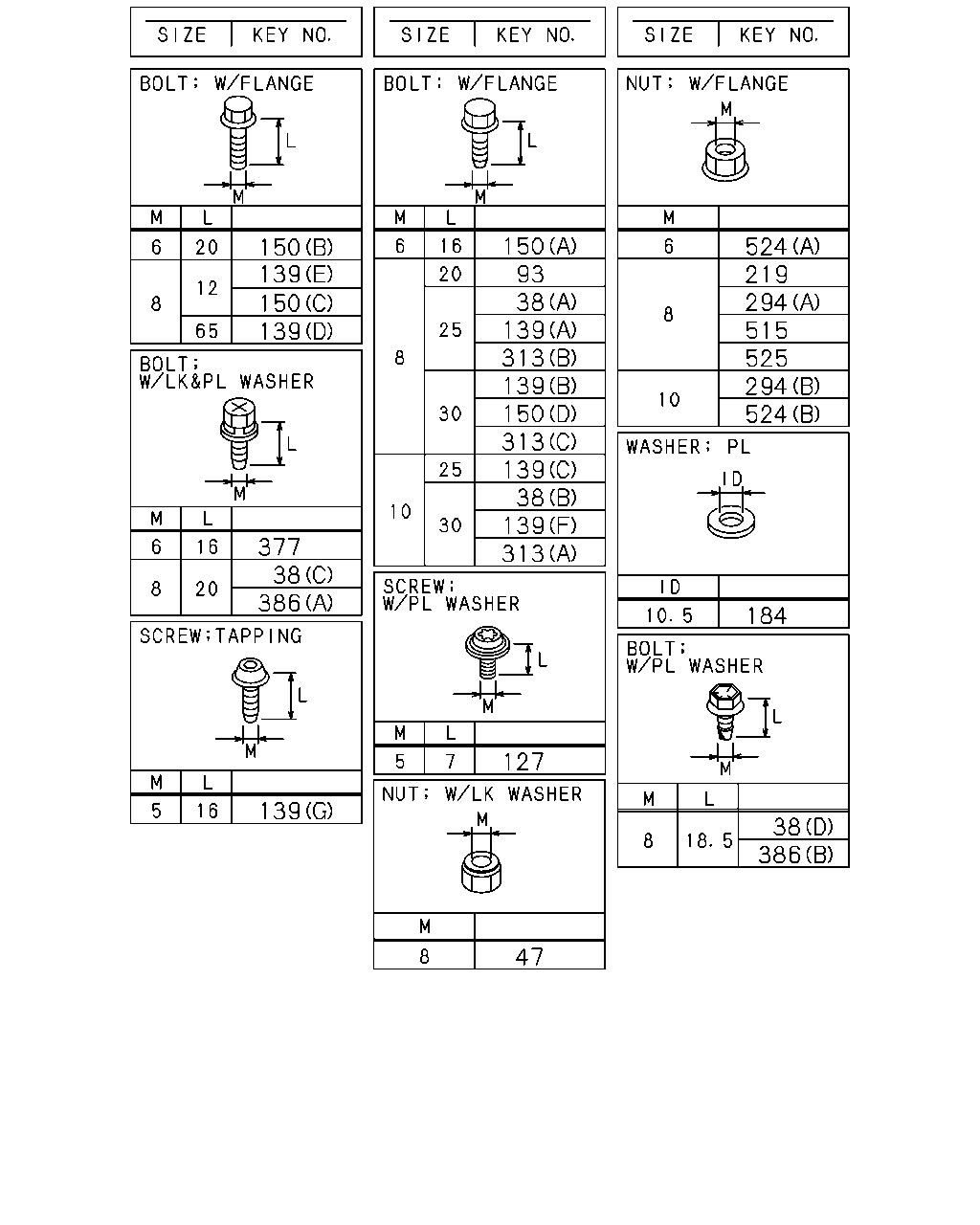

çizim 173822
524 294 525 515 294 219 524 150 38 139 139 313 150 139 313 38 313 139 93 150 150 139 139 38 386 377 139 127 47 38 386 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
38 BOLT; CLIP,HARNESS
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1012-1201
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1012-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1012-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1101-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1012-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1012-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1012-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1012-
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X65 FLANGE 		1-09044-072-1 01 1 1012-
150 BOLT; CLIP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1012-
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1012-
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1012-
150 BOLT; CLIP
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1012-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1012-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1012-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1012-
313 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1012-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1012-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1012-
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 1012-
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 1012-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1012-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
