◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11362 - FRR RHD EURO4 SPACECAB WITH DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#56437) — 230 parça

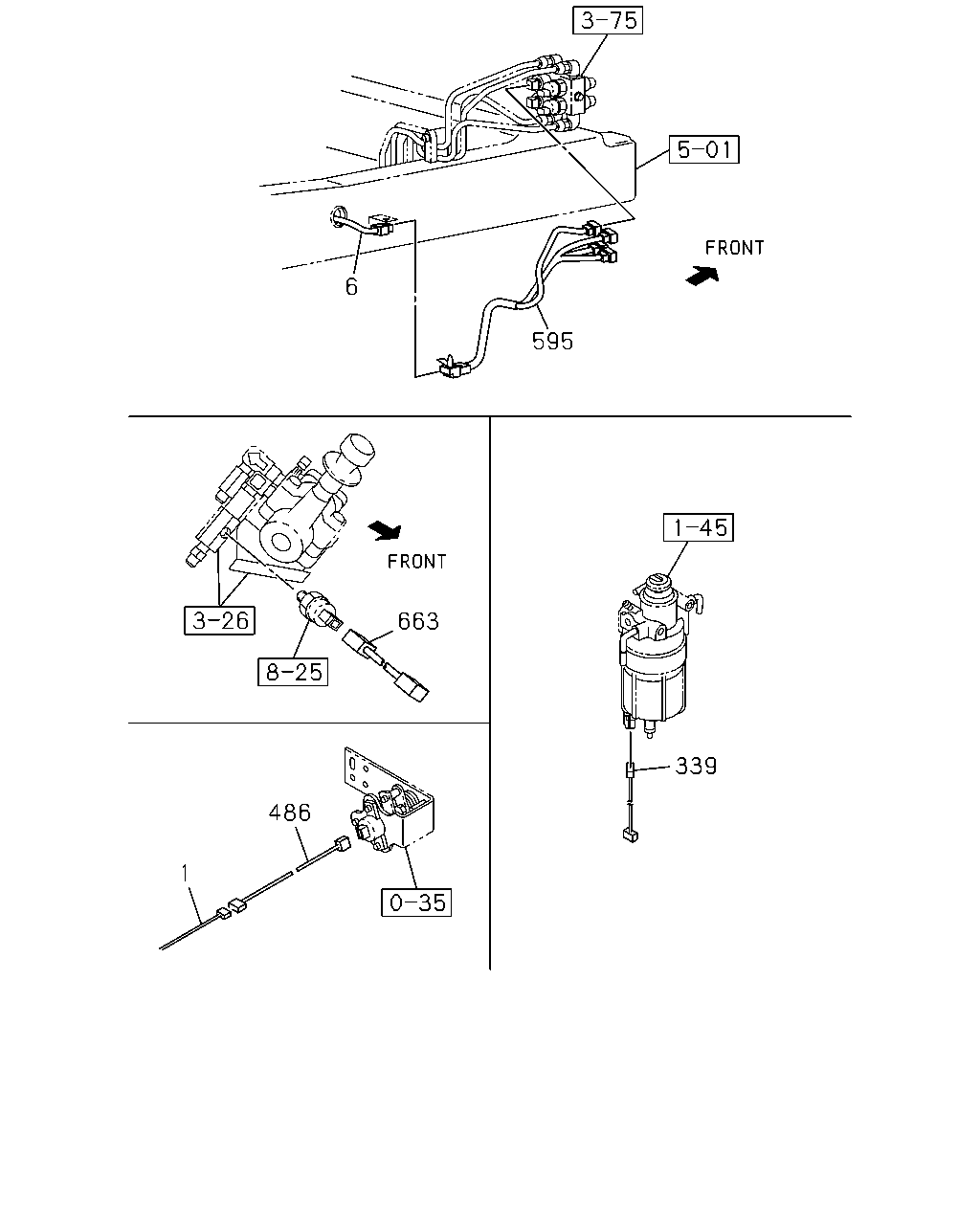

çizim 173788
6 595 663 339 486 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-856-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-856-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-160-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98187-859-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-859-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-159-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-940-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-940-2 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-936-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-936-2 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-933-2 01 1 1012-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98083-933-2 01 1 1110-1203
6 HARNESS; FRAME 8-98171-730-1 01 1 1012-
339 HARNESS; EXT,FUEL 8-98118-331-1 01 1 1012-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1012-
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1012-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1012-

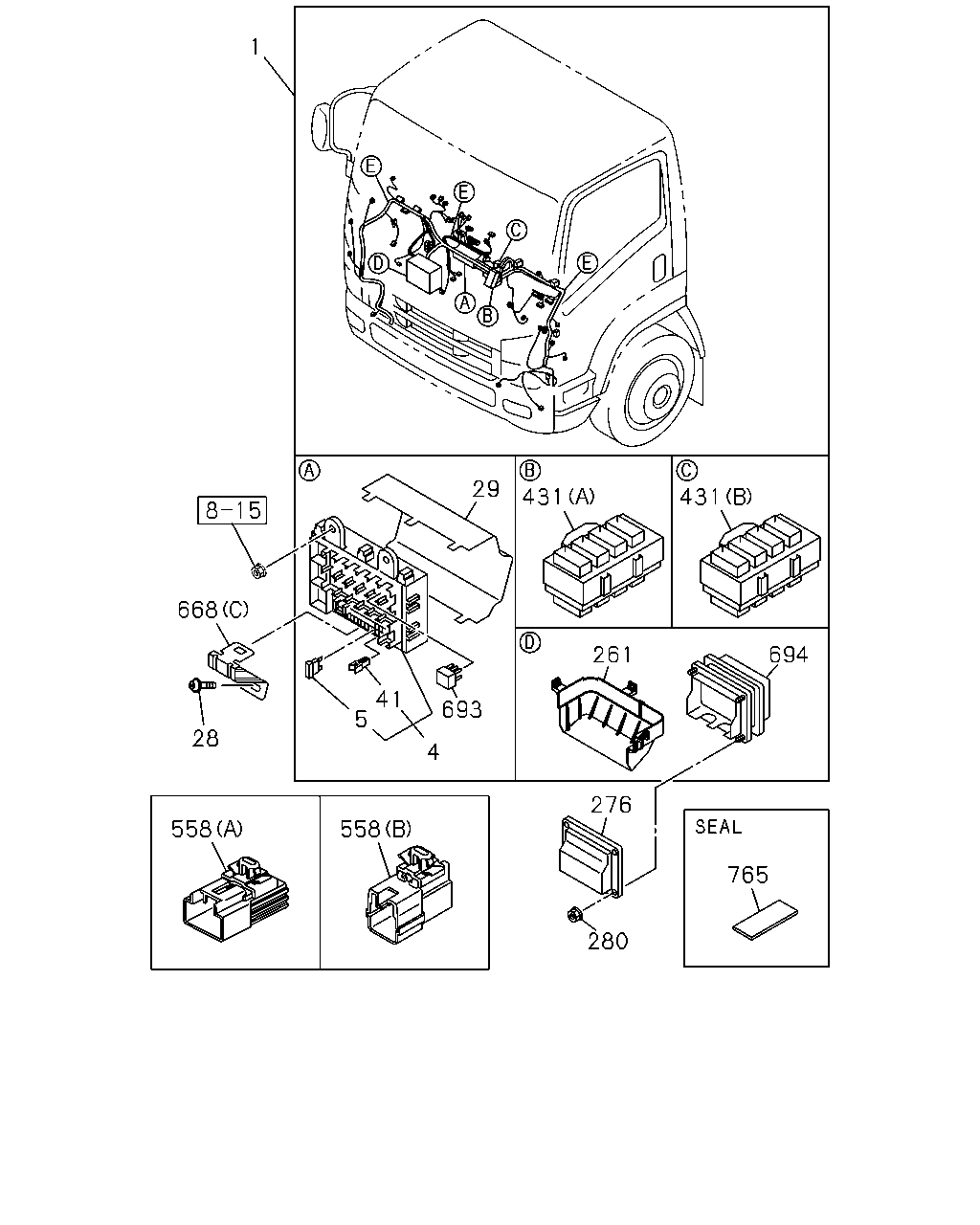

çizim 173791
1 668 28 558 29 693 41 5 4 431 261 276 280 558 765 694 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-856-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-856-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-160-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98187-859-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-859-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-159-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-940-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-940-2 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-936-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-936-2 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-933-2 01 1 1012-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98083-933-2 01 1 1110-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1012-
5 FUSE; FACIA HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) 25A WHITE 		8-98062-982-0 AR 1 1207-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1012-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1012-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1012-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 1012-1206
5 FUSE; FACIA HARNESS
AIR BAG DRIVER & PASSENGER(AK5) 25A WHITE 		8-98062-982-0 01 1 1207-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1012-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE 		0-28650-616-0 01 1 1012-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1012-
41 PULLER; FUSE 8-98054-260-0 01 1 1012-
261 COVER; CONNECTOR BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98065-986-1 01 1 1207-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1012-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1012-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1012-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (C) 10P BLUE 		1-82699-598-0 01 1 1207-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1012-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (G) 10P GREEN 		1-82699-599-0 01 1 1207-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (D) 10P BROWN 		1-82699-601-0 09 1 1207-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (E) 10P 		8-97077-943-0 02 1 1207-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1012-1405
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1012-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1012-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1012-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1012-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1012-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1012-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1012-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1012-
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1012-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1012-
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1012-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1012-
694 BOX ASM; CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98057-771-0 01 1 1207-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1012-1206
694 BOX ASM; CONNECTOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98063-269-1 01 1 1207-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

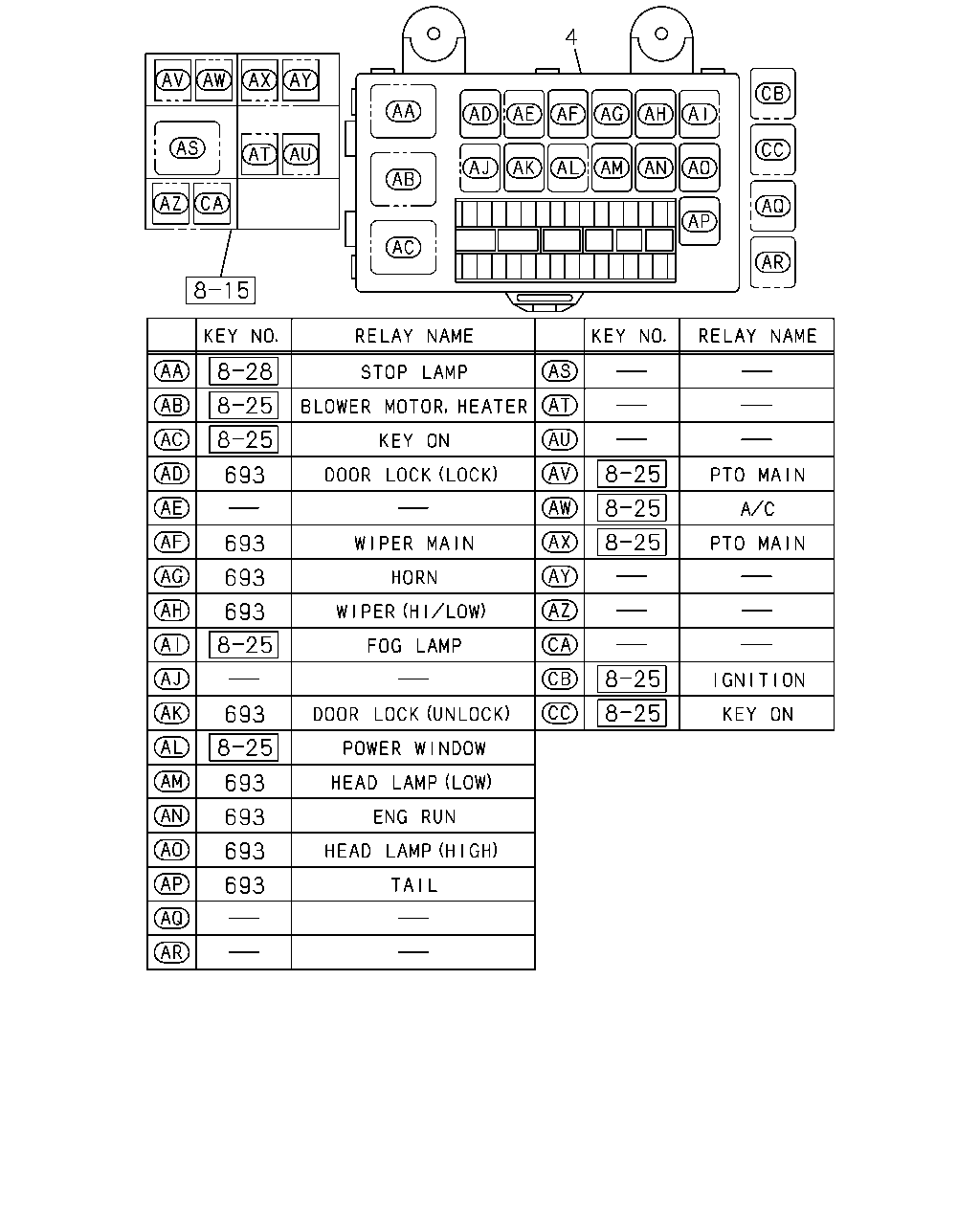

çizim 173792
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1012-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1012-
çizim 173794
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98171-730-1 01 1 1012-
9 HARNESS; FRAME,RR 8-98168-578-0 01 1 1012-

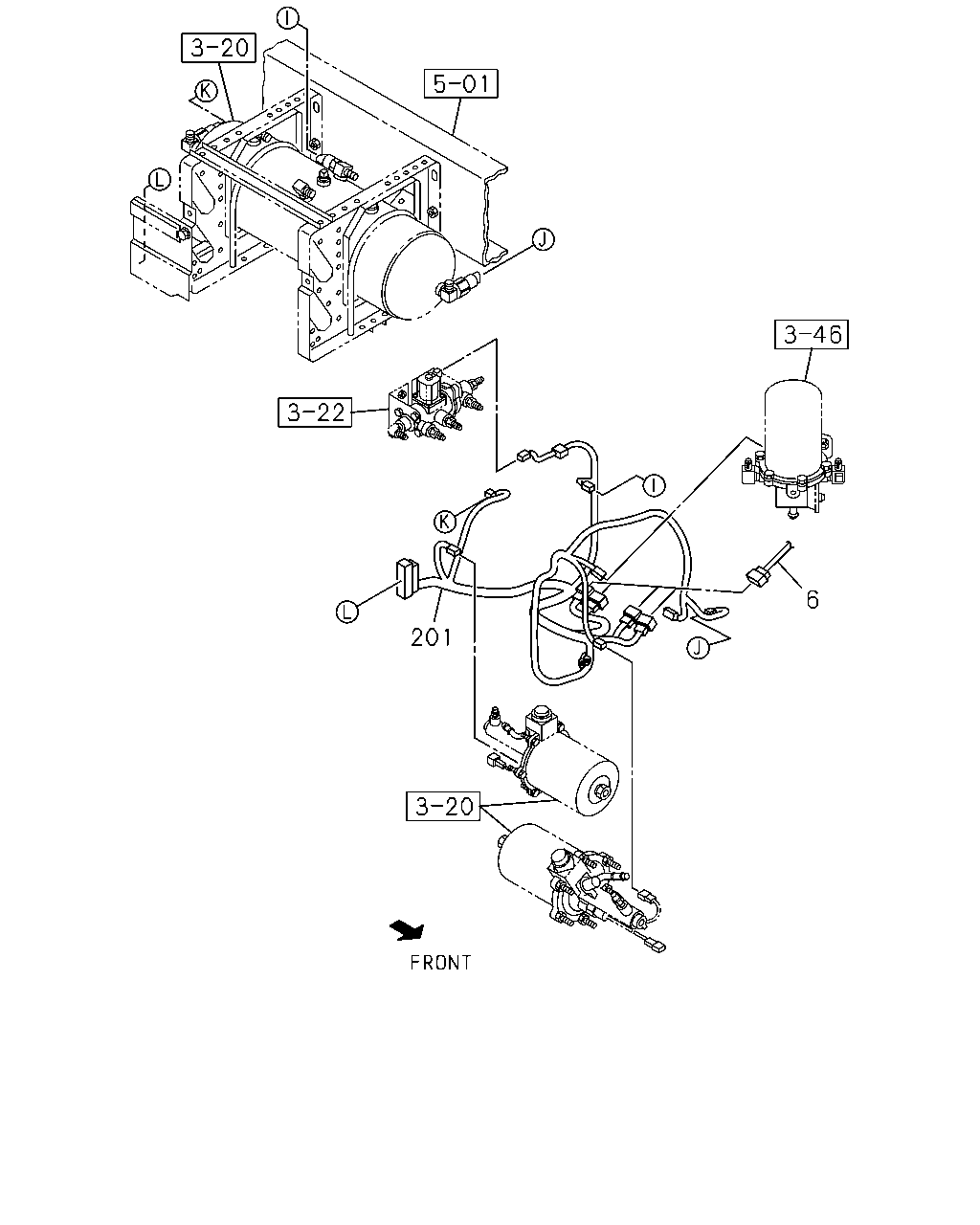

çizim 173795
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98171-730-1 01 1 1012-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-706-1 01 1 1012-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-708-1 01 1 1012-

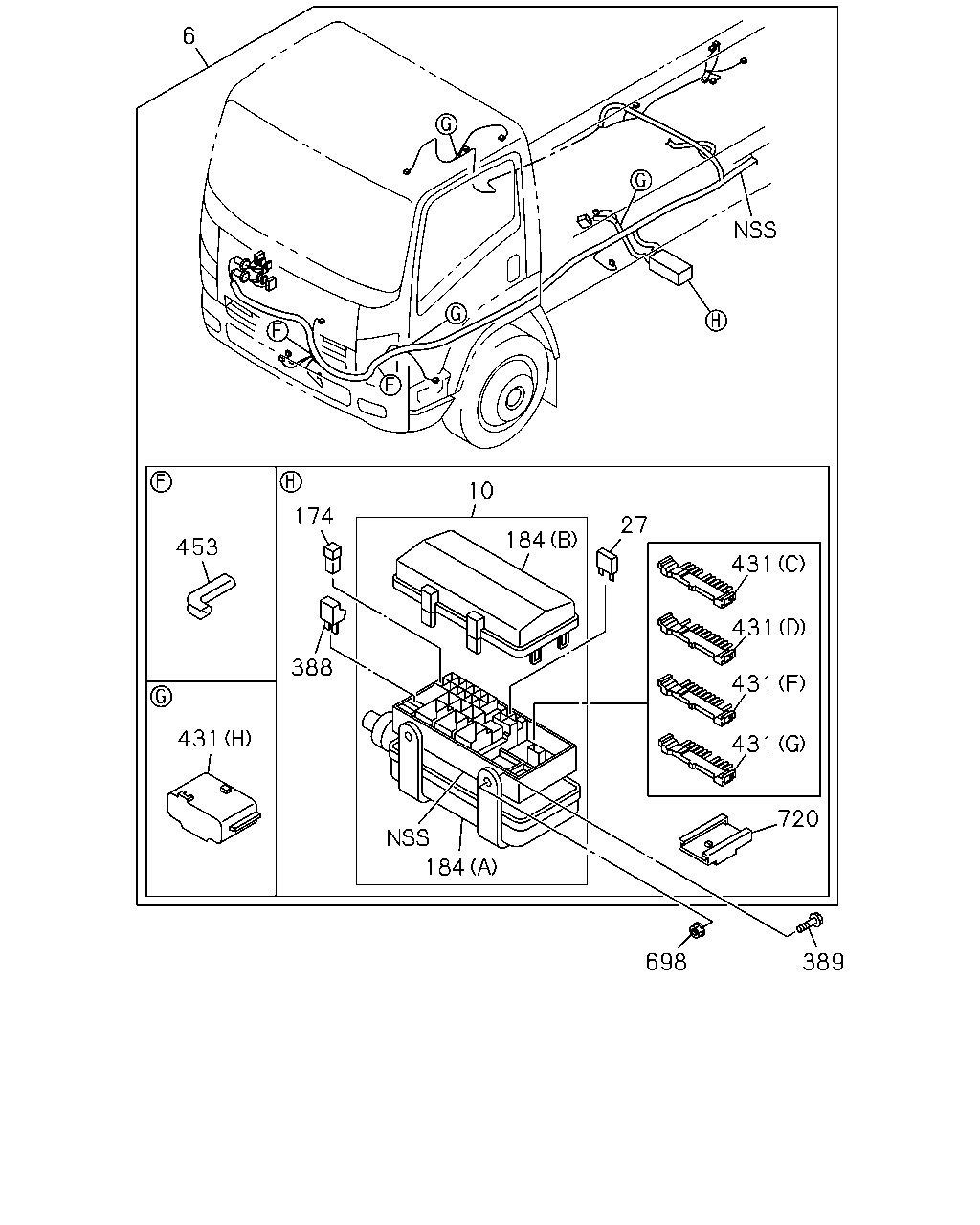

çizim 173796
6 10 174 27 184 453 431 431 388 431 431 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98171-730-1 01 1 1012-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1012-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1012-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1012-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1012-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1012-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1012-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1012-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1012-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 1012-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1012-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1012-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1012-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (C) 10P BLUE 		1-82699-598-0 01 1 1207-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1012-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (G) 10P GREEN 		1-82699-599-0 01 1 1207-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (D) 10P BROWN 		1-82699-601-0 09 1 1207-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (E) 10P 		8-97077-943-0 02 1 1207-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1012-1405
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1012-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1012-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1012-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1012-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1012-
çizim 173798
1 2 2 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-856-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-856-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-160-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98187-859-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-859-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-159-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-940-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-940-2 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-936-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-936-2 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-933-2 01 1 1012-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98083-933-2 01 1 1110-1203
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK 10P 		1-82699-703-0 AR 1 1207-
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1207-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1012-1206
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK 10P 		1-82699-703-0 01 1 1207-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 1012-1206
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 1207-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1012-1206
314 RESISTOR; HARNESS
AIR BAG DRIVER & PASSENGER(AK5) BLUE 		1-82691-204-0 01 1 1207-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1012-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (C) 10P BLUE 		1-82699-598-0 01 1 1207-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1012-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (G) 10P GREEN 		1-82699-599-0 01 1 1207-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1012-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (D) 10P BROWN 		1-82699-601-0 09 1 1207-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1012-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (E) 10P 		8-97077-943-0 02 1 1207-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1012-1405
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1012-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1012-

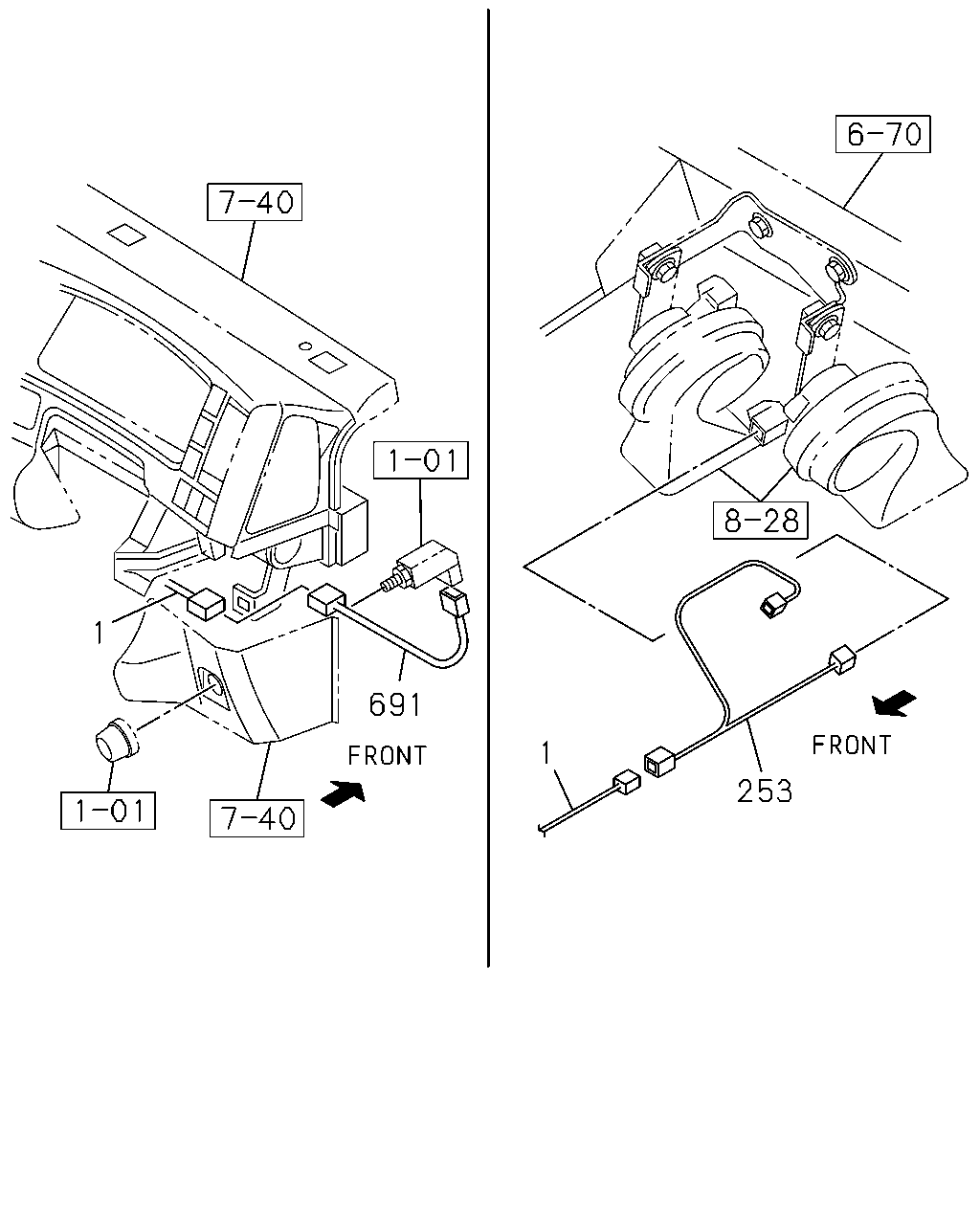

çizim 173799
1 691 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-856-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-856-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-160-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98187-859-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-859-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-159-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-940-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-940-2 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-936-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-936-2 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-933-2 01 1 1012-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98083-933-2 01 1 1110-1203
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1012-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1012-

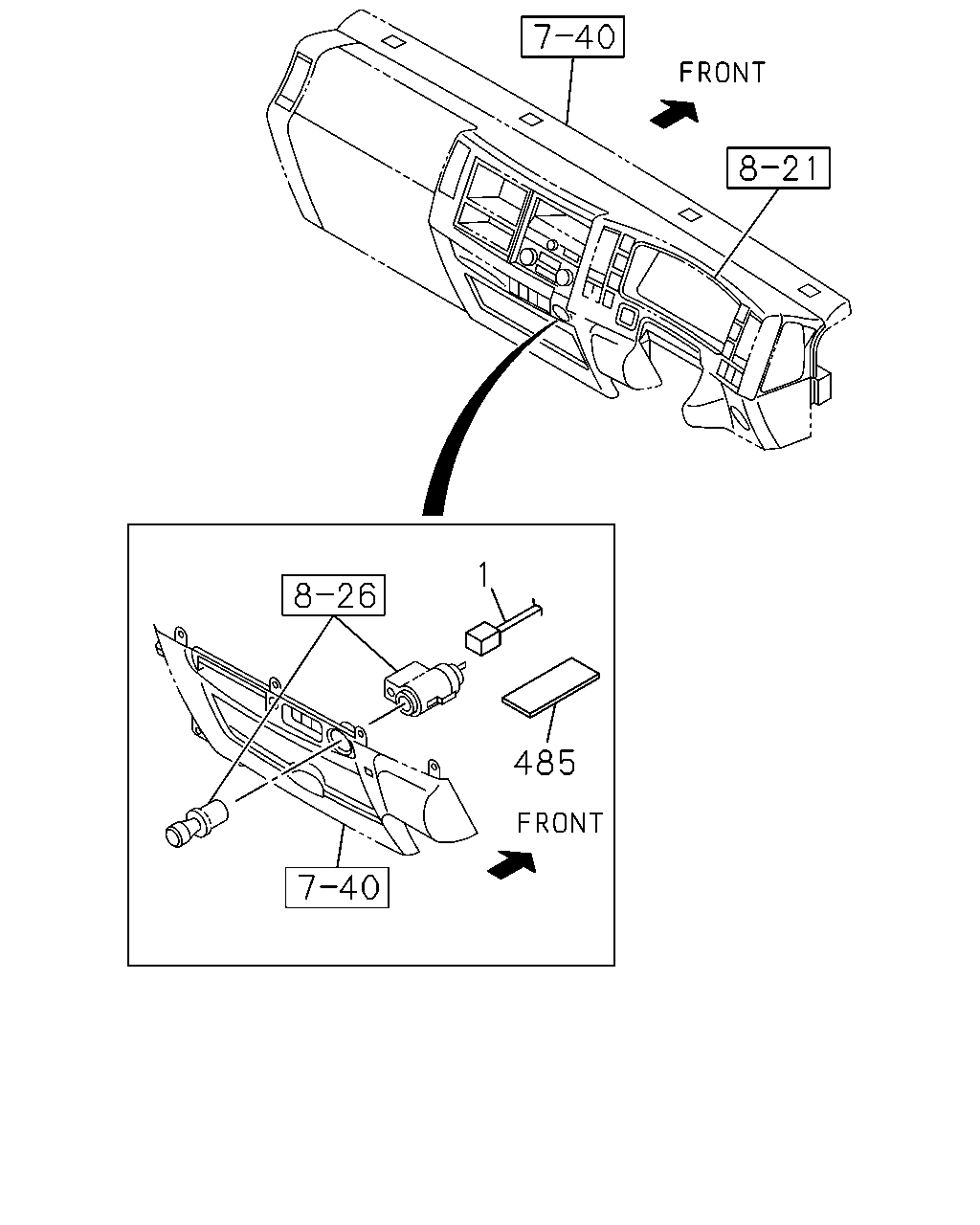

çizim 173800
1 485
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-856-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-856-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-160-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98187-859-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-859-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-854-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-159-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-940-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-940-2 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-936-2 01 1 1012-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-936-2 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98083-933-2 01 1 1012-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98083-933-2 01 1 1110-1203
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1012-

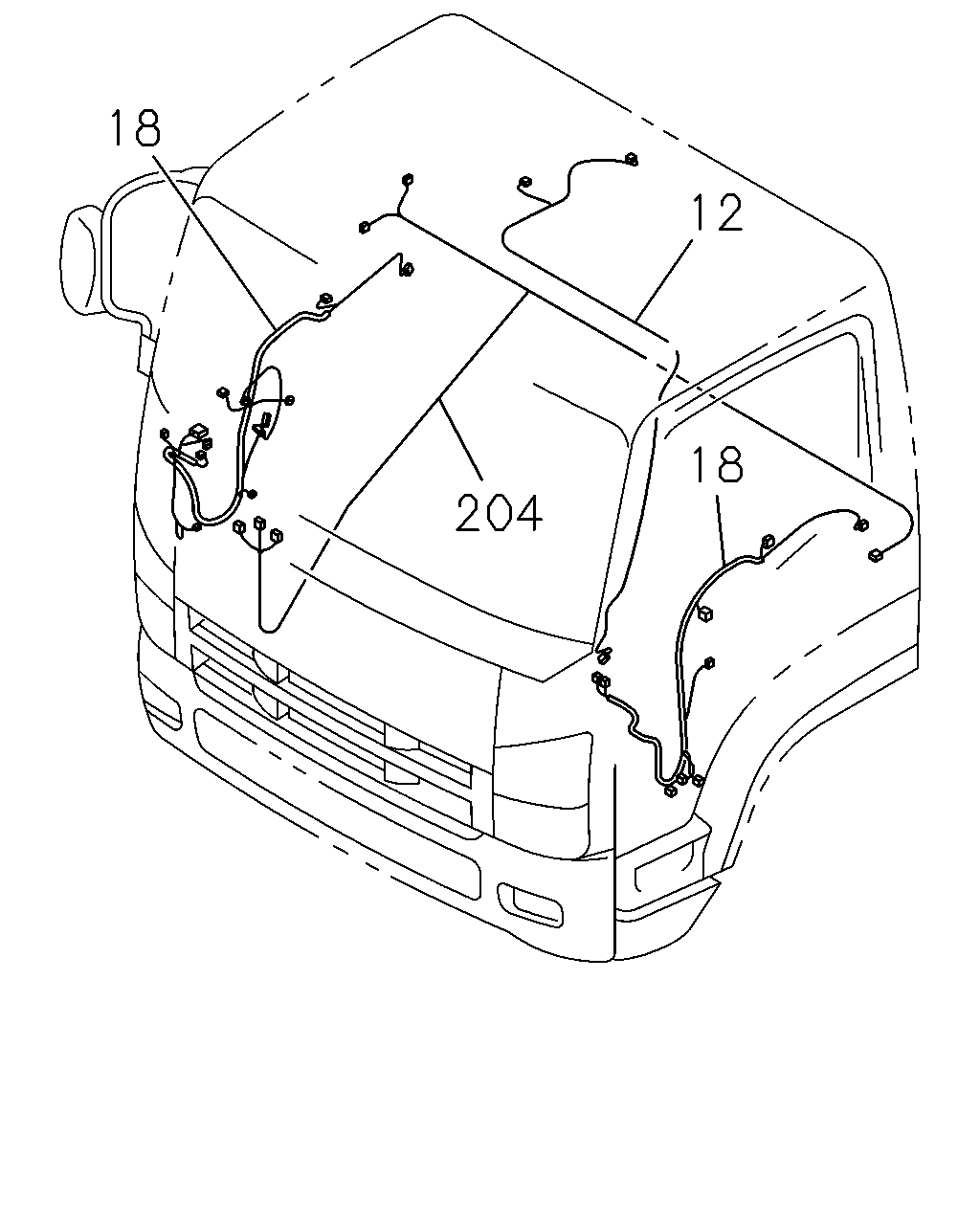

çizim 173812
18 12 18 204
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-930-2 01 1 1012-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-948-2 01 1 1012-
18 HARNESS; DOOR 8-98084-283-3 01 1 1012-1202
18 HARNESS; DOOR 8-98108-439-1 01 1 1203-
18 HARNESS; DOOR 8-98084-288-3 01 1 1012-1202
18 HARNESS; DOOR 8-98108-440-1 01 1 1203-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-199-0 01 1 1012-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98084-194-0 01 1 1012-
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-188-0 01 1 1012-

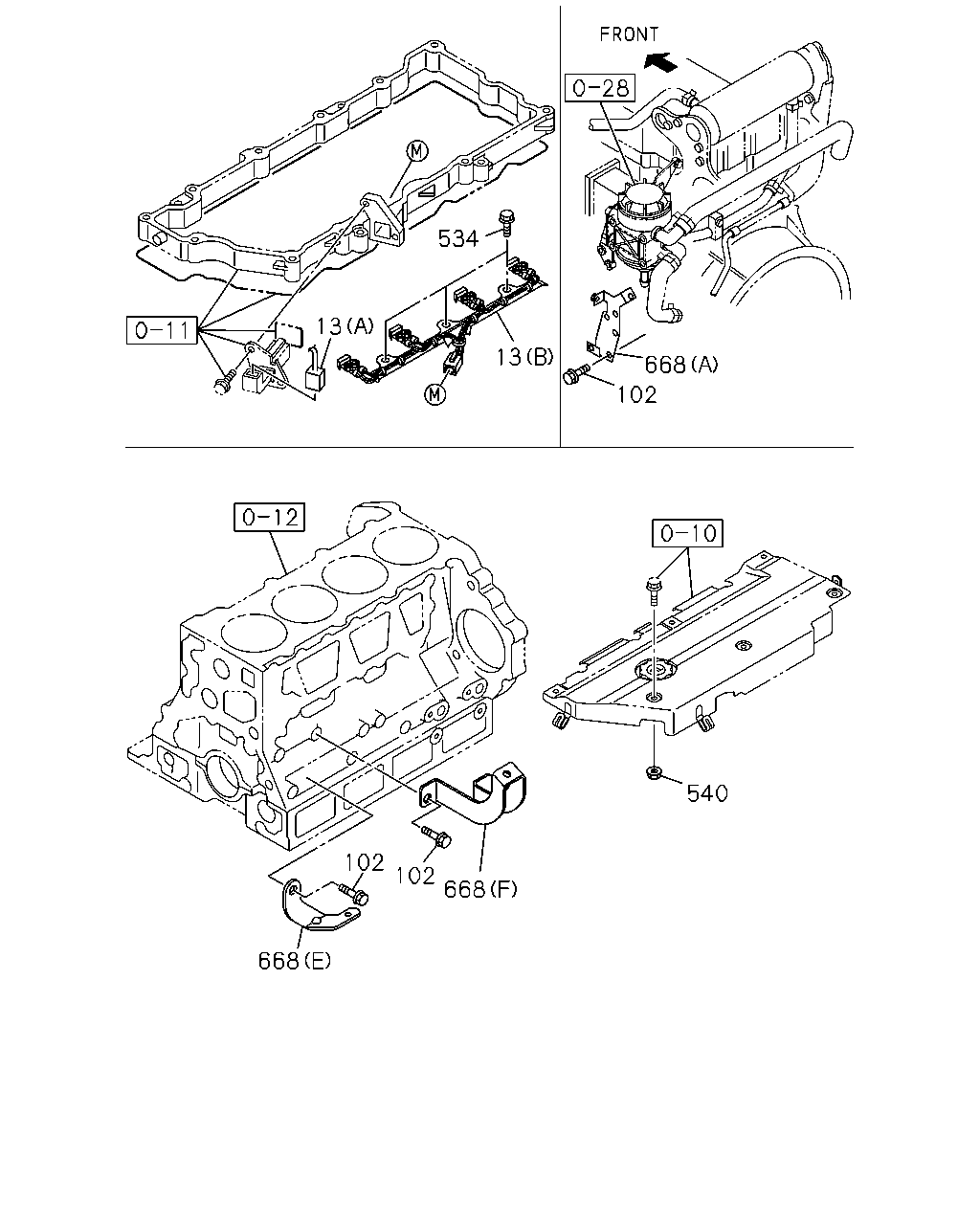

çizim 173816
534 13 13 668 102 540 102 102 668 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98162-659-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-039-0 01 1 1406-
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1012-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98162-660-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-040-0 01 1 1406-
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1012-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1012-
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 1012-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 1012-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1012-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1012-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1012-
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1012-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1012-
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1012-

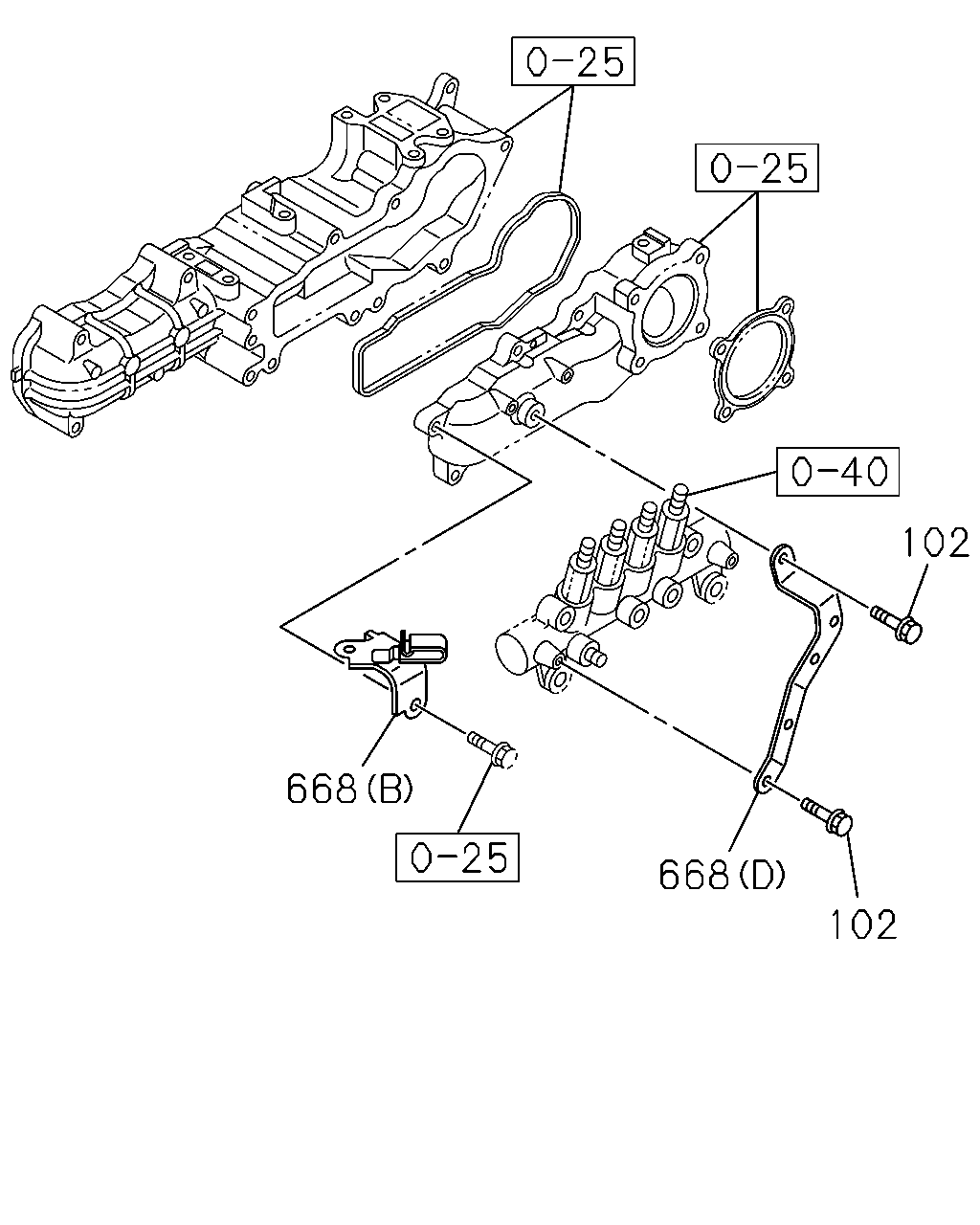

çizim 173817
102 668 668 102
BalonParca AdiParca NoAdetTipApplied Date
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1012-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1012-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1012-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1012-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1012-
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1012-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1012-
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1012-

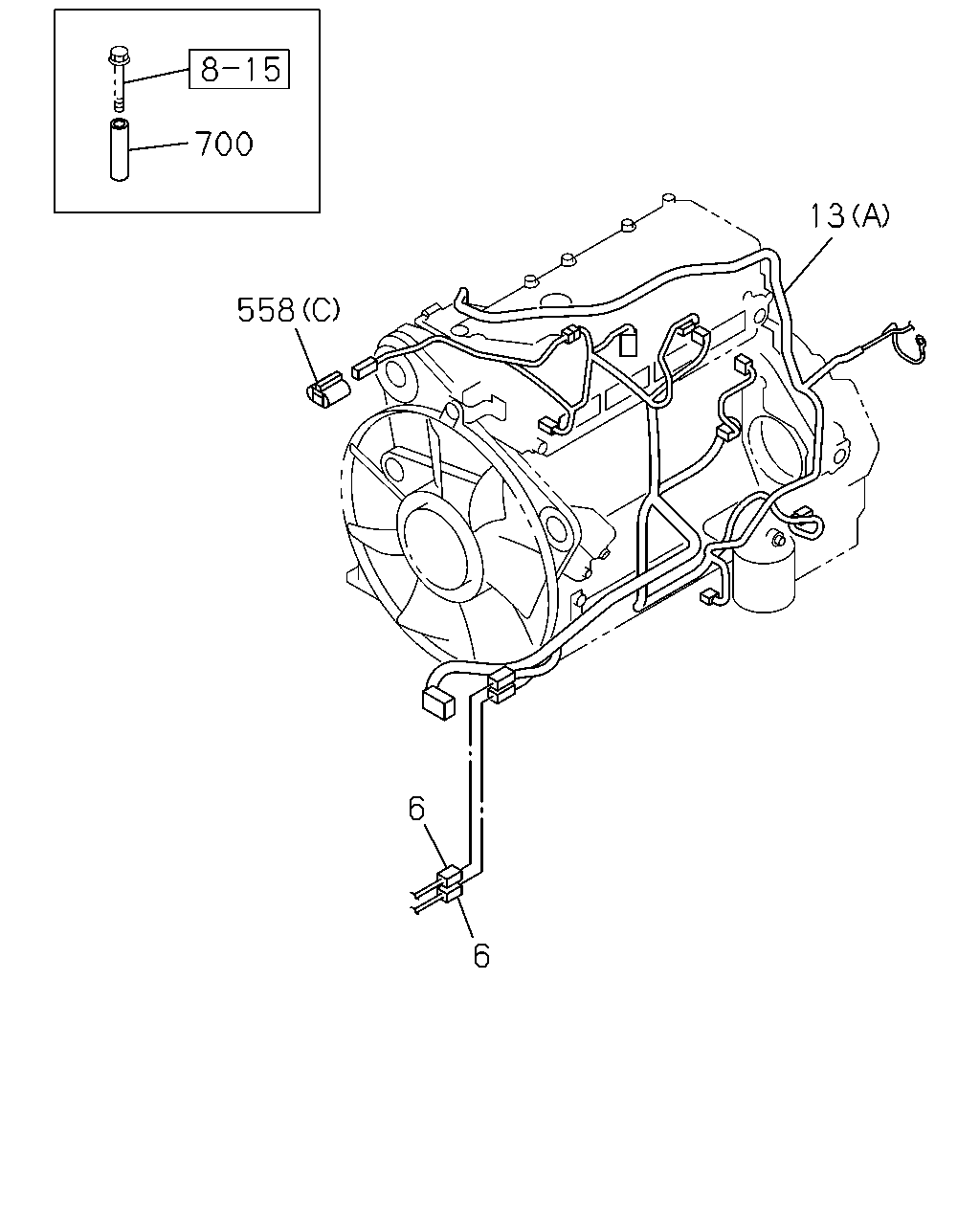

çizim 173824
700 13 558 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98171-730-1 01 1 1012-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98162-659-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-039-0 01 1 1406-
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1012-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98162-660-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-040-0 01 1 1406-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1012-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1012-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1012-
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1012-

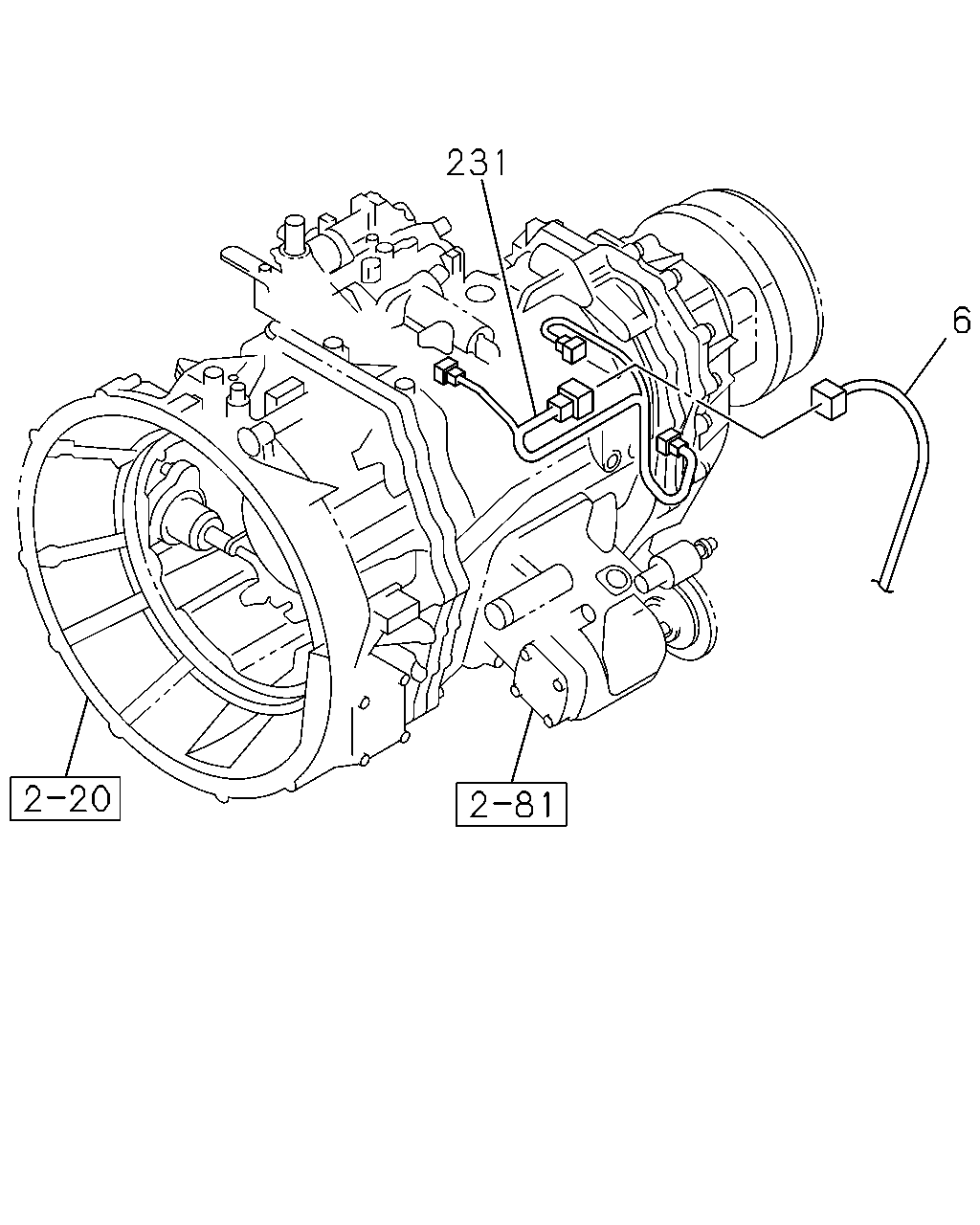

çizim 173847
231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98171-730-1 01 1 1012-
231 HARNESS; TRANS 8-98170-740-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
