◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11362 - FRR RHD EURO4 SPACECAB WITH DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#56434) — 94 parça
çizim 173773
357 399 355 432 431 331 32 44 15 47 49 36 448
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1012-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 1012-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 1012-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1012-
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1012-
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 1012-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 1012-
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1012-
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1012-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1012-
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1012-
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1012-
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1012-
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1012-
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1012-
çizim 173779
1 4 20 420 408 339 5 5 382 457 23 338 327 427 437 91
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 1012-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-592-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-635-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-320-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 1012-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-591-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-634-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-319-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 1012-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-600-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-641-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 1012-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-599-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-640-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1306-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-399-0 01 1 1012-1301
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-181-0 01 1 1302-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-398-0 01 1 1012-1301
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-180-0 01 1 1302-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-401-0 01 1 1012-1301
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-183-0 01 1 1302-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-400-0 01 1 1012-1301
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-182-0 01 1 1302-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1012-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1012-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1012-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1012-
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1012-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1012-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1012-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1209-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1209-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 1012-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1012-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1012-1301
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 04 1 1012-1209
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1012-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

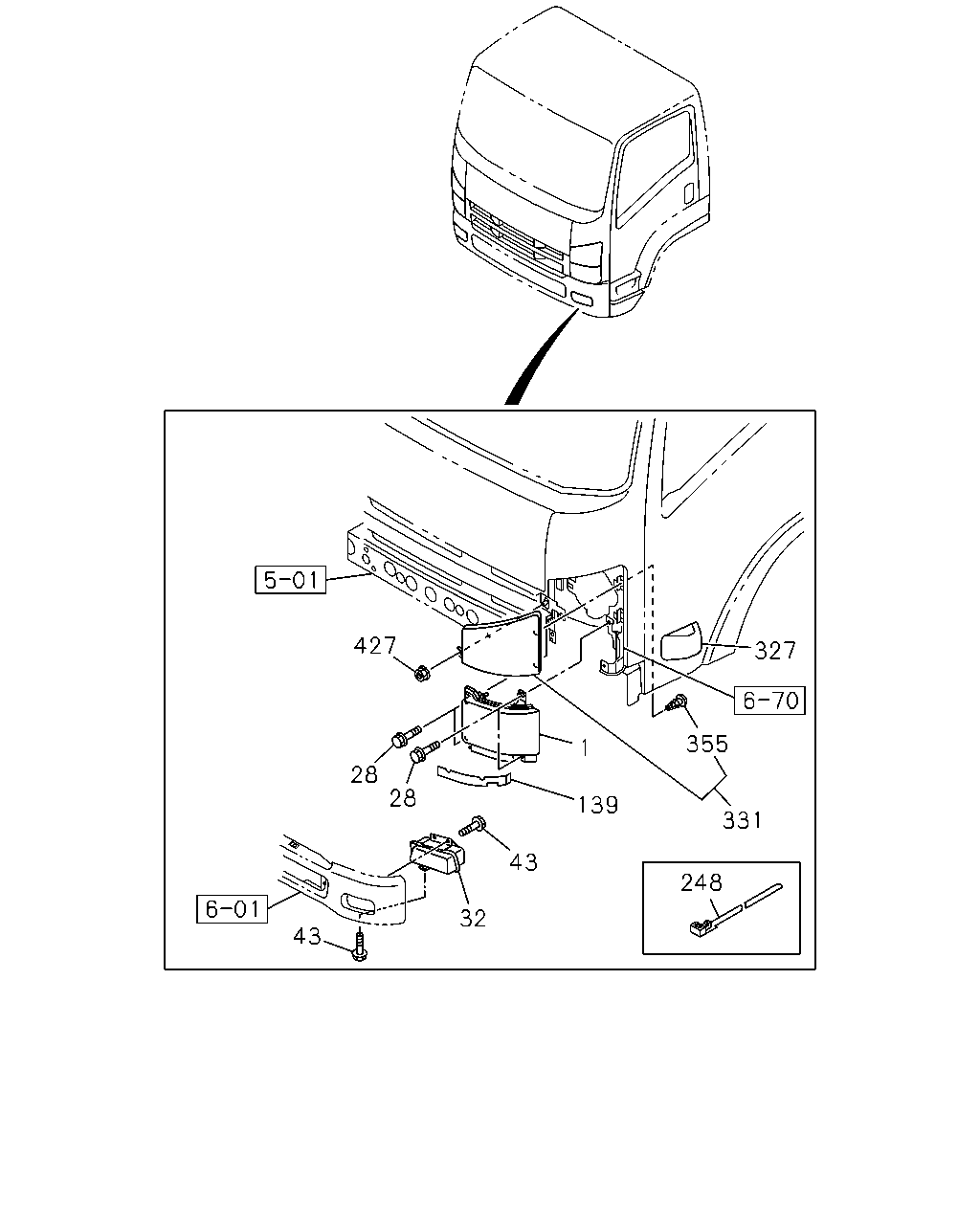

çizim 173797
427 327 355 1 28 28 139 331 43 248 32 43
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 1012-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-592-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-635-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-320-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 1012-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-591-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-634-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-319-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 1012-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-600-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-641-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 1012-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-599-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-640-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1306-
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1012-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 1012-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 1012-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1012-
139 COVER; HEADLAMP 8-98054-342-0 02 1 1012-
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 1012-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1012-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1012-
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1012-
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1012-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1012-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 04 1 1012-1209
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
