10772 - LV280(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

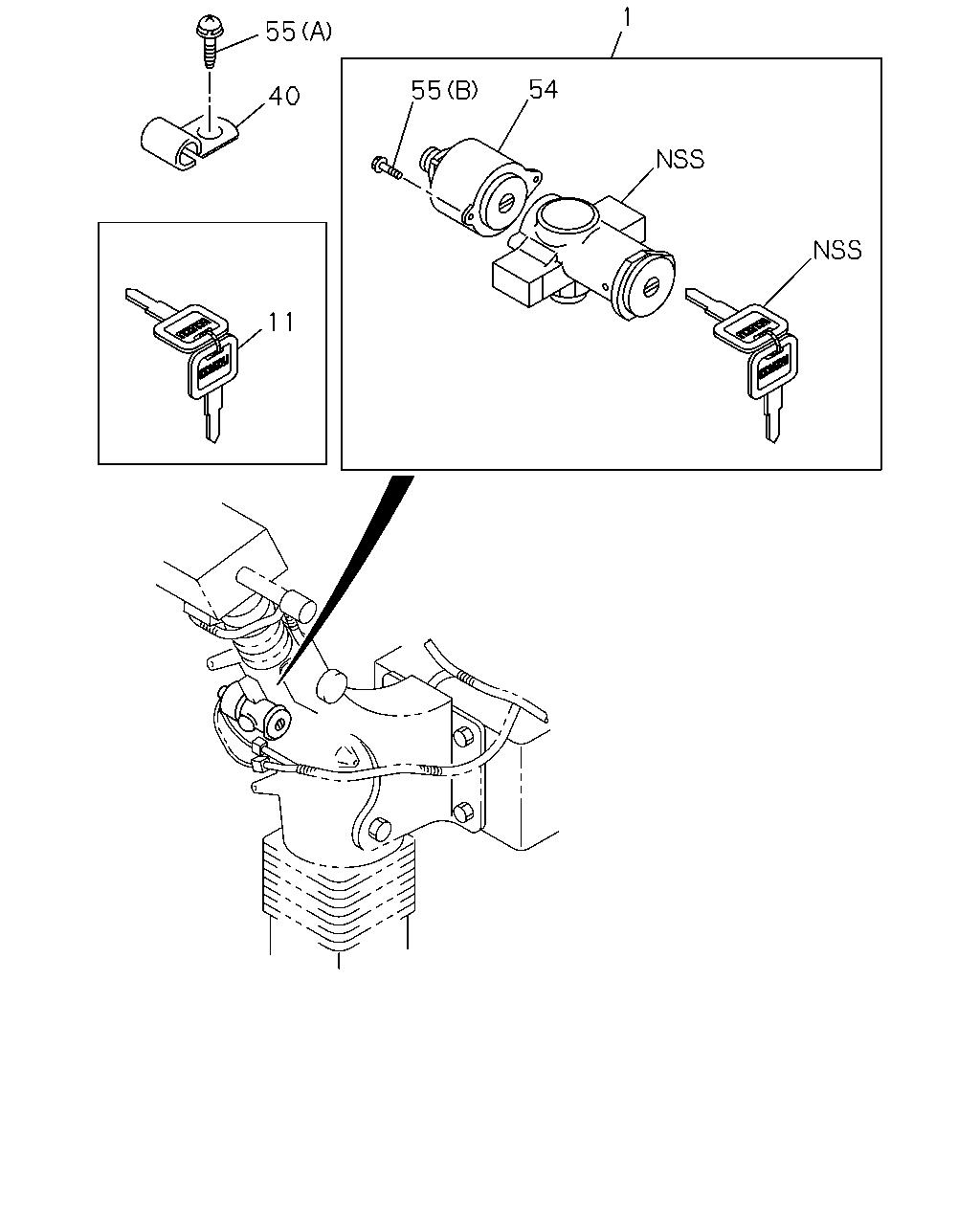

7-30 — LOCK CYLINDER SET
(#5643) — 12 parça
1
55
54
55
40
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
ENGINE KEY VAR 4<E2F>
1-79130-045-1
01
1
9705-
1
CYLINDER SET; CAR LOCK
EXC. ENGINE KEY VAR 4<E2F>,ENGINE KEY VAR 5<E7Q>
1-79130-052-1
01
1
9705-
1
CYLINDER SET; CAR LOCK
ENGINE KEY VAR 5<E7Q>
1-79130-053-1
01
1
9705-
11
KEY; BLANK
1-79137-130-1
AR
1
9705-
40
CLIP; CYL LK
ID=19 L=32
9-09525-862-0
01
1
9705-0104
40
CLIP; CYL LK
ID=16 L=20
9-09525-535-0
01
1
0105-0111
40
CLIP; CYL LK
ID=14.5 L=30
9-09916-893-1
01
1
0112-
54
SWITCH ASM; STRG LOCK CYL
1-79138-080-0
01
1
9705-
55
SCREW; SWITCH
(A) M6X16 W/LK&PL WASHER
8-94279-402-0
01
1
9705-0104
55
SCREW; SWITCH
M6X8 W/LK&PL WASHER
8-94279-401-0
01
1
0105-0111
55
SCREW; SWITCH
M6X12 W/PL WASHER
8-97806-950-0
01
1
0112-
55
SCREW; SWITCH
(B) M3X10 W/LK WASHER
9-03910-310-0
02
1
9705-
