◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11362 - FRR RHD EURO4 SPACECAB WITH DOC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#56426) — 21 parça
çizim 173764
1 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) 		8-98145-979-0 01 1 1012-1203
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) 		8-98201-216-0 01 1 1204-
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98056-003-0 01 1 1012-1203
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1204-
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1012-
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1012-

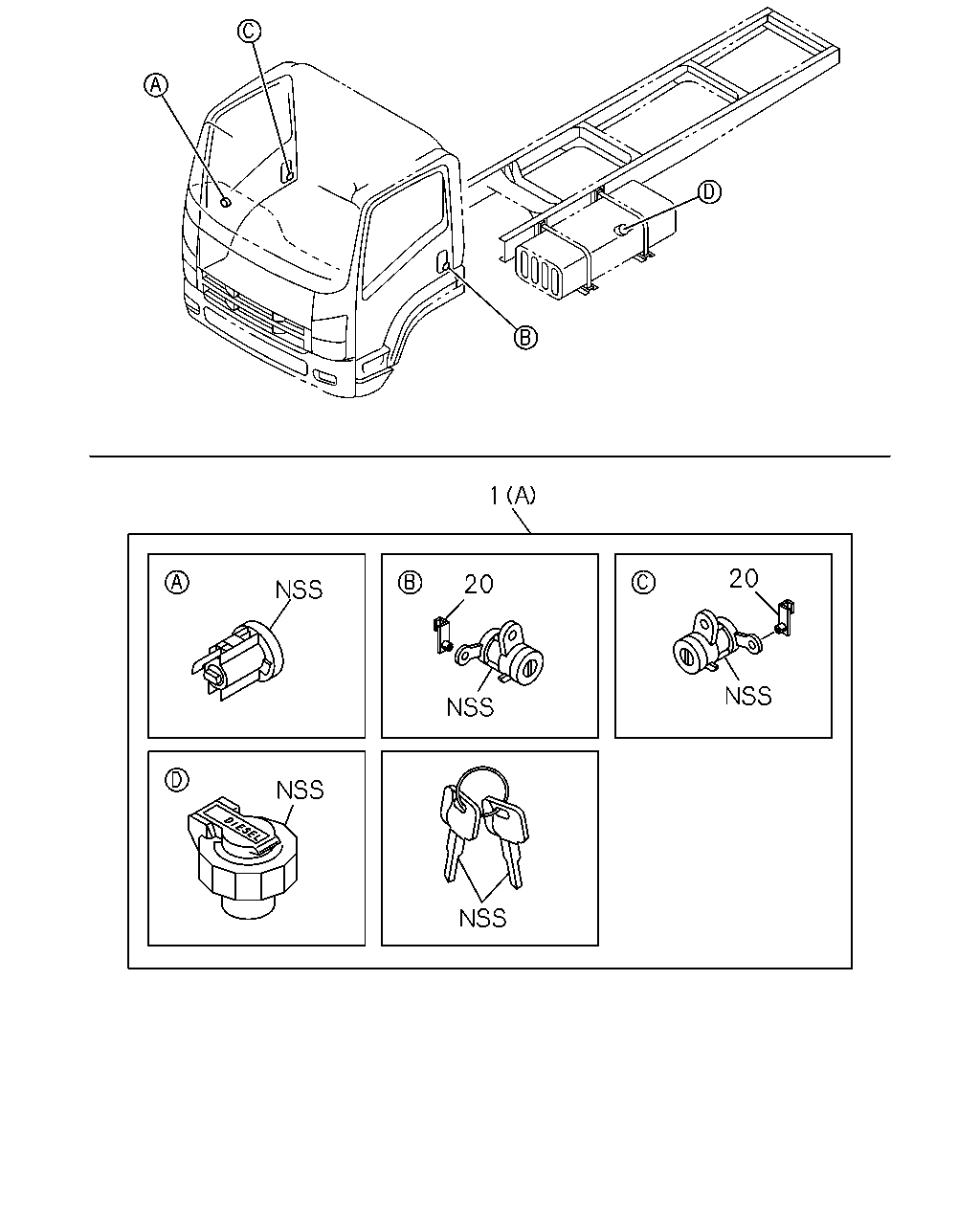

çizim 173765
1 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) 		8-98145-979-0 01 1 1012-1203
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) 		8-98201-216-0 01 1 1204-
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98056-003-0 01 1 1012-1203
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1204-
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1012-
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1012-

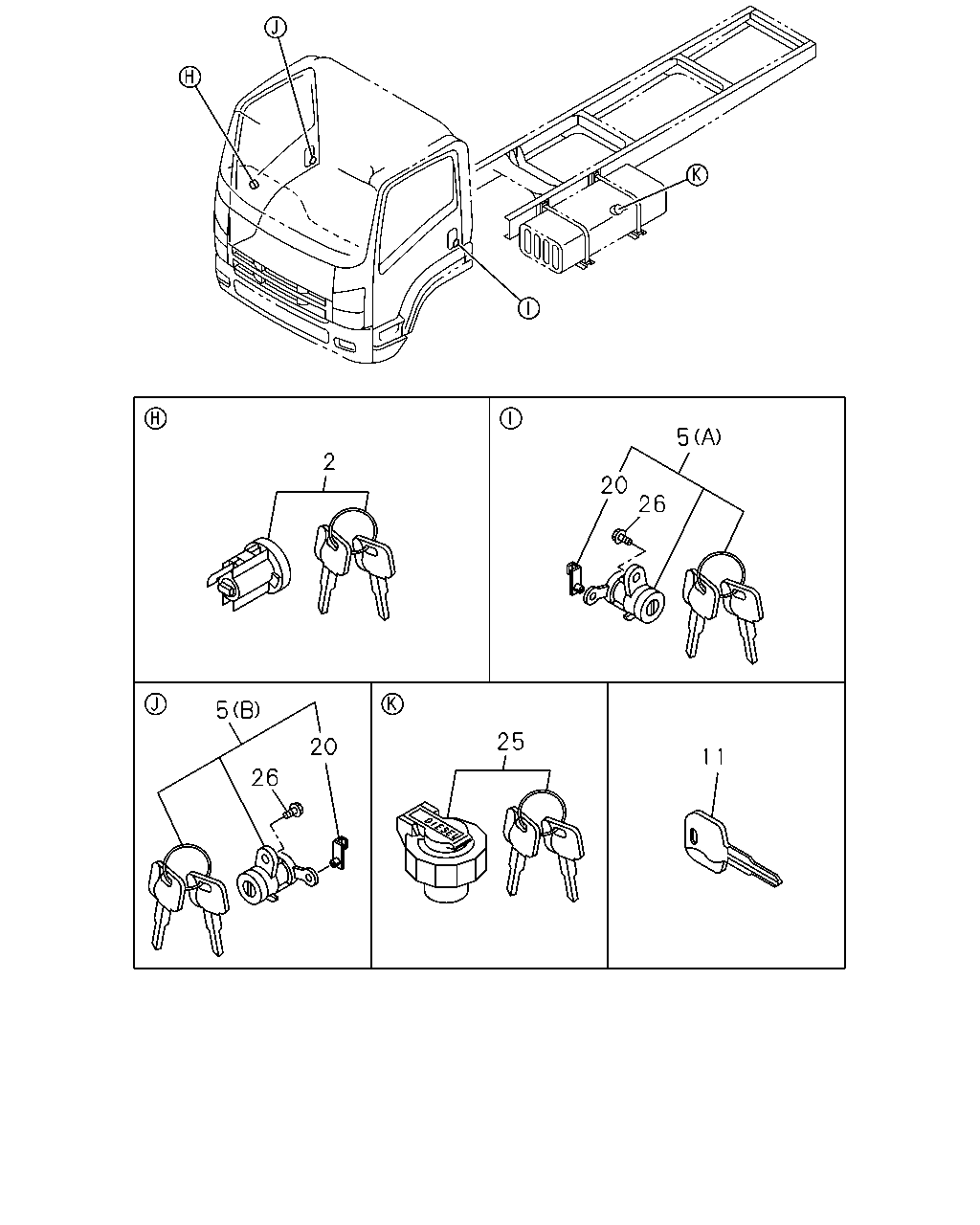

çizim 173768
5 2 20 26 5 25 20 11 26
BalonParca AdiParca NoAdetTipApplied Date
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 1012-1203
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1204-
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1012-
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1012-
11 KEY; BLANK 8-98055-170-0 AR 1 1012-
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1012-
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1012-
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> 		8-98146-010-0 01 1 1012-
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1012-
