◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11362 - FRR RHD EURO4 SPACECAB WITH DOC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#56425) — 62 parça

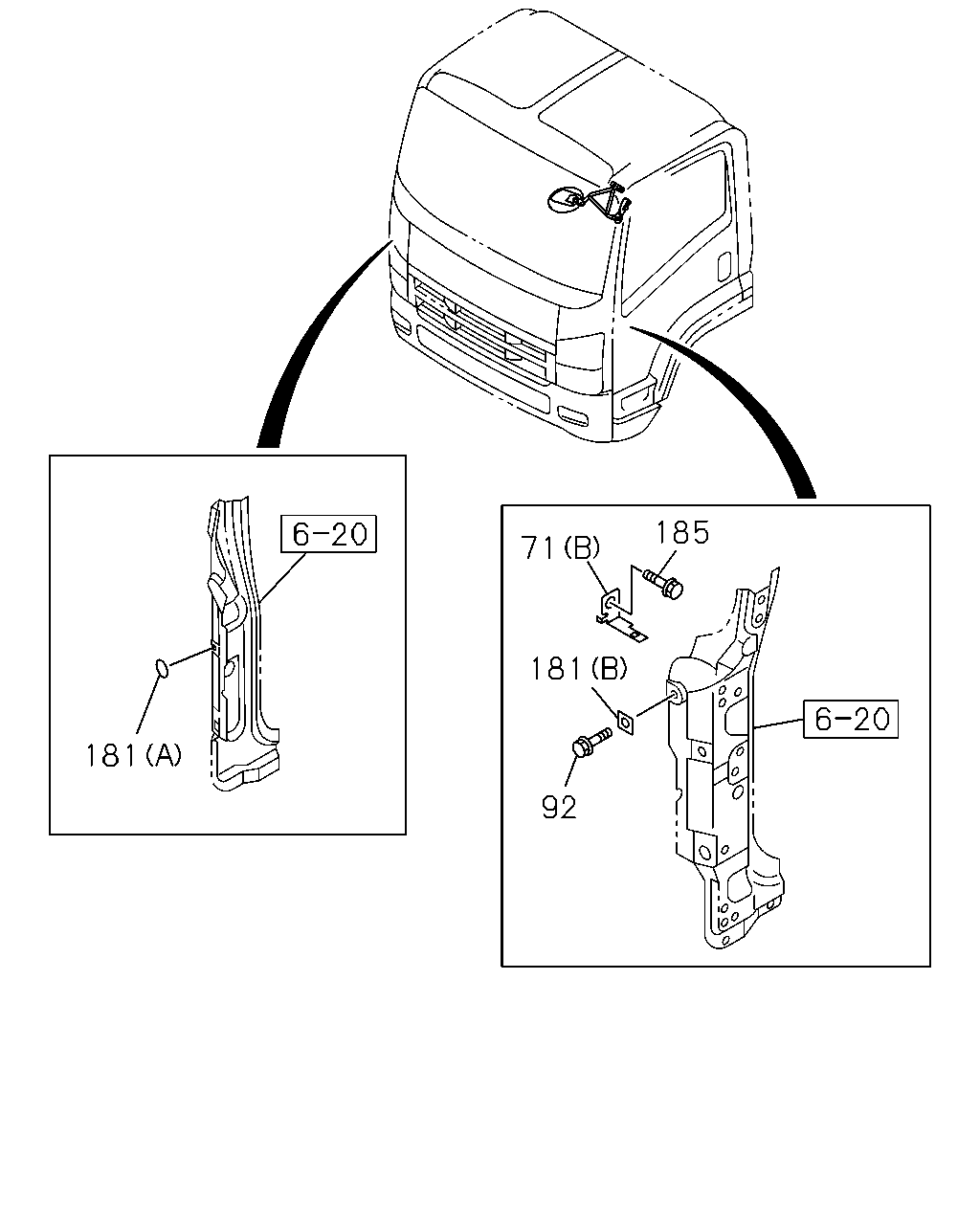

çizim 173763
185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98039-277-2 02 1 1012-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1012-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98060-240-0 01 1 1012-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98092-492-3 01 1 1012-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1012-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1012-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1012-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1012-
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1012-1202

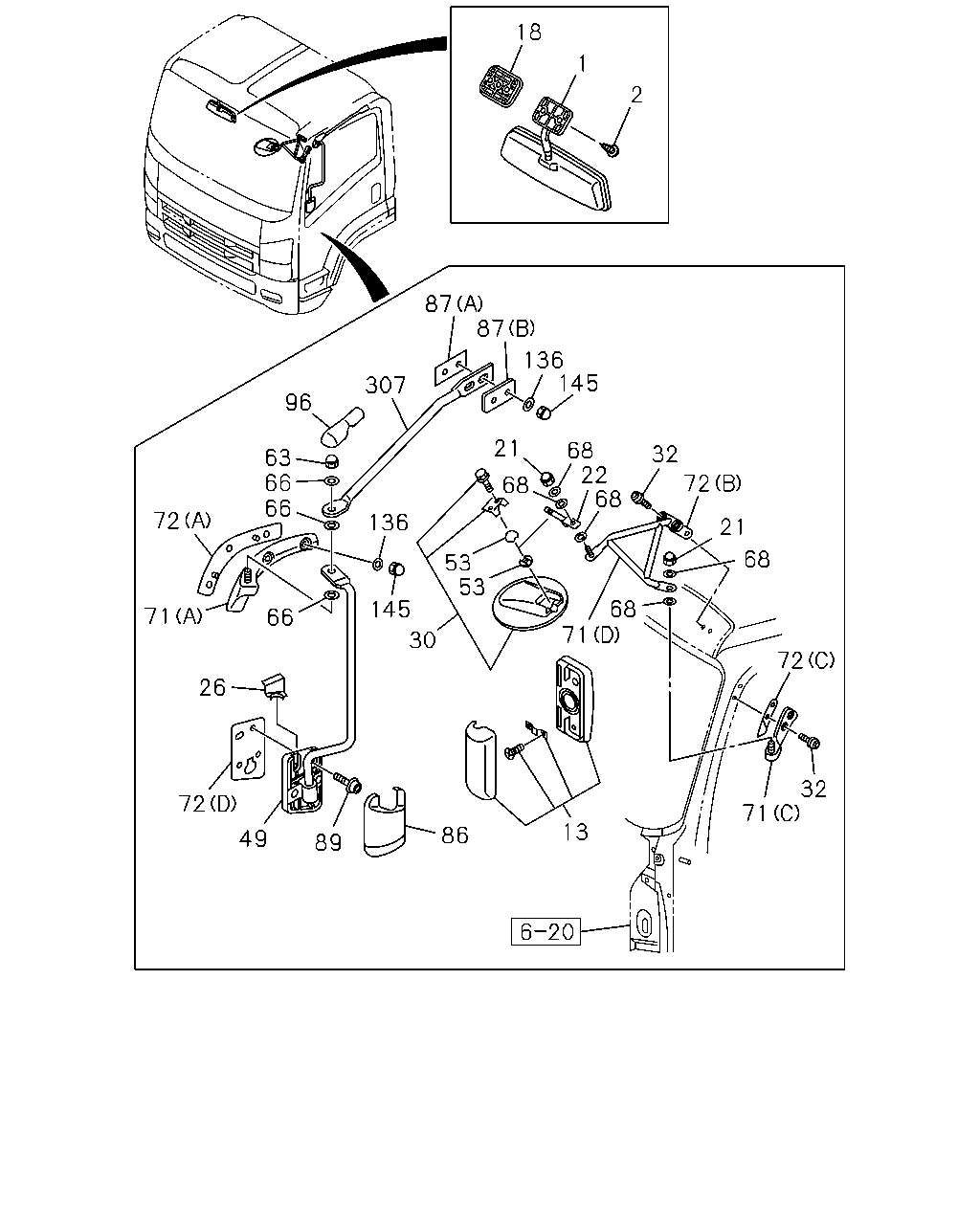

çizim 173807
18 1 2 87 87 136 145 307 96 21 68 22 68 32 63 66 66 72 68 72 136 21 68 53 53 68 71 145 71 66 30 72 26 32 71 72 13 86 49 89
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 1012-
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 1012-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1012-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1012-
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 1012-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1012-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1012-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1012-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1012-
30 MIRROR; UNDER 8-98055-994-0 01 1 1012-1504
30 MIRROR; UNDER 8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1012-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98238-634-0 01 1 1304-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98238-635-0 01 1 1304-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98060-216-1 01 1 1012-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-195-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98060-215-1 01 1 1012-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-194-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98067-515-1 01 1 1012-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-181-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98067-514-1 01 1 1012-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-180-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-061-1 01 1 1012-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-207-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-060-1 01 1 1012-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-206-0 01 1 1203-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1012-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1012-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1012-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1012-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98039-277-2 02 1 1012-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1012-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98060-240-0 01 1 1012-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98092-492-3 01 1 1012-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1012-
72 SHEET
(A) 		8-98031-797-0 01 1 1012-
72 SHEET
(B) 		8-98060-245-1 01 1 1012-
72 SHEET
(C) 		8-98064-776-0 01 1 1012-
72 SHEET
(D) 		8-98101-865-0 01 1 1012-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(A) 		8-98031-796-0 01 1 1012-
72 SHEET
(D) 		8-98101-864-0 01 1 1012-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1012-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1012-
87 SPACER
(A) 		8-98063-786-0 02 1 1012-
87 SPACER
(B) 		8-98063-789-0 02 1 1012-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1012-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1012-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1012-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1012-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1012-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1012-
