Sayfa 7-10 - Isuzu EPC

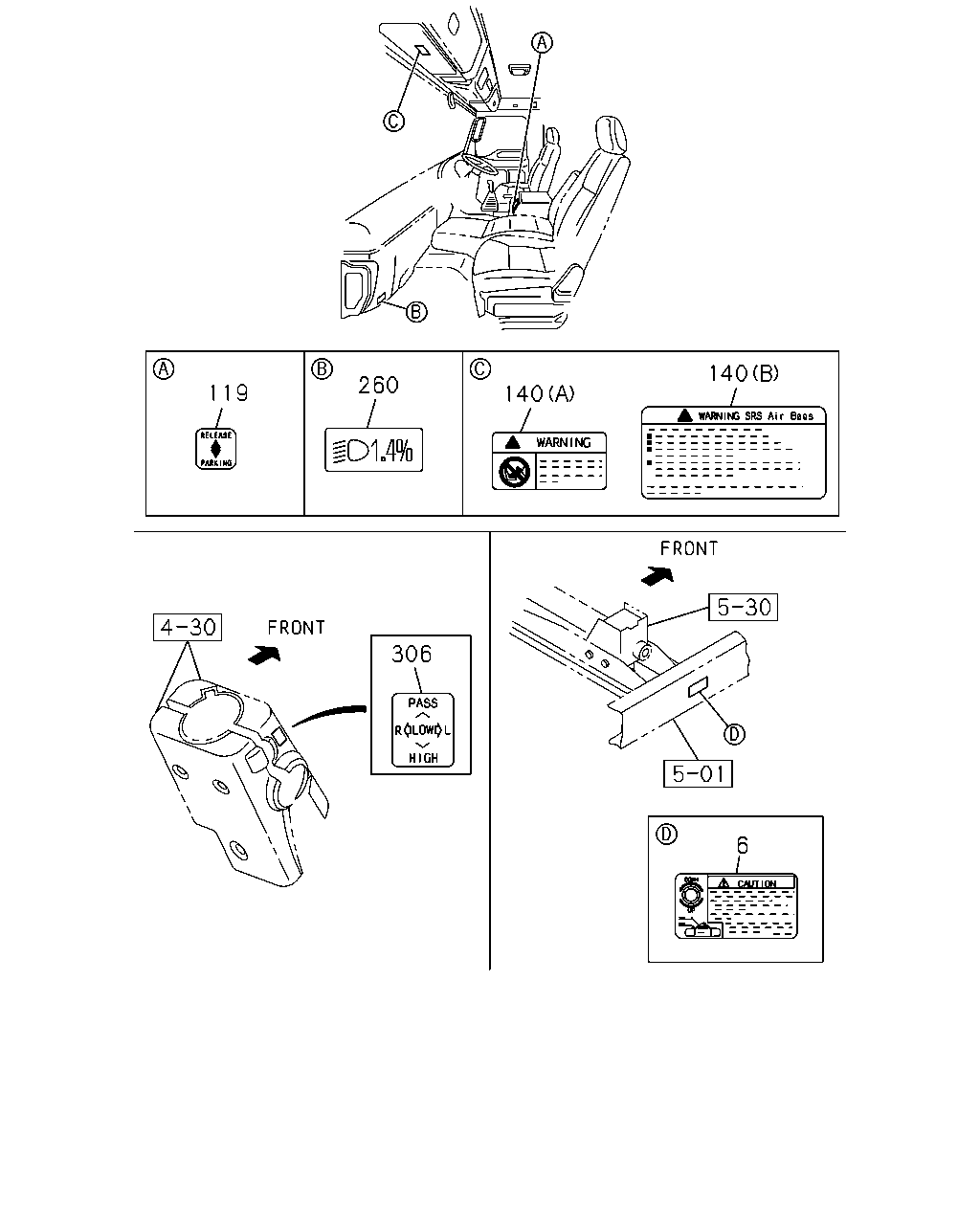

7-10 — CAUTION PLATE AND LABEL (#56424) — 8 parça

35 49

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	35	PLATE; CAUTION,CAB	8-98065-363-0	01	1	1012-
	49	PLATE; CAUTION,FUSE BOX	8-98122-353-0	01	1	1012-

140 260 119 140 306 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	1012-
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	1012-
140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B)	8-98139-964-0	01	1	1012-
140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5) (A)	8-98080-839-0	02	1	1012-
260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1012-
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
