◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10772 - LV280(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#5642) — 15 parça
çizim 43774
124 132 127 126 69 138 69
BalonParca AdiParca NoAdetTipApplied Date
69 PLATE; CAUTION,STARTER SW
(A) 		1-85887-447-1 01 1 9705-
69 PLATE; CAUTION,STARTER SW
(B) 		1-85888-184-0 01 1 9705-
124 PLATE; CAUTION,INTAKE HEATER
INTAKE HEATER<SL2> 		1-85887-040-0 01 1 9705-
126 PLATE; CAUTION,BATTERY RELAY SW 1-85887-130-0 01 1 9705-
127 PLATE; CAUTION,OIL PRESSURE METER 1-85888-185-0 01 1 9705-
132 PLATE; CAUTION,GENERATOR 1-85888-532-0 01 1 9705-
138 PLATE; NAME,JUNCTION
AGC FUSE 150A 		1-85888-951-1 01 1 9705-9906
138 PLATE; NAME,JUNCTION
AGC FUSE 170A 		1-85878-246-0 01 1 9905-
228 PLATE; CAUTION,AIR DRYER 1-85887-934-0 01 1 9705-

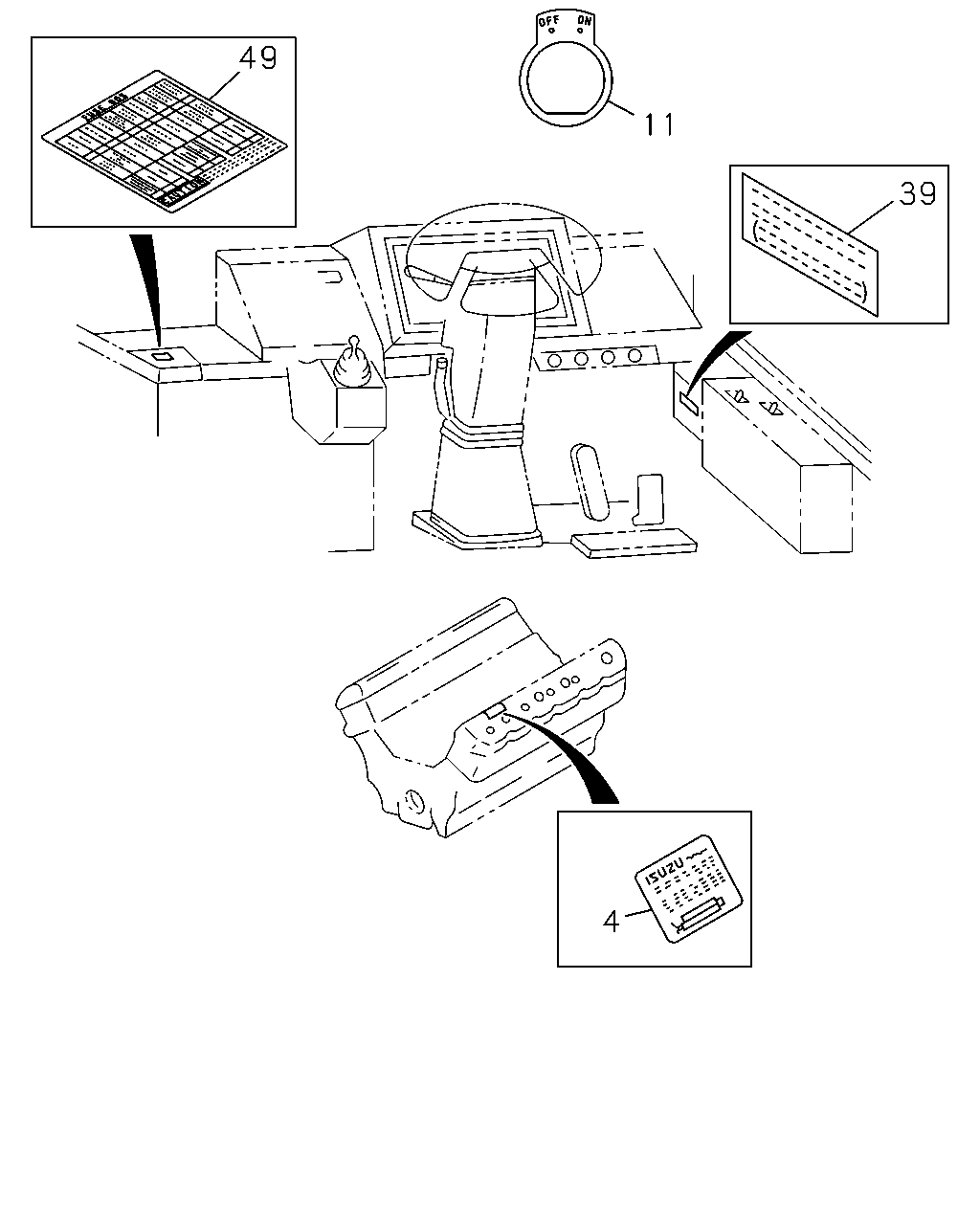

çizim 44507
49 11 39 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
CRANK PULLEY 7 GROOVES<Q2V> INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85886-787-1 01 1 9705-9708
4 LABEL; ENG MAINTENANCE
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> EXC. DENSHI TIMER<WW8> 		1-85886-787-1 01 1 9709-
11 PLATE; NAME
INTAKE HEATER<SL2> 		1-85877-118-0 01 1 9705-
39 PLATE; CAUTION,ENG STOP 1-85888-186-0 01 1 9705-
49 PLATE; CAUTION,FUSE BOX 1-85888-530-1 01 1 9705-
228 PLATE; CAUTION,AIR DRYER 1-85887-934-0 01 1 9705-
