2-30 — GEAR SHIFTER AND QUADRANT BOX (#56406) — 190 parça

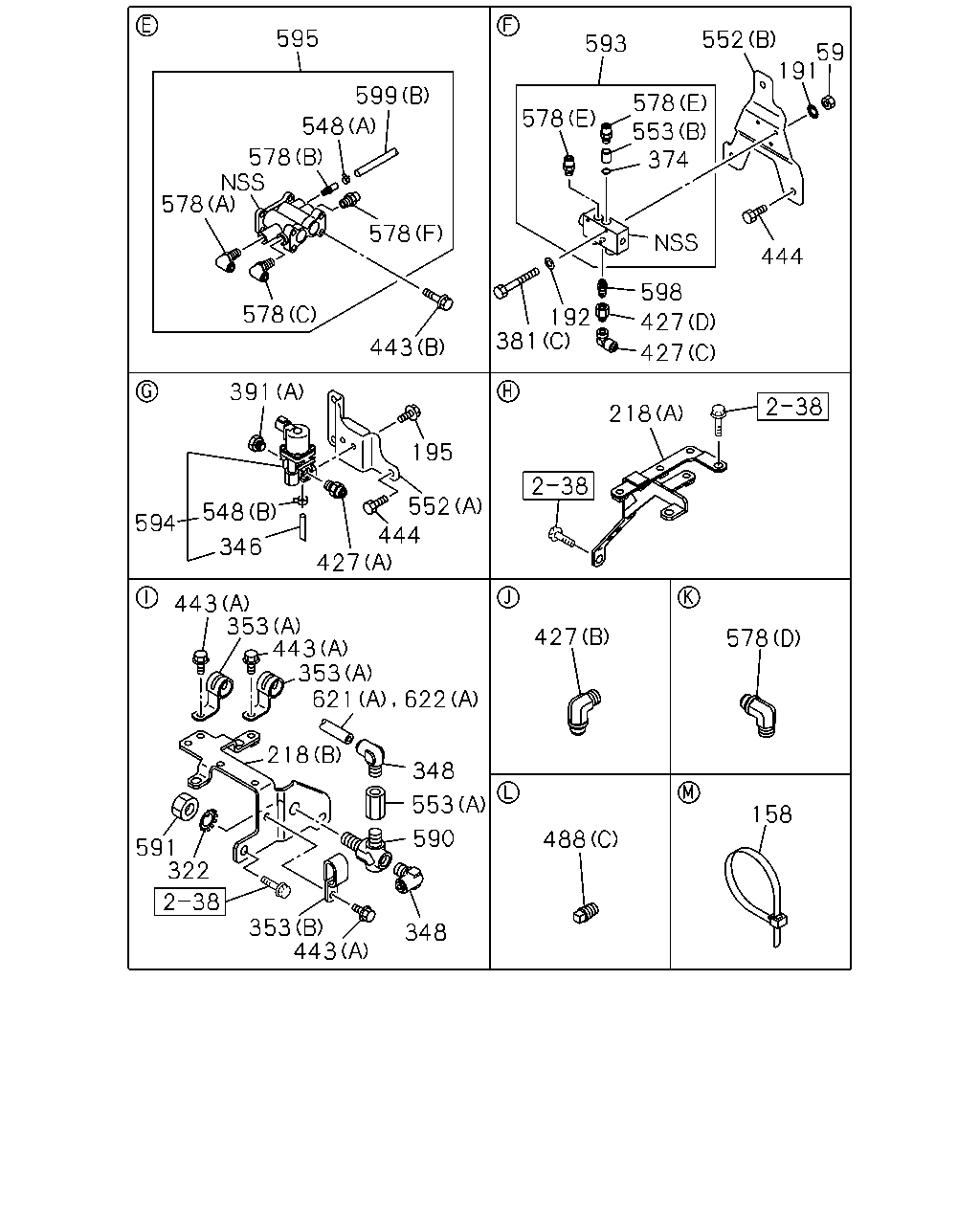

çizim 133641
595 599 548 578 578 578 578 443 391 195 552 444 427 548 594 346 443 353 443 353 621 622 348 553 590 348 443 353 322 591 218 593 552 578 553 374 578 59 191 444 598 427 427 381 192 218 427 578 158 488
BalonParca AdiParca NoAdetTipApplied Date
59 NUT 1-09440-068-0 04 1 0811-
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0811-
191 WASHER; LK 1-09503-311-0 04 1 0811-
192 WASHER; PL 1-09503-310-0 04 1 0811-
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 0811-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 0811-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-490-0 01 1 0811-
322 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0811-
346 HOSE; AIR
ID=6 OD=9 L=150 		1-33739-872-0 01 1 1402-
348 CONNECTOR; AIR HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0811-
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 0811-
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 0811-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-09661-390-0 01 1 0811-
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0811-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0811-
381 BOLT
(C) 		1-09044-111-0 04 1 0811-
391 PLUG; SW HOLE
(B) M14X9 		8-98042-944-0 02 1 0811-
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 0811-1304
391 PLUG; SW HOLE
(A) M12X9 		0-92002-412-0 01 1 1305-
427 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0811-
427 CONNECTOR; NYLON TUBE
(C) 		1-09660-924-1 01 1 0811-
427 CONNECTOR; NYLON TUBE
(D) 		1-09660-931-1 01 1 0811-
427 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0811-
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0811-
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 0811-
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 0811-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 0811-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0811-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0811-
548 CLIP; HOSE
(B) ID=7.8 		8-94246-958-0 11 1 0811-1401
548 CLIP; HOSE
(B) ID=7.8 		8-94246-958-0 01 1 1402-
548 CLIP; HOSE
(A) 		1-33712-028-0 01 1 0811-
552 BRACKET
(A) 		1-33719-082-0 01 1 0811-
552 BRACKET
(B) 		1-33719-083-0 01 1 0811-
553 ADAPTER; AIR
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0811-
553 ADAPTER; AIR
(B) 		1-09661-389-0 01 1 0811-
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0811-
578 CONNECTOR
(E) 		1-09661-292-0 02 1 0811-
578 CONNECTOR
(F) 		1-33712-023-0 01 1 0811-
578 CONNECTOR
(A) 		1-33712-024-0 01 1 0811-
578 CONNECTOR
(C) 		1-33712-025-0 01 1 0811-
578 CONNECTOR
(B) 		1-33712-026-0 01 1 0811-
590 UNION; AIR
M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0811-
591 NUT; UNION
M16 		0-91111-516-0 01 1 0811-
593 VALVE; SPLITTER 1-33712-009-0 01 1 0811-
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 0811-
595 VALVE; RANGE 1-33712-008-2 01 1 0811-
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0811-
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 0811-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 0811-
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 03 1 0811-
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0811-
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 03 1 0811-
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0811-

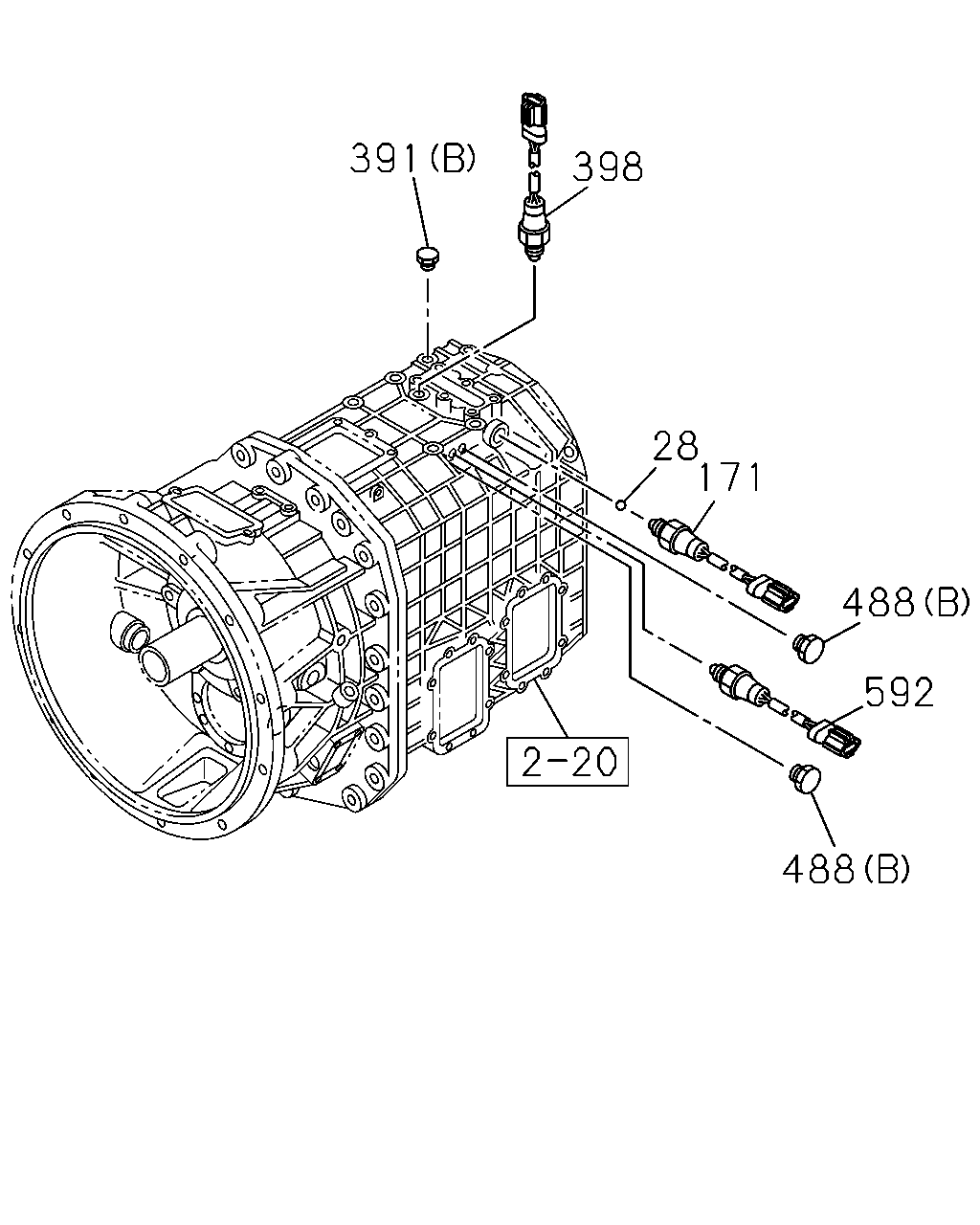

çizim 133643
391 398 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date
28 BALL; INTER LK 9-00097-501-0 02 1 0811-
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0811-1005
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1006-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
391 PLUG; SW HOLE
(B) M14X9 		8-98042-944-0 02 1 0811-
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 0811-1304
391 PLUG; SW HOLE
(A) M12X9 		0-92002-412-0 01 1 1305-
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0811-1209
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 0811-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0811-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0811-
592 SWITCH; POSITION 8-98042-853-0 01 1 0811-1209
592 SWITCH; POSITION 8-98228-482-0 01 1 1210-

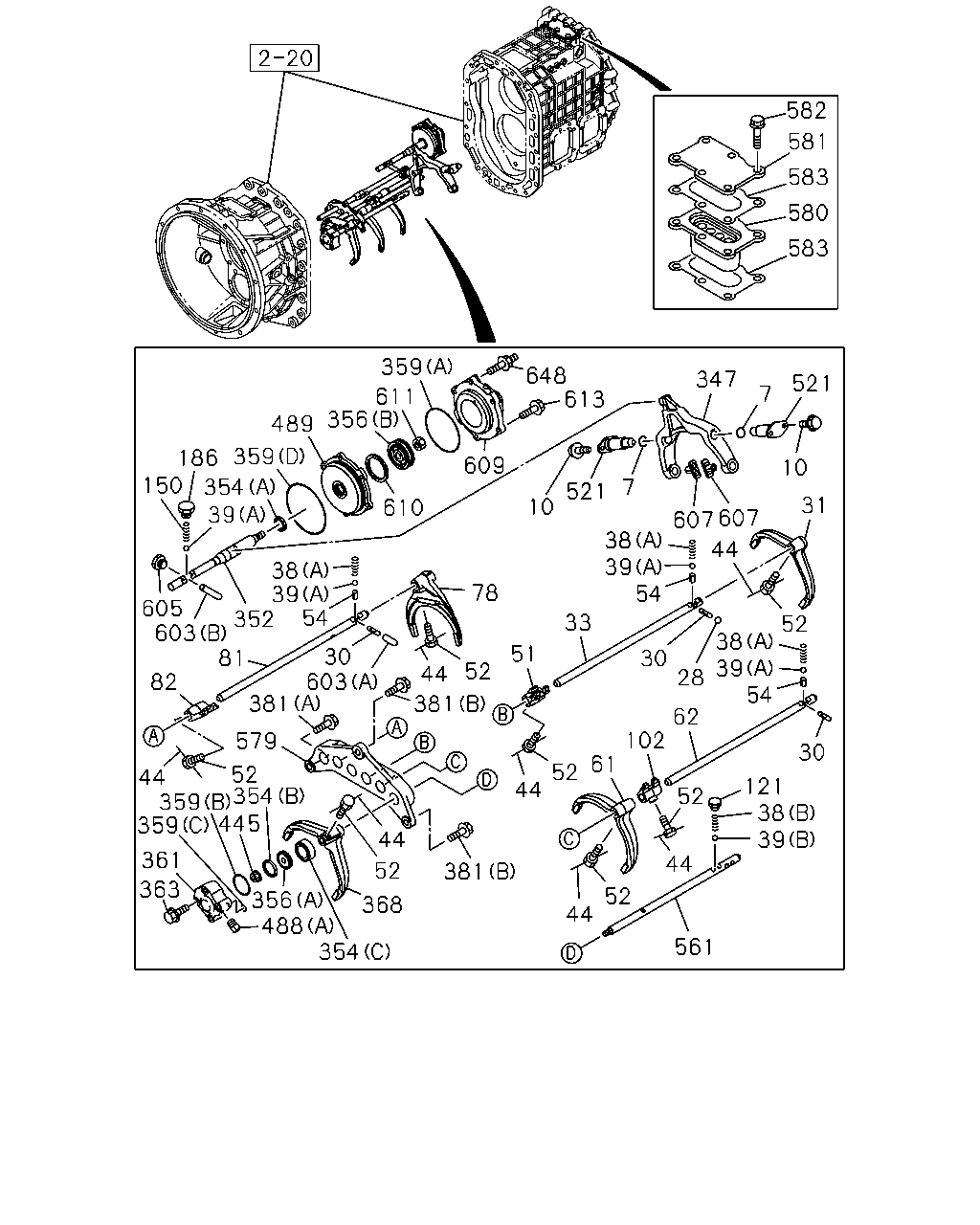

çizim 133644
582 581 583 580 583 359 648 613 347 521 7 611 356 489 359 186 150 609 10 354 39 7 521 31 10 610 38 39 54 44 38 39 605 603 81 78 33 52 38 39 54 51 30 603 381 30 52 44 28 82 381 62 102 579 30 61 52 44 52 354 359 121 38 39 44 52 44 361 44 52 381 363 488 354 52 368 44 561 359 445 607 607 352 54 356
BalonParca AdiParca NoAdetTipApplied Date
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 0811-
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 0811-
28 BALL; INTER LK 9-00097-501-0 02 1 0811-
30 PIN; INTER LK 9-33534-003-0 03 1 0811-
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 0811-
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 0811-
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0811-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0811-
38 SPRING; DETENT
(C) 		1-09580-574-0 01 1 0811-
38 SPRING; DETENT
(D) 		1-09580-580-0 01 1 0811-
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 0811-
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 0811-
44 WIRE; LK
L=200 		9-08351-020-0 07 1 0811-
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 0811-
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 0811-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0811-
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 0811-
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 0811-
78 ARM; SHIFT,REV 1-33511-589-0 01 1 0811-
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 0811-
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 0811-
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 0811-
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 0811-
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 0811-
150 SPRING; DETENT BALL 1-09580-379-0 01 1 0811-
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 0811-
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 0811-
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 0811-
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 0811-
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 0811-
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 0811-
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 0811-
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 0811-
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 0811-
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 0811-
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 0811-
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 0811-
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 0811-
363 BOLT; AIR CYL
M10X60 FLANGE 		0-28151-060-0 04 1 0811-1003
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1004-
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 0811-
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0811-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0811-
381 BOLT
(C) 		1-09044-111-0 04 1 0811-
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 0811-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 0811-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0811-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0811-
489 COVER; AIR CYL 1-33569-052-0 01 1 0811-
521 SPINDLE; 6TH 1-33519-131-0 02 1 0811-
561 ROD; SHIFT 1-33531-466-0 01 1 0811-
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 0811-
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 0811-
581 COVER; BLOCK 1-33141-056-0 01 1 0811-
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 0811-
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 0811-
603 ROD; INTER LK
(A) L=49 		1-33534-005-0 01 1 0811-
603 ROD; INTER LK
(B) L=77 		1-33534-010-0 01 1 0811-
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 0811-
607 PIECE; SHIFT 1-33518-010-0 02 1 0811-
609 BODY; AIR,CYL 1-33561-018-0 01 1 0811-
610 SEAL; PISTON 1-33738-054-0 01 1 0811-
611 NUT; SHAFT 8-97324-304-0 01 1 0811-
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 04 1 0811-
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 02 1 0811-

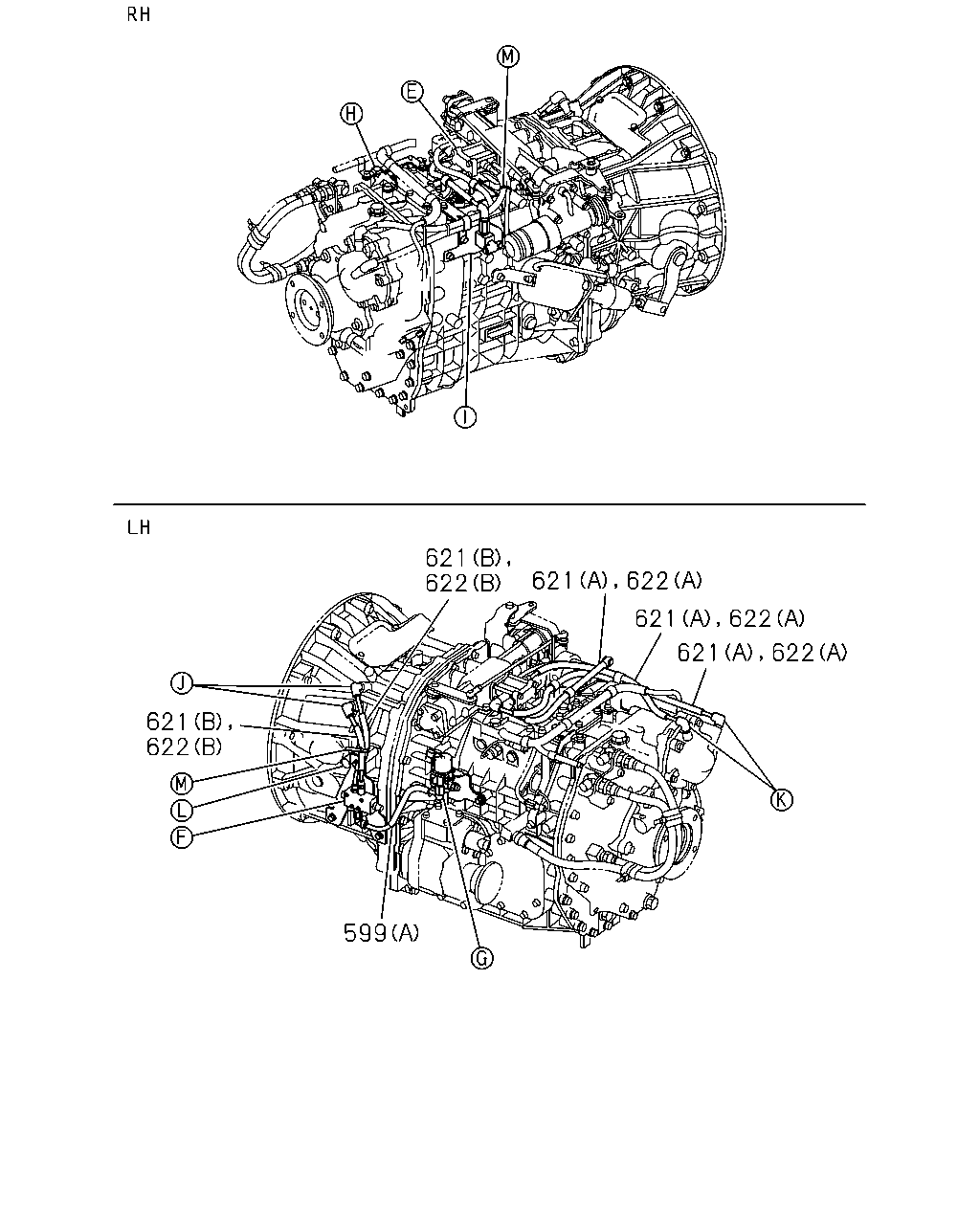

çizim 133647
621 62 621 622 621 622 621 622 621 622 599
BalonParca AdiParca NoAdetTipApplied Date
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 0811-
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 0811-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 0811-
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 03 1 0811-
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0811-
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 03 1 0811-
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0811-

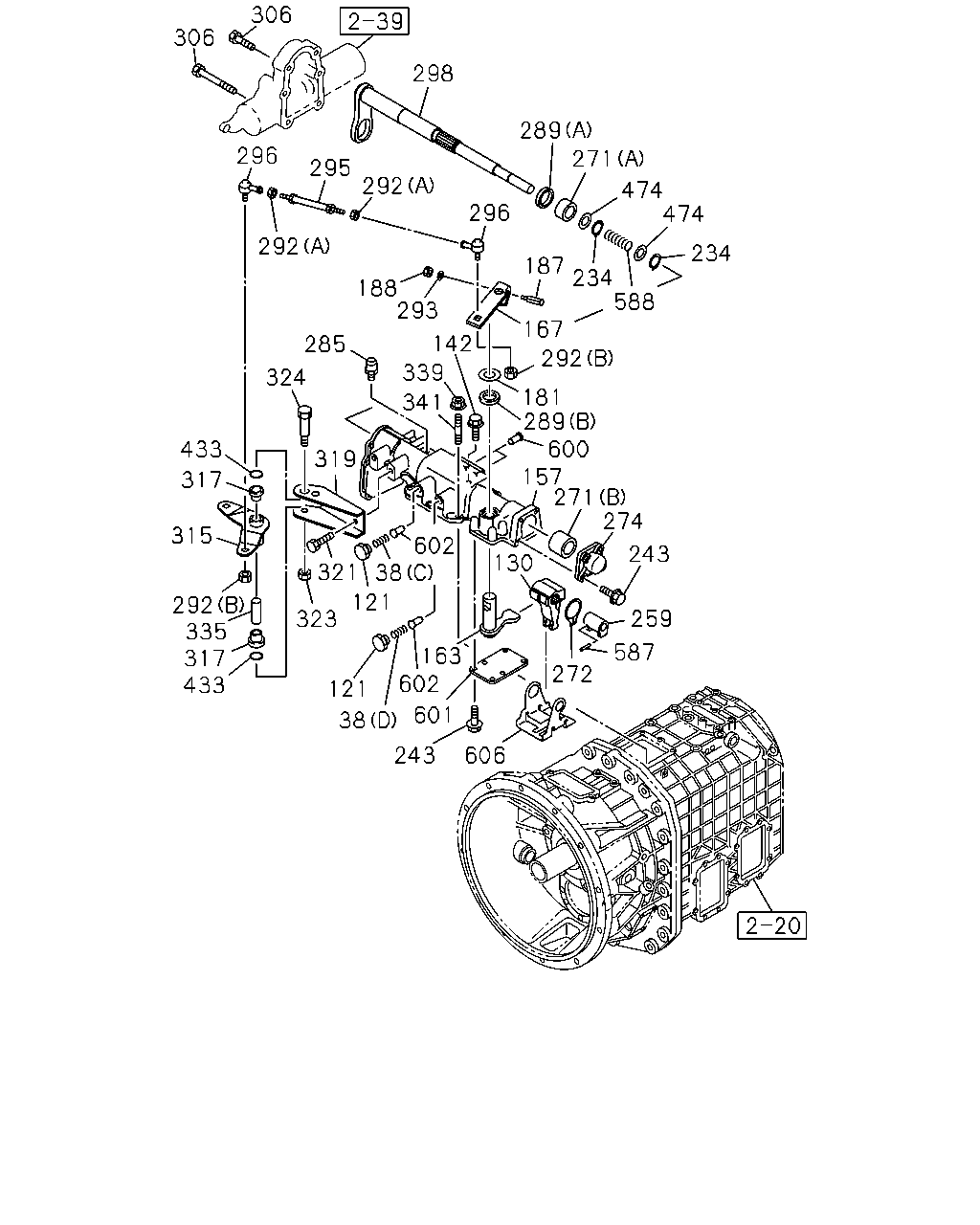

çizim 133989
306 306 298 289 296 271 295 292 474 474 296 292 234 187 234 588 188 293 142 167 285 292 339 324 181 289 600 157 271 274 341 433 319 317 602 38 130 315 243 321 121 292 335 317 433 259 323 163 602 587 272 121 601 38 243 606
BalonParca AdiParca NoAdetTipApplied Date
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0811-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0811-
38 SPRING; DETENT
(C) 		1-09580-574-0 01 1 0811-
38 SPRING; DETENT
(D) 		1-09580-580-0 01 1 0811-
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 0811-
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 0811-
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 0811-
142 BOLT; QUAD BOX
M10X30 FLANGE 		0-28751-030-0 01 1 0811-
157 BOX; QUAD,TRANS 1-33541-534-0 01 1 0811-
163 LEVER; SELECT,INTERNAL 1-33522-171-1 01 1 0811-
167 LEVER; SELECT,EXTERNAL 1-33521-190-0 01 1 0811-1506
167 LEVER; SELECT,EXTERNAL 8-98232-015-0 01 1 1507-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0811-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0811-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0811-
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 0811-
243 BOLT; COVER
M8X35 FLANGE 		0-28650-835-0 10 1 0811-
259 GUIDE; SELECT,CONT BOX 1-33519-135-0 01 1 0811-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0811-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0811-
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 0811-
274 COVER; SHAFT,QUAD BOX 1-33545-010-0 01 1 0811-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0811-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0811-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0811-
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0811-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0811-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0811-
295 ROD; LINK,RELAY LEVER 1-33652-924-0 01 1 0811-
296 ROD END 1-09760-108-0 02 1 0811-
298 SHAFT; SHIFT LEVER 1-33522-196-0 01 1 0811-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0811-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0811-
315 LEVER; SELECT 1-33651-754-0 01 1 0811-
317 BUSHING; LEVER 1-09330-119-0 02 1 0811-
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0811-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0811-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0811-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0811-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0811-
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 0811-
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 0811-
433 GASKET; BUSHING 1-09623-636-0 02 1 0811-
474 WASHER; SPRING STOPPER 9-09160-716-0 02 1 0811-
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 0811-
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 0811-
600 PLUNGER; VLV 1-33263-037-0 02 1 0811-
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 0811-
602 PLUNGER; DETENT 1-33263-037-0 02 1 0811-
606 INHIBITOR 1-33529-116-0 01 1 0811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
