Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11321 - EXZ MIDDLE EAST WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

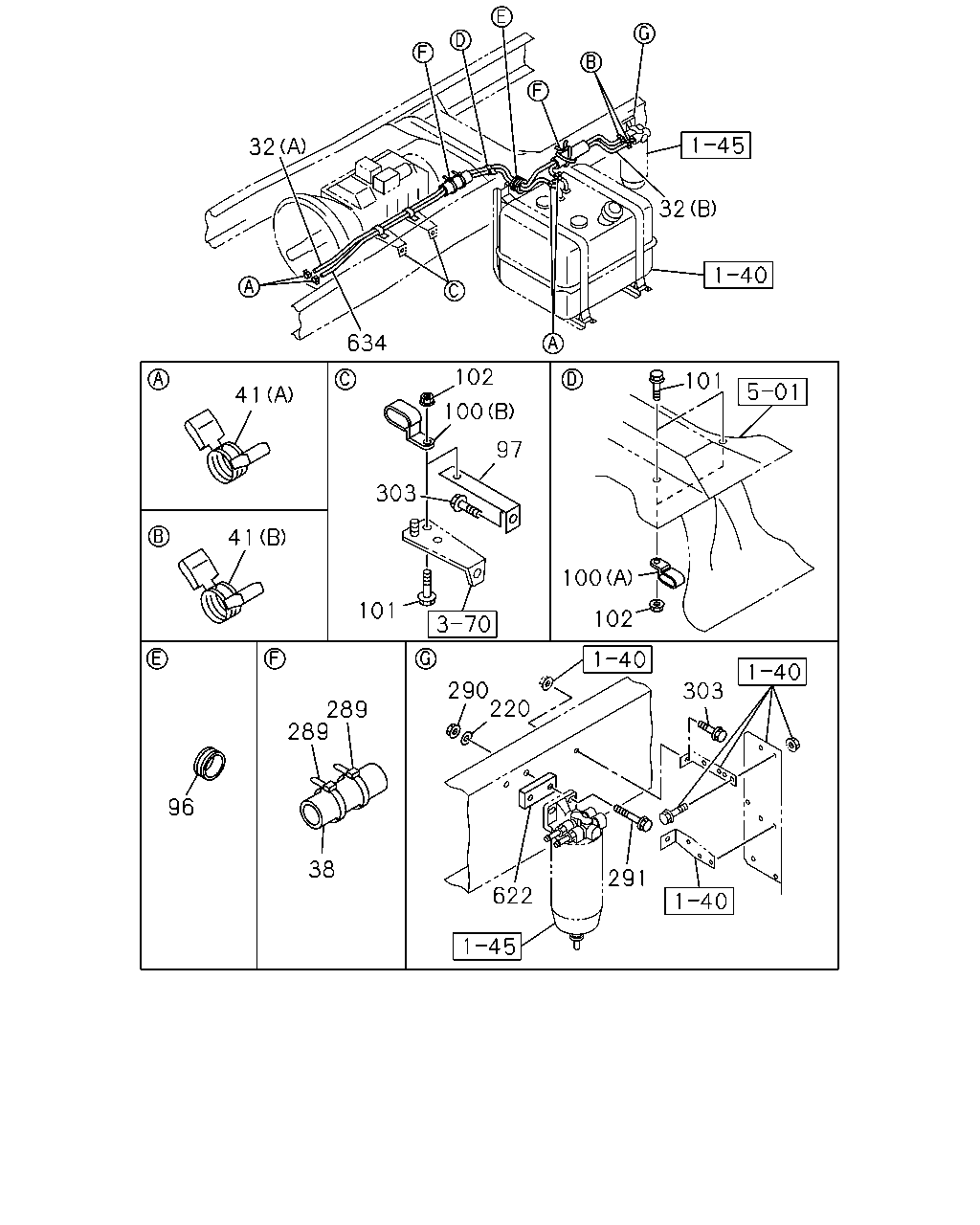

1-41 — FUEL PIPING; CHASSIS
(#56393) — 21 parça
32
32
634
102
101
41
100
97
303
41
100
101
102
290
220
303
289
289
96
38
291
622
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
0811-
32
PIPE; DELIVERY,FUEL TANK
(A) L=1850 SERVICED BY L=3000
0-01262-300-0
01
1
0811-
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
0811-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
02
1
0811-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
02
1
0811-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
0811-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18
1-09891-003-0
01
1
0811-
97
BRACKET; CLIP
1-47475-927-0
01
1
0811-1010
97
BRACKET; CLIP
L=68
1-47475-525-0
01
1
1011-
100
CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20
1-09700-744-0
01
1
0811-
100
CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=22.5
1-09701-315-0
03
1
0811-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
0811-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
04
1
0811-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
02
1
0811-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
0811-
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0811-
291
BOLT; FILER TO BRKT
M10X50 FLANGE
0-28051-050-0
02
1
0811-
303
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0811-
303
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0811-
622
SPACER; BRKT
8-98124-944-0
01
1
0811-
634
HOSE; RUBBER RETURN
L=1600 SERVICED BY L=3000
0-01260-300-0
01
1
0811-
