Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11321 - EXZ MIDDLE EAST WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

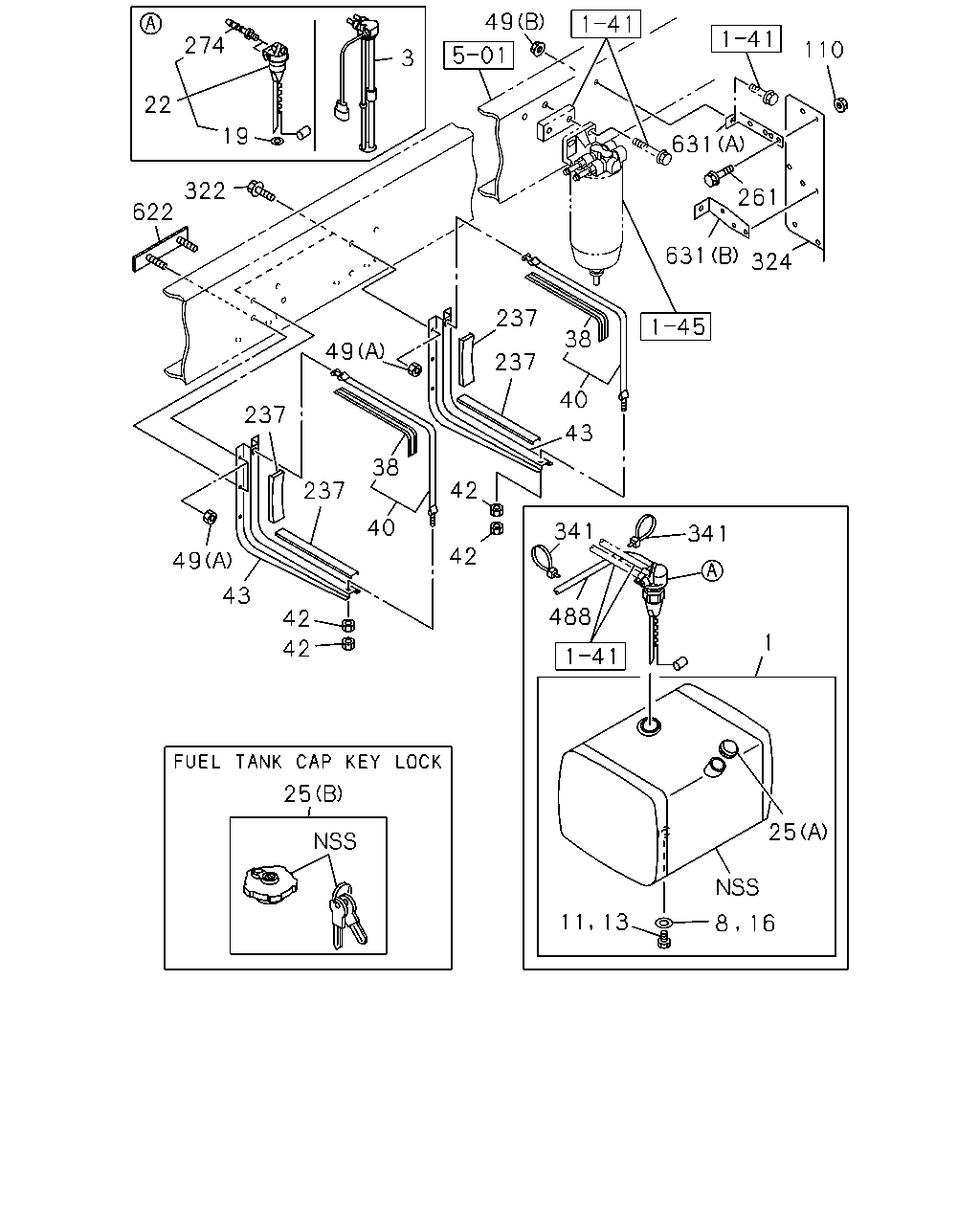

1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#56392) — 35 parça
274
19
322
22
622
237
49
38
237
49
43
42
42
40
42
42
25
11
13
8
16
25
1
488
341
341
43
40
38
237
237
324
631
261
631
110
49
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87411-173-1
01
1
0811-0811
1
TANK; FUEL
1050X680X625 400L
1-87411-699-1
01
1
0811-1109
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1110-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1211-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1211-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1211-
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
0811-1210
16
GASKET; PLUG
ID=18.2 T=1.6
8-98030-453-0
01
1
0811-1210
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0811-1210
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1211-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0811-1210
25
CAP; FILLER,FUEL TANK
(A)
1-22440-063-1
01
1
0811-0811
25
CAP; FILLER,FUEL TANK
(A)
8-98115-780-0
01
1
0811-1109
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1110-
25
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (B)
8-98108-595-0
01
1
0811-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0811-
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
0811-1110
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1111-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0811-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0811-
49
NUT; BRKT
(A) M12
0-91110-512-0
08
1
0811-
49
NUT; BRKT
(A) M12
0-91110-512-0
08
1
0811-
49
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
0811-
110
NUT; PROTECTOR
M8 FLANGE
0-91180-108-0
04
1
0811-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
0811-
261
BOLT; PROTECTOR
M8X20 FLANGE
0-28650-820-0
04
1
0811-
274
CONNECTOR; ELBOW,FUEL TANK PIPE
1-83149-006-0
02
1
0811-1210
322
BOLT; BRKT FIX
M12X40 FLANGE
0-28051-240-0
10
1
0811-
324
PROTECTOR; FUEL SEDIMENTER
1-47471-216-0
01
1
0811-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
0811-
488
HOSE; RUBBER
8-98049-832-0
01
1
0811-0811
488
HOSE; RUBBER
8-98134-936-0
01
1
0812-
622
STUD; BRACKET
1-53461-534-0
01
1
0811-
631
BRACKET; PROTECTOR
(A)
1-82698-358-0
01
1
0811-
631
BRACKET; PROTECTOR
(B)
1-82698-625-0
01
1
0811-
