Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11321 - EXZ MIDDLE EAST WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#56387) — 48 parça
◀

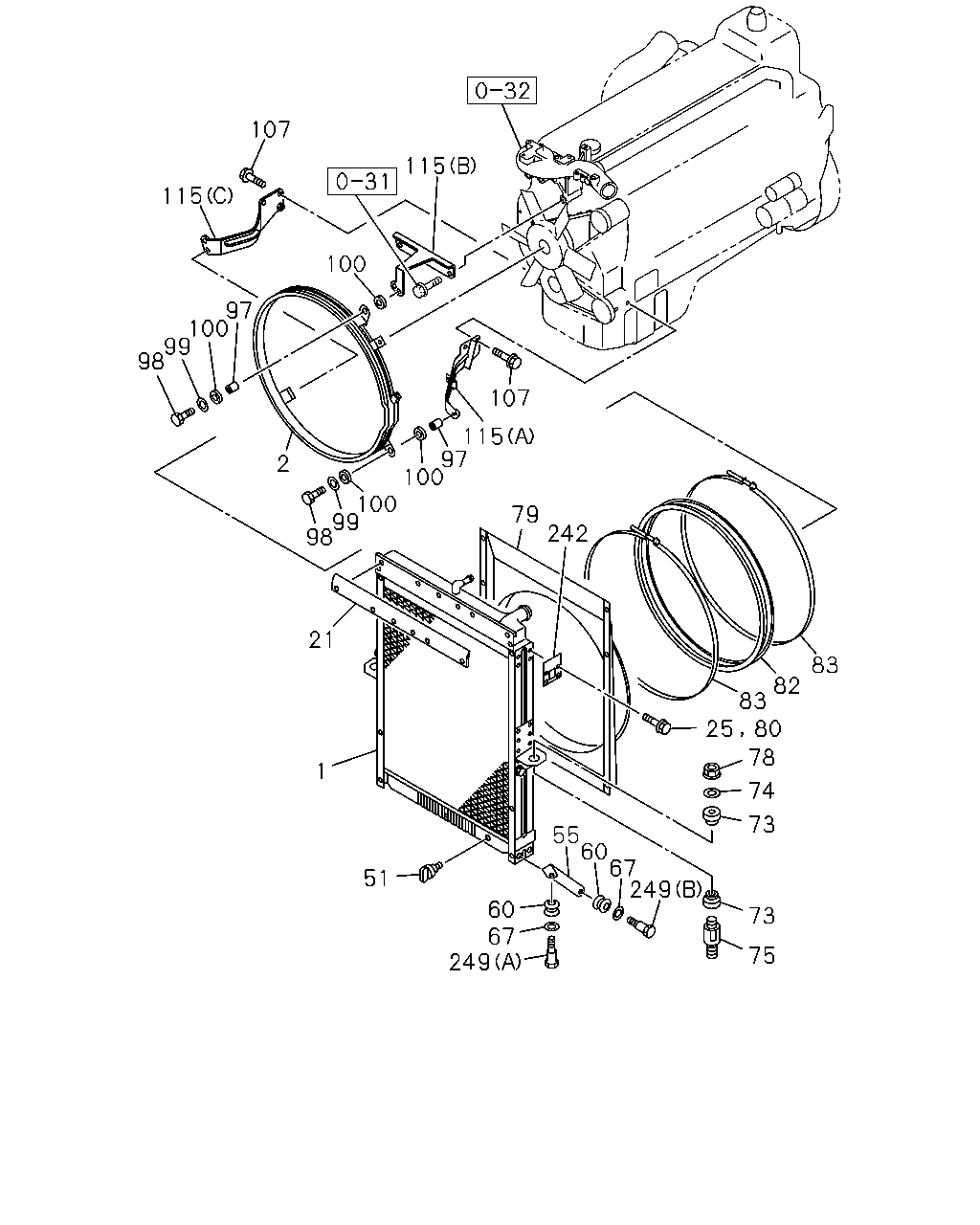

[110A] FIXING (36 parça)
[110A] COMPONENT (12 parça)
▶
107
115
115
100
97
100
99
98
107
115
97
100
100
99
98
2
79
242
21
83
82
83
78
1
74
73
55
60
67
249
51
60
67
249
73
75
25
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-921-4
01
1
0811-
2
GUIDE; FAN
8-97615-750-1
01
1
0811-
21
SEAL; RAD
1-21460-139-0
01
1
0811-0908
25
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
04
1
0811-
51
PLUG; DRAIN
W/GASKET
1-09609-023-0
01
1
0811-0908
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0909-
55
STAY; RAD TO UPR MBR
1-21464-766-0
01
1
0811-
55
STAY; RAD TO UPR MBR
1-21464-767-0
01
1
0811-
60
GROMMET
1-09332-117-0
04
1
0811-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
0811-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0811-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
0811-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0811-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
0811-
79
GUIDE; FAN,RAD
1-21551-548-0
01
1
0811-0908
79
GUIDE; FAN,RAD
1-21551-558-0
01
1
0909-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
0811-
82
COVER; FAN,RAD
1-21559-465-0
01
1
0811-
83
CLIP; FAN COVER
1-09707-152-2
02
1
0811-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
0811-
98
BOLT; RAD FAN GUIDE
M10X40 FLANGE
0-28051-040-0
02
1
0811-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
01
1
0811-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
0811-
100
RUBBER; MTG
1-09337-017-0
06
1
0811-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28951-425-0
04
1
0812-
115
BRACKET; FAN GUIDE
(C)
1-21559-421-1
01
1
0812-
115
BRACKET; FAN GUIDE
(B)
1-21559-422-0
01
1
0812-1301
115
BRACKET; FAN GUIDE
(B)
8-97643-211-0
01
1
1302-
115
BRACKET; FAN GUIDE
(A)
8-97612-230-0
01
1
0812-1301
115
BRACKET; FAN GUIDE
(A)
8-97643-212-0
01
1
1302-
242
BRACKET; RAD
1-21464-799-0
01
1
0811-0908
242
BRACKET; RAD
1-21464-801-0
01
1
0909-
242
BRACKET; RAD
1-21464-800-0
01
1
0811-0908
242
BRACKET; RAD
1-21464-802-0
01
1
0909-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
0811-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
0811-
1
528
526
529
232
267
89
528
529
527
267
235
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-921-4
01
1
0811-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
0811-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
0811-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
0811-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
0811-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
0811-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
0811-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
0811-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
0811-
528
PLATE; SIDE,RADIATOR CORE
1-21416-125-0
01
1
0811-
528
PLATE; SIDE,RADIATOR CORE
1-21416-126-0
01
1
0811-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
0811-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
