Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11321 - EXZ MIDDLE EAST WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

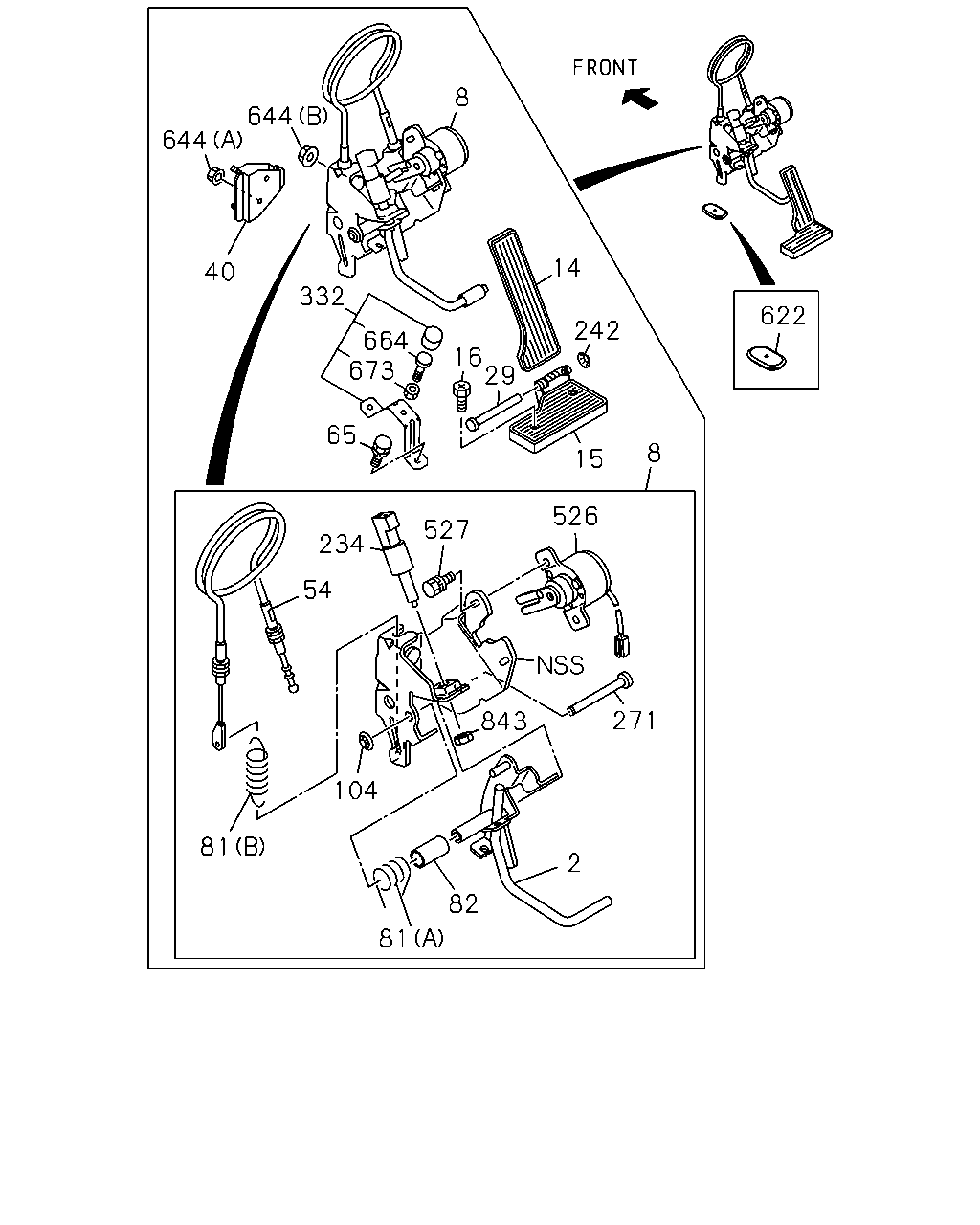

1-01 — ACCELERATOR PEDAL AND CONTROL
(#56386) — 25 parça
8
644
644
14
40
332
622
242
664
673
16
29
65
8
15
526
527
234
54
843
271
104
81
2
82
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-71907-550-2
01
1
0811-
8
LINK ASM; ENG CONT
1-73996-531-3
01
1
0811-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0811-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0811-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0811-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0811-
40
BRACKET; ENG CONT CABLE
1-71907-269-0
01
1
0811-
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
0811-
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0811-
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
0811-
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
0811-
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
0811-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0811-
234
SWITCH; ACCEL
1-82380-131-2
01
1
0811-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0811-
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
0811-
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
0811-
526
SENSOR; ACCEL
1-80250-030-0
01
1
0811-
527
BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0811-
622
GROMMET; ACCEL CONT CABLE
OD=30
8-94107-655-0
01
1
0811-
644
NUT; LINK,ENG CONT
(B) M8 FLANGE
0-91180-108-0
02
1
0811-
644
NUT; LINK,ENG CONT
(A) M8 FLANGE W/RUBBER
1-09984-176-0
03
1
0811-
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0811-
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0811-
843
NUT
M12
0-91111-512-0
01
1
0811-
